Control Module, A/T

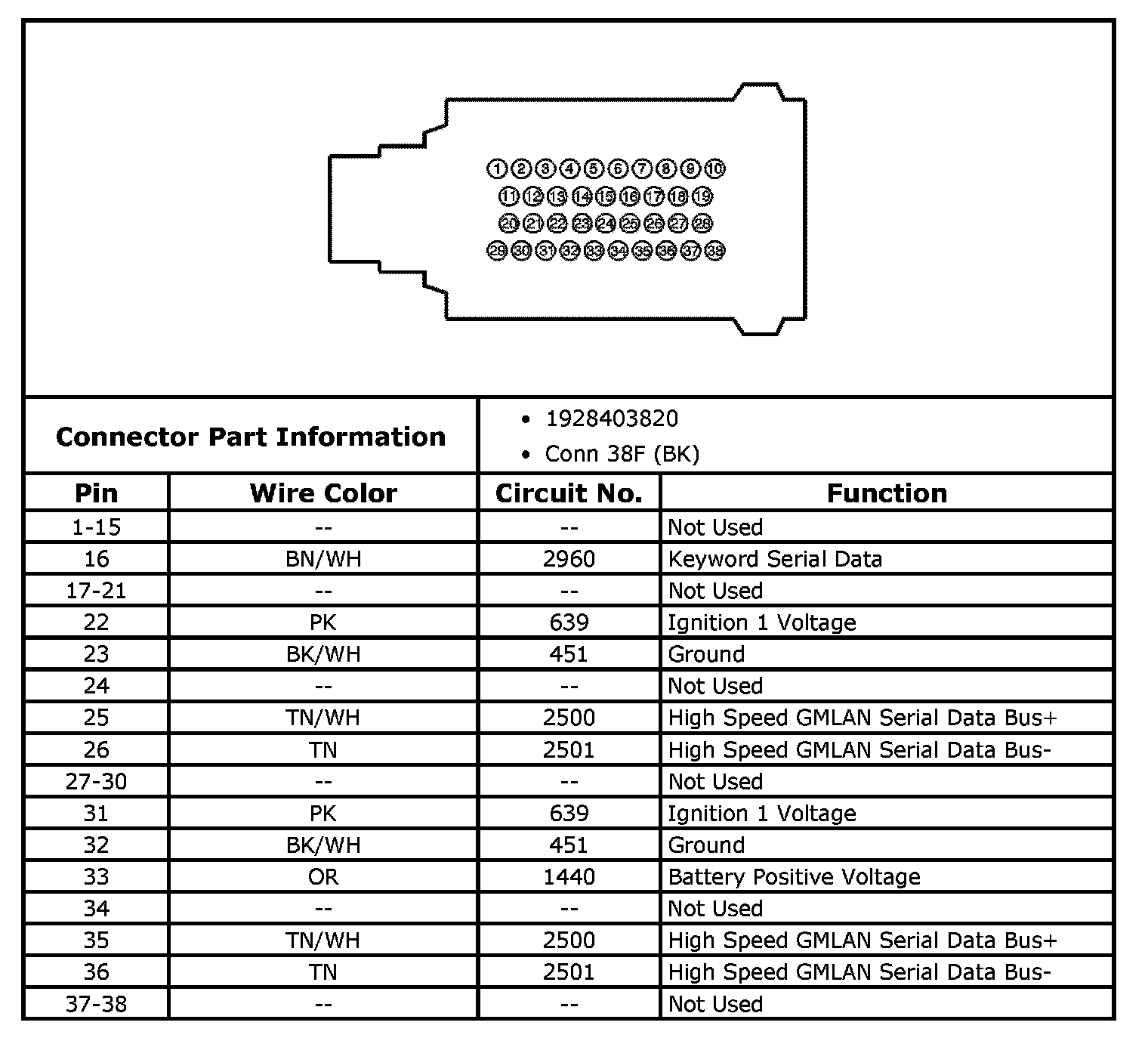

Transmission Control Module Connector - C1

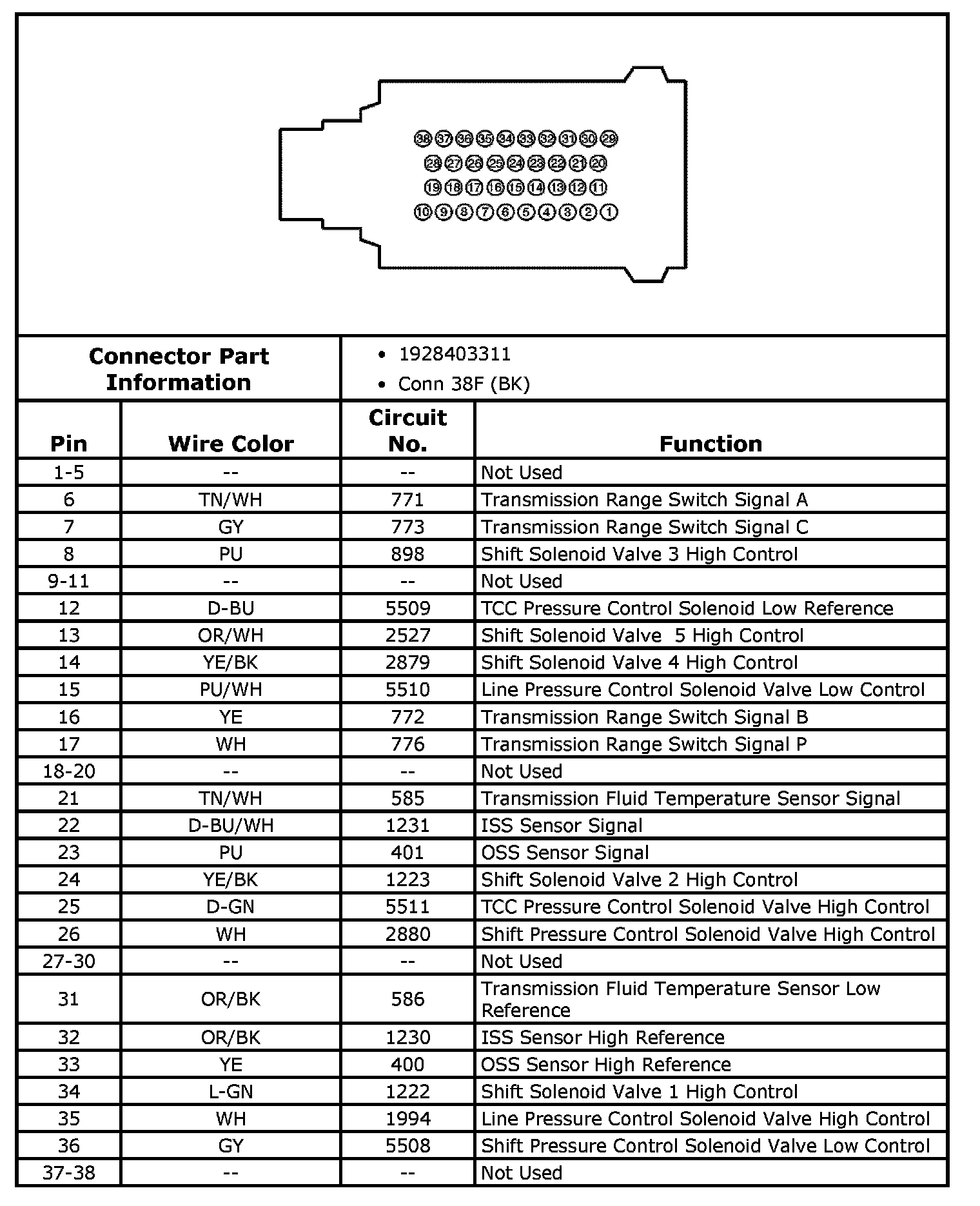

Transmission Control Module Connector - C2
