Seat Temperature Control Module

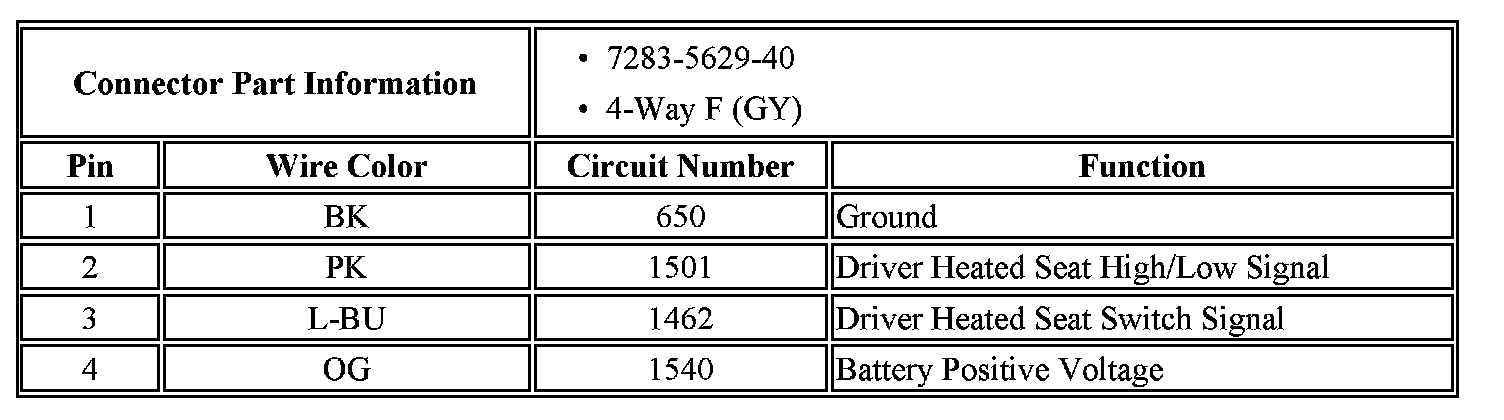

Heated Seat Module - Driver C1

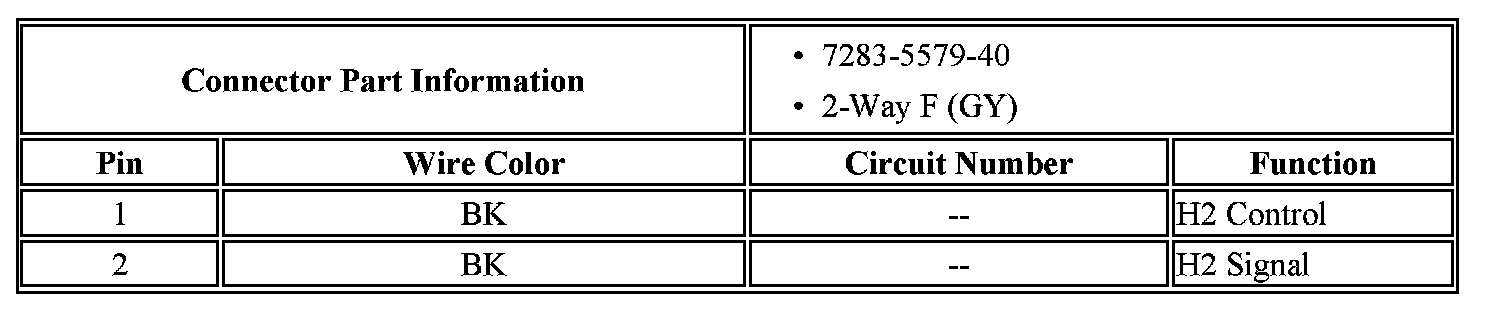

Heated Seat Module - Driver C2 (Heated Seat Cushion Pigtail)

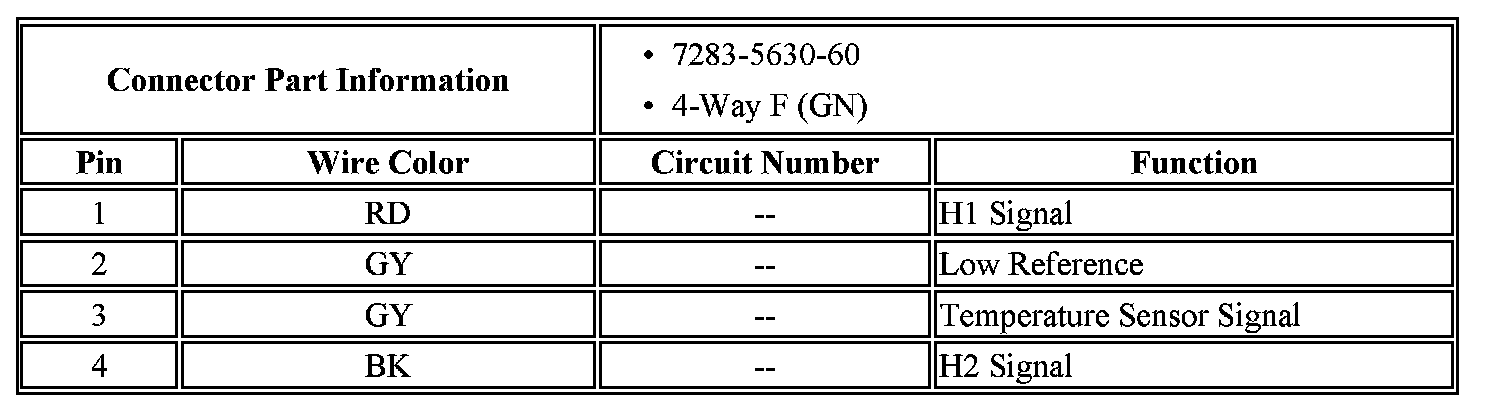

Heated Seat Module - Driver C3 (Heated Seat Back Pigtail

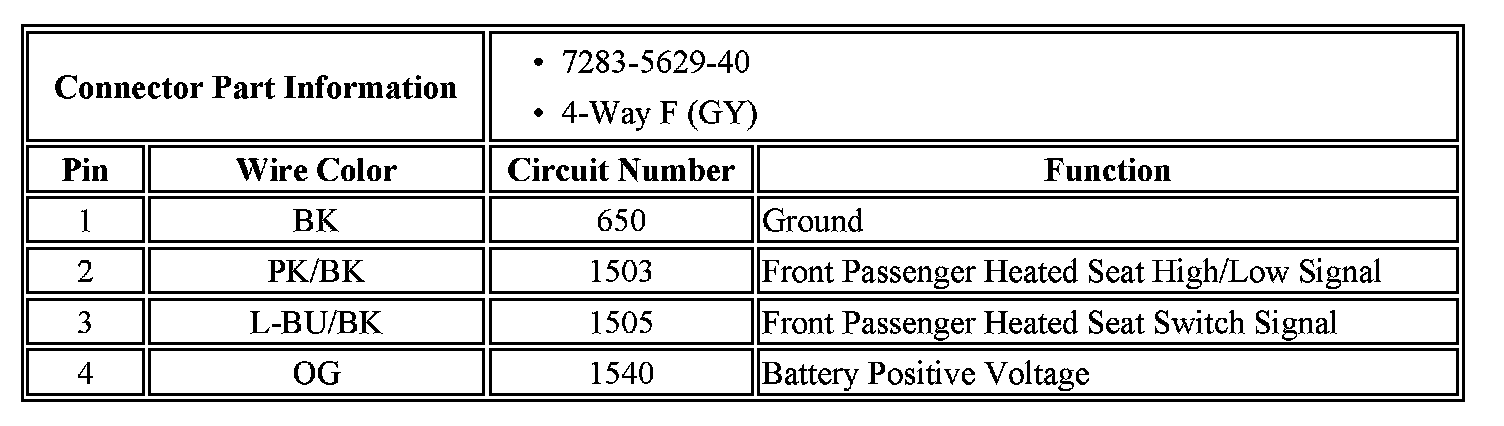

Heated Seat Module - Front Passenger C1






Heated Seat Module - Front Passenger C2 (Heated Seat Cushion Pigtail)

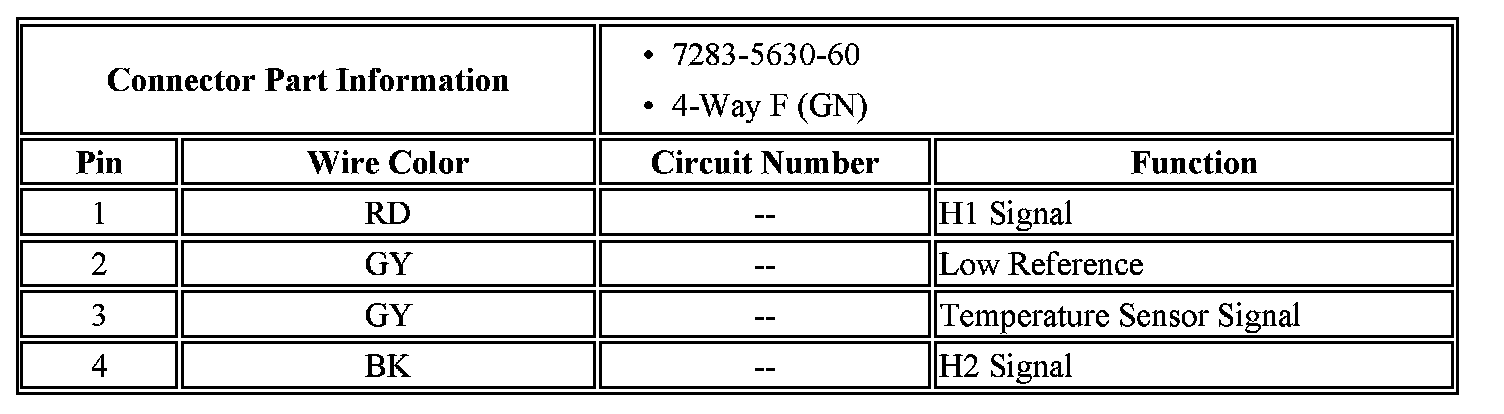

Heated Seat Module - Front Passenger C3 (Heated Seat Back Pigtail)
