Transmission Control Systems

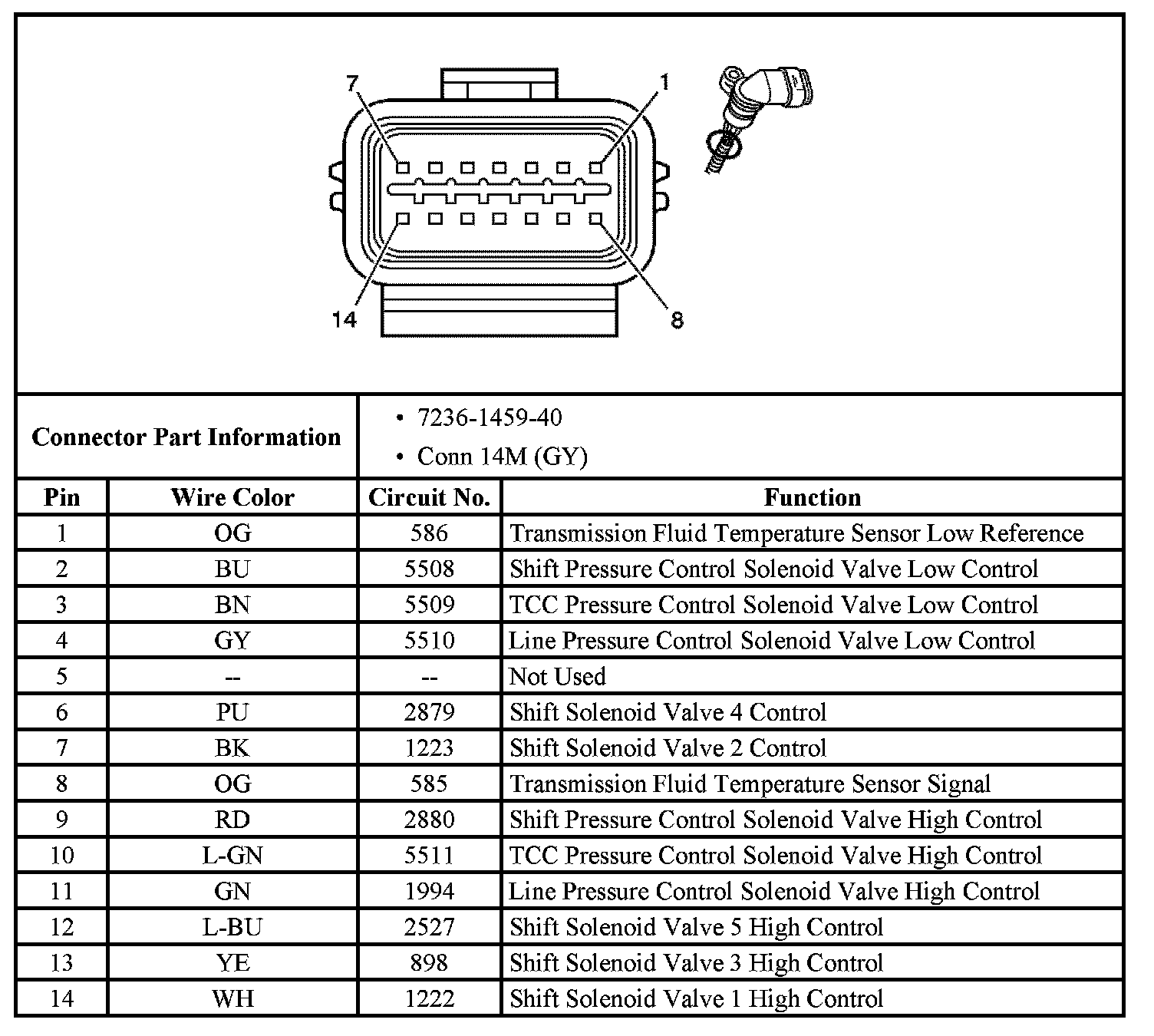

AUTOMATIC TRANSMISSION INLINE HARNESS CONNECTOR

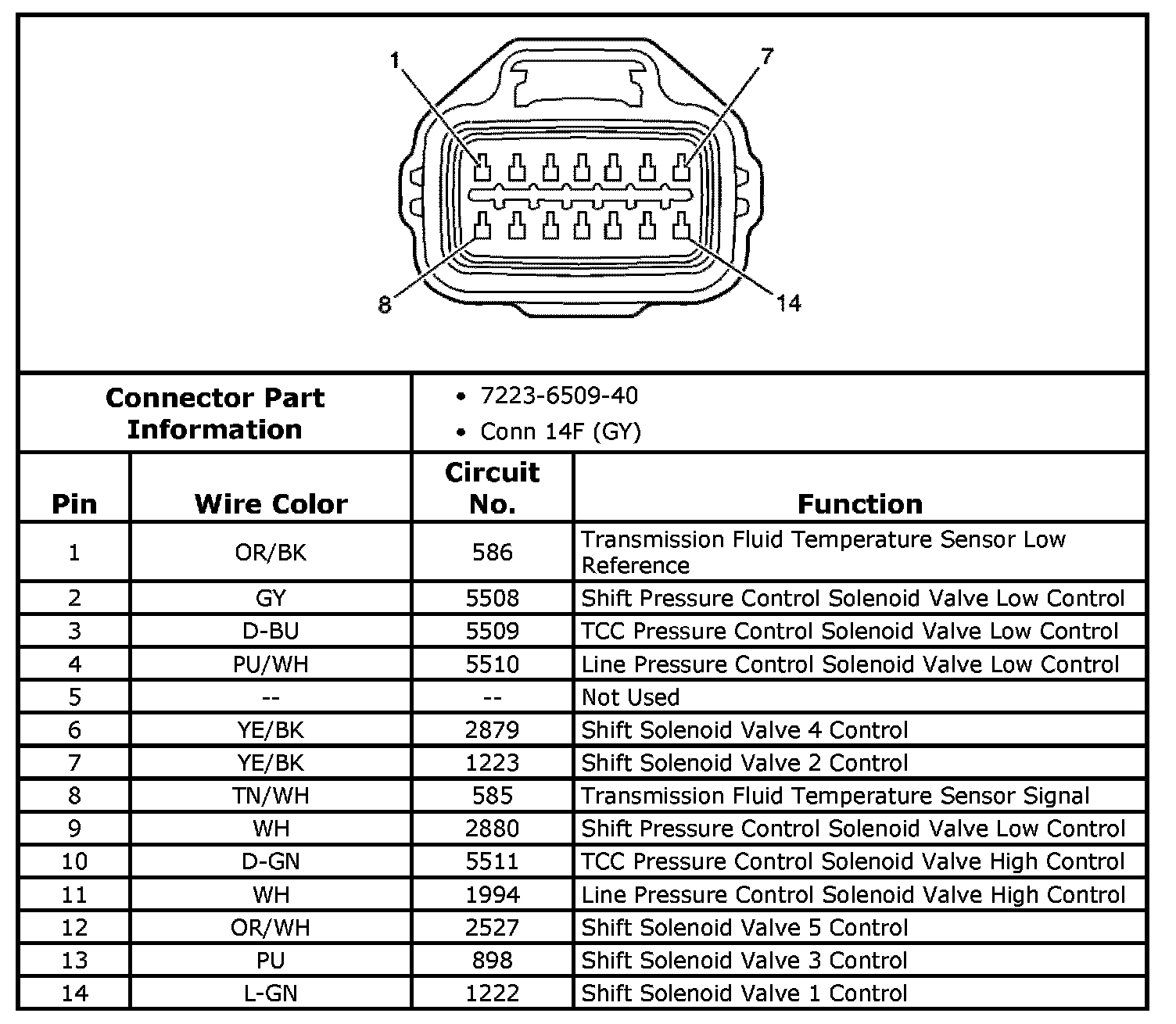

Transmission Side
Wiring Harness Side
