Front Differential Carrier Assembly - AWD/FWD

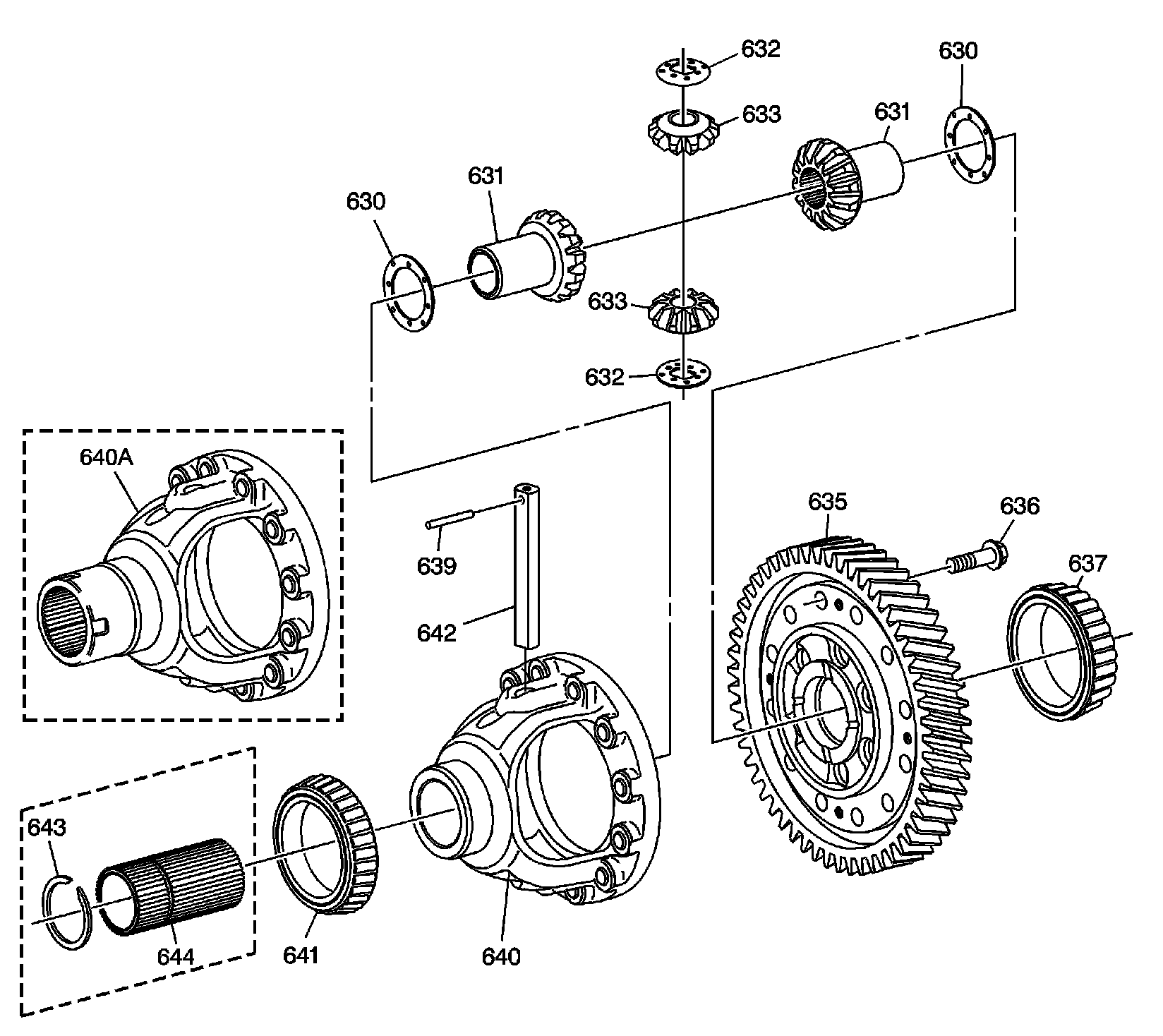

AWDAWD:
(630) Front Differential Side Gear Thrust Washer (2) (Selective)
(630) Front Differential Side Gear Thrust Washer (2) (Selective)
(631) Front Differential Side Gear (2)
(631) Front Differential Side Gear (2)
(632) Front Differential Pinion Shaft Thrust Washer (2)
(632) Front Differential Pinion Shaft Thrust Washer (2)
(633) Front Differential Pinion Gear (2)
(633) Front Differential Pinion Gear (2)
(635) Front Differential Ring Gear
(636) Front Differential Ring Gear Mounting Bolt (M11 x 1.0 x 27) (12)
(637) Front Differential Tapered Outer Roller Bearing (86 mm I.D.)
(639) Front Differential Pinion Shaft Retaining Pin (6 mm x 38 mm) (1)
(640) Front Differential Carrier Assembly - FWD
(640a) Front Differential Carrier Assembly - AWD
(641) Front Differential Tapered Outer Roller Bearing (90 mm I.D.)
(642) Front Differential Pinion Shaft (17.0 x 110.4)
(643) Front Differential Pinion Shaft Retaining Ring - AWD
(644) Splined Stub Shaft - AWD Only

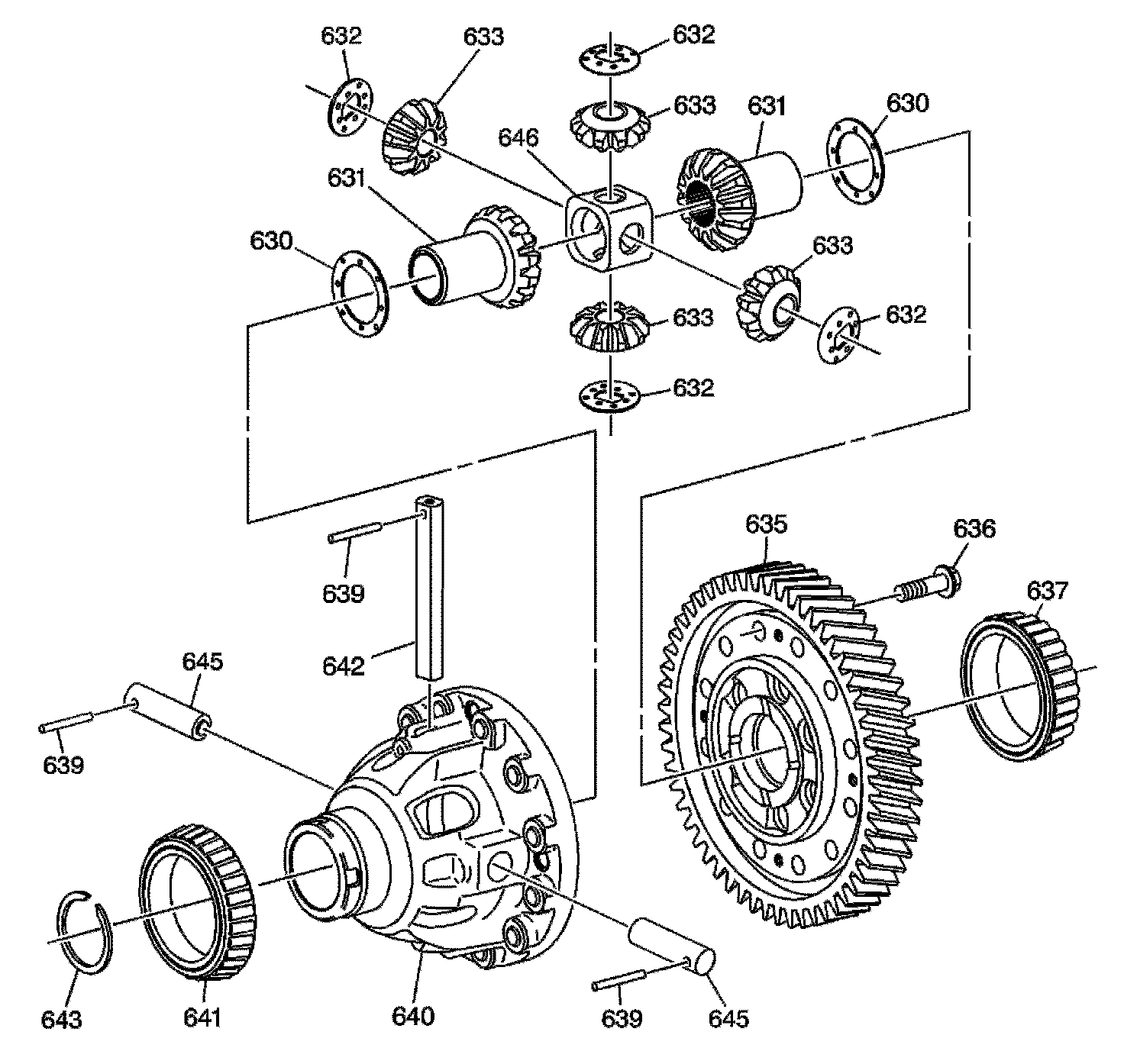

FWD
FWD:
(630) Front Differential Side Gear Thrust Washer (2) (Selective)
(630) Front Differential Side Gear Thrust Washer (2) (Selective)
(631) Front Differential Side Gear (2)
(631) Front Differential Side Gear (2)
(632) Front Differential Pinion Shaft Thrust Washer (4)
(632) Front Differential Pinion Shaft Thrust Washer (4)
(632) Front Differential Pinion Shaft Thrust Washer (4)
(632) Front Differential Pinion Shaft Thrust Washer (4)
(633) Front Differential Pinion Gear (4)
(633) Front Differential Pinion Gear (4)
(633) Front Differential Pinion Gear (4)
(633) Front Differential Pinion Gear (4)
(635) Front Differential Ring Gear
(636) Front Differential Ring Gear Mounting Bolt (M11 x 1.0 x 34) (12)
(637) Front Differential Tapered Outer Roller Bearing (86 mm I.D.)
(639) Front Differential Pinion Shaft Retaining Pin (6 mm x 38 mm) (3)
(639) Front Differential Pinion Shaft Retaining Pin (6 mm x 38 mm) (3)
(639) Front Differential Pinion Shaft Retaining Pin (6 mm x 38 mm) (3)
(640) Front Differential Carrier Assembly
(641) Front Differential Tapered Outer Roller Bearing (90 mm I.D.)
(642) Front Differential Pinion Shaft (17.0 x 110.4) (1)
(643) Front Differential Pinion Shaft Retaining Ring
(645) Front Differential Pinion Shaft (2)
(645) Front Differential Pinion Shaft (2)
(646) Front Differential Pinion Shaft Holder
