Electrical Diagrams

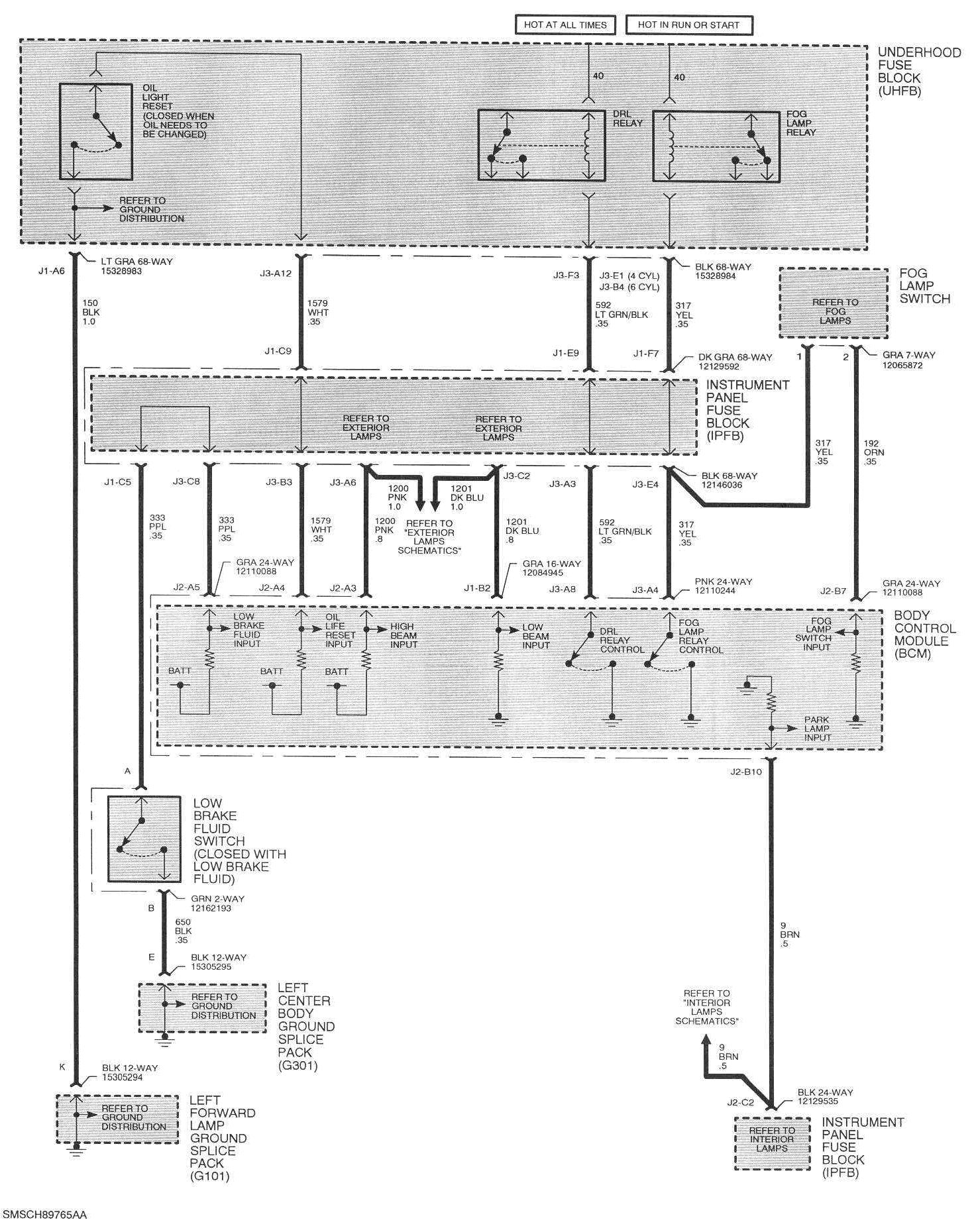

Body Control Module Schematics Part 1:

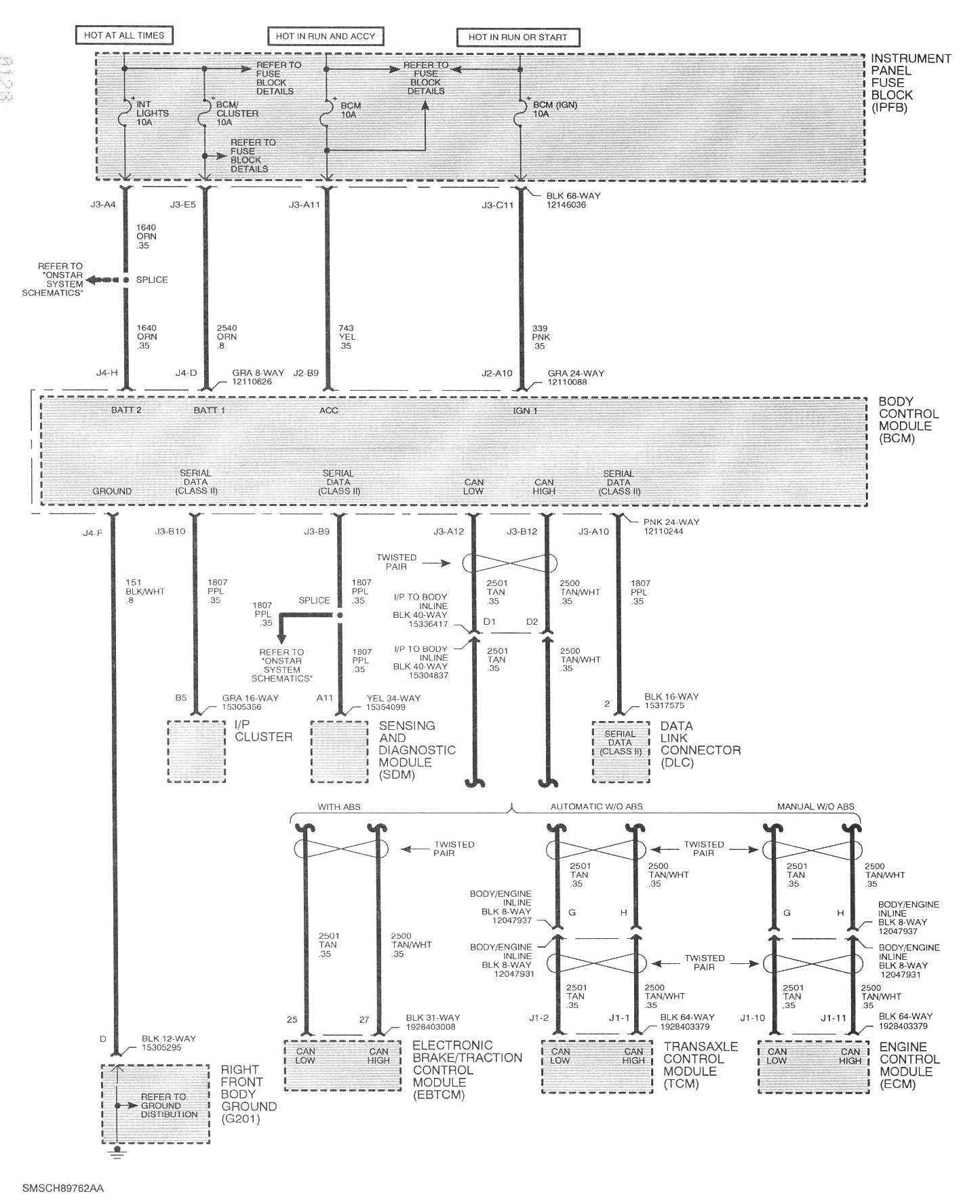

Body Control Module Schematics Part 2:

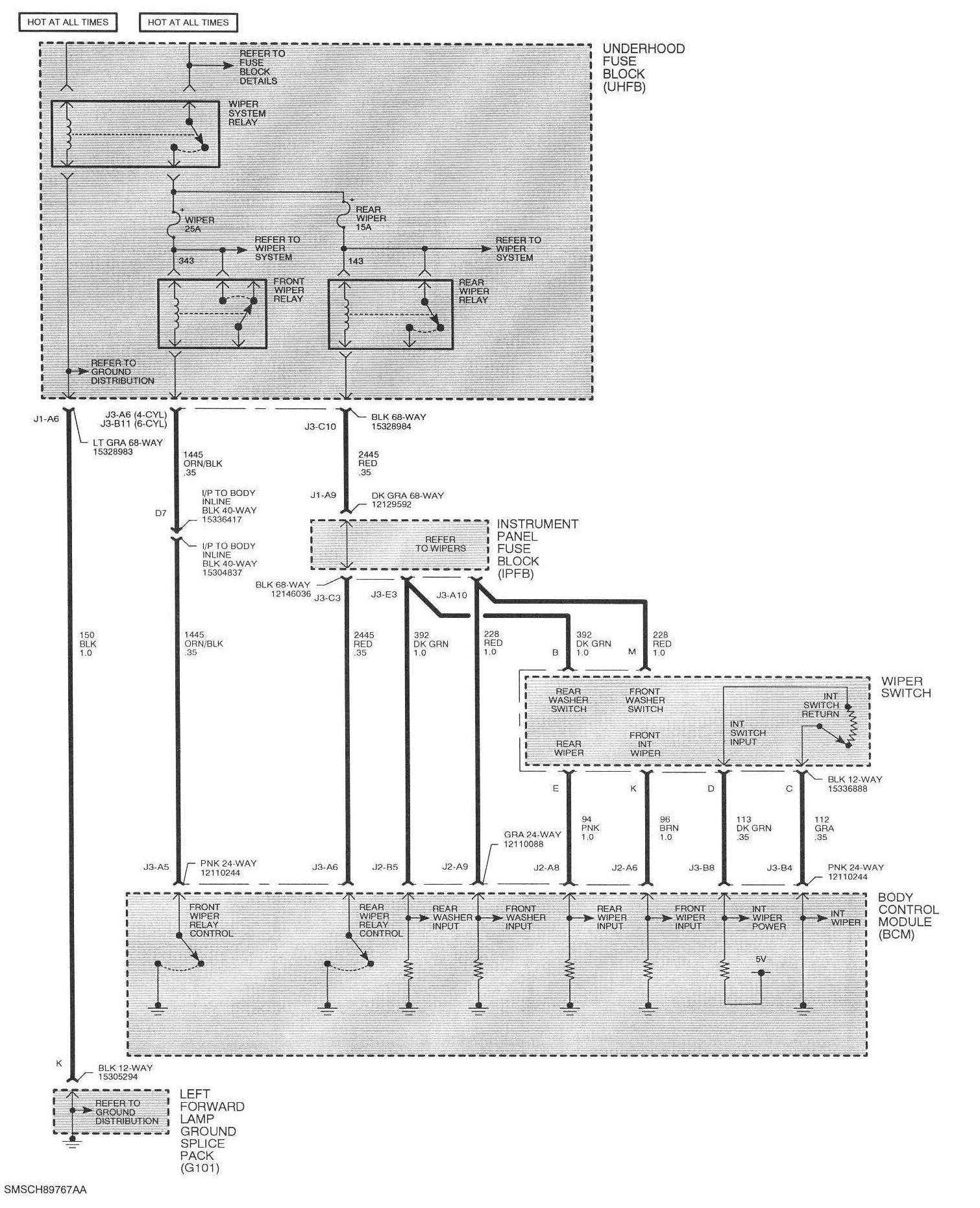

Body Control Module Schematics Part 3:

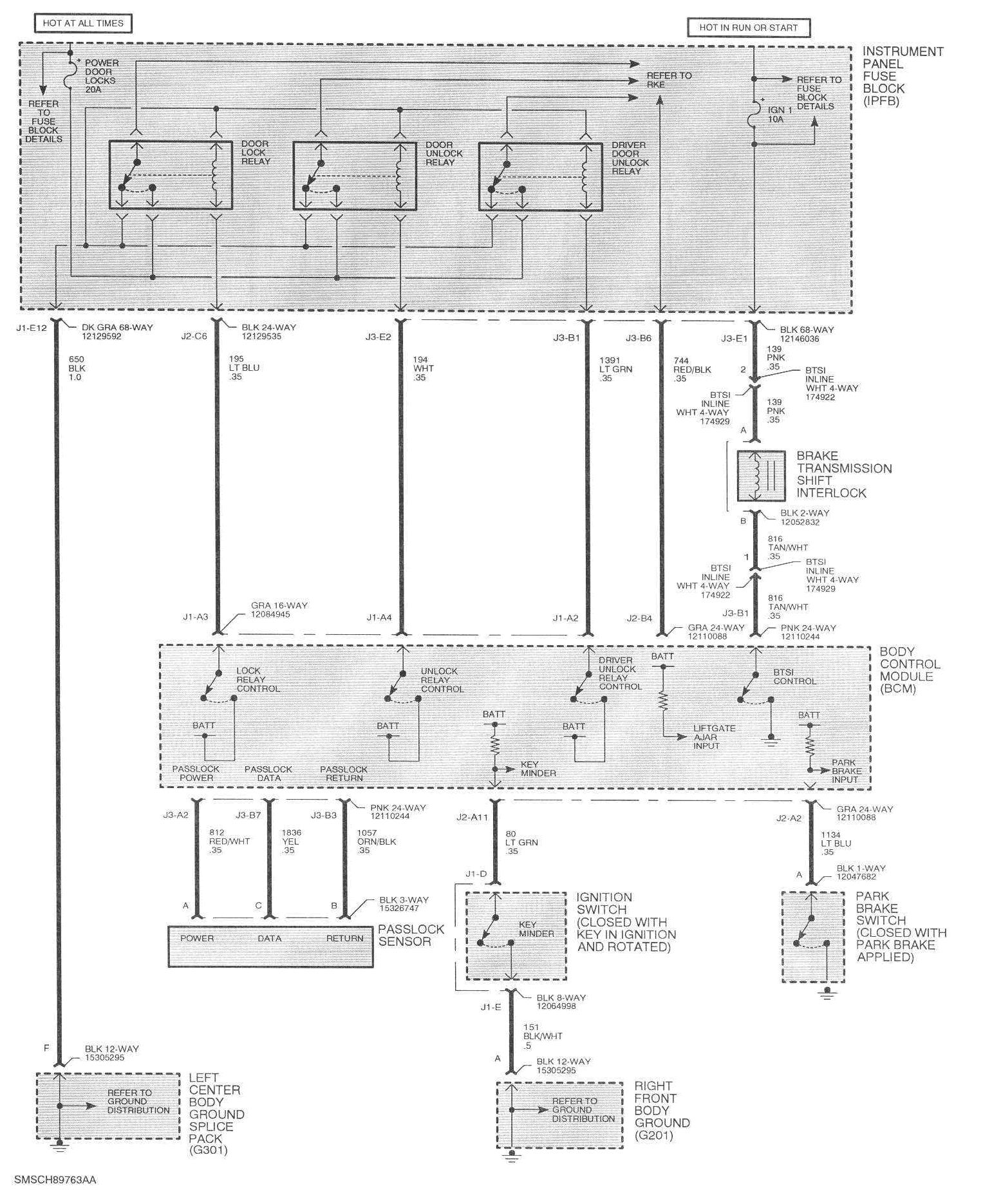

Body Control Module Schematics Part 4:

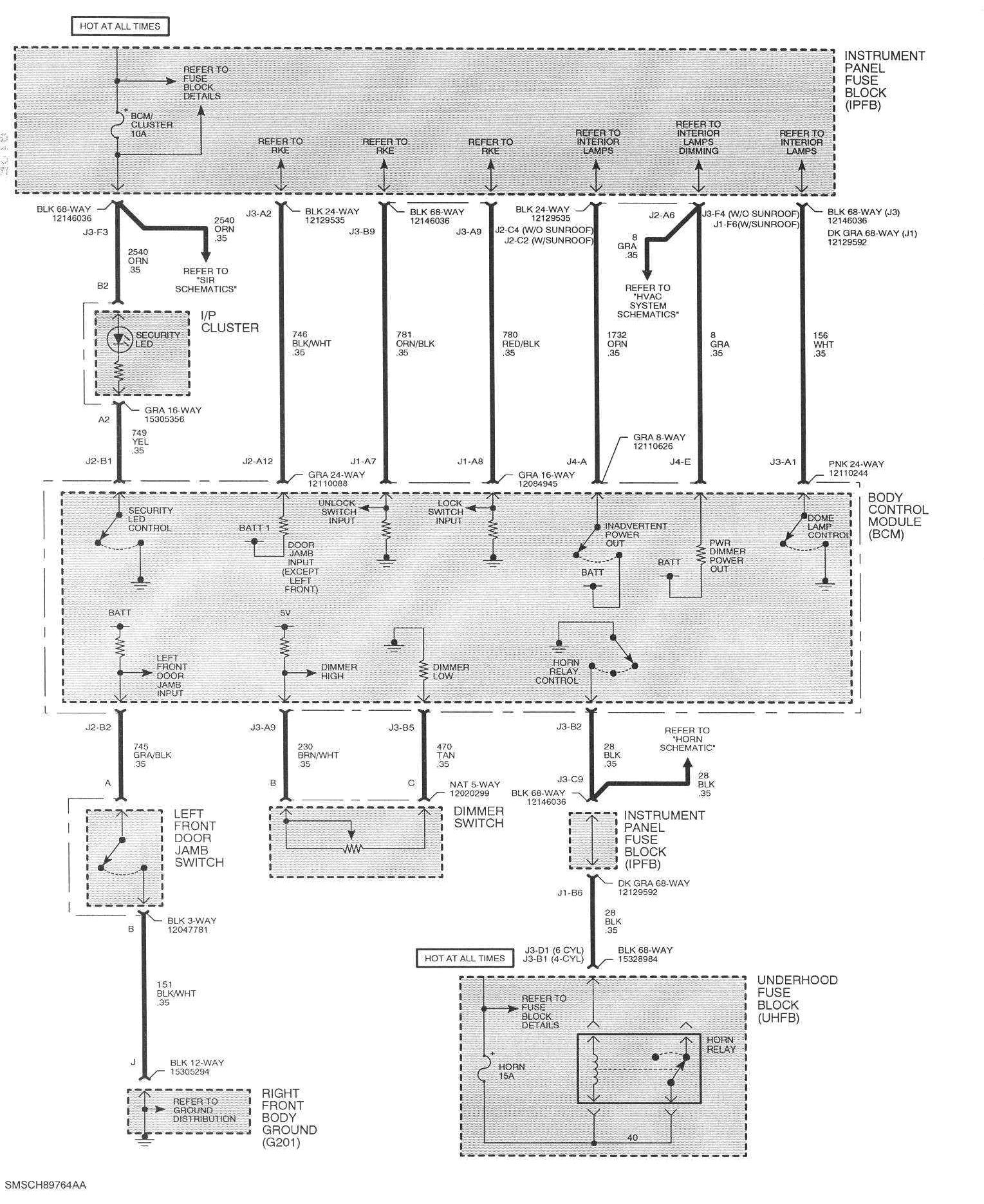

Body Control Module Schematics Part 5:

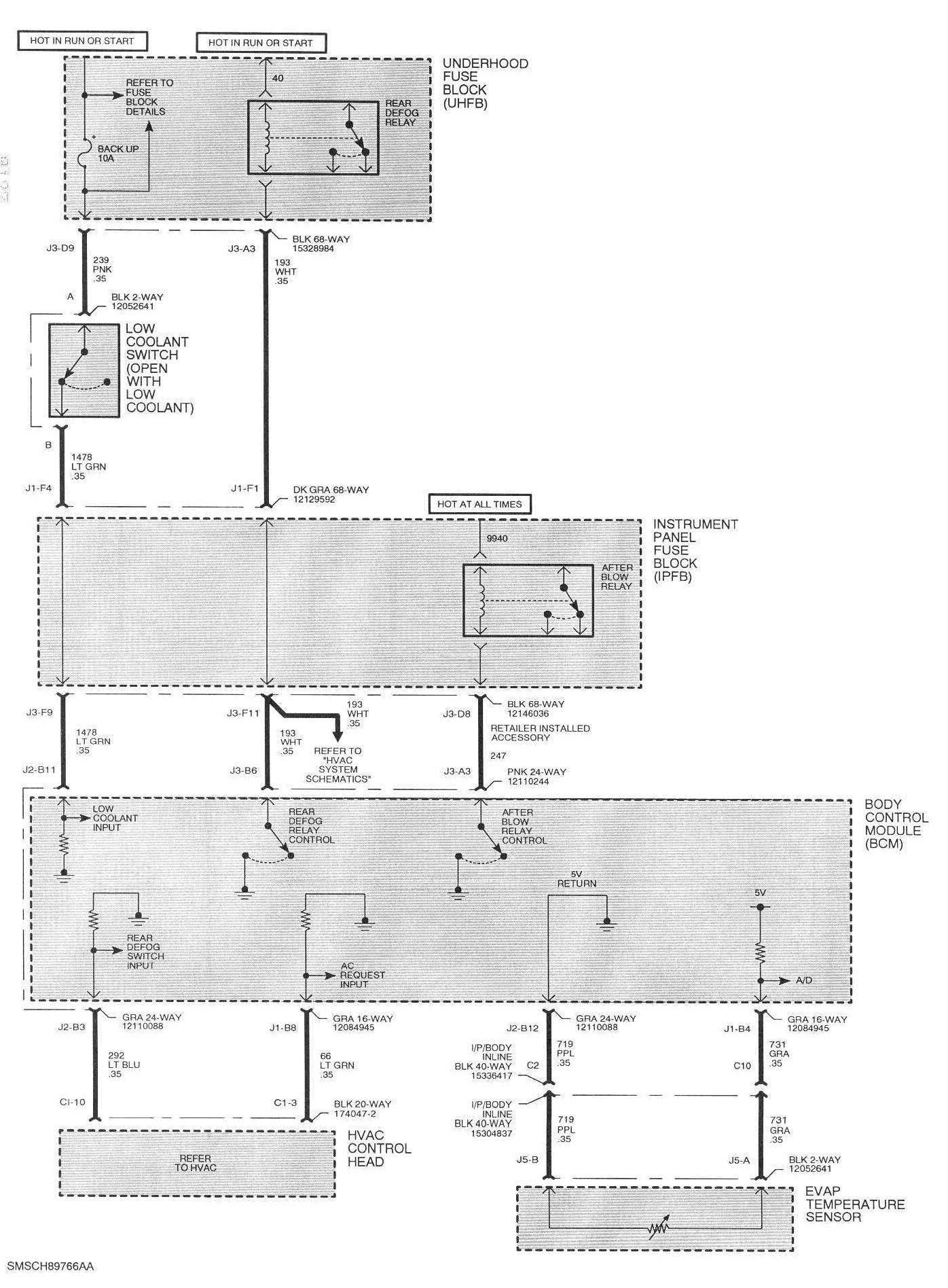

Body Control Module Schematics Part 6:
