Transaxle Control Bracket

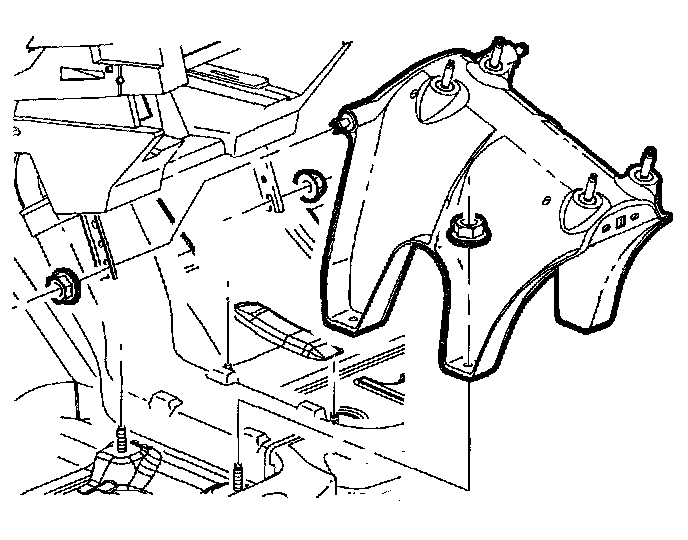

TRANSAXLE CONTROL BRACKET

REMOVAL





1. Remove control assembly.
2. Remove transaxle control bracket.

INSTALLATION
1. Install transaxle control bracket.
Torque: Transaxle Control Bracket Bolts: 25 N.m (18 ft. lbs.)
2. Install control assembly.
