Component Locations

NOTE: For component locations, refer to illustrations. Fig 1 -Fig 4
.

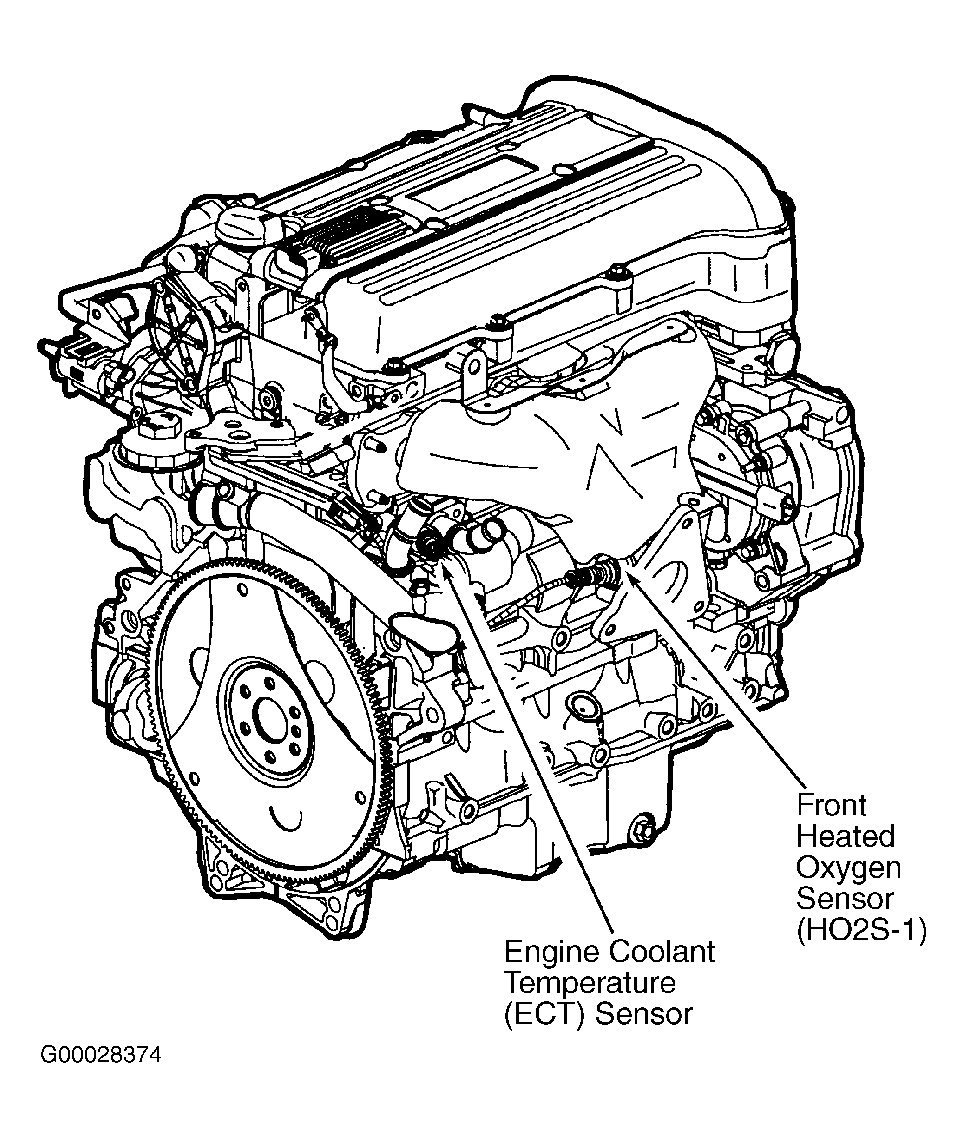

Fig 1: Locating Engine Control Components - 2.2L (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

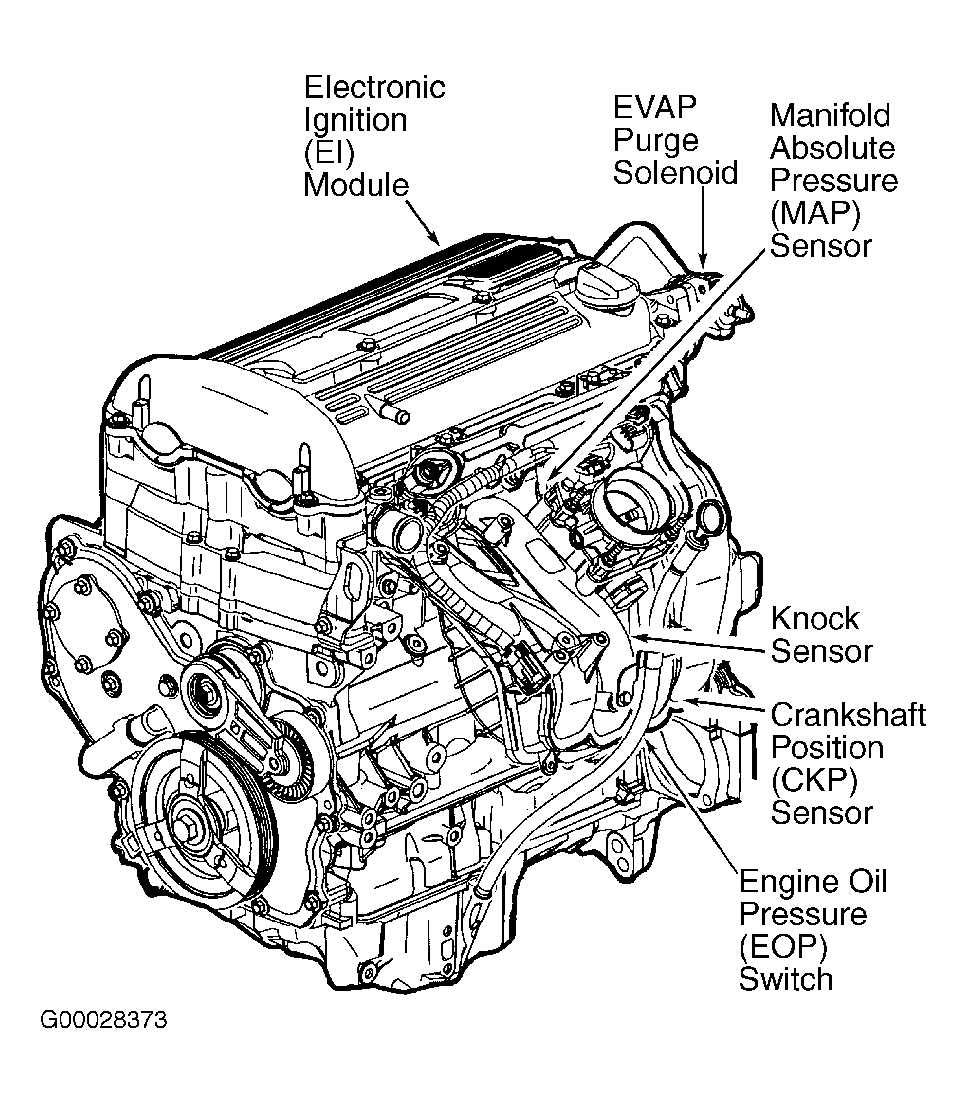

Fig 2: Locating Engine Control Components - 2.2L (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

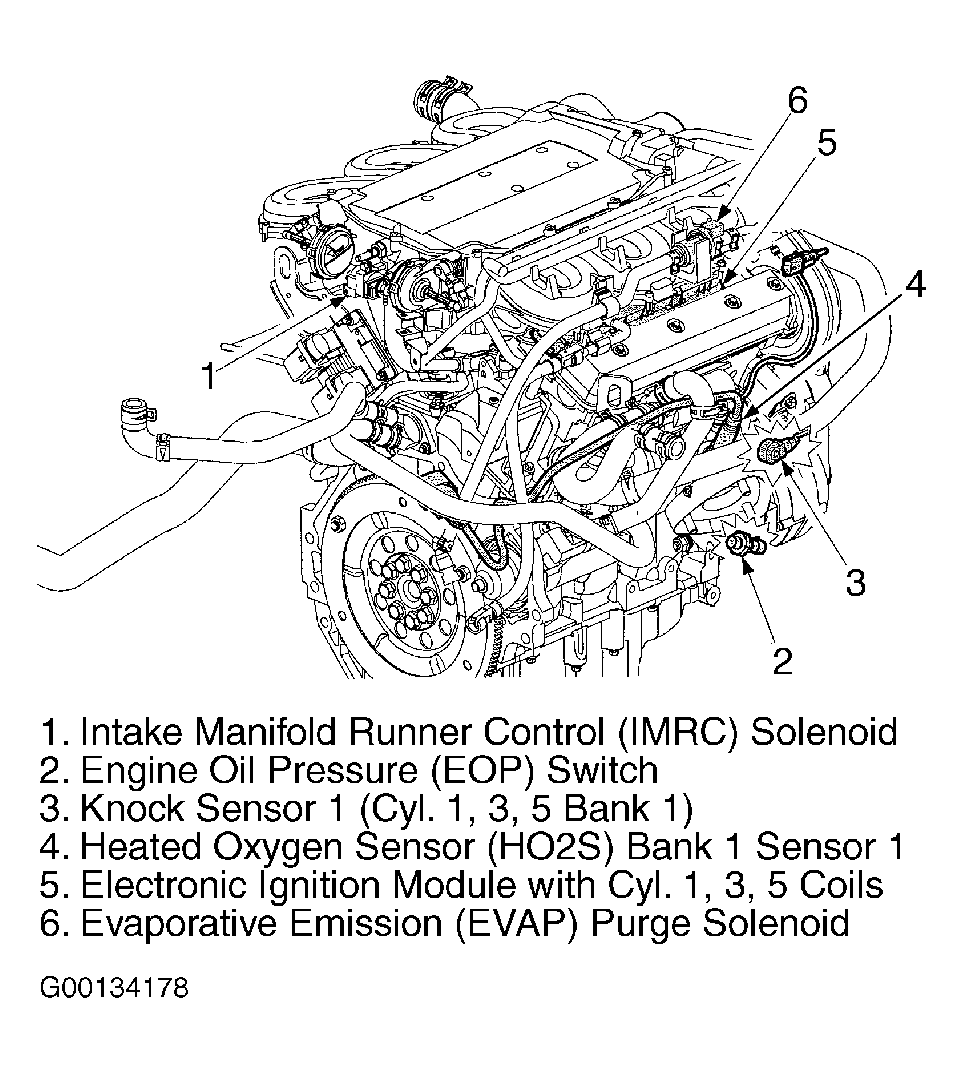

Fig 3: Locating Engine Control Components - 3.0L (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

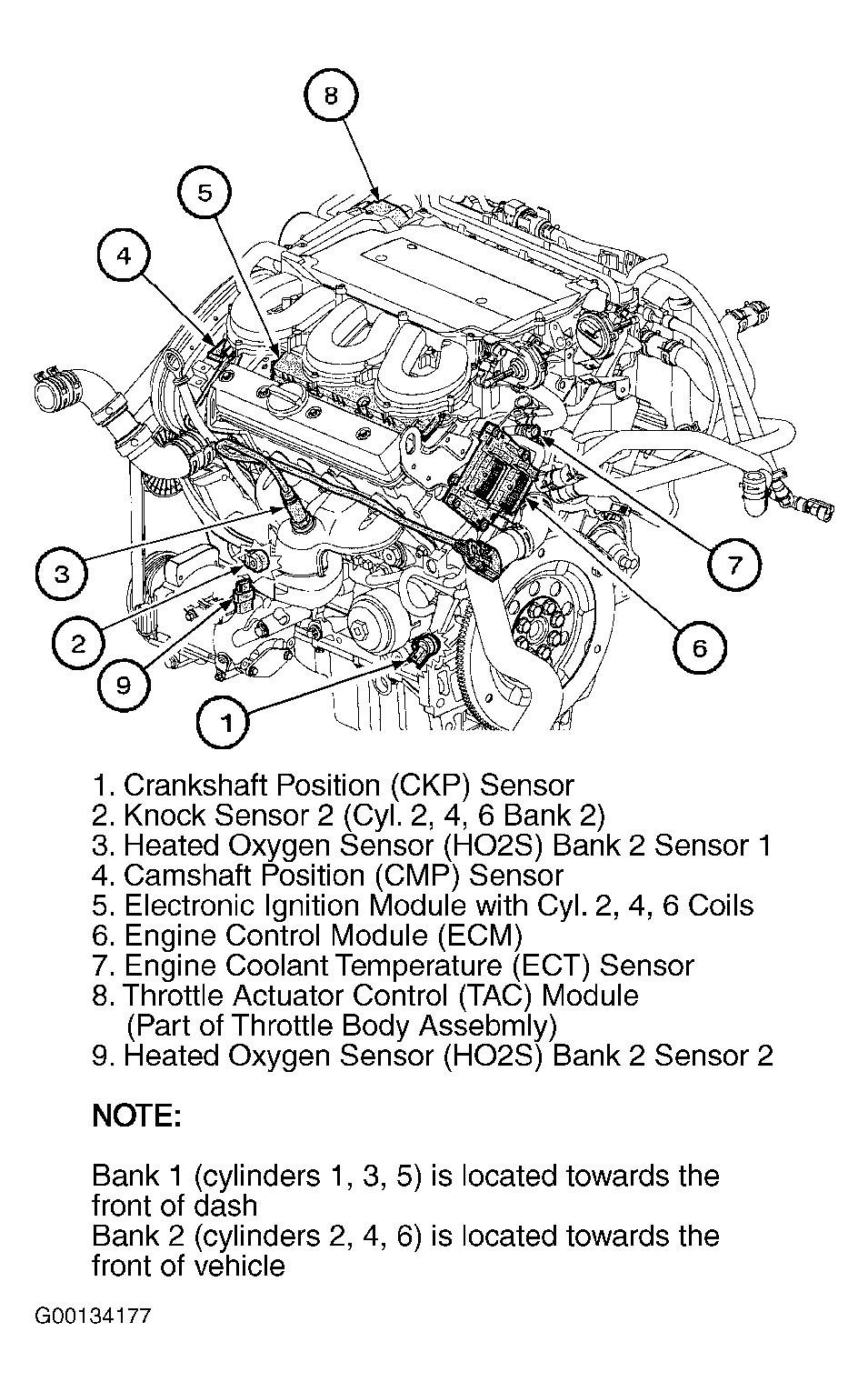

Fig 4: Locating Engine Control Components - 3.0L (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
