DTC P0200: Injector Control Circuit: Notes

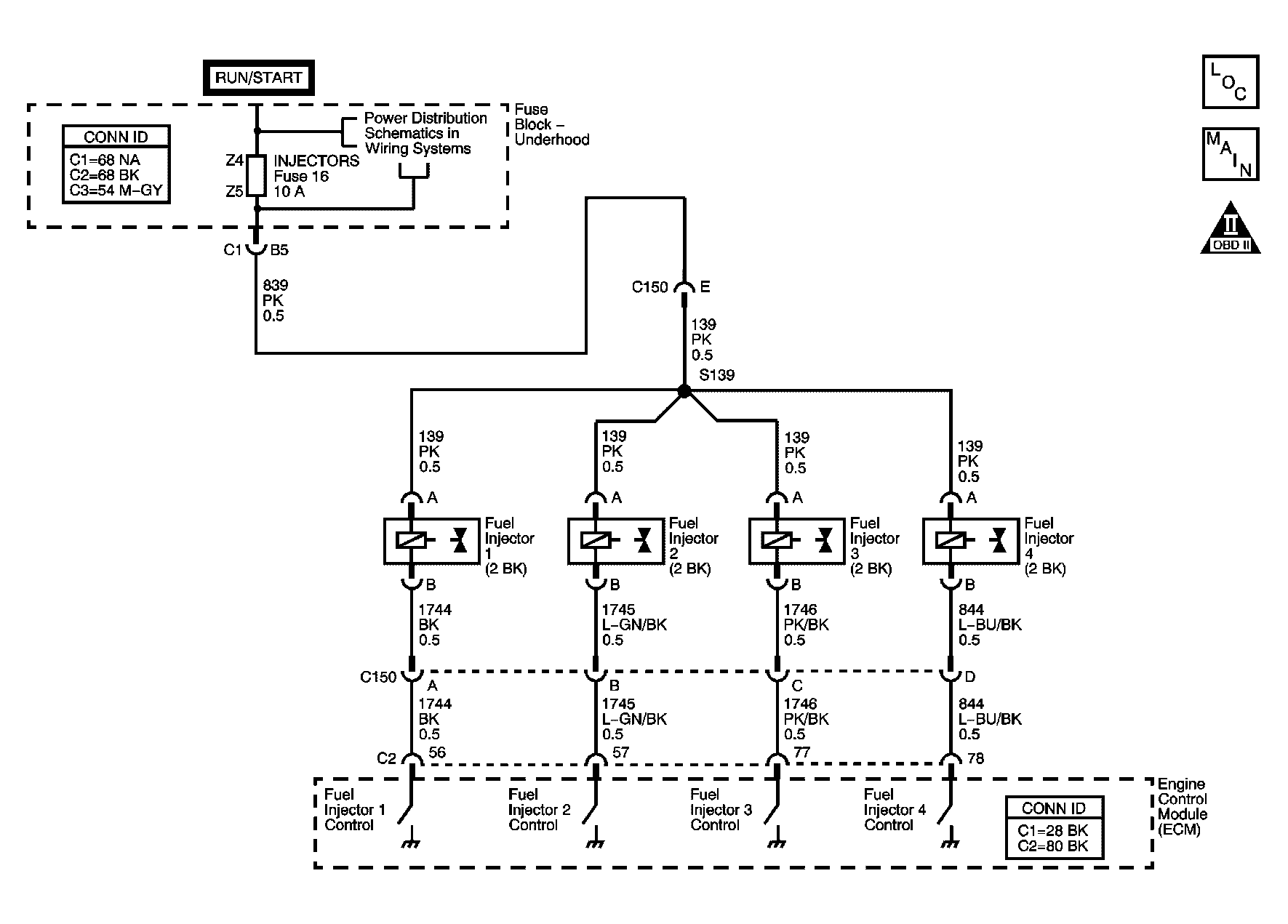

Fig 1: Fuel Injector Circuit
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
