Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Ion Red Line, 2007 Saturn Ion 3, and 2007 Saturn Ion 2. However, it is still accessible from the selected car via links, so may be relevant.

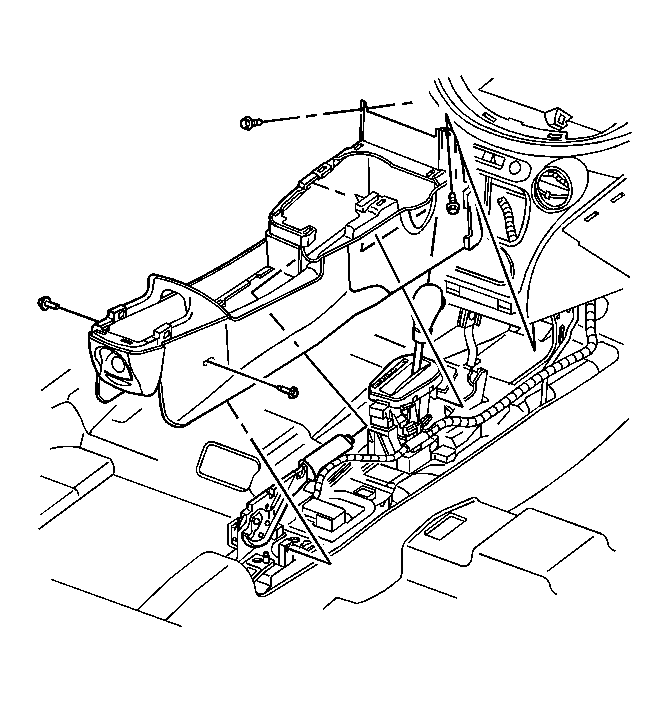

    Fig 1: View Of Front Floor Console
    GM875770Courtesy of GENERAL MOTORS CORP.
  1. Lower the console over the park brake lever and the shift lever.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Push the console down on the carpet and install the front and rear screws.

    Tighten:  Tighten the console screws to 2.5 N.m (22 lb in).

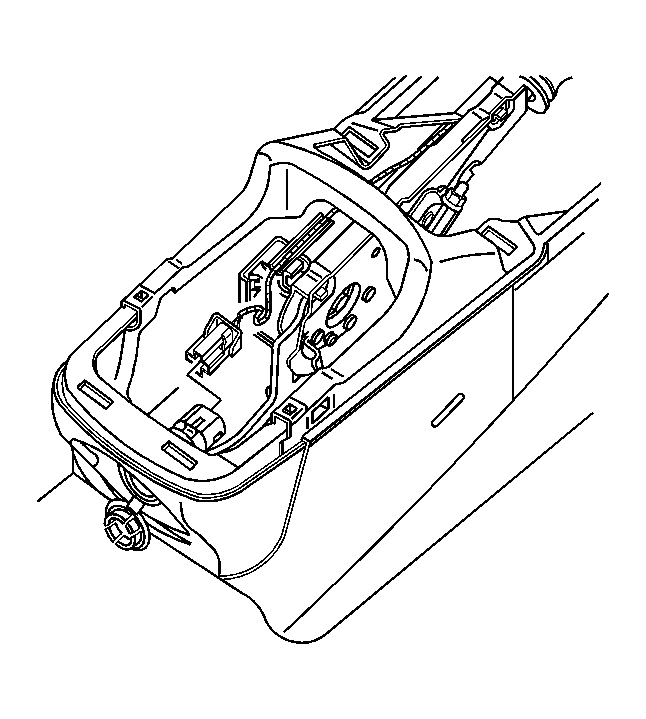

    3. Fig 2: View Of Rear Power Outlet Electrical Connector
    GM875766Courtesy of GENERAL MOTORS CORP.
  3. Connect the rear power outlet electrical connector.
    4. Fig 3: View Of Front Floor Console Compartment
    GM875764Courtesy of GENERAL MOTORS CORP.
  4. Slide the console compartment over the park brake lever.
  5. Pull the park brake boot through the opening in the console compartment.
  6. Align the retaining fasteners with the console and push to secure.
  7. If equipped with an armrest assembly, install the console compartment screws.

    Tighten:  Tighten the console compartment screws to 2.5 N.m (22 lb in).

    8. Fig 4: View Of Park Brake Boot
    GM875761Courtesy of GENERAL MOTORS CORP.
  8. Snap the park brake boot to the console.
    9. Fig 5: View Of Console Center Extension Screws
    GM873754Courtesy of GENERAL MOTORS CORP.
  9. Align the console center extension retaining fasteners to the I/P and push to secure the extension.
  10. Install the console center extension screws.

    Tighten:  Tighten the console center extension screws to 2.5 N.m (22 lb in).

    11. Fig 6: View Of Cigar Lighter Electrical Connector
    GM877759Courtesy of GENERAL MOTORS CORP.
  11. If equipped with a manual transmission, slide the shift boot through the front console cupholder.
  12. Connect the cigar lighter electrical connector.
    13. Fig 7: View Of Front Console Cupholder
    GM873757Courtesy of GENERAL MOTORS CORP.
  13. Align the retaining fasteners on the front console cupholder with the console.
  14. Push the front console cupholder to secure.
    15. Fig 8: View Of Console Shift Boot
    GM873756Courtesy of GENERAL MOTORS CORP.
  15. If equipped with a manual transmission, snap the shift boot to the front console cupholder.
    16. Fig 9: View Of Shift Lever Bezel
    GM873755Courtesy of GENERAL MOTORS CORP.
  16. If equipped with an automatic or VTi transmission, align the fingers on the shift lever bezel with the slots on the shift lever base. Push the console shift lever bezel to secure.
  17. If equipped with an automatic or VTi transmission, shift the transmission into Park.
    18. Fig 10: View Of Console Side Extension
    GM873753Courtesy of GENERAL MOTORS CORP.
  18. Install the console side extensions.
  19. Align the clips on the console side extensions with the slots in the console.
  20. Slide the console side extensions forward to engage the clips with the console.
    21. Fig 11: View Of Console Side Extension Retainer
    GM877755Courtesy of GENERAL MOTORS CORP.
  21. Install the console side extension retainers and turn clockwise to secure.
