Installation Procedure

  1. Position the cruise control module to the mounting bracket.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the cruse control module to bracket nuts (2).

    Tighten:  Tighten the nuts to 10 N.m (89 lb in).

  3. Connect the cruise control cable to the accelerator pedal.

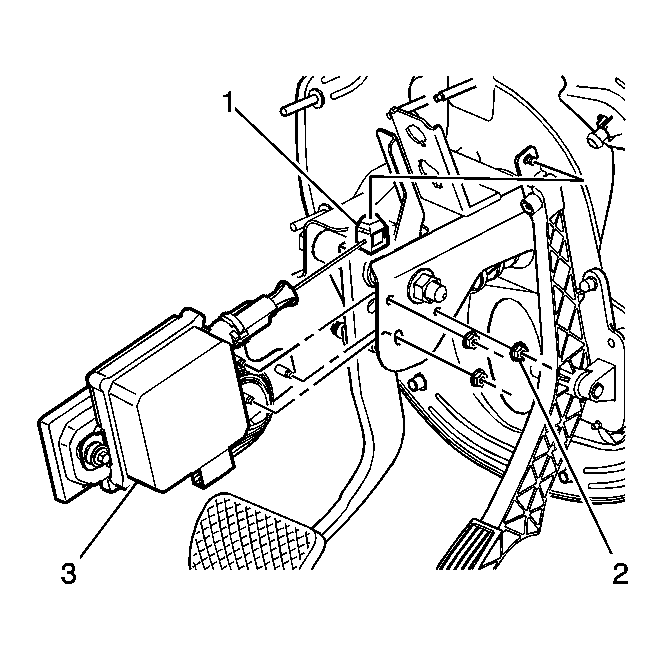

    4. Fig 1: Locating Cruise Control Cable
    GM854297Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The ribbon must not be twisted.
  4. Connect the cruise control cable (2) to the cruise control module ribbon (4).

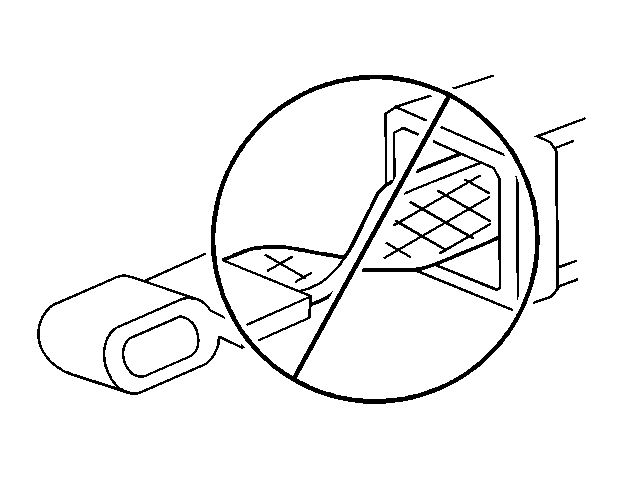

    5. Fig 2: Identifying Twisted Ribbon
    GM293672Courtesy of GENERAL MOTORS CORP.
  5. Insert the cruise control cable into the cruise control module until the seal touches the module.

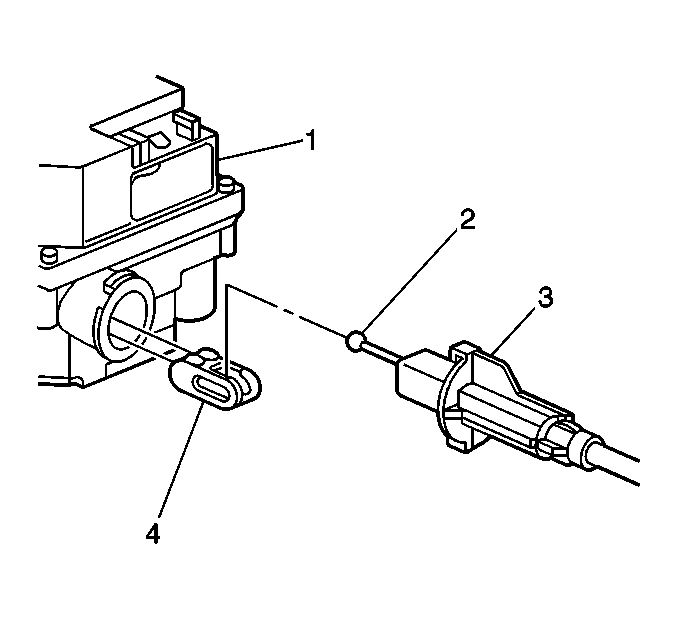

    6. Fig 3: Connecting Cruise Control Cable To Module Ribbon
    GM325857Courtesy of GENERAL MOTORS CORP.
  6. Position the narrow cable tab into the narrow slot and the wide tab into the wide slot.
    7. IMPORTANT: The adjuster tab must be pointing toward the front of the car after installation.
  7. Connect the cruise control cable to the cruise control module by turning the cable clockwise.
  8. Connect the cruise control module harness connector.

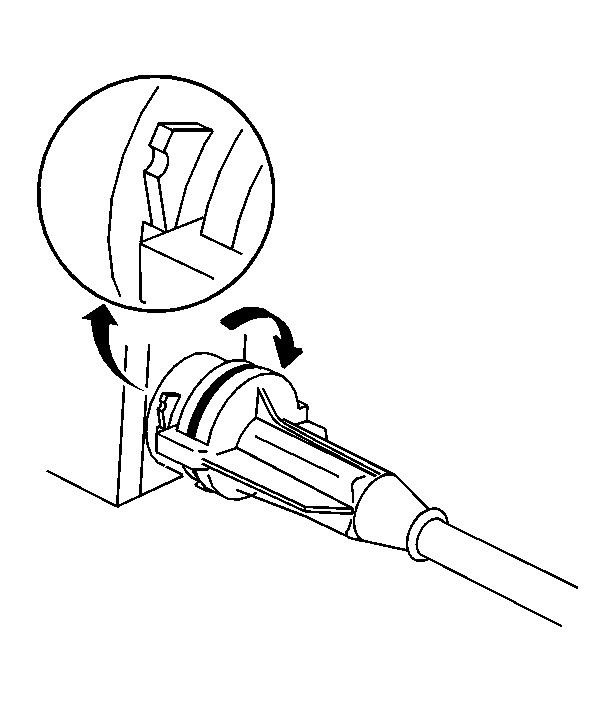

    9. Fig 4: Aligning Cruise Control Cable
    GM329483Courtesy of GENERAL MOTORS CORP.
  9. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.
