ABS Schematics

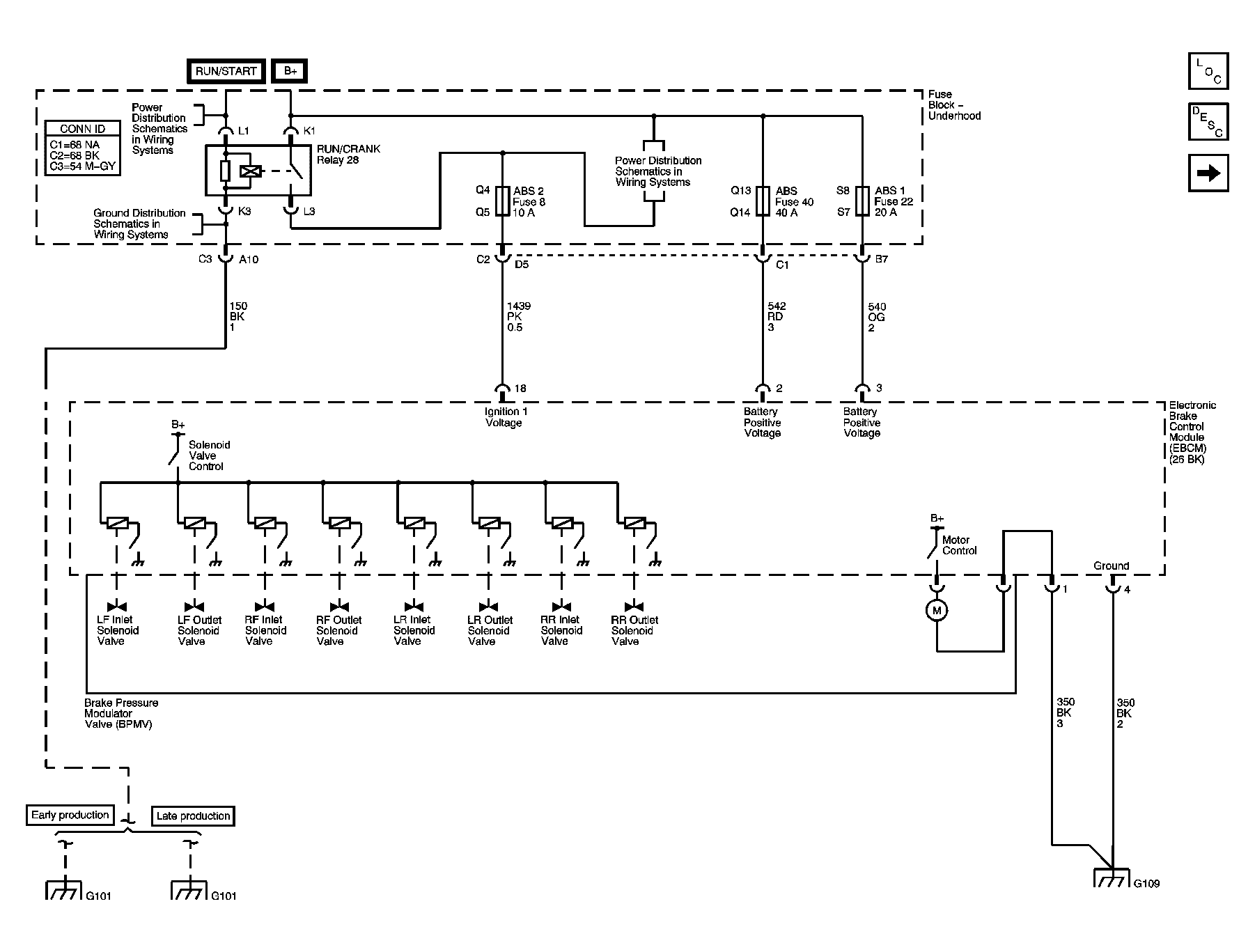

Fig 1: Power, Ground, and BPMV Controls Schematic
GM1255352Courtesy of GENERAL MOTORS CORP.

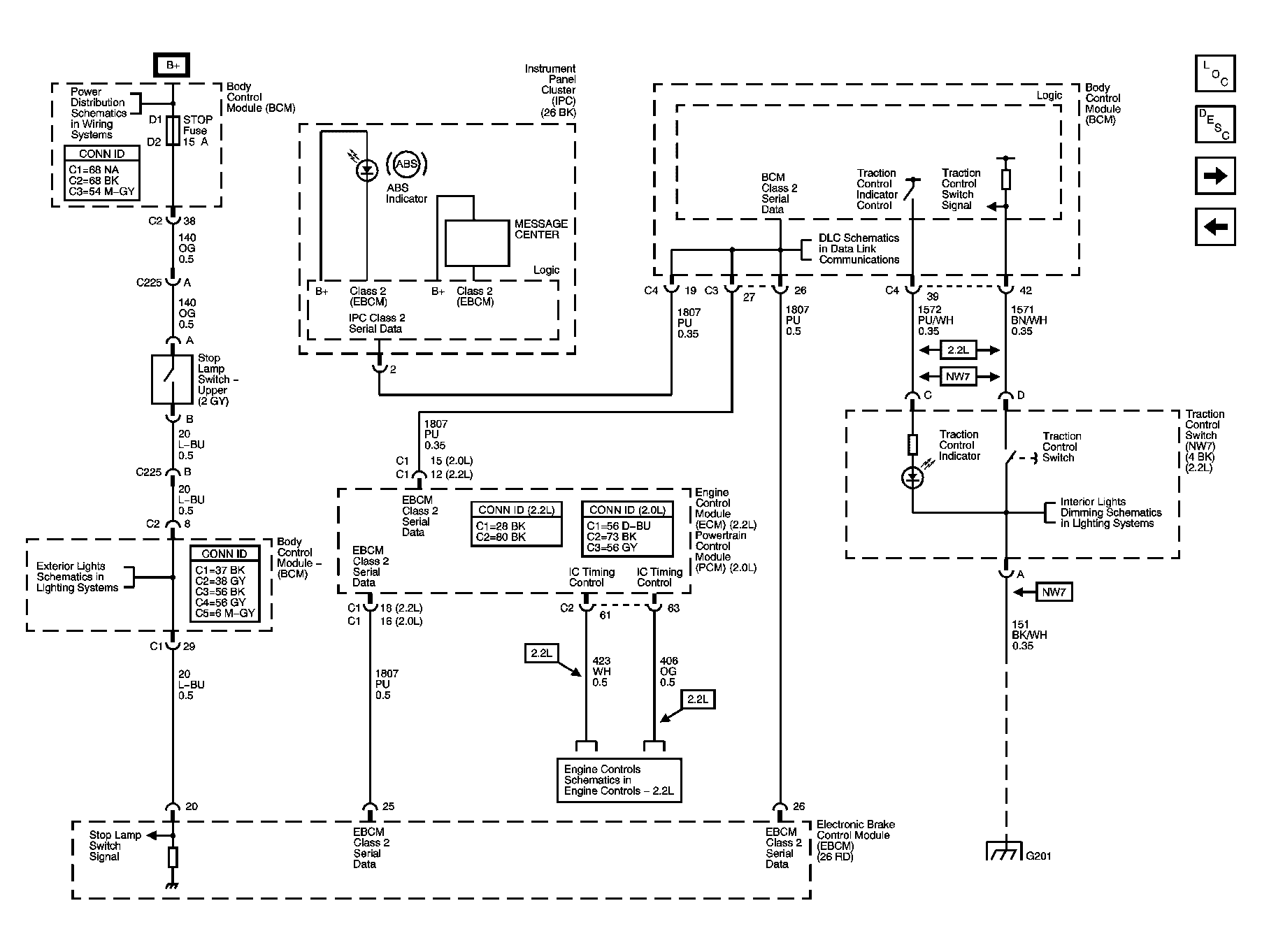

Fig 2: Traction Control, DLC, and Indicators Schematic
GM1255353Courtesy of GENERAL MOTORS CORP.

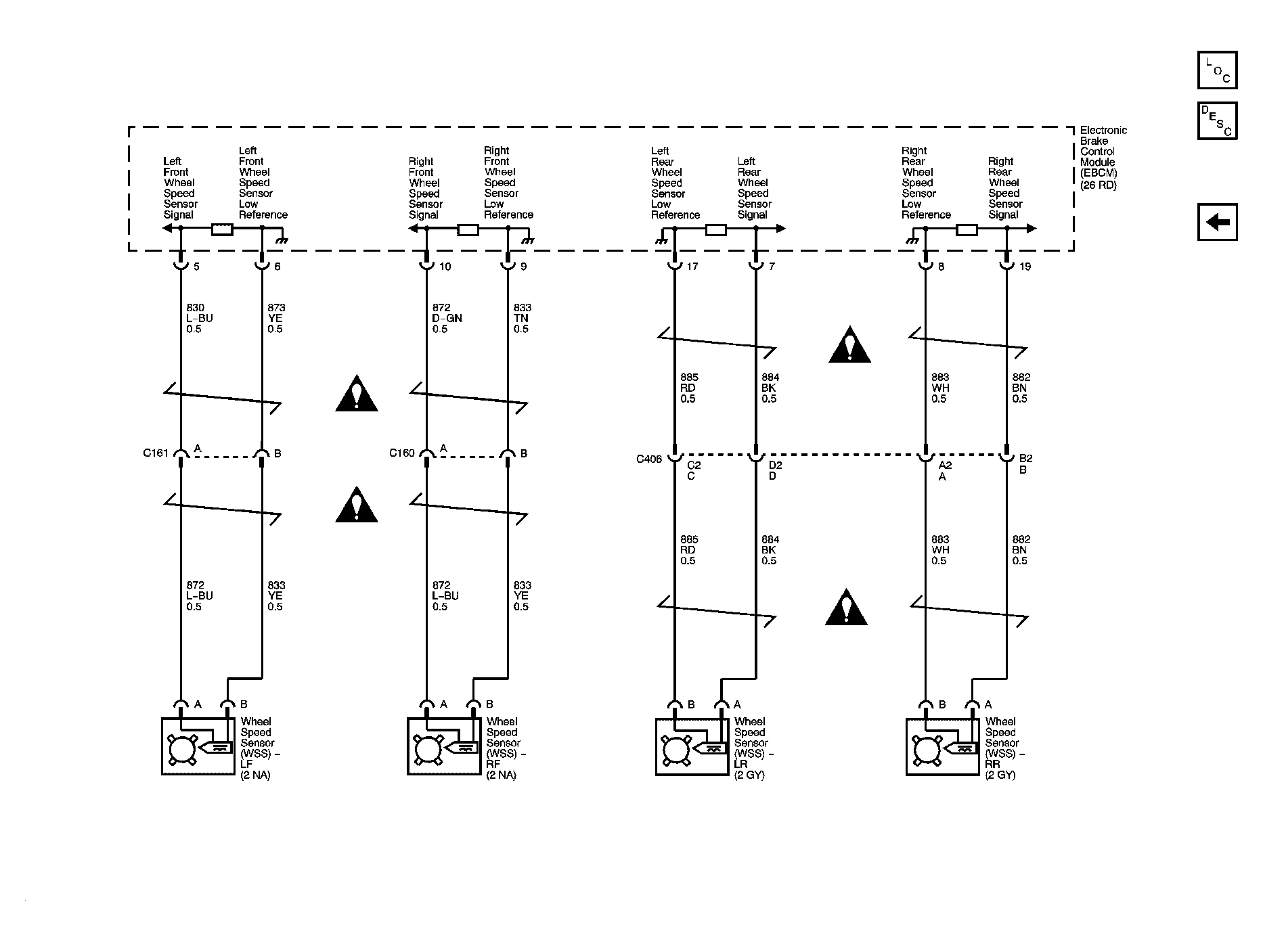

Fig 3: Wheel Speed Sensors Schematic
GM1255354Courtesy of GENERAL MOTORS CORP.
