Engine Electrical Component Views

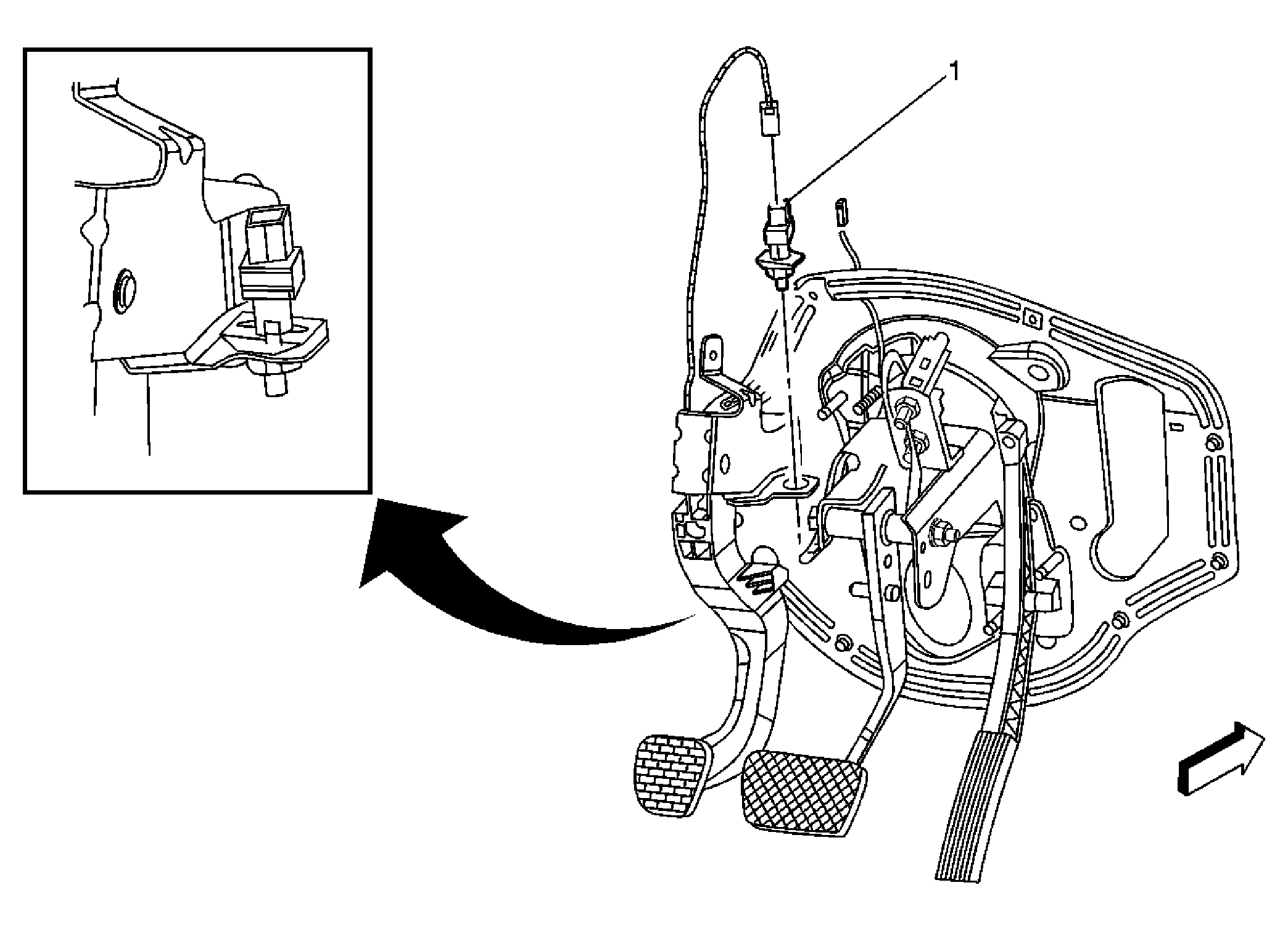

Fig 1: Left Side Of I/P In Pedal Bracket (M86) Component View
GM897746Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Clutch Start Switch

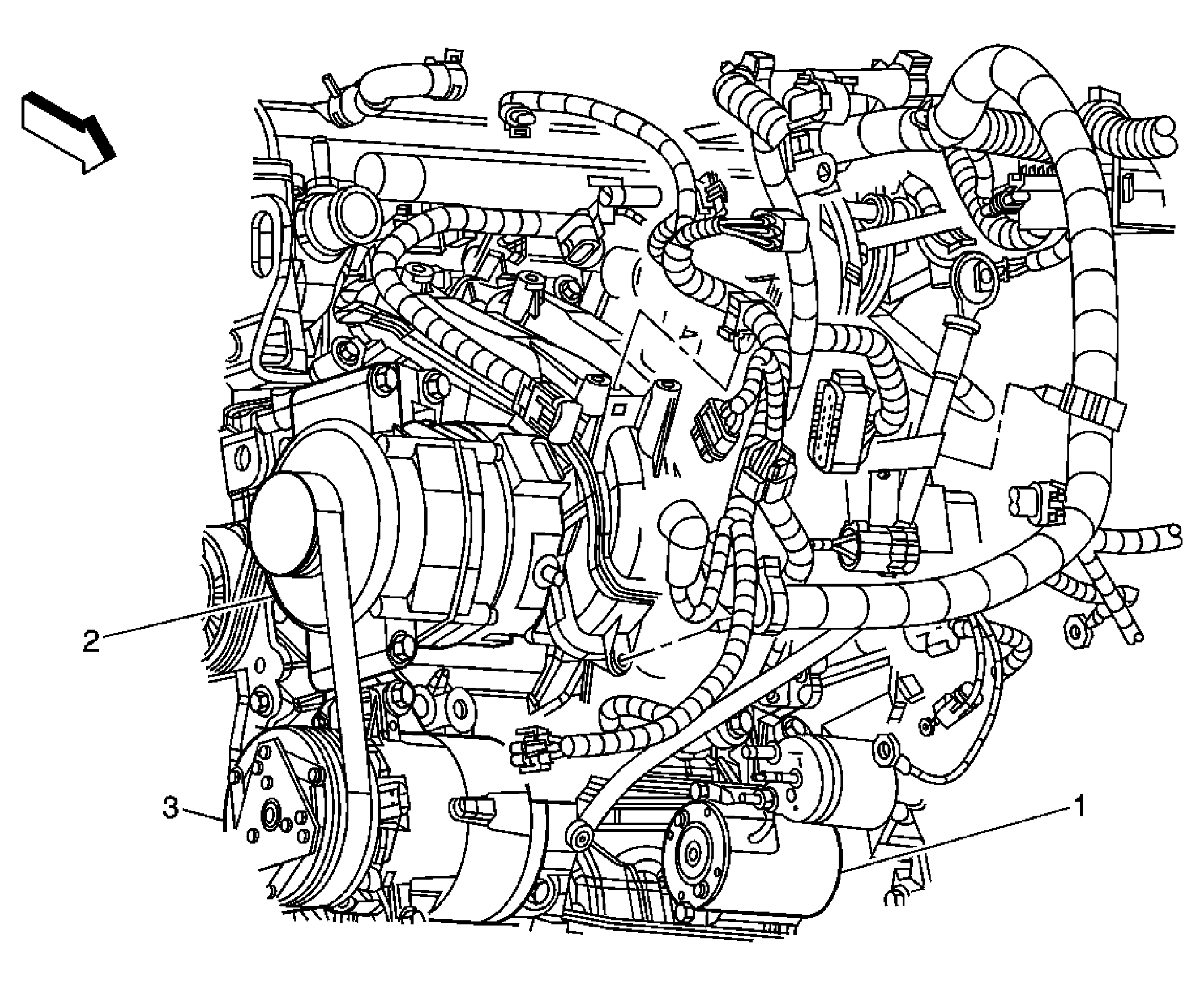

Fig 2: Right Front Side Of Engine Component View
GM898036Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Starter
2 Generator
3 A/C Compressor Clutch
