Lighting Systems Component Views

WARNING: This page is about a different car, the 2007 Saturn Ion Red Line, 2007 Saturn Ion 3, and 2007 Saturn Ion 2. However, it is still accessible from the selected car via links, so may be relevant.

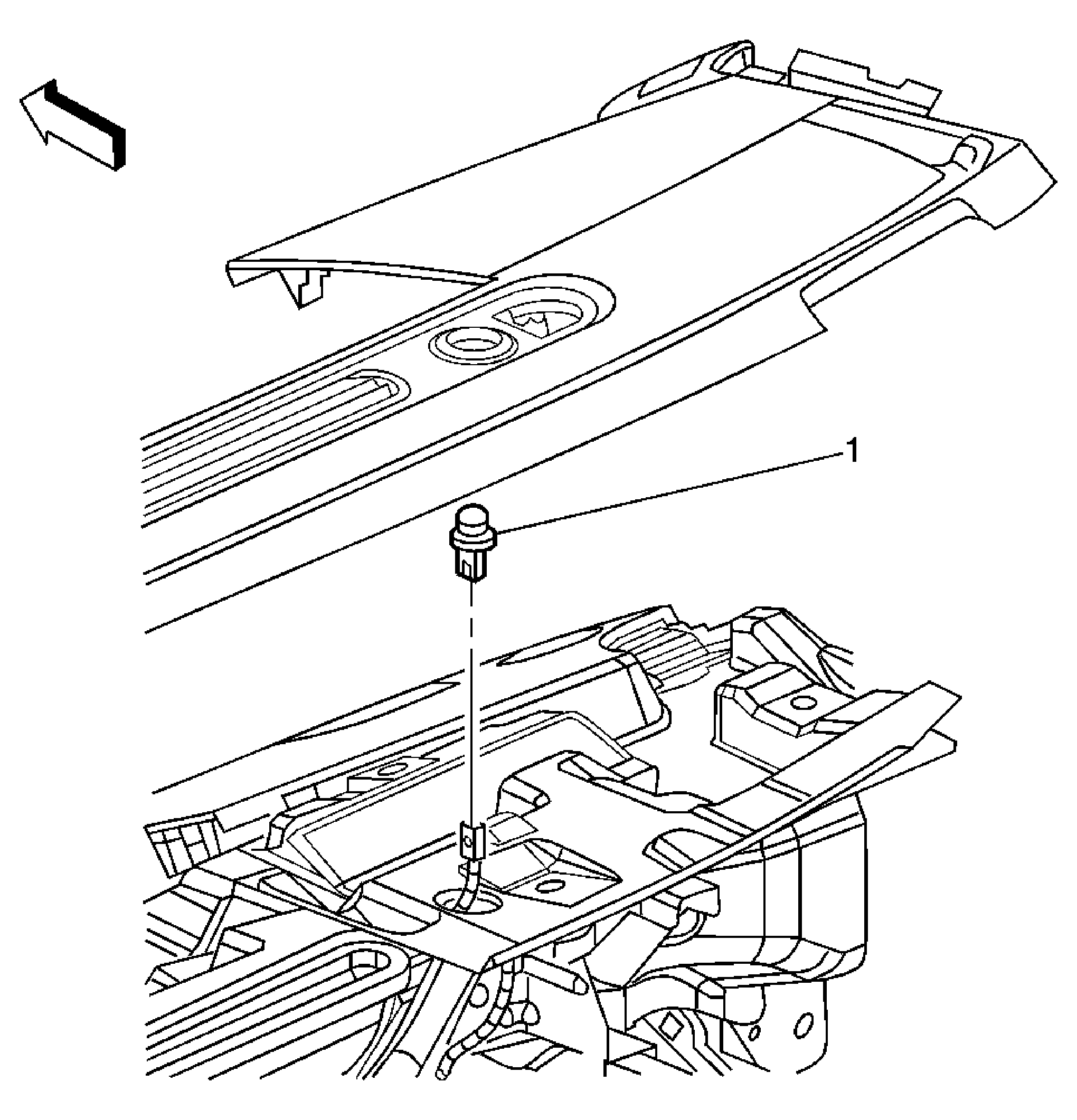

Fig 1: Top Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Light Sensor (T82)

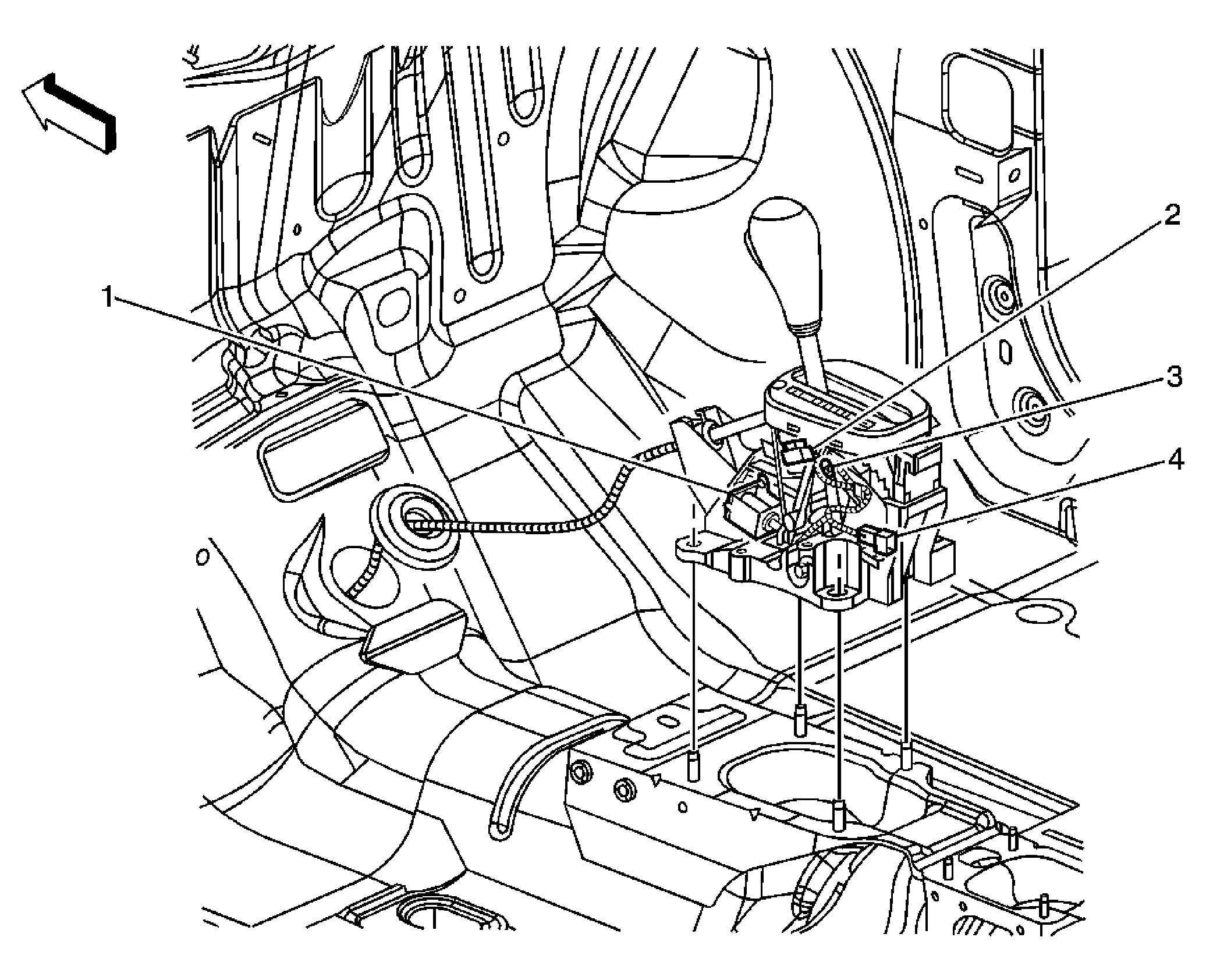

Fig 2: Center Console Of Vehicle (M43 or M75) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/T Shift Lock Control Solenoid
2	Ignition Lock Cylinder Control Switch
3	A/T Shift Indicator Lamp
4	C351

Fig 3: Driver Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Outside Rearview Mirror
2	LF Door Tweeter Speaker (UZ6)
3	Driver Door Jamb Switch
4	Instrument Panel (I/P) Dimmer Switch
5	Fog Lamp Switch (T37)
6	Rear Compartment Lid Release Switch
7	LF Door Speaker
8	Outside Rearview Mirror Switch (DG7)
9	Window Switch - Driver (A31)
10	Door Lock Switch - Driver (AU3)

Fig 4: Front Passenger Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio
2	Passenger Door Jamb Switch
3	RF Door Tweeter Speaker (UZ6)
4	Radio Antenna
5	Passenger Outside Rearview Mirror
6	Front Passenger Door Lock Switch (AU3)
7	Front Passenger Window Switch (A31)
8	RF Door Speaker

Fig 5: Luggage Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	LR Speaker
2	Audio Amplifier (UZ6)
3	Rear Compartment Courtesy Lamp
4	RR Speaker

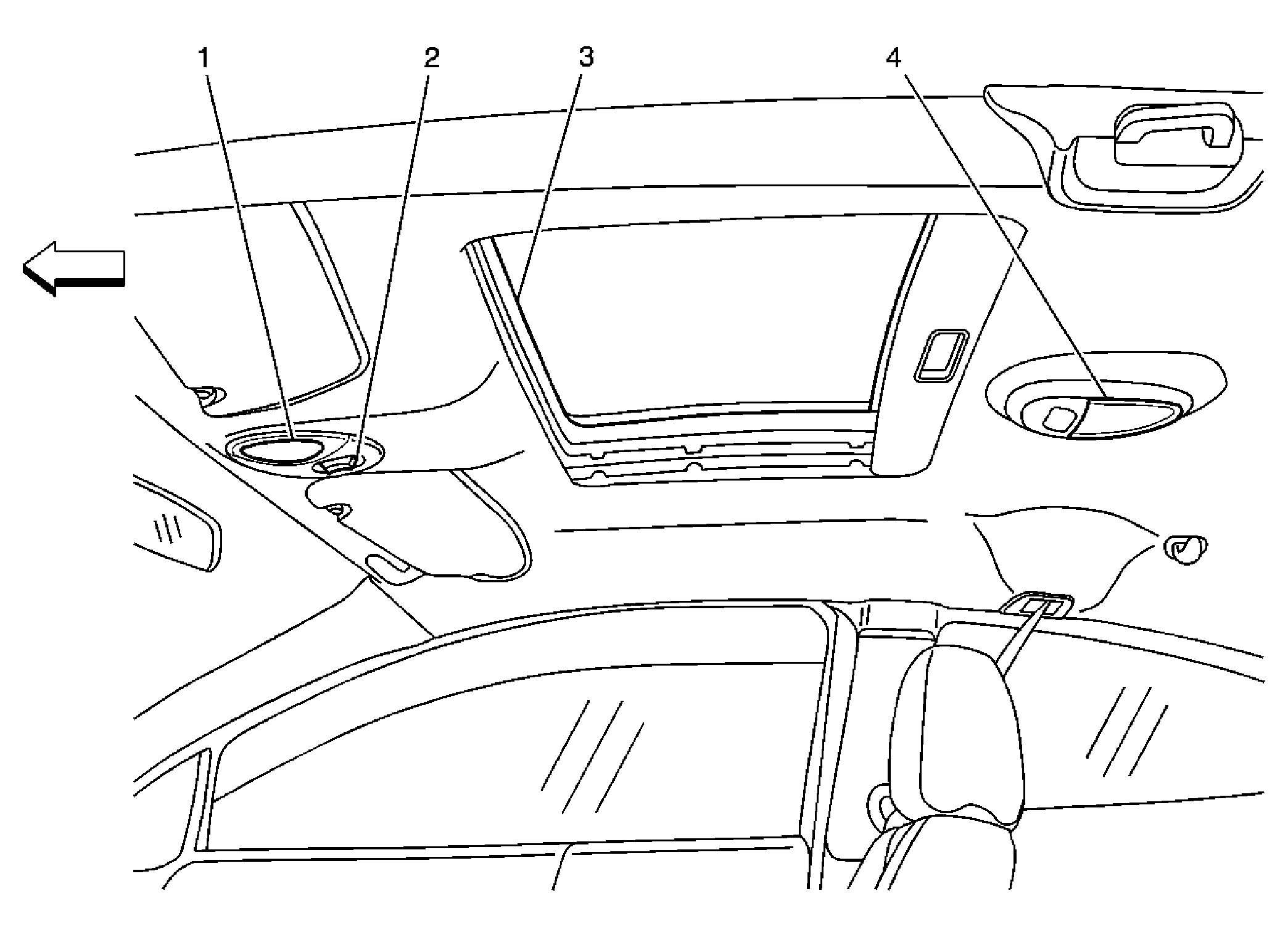

Fig 6: Headliner Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Courtesy/Reading Lamp (C74)
2	Sunroof Switch (CF5)
3	Sunroof (CF5)
4	Dome Lamp

Fig 7: Rear Of Passenger Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Dome Lamp
2	Center High Mounted Stop Lamp (CHMSL)
3	Rear Window Defogger Grid

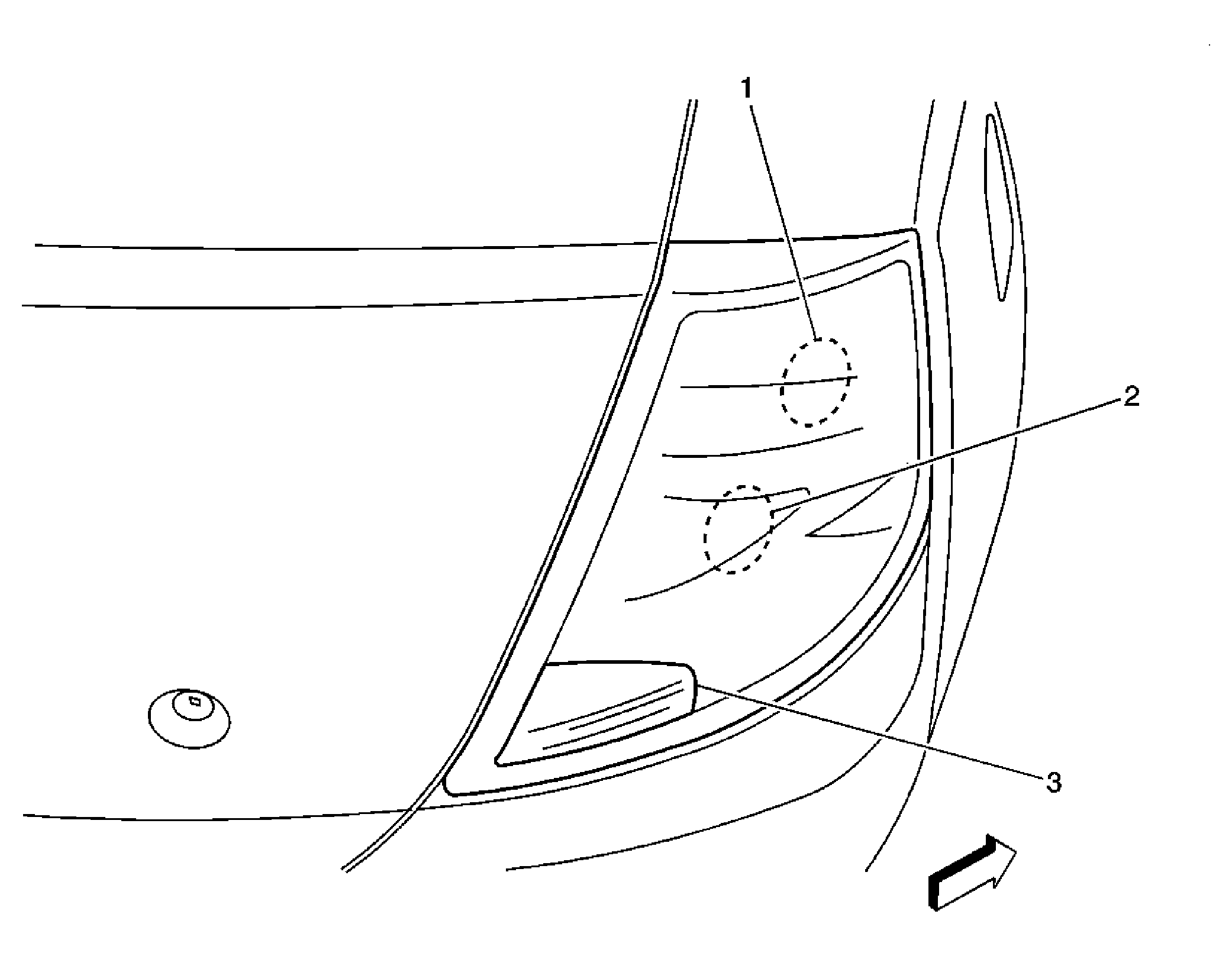

Fig 8: Left Rear End Of Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tail/Turn Signal Lamp - Left
2	Tail/Stop Lamp - Left
3	Backup Lamp - Left

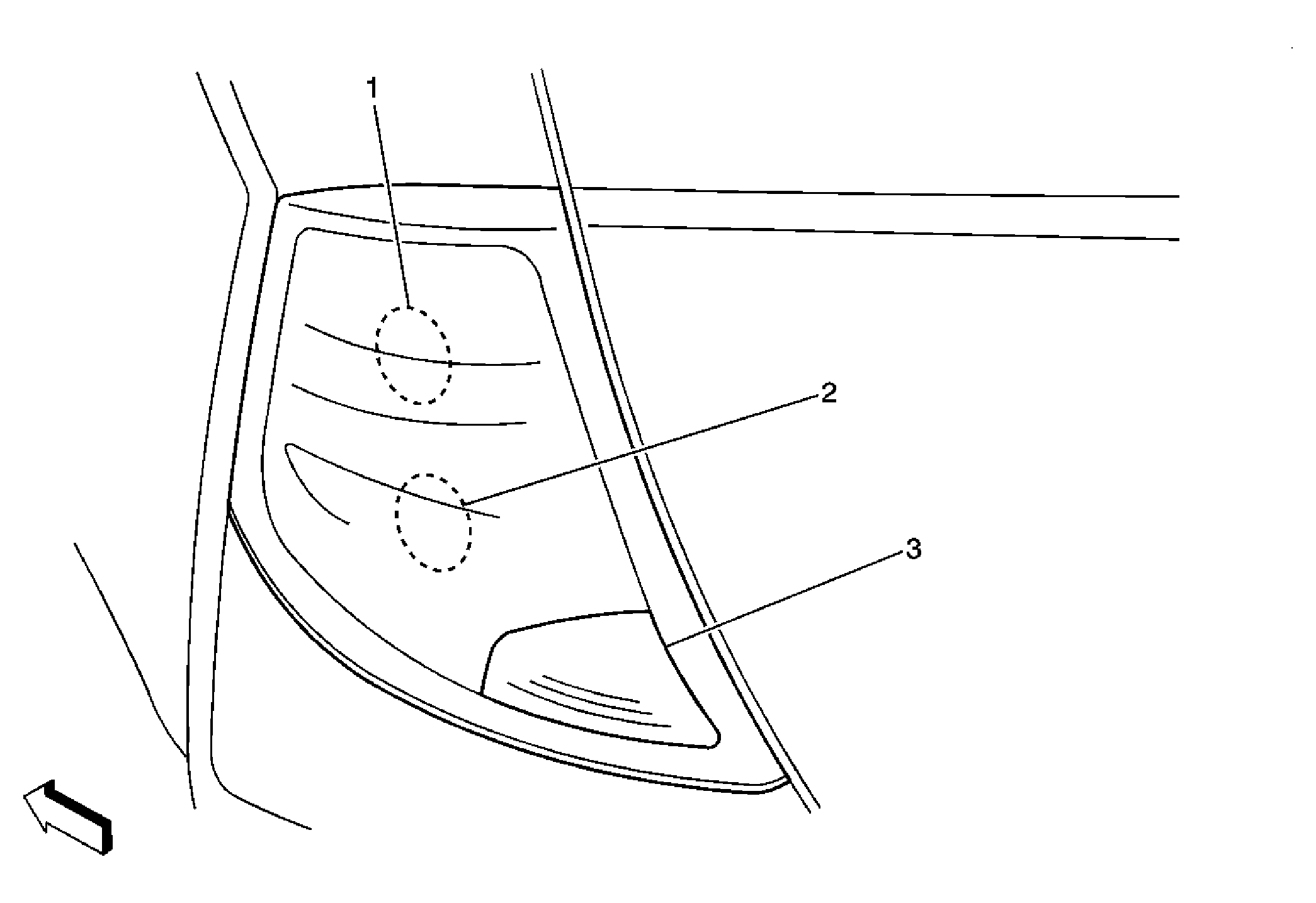

Fig 9: Right Rear End Of Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tail/Turn Signal Lamp - Right
2	Tail/Stop Lamp - Right
3	Backup Lamp - Right

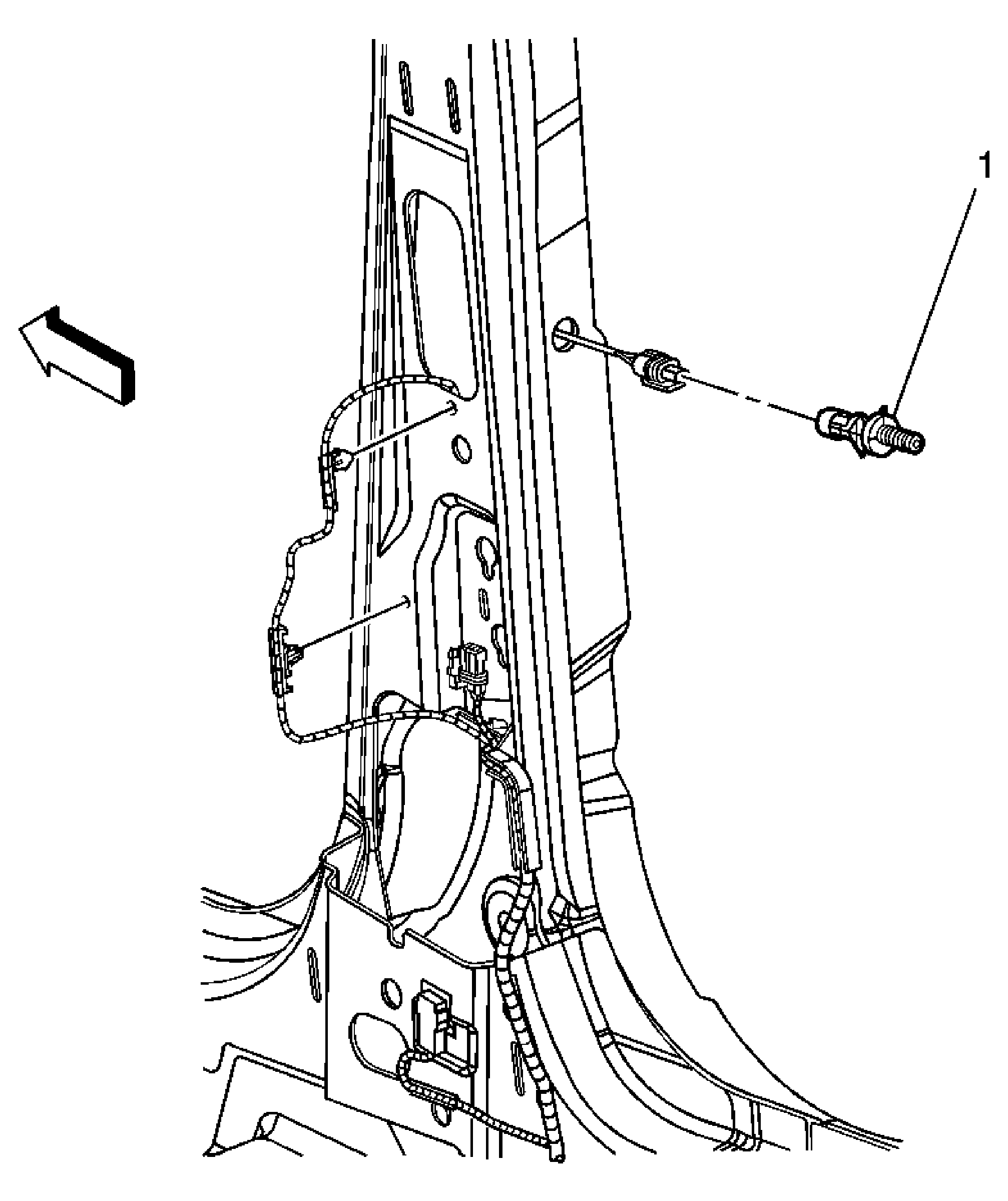

Fig 10: Right Rear Door Jamb Switch In B-Pillar Component View - Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Jamb Switch - RR, LR Similar

Fig 11: Left Front Side Of Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Washer Fluid Pump
2	Horn
3	Fog Lamp - LF

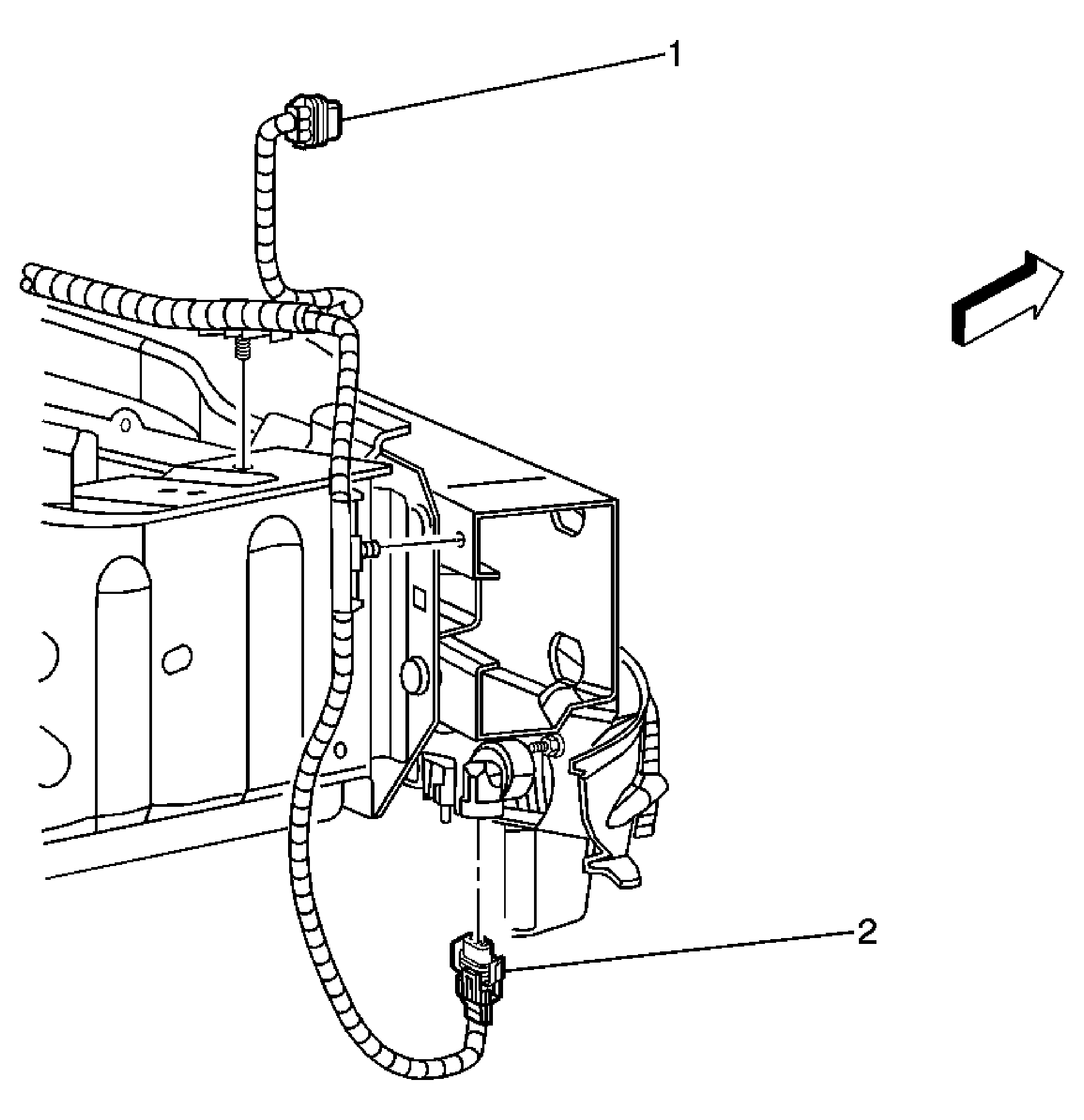

Fig 12: Right Front Of Vehicle (T37) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C110
2	Fog Lamp RF

Fig 13: Instrument Panel Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Windshield Wiper/Washer Switch
3	Hazard Switch
4	Instrument Panel Cluster (IPC)
5	Traction Control Switch (NW7)
6	Radio
7	A/T Shifter (MN5)
8	HVAC Control Assembly
9	Steering Wheel Controls - Right (K34)
10	Steering Wheel Controls - Left (K34)
11	Rear Compartment Lid Release Switch

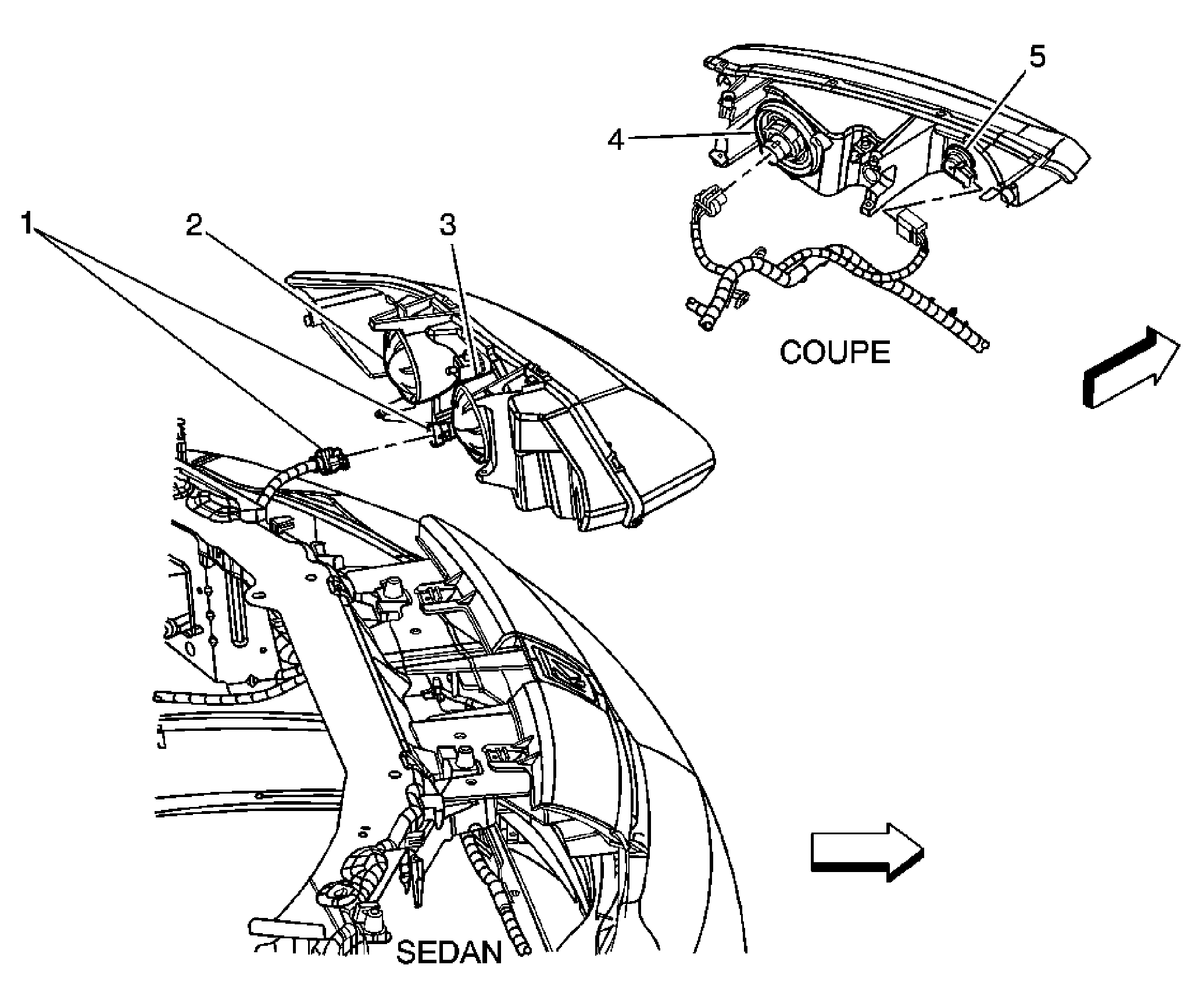

Fig 14: Left Front Of Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C111 (Sedan), C110 Similar on Right
2	Park/Turn Signal Lamp - LF (Sedan), RF Similar
3	Headlamp - Left (Sedan), Right Similar
4	Headlamp - Left (Coupe), Right Similar
5	Park/Turn Signal Lamp - LF (Coupe), RF Similar

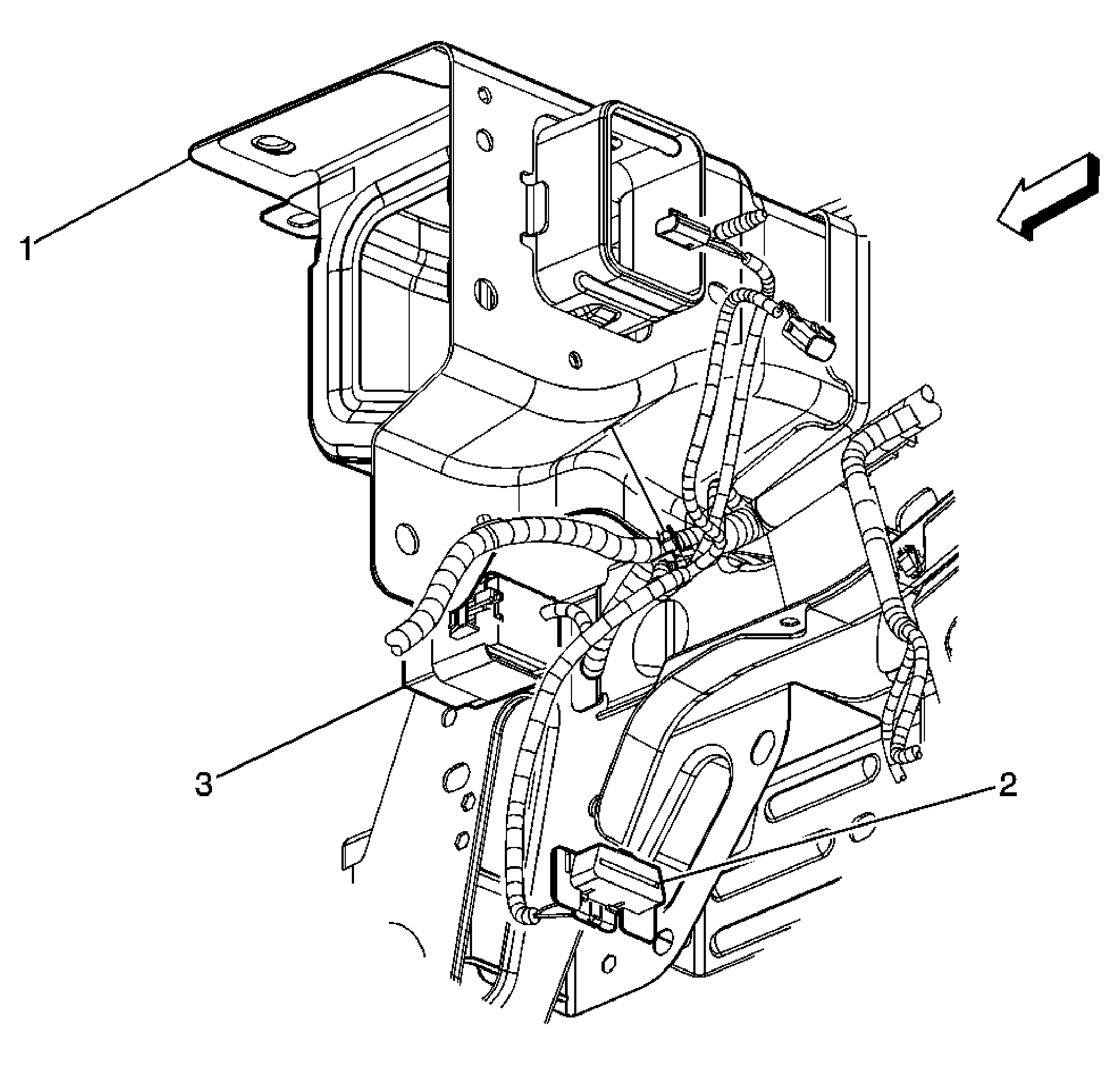

Fig 15: Left Side Of I/P, Under Tie Bar (T82) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Tie Bar
2	Data Link Connector (DLC)
3	Headlamp Relay

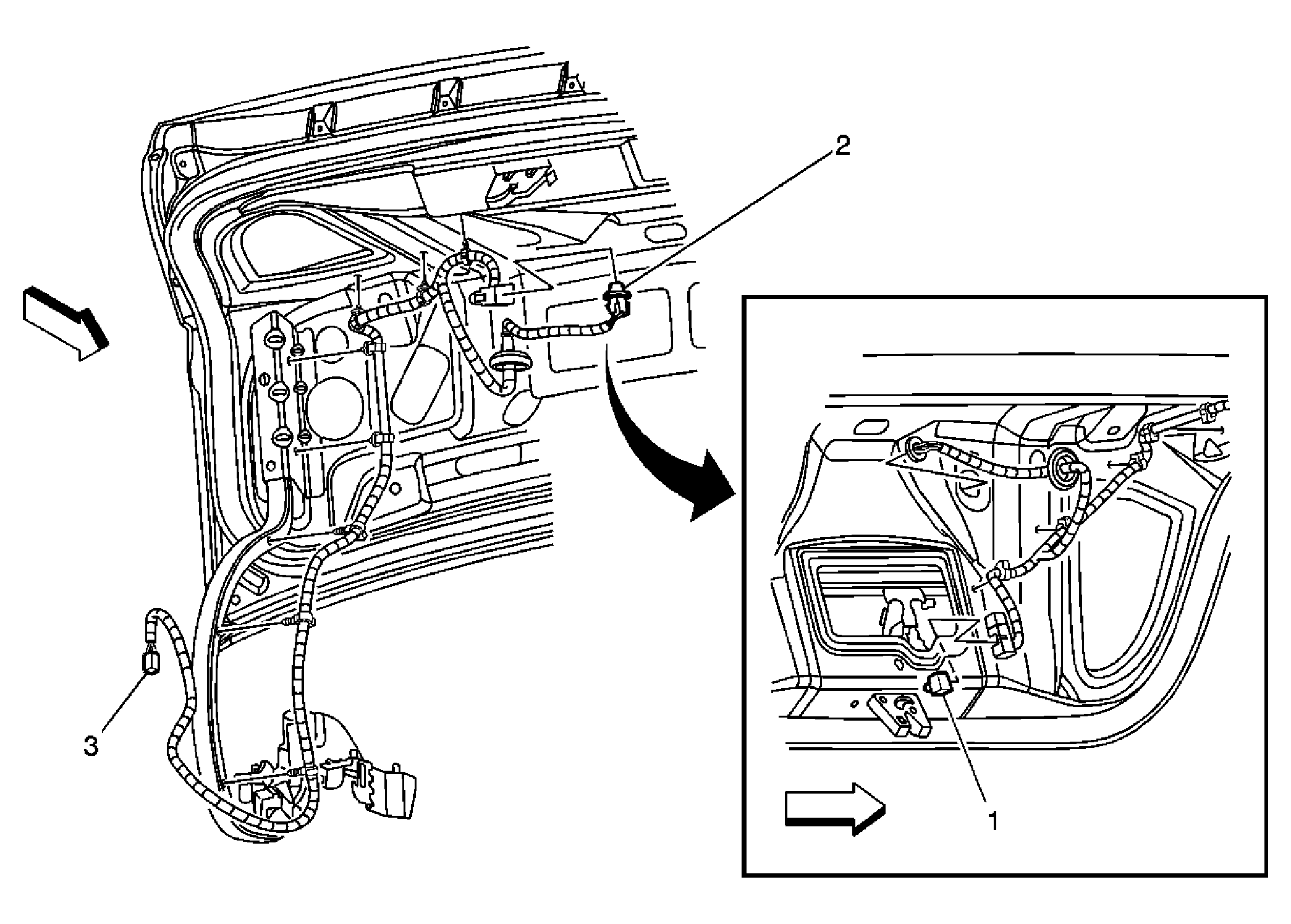

Fig 16: Vehicle Rear Gate Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Component Lid Latch
2	License Lamp
3	C401

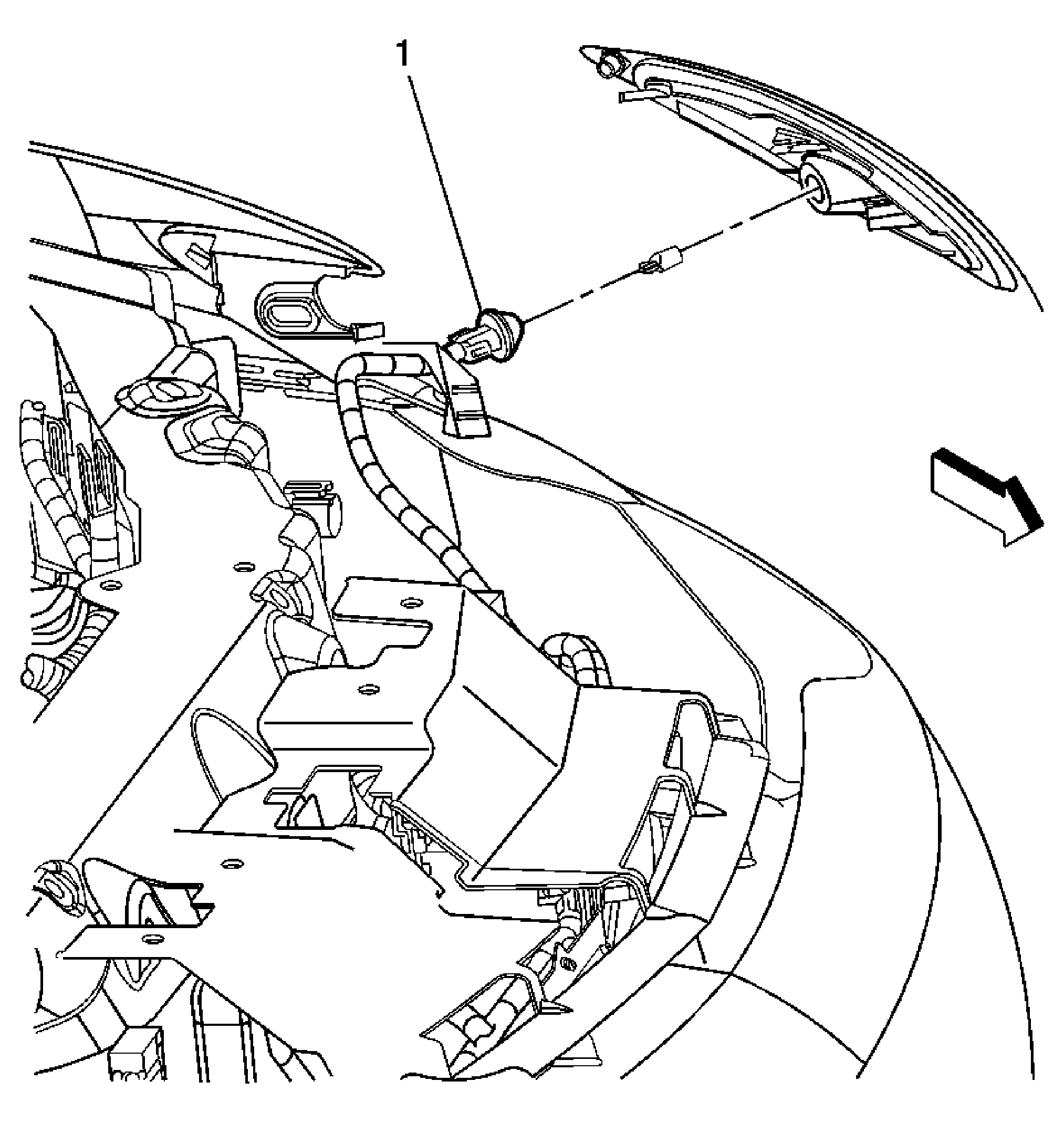

Fig 17: Left Front Side Of Vehicle Component View (Coupe)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Marker Lamp - LF, RF Similar

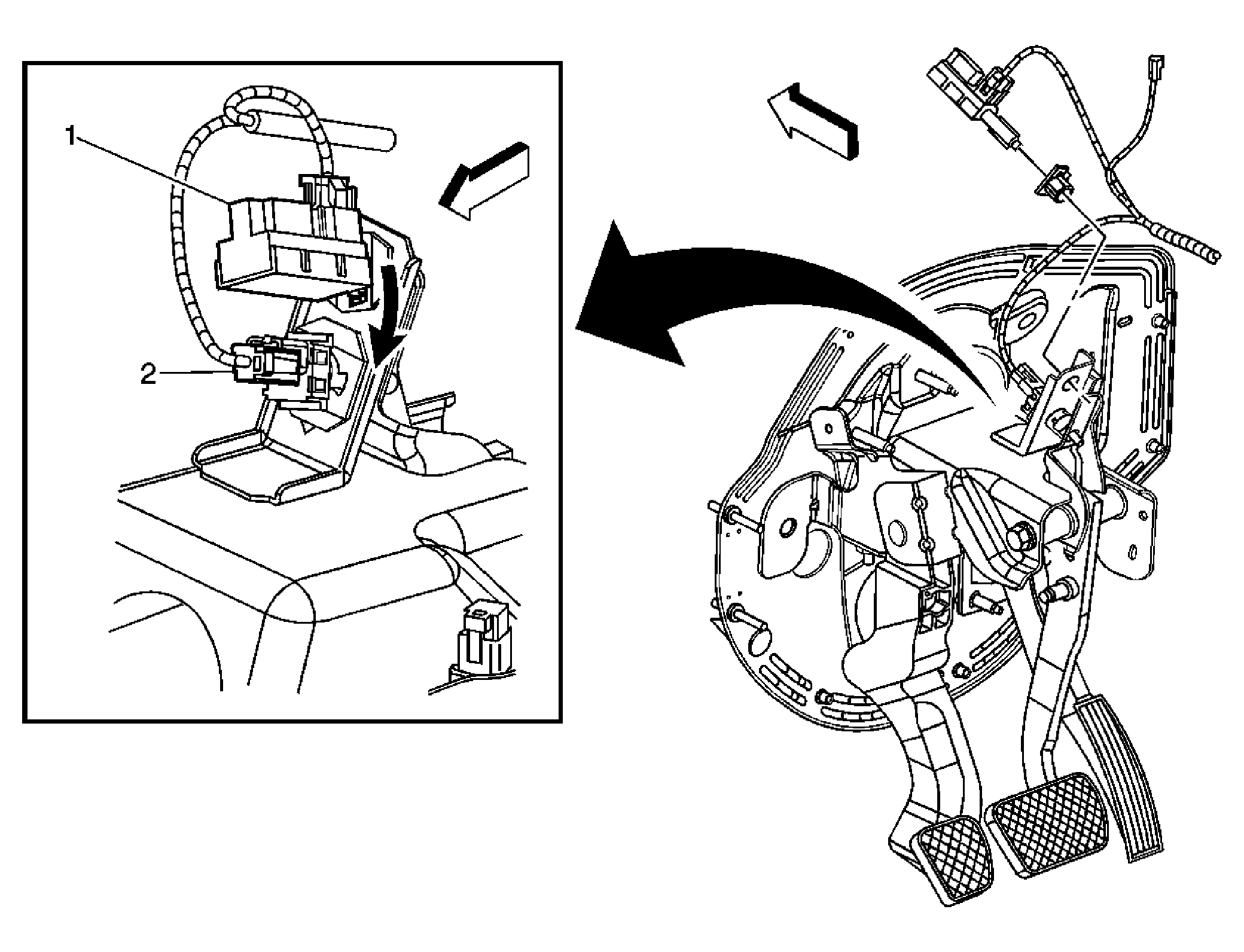

Fig 18: Lower Left Front Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Stop Lamp Switch - Upper
2	Stop Lamp Switch - Lower

Fig 19: Rear Of Engine Component View (2.2L)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Backup Lamp Switch (M86)
2	Engine Coolant Tempareture Sensor (ECT)
3	Heated Oxygen Sensor (HO2S)1
4	Heated Oxygen Sensor (HO2S)2 Connector

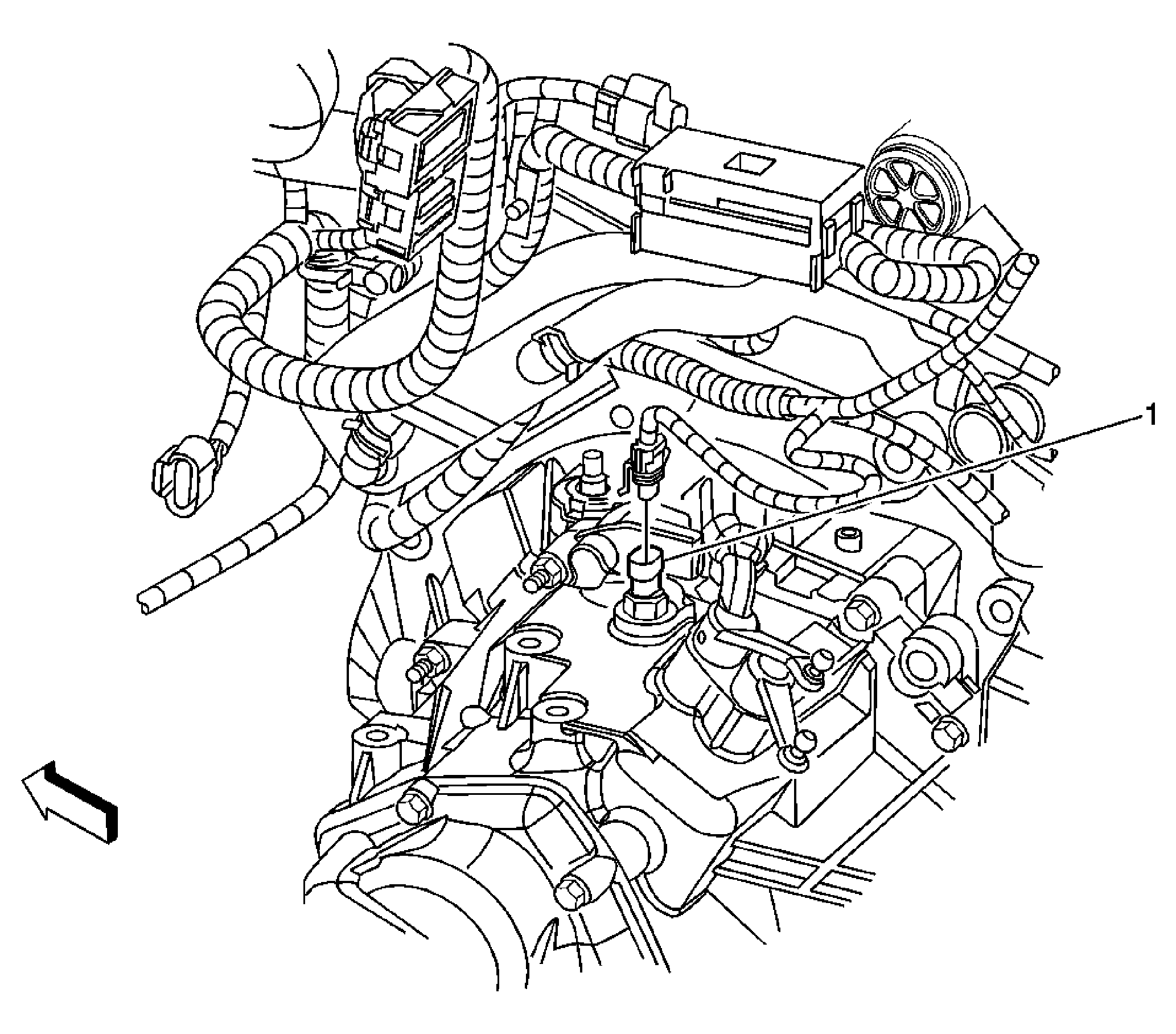

Fig 20: Top Of Transmission (MU3) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Backup Lamp Switch
