Entertainment/Communication Component Views

WARNING: This page is about a different car, the 2007 Saturn Ion Red Line, 2007 Saturn Ion 3, and 2007 Saturn Ion 2. However, it is still accessible from the selected car via links, so may be relevant.

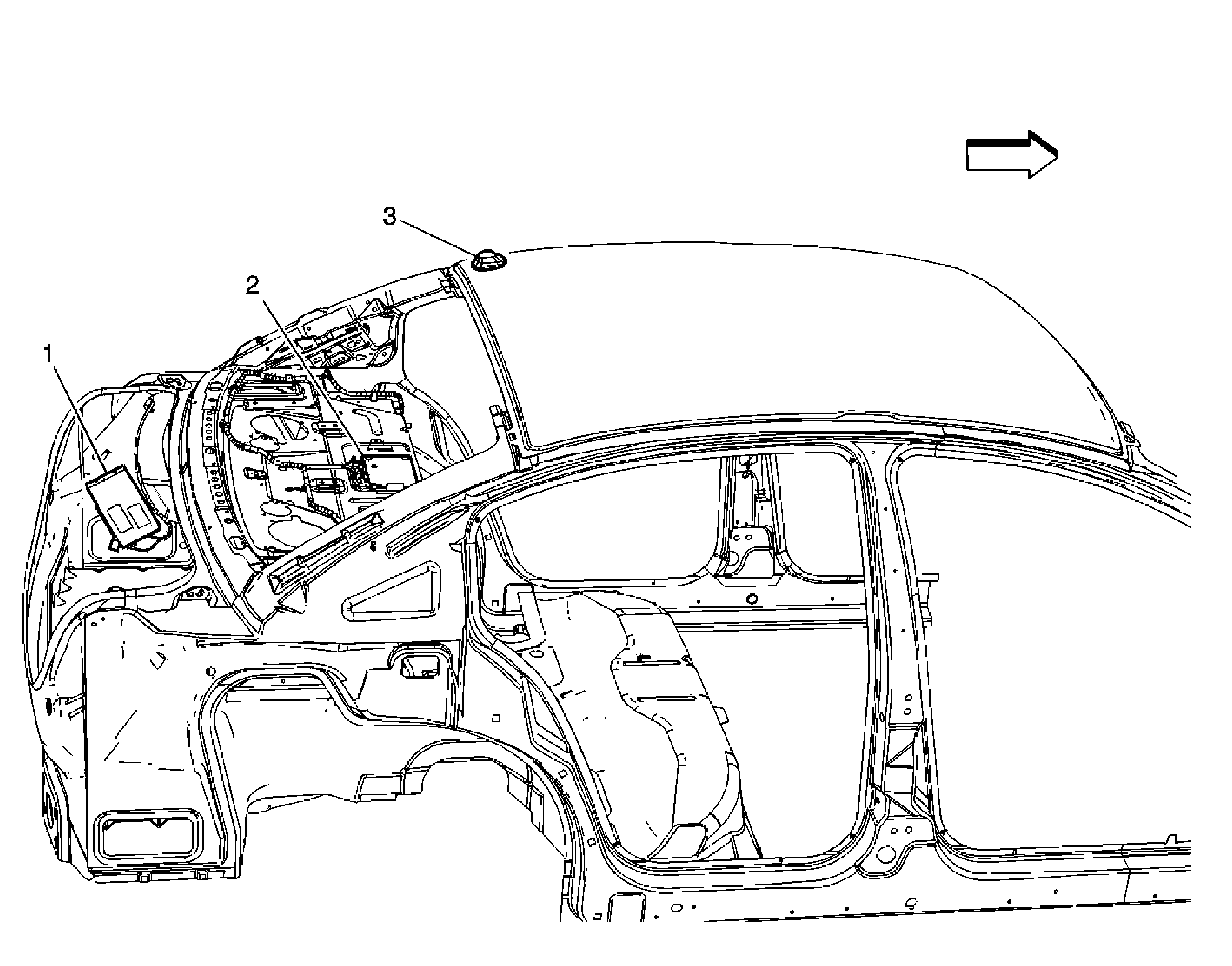

Fig 1: Antenna and Receiver Locations (U2K, UE1)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver (U2K)
2	Vehicle Communication Interface Module (VCIM)
3	Cellular/Navigational and Digital Radio Antenna (U2K/UE1)

Fig 2: Driver Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Outside Rearview Mirror
2	LF Door Tweeter Speaker (UZ6)
3	Driver Door Jamb Switch
4	Instrument Panel (I/P) Dimmer Switch
5	Fog Lamp Switch (T37)
6	Rear Compartment Lid Release Switch
7	LF Door Speaker
8	Outside Rearview Mirror Switch (DG7)
9	Window Switch - Driver (A31)
10	Door Lock Switch - Driver

Fig 3: Front Passenger Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio
2	Passenger Door Jamb Switch
3	RF Door Tweeter Speaker (UZ6)
4	Radio Antenna
5	Passenger Outside Rearview Mirror
6	Front Passenger Door Lock Switch
7	Front Passenger Window Switch (A31)
8	RF Door Speaker

Fig 4: Instrument Panel Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Windshield Wiper/Washer Switch
3	Hazard Switch
4	Instrument Panel Cluster (IPC)
5	Traction Control Switch (NW7)
6	Radio
7	A/T Shifter (MN5)
8	HVAC Control Assembly
9	Steering Wheel Controls - Right (K34)
10	Steering Wheel Controls - Left (K34)
11	Rear Compartment Lid Release Switch

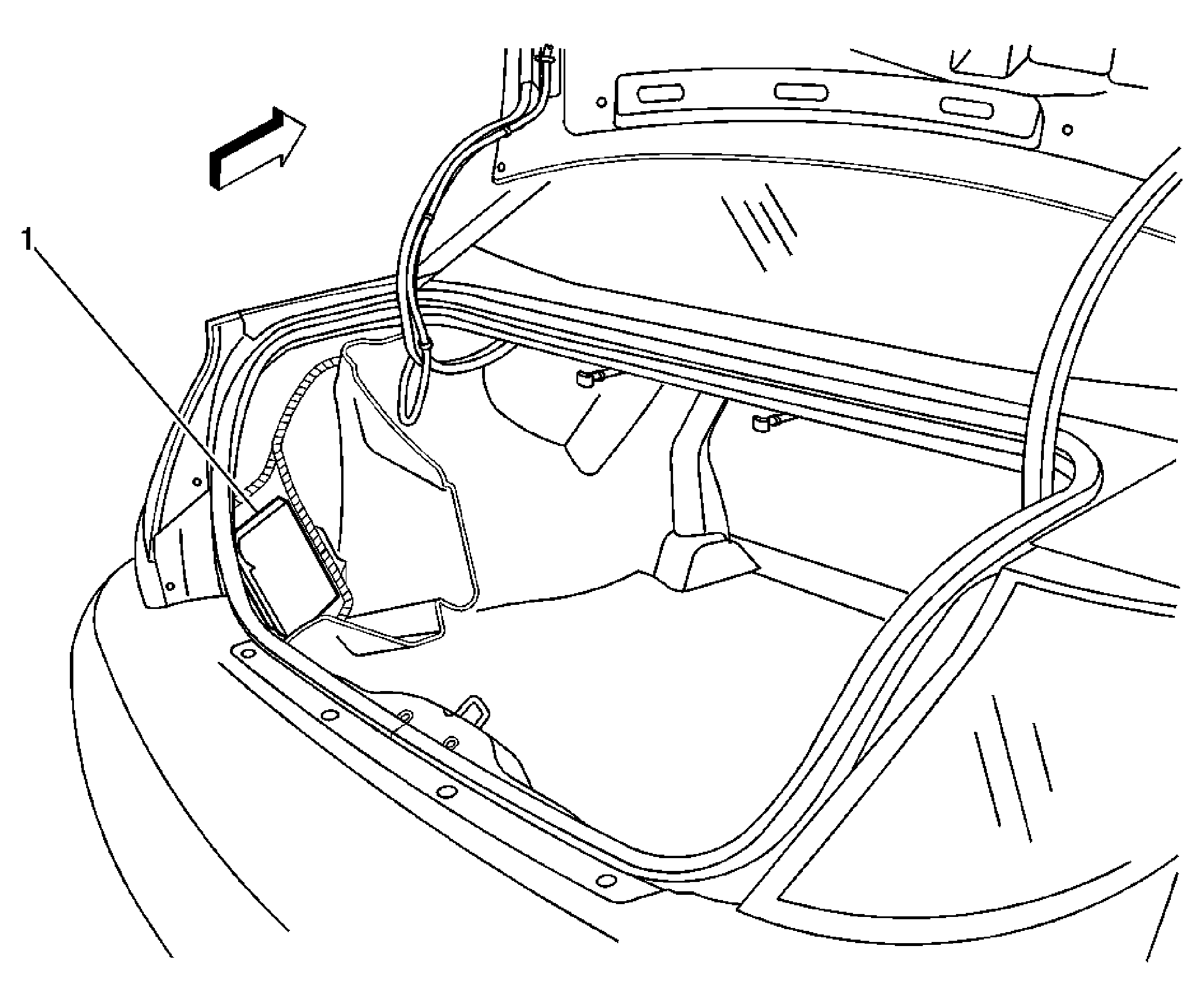

Fig 5: Left Side Of Luggage Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver (U2K)

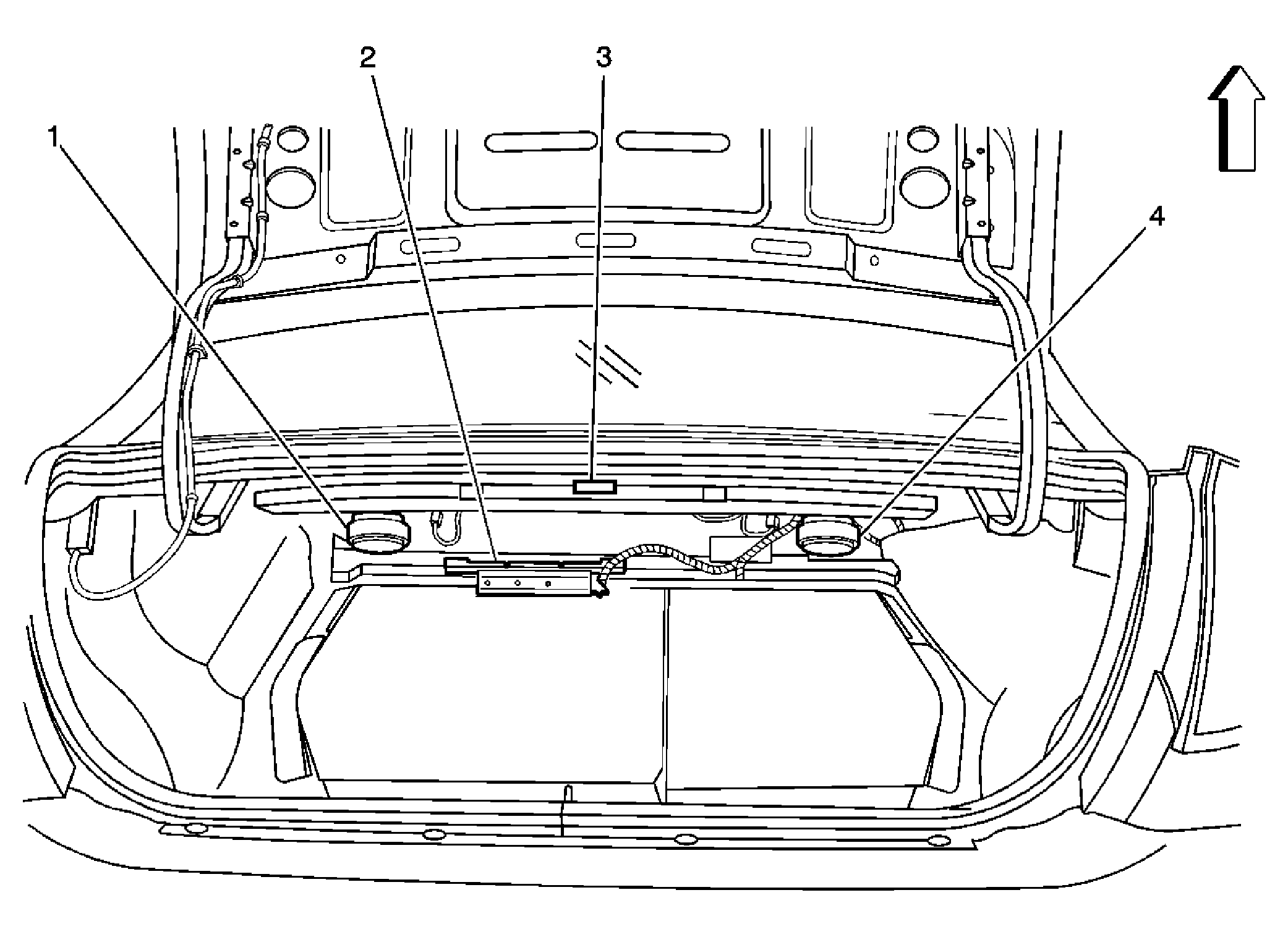

Fig 6: Luggage Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	LR Speaker
2	Audio Amplifier (UZ6)
3	Rear Compartment Courtesy Lamp
4	RR Speaker

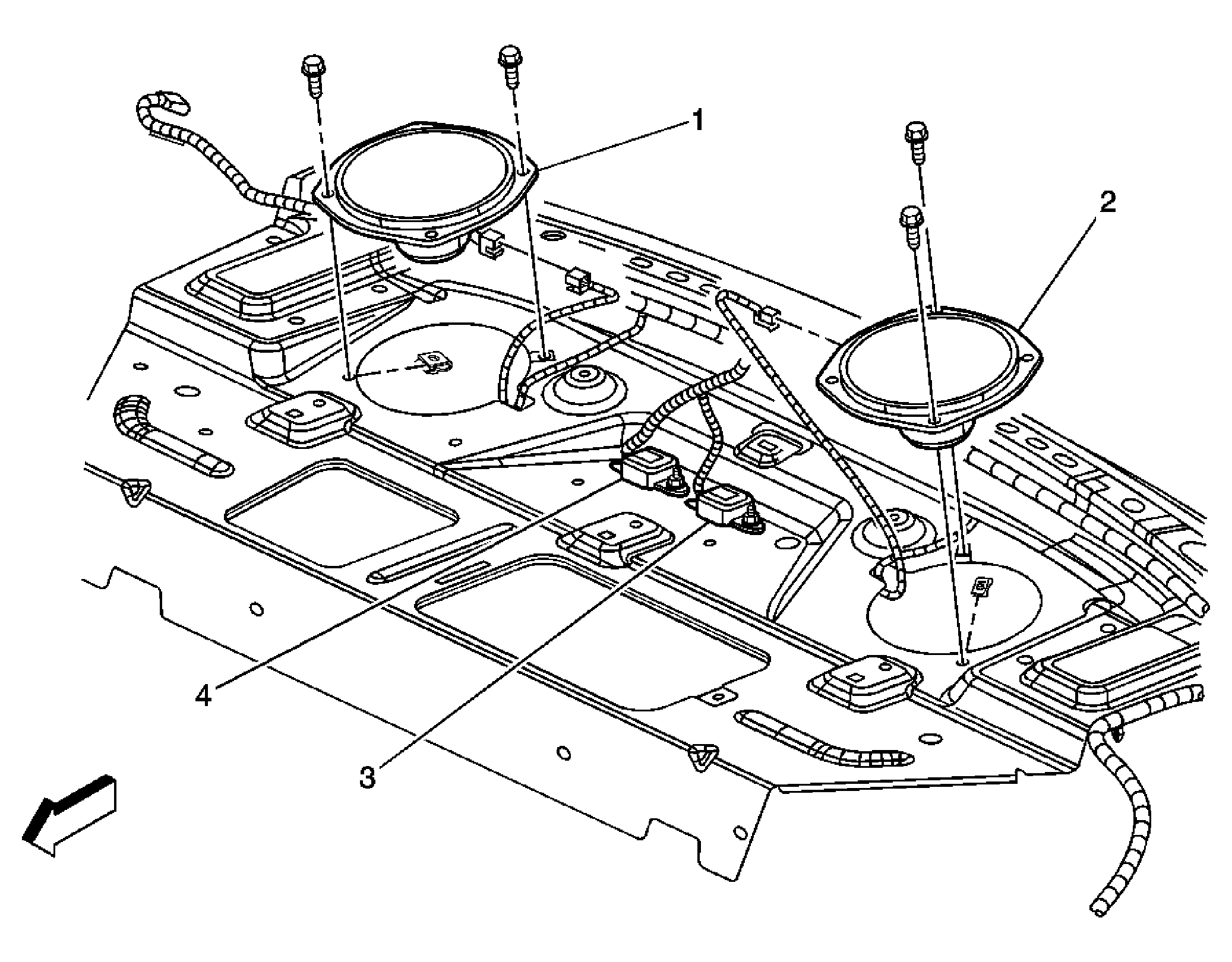

Fig 7: Rear Shelf Of Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - RR
2	Speaker - LR
3	G401
4	G403

Fig 8: Antenna and Receiver Locations (U2K, UE1)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver (U2K)
2	Vehicle Communication Interface Module (VCIM)
3	Cellular/Navigational and Digital Radio Antenna (U2K/UE1)

Fig 9: Inside Rearview Mirror Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlight Sensor (DF5)
2	OnStar® Indicator (UE1)
3	Emergency Button (UE1)
4	OnStar® Call Center Button (UE1)
5	OnStar® Microphone (UE1)
6	Answer/End Call Button (UE1)
7	Inside Rearview Mirror (ISRVM) On./Off Button (DF5)
