Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Ion Red Line, 2007 Saturn Ion 3, and 2007 Saturn Ion 2. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: It may be necessary to rotate the upper strut mount cover guide to match the hole in the strut tower.

Position the strut to the vehicles strut tower, using the alignment pin as a guide.

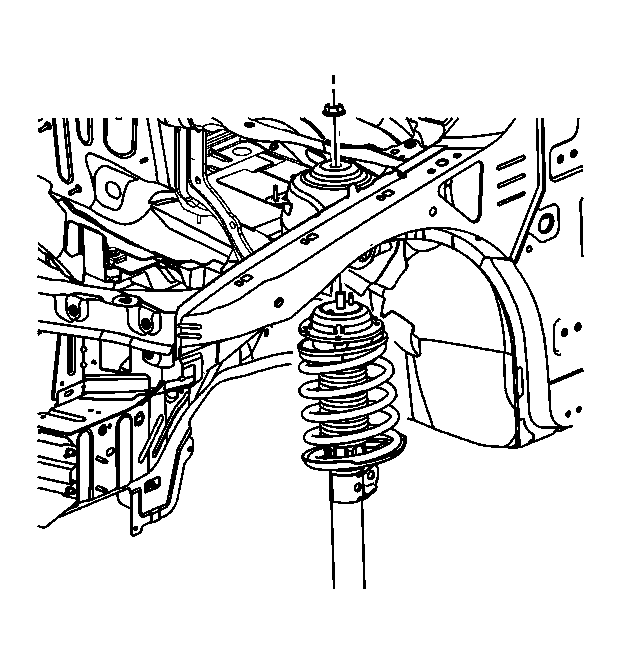

Fig 1: View Of Strut

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the upper strut cap to body nut.
Tighten: Tighten the nut to 110 N.m (81 lb ft).
Install the strut to steering knuckle bolts leaving the nuts off.
If applicable, place the wheel speed sensor harness and bracket to the bolt end.

Fig 2: View Of Strut-To-Steering Knuckle Nuts & Bolts

Courtesy of GENERAL MOTORS CORP.

Install the strut to steering knuckle nuts.
Tighten: Tighten the nuts to 120 N.m (89 lb ft).

Fig 3: View Of Stabilizer Link At Strut Assembly

Courtesy of GENERAL MOTORS CORP.

Connect the stabilizer link to the strut.
Tighten: Tighten the link to 110 N.m (81 lb ft).
Install the front wheel. Refer to Tire and Wheel Removal and Installation (4 Lug Wheel) or Tire and Wheel Removal and Installation (5 Lug Wheel) .
Lower the vehicle.
Road test the vehicle and test for leads and pulls. If vehicle leads or pulls refer to Measuring Wheel Alignment .
