Disassembled Views
WARNING: This page is about a different car, the 2007 Saturn Ion Red Line. However, it is still accessible from the selected car via links, so may be relevant.

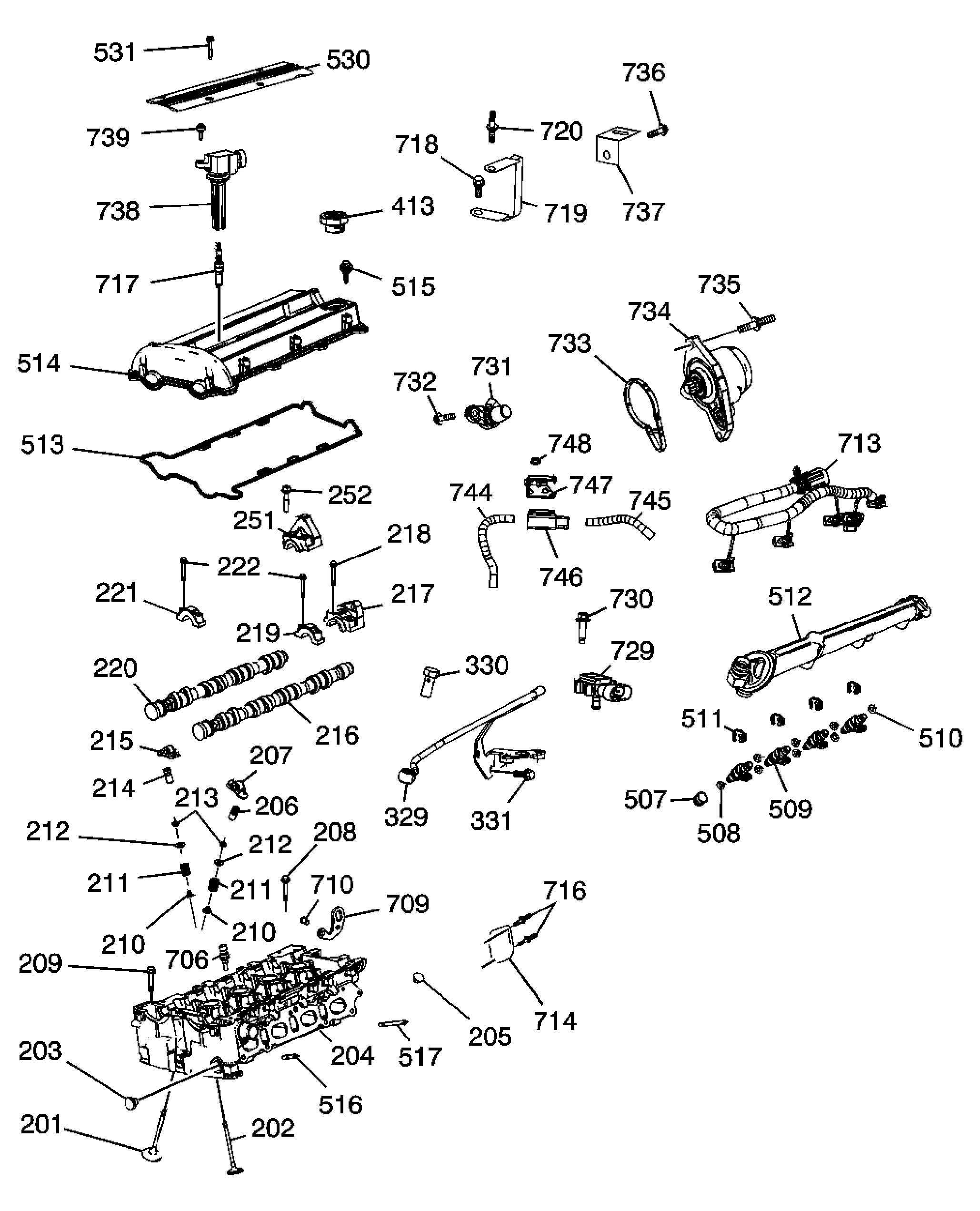

| Callout | Component Name |
|---|---|
| 201 | Exhaust Valve |
| 202 | Intake Valve |
| 203 | Timing Chain Guide Bolt Access Hole |
| 204 | Cylinder Head |
| 205 | Cylinder Head Gallery Plug |
| 206 | Hydraulic Lash Adjuster |
| 207 | Roller Finger Follower |
| 208 | Cylinder Head Bolt |
| 209 | Small Cylinder Head Bolt |
| 210 | Valve Stem Seal |
| 210 | Valve Stem Seal |
| 211 | Valve Spring |
| 211 | Valve Spring |
| 212 | Valve Spring Retainer |
| 212 | Valve Spring Retainer |
| 213 | Valve Keys |
| 214 | Hydraulic Lash Adjuster |
| 215 | Roller Finger Follower |
| 216 | Intake Camshaft |
| 217 | Camshaft Rear Cap |
| 218 | Camshaft Rear Cap Bolt |
| 219 | Camshaft Cap |
| 220 | Exhaust Camshaft |
| 221 | Camshaft Cap |
| 222 | Camshaft Cap Bolt |
| 251 | Camshaft Rear Cap |
| 252 | Camshaft Rear Cap Bolt |
| 329 | Coolant Return Line |
| 330 | Coolant Return Line Bolt |
| 331 | Coolant Return Line Bolt |
| 413 | Engine Oil Fill Cap |
| 507 | Fuel Injector Rotator Cup |
| 508 | Fuel Injector O-ring |
| 509 | Fuel Injector |
| 510 | Fuel Injector O-ring |
| 511 | Fuel Injector Clip |
| 512 | Fuel Rail |
| 513 | Camshaft Cover Gasket |
| 514 | Camshaft Cover |
| 515 | Camshaft Cover Bolt |
| 516 | Intake Manifold Stud |
| 517 | Intake Manifold Stud |
| 530 | Coil Cover |
| 531 | Coil Cover Bolt |
| 706 | Coolant Temperature Sensor |
| 709 | Rear Lift Bracket |
| 710 | Rear Lift Bracket Bolt |
| 713 | Fuel Injector Wiring Harness |
| 714 | Power Steering Blockout Plate |
| 716 | Power Steering Blockout Plate Bolt/Stud |
| 717 | Spark Plug |
| 718 | Ground Strap Bolt |
| 719 | Ground Strap |
| 720 | Ground Strap Bolt Stud |
| 729 | Baro Sensor |
| 730 | Baro Sensor Bolt |
| 731 | Camshaft Position Sensor |
| 732 | Camshaft Position Sensor Bolt |
| 733 | Camshaft Position Sensor Housing Gasket |
| 734 | Camshaft Position Sensor Housing |
| 735 | Camshaft Position Sensor Housing Bolt/Stud |
| 736 | Fuel Injector Harness Bracket Bolt |
| 737 | Fuel Injector Harness Bracket |
| 738 | Coil |
| 739 | Coil Bolt |
| 744 | Boost Solenoid Hose |
| 745 | Boost Solenoid Hose |
| 746 | Boost Solenoid |
| 747 | Boost Solenoid Bracket |
| 748 | Boost Solenoid Bracket Nut |

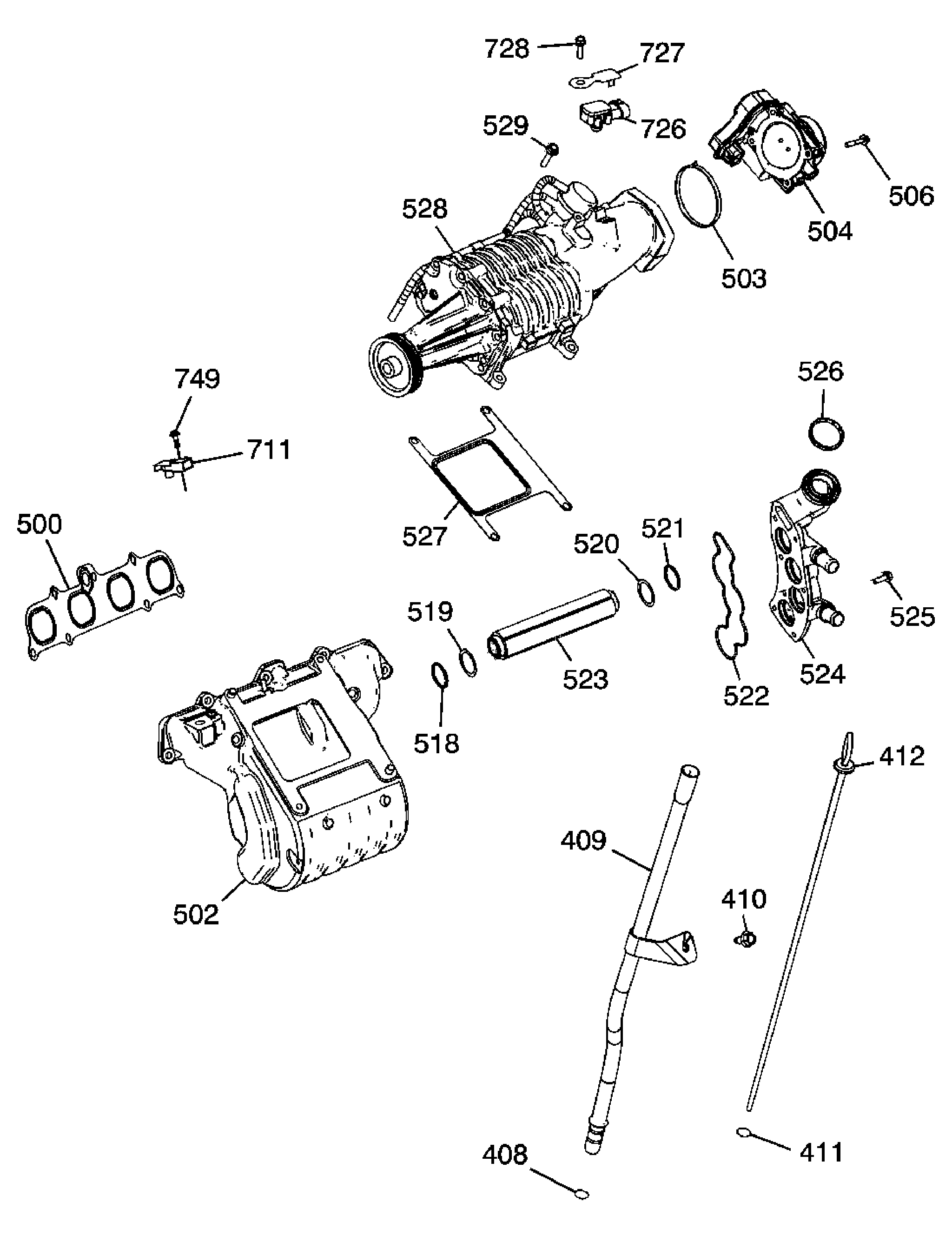

| Callout | Component Name |
|---|---|
| 408 | Oil Indicator Tube O-ring |
| 409 | Oil Indicator Tube |
| 410 | Oil Indicator Tube Bolt |
| 411 | Oil Indicator O-ring |
| 412 | Oil Indicator |
| 500 | Intake Manifold Gasket |
| 502 | Intake Manifold |
| 503 | Throttle Body Seal |
| 504 | Throttle Body |
| 506 | Throttle Body Bolt |
| 518 | Intercooler O-ring |
| 519 | Intercooler Washer |
| 520 | Intercooler Washer |
| 521 | Intercooler O-ring |
| 522 | Intercooler Cover Gasket |
| 523 | Intercooler |
| 524 | Intercooler Cover |
| 525 | Intercooler Cover Bolt |
| 526 | Intercooler Cover Seal |
| 527 | Supercharger Gasket |
| 528 | Supercharger |
| 529 | Supercharger Bolt |
| 711 | Map Sensor |
| 726 | Supercharger Inlet Pressure Sensor |
| 727 | Map Sensor Bracket |
| 728 | Map Sensor Bracket Bolt |
| 749 | Map Sensor Bolt |
| Callout | Component Name |
|---|---|
| 600 | Exhaust Manifold Stud |
| 601 | Exhaust Manifold Gasket |
| 602 | Exhaust Manifold |
| 603 | Exhaust Manifold Nut |
| 604 | Exhaust Manifold Heat Shield |
| 605 | Exhaust Manifold Heat Shield Nut |
| 712 | Oxygen Sensor |

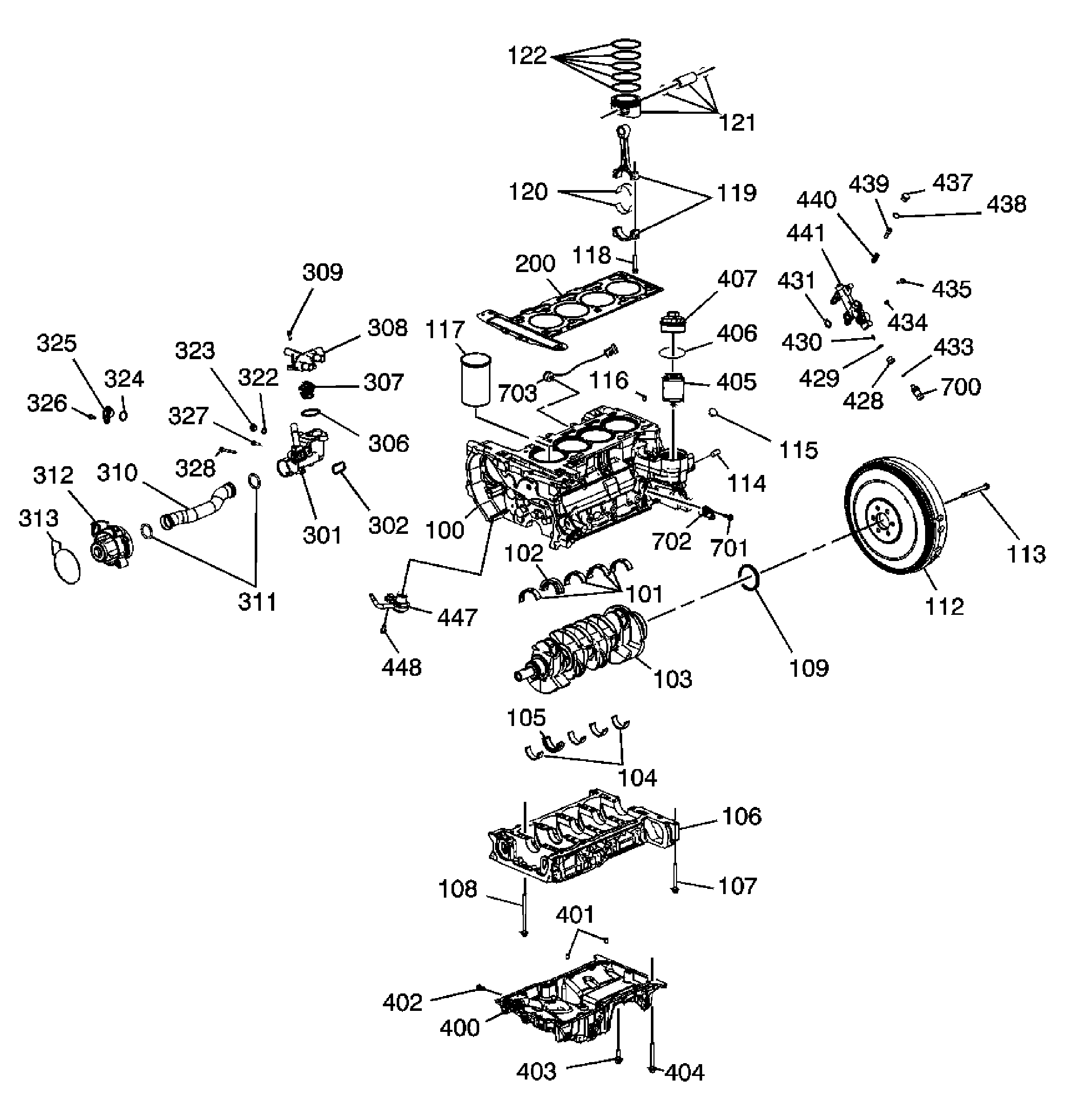

| Callout | Component Name |
|---|---|
| 100 | Engine Block |
| 101 | Crankshaft Bearing - Upper |
| 102 | Crankshaft Thrust Bearing - Upper |
| 103 | Crankshaft |
| 104 | Crankshaft Bearing - Lower |
| 105 | Crankshaft Thrust Bearing - Lower |
| 106 | Lower Crankcase |
| 107 | Lower Crankcase Perimeter Bolt |
| 108 | Lower Crankcase Main Bearing Bolt |
| 109 | Crankshaft Rear Seal |
| 112 | Manual Transaxle Flywheel |
| 113 | Manual Transaxle Flywheel Bolt |
| 114 | Engine Block to Transaxle Alignment Pin |
| 115 | Engine Block Gallery Plug |
| 116 | Cylinder Head Alignment Pin |
| 117 | Cylinder Bore Sleeve |
| 118 | Connecting Rod Cap Bolt |
| 119 | Connecting Rod |
| 120 | Connecting Rod Bearing |
| 121 | Piston Assembly |
| 122 | Piston Ring Assembly |
| 200 | Cylinder Head Gasket |
| 301 | Thermostat Housing |
| 302 | Thermostat Housing to Block Gasket |
| 306 | Thermostat Gasket |
| 307 | Thermostat |
| 308 | Thermostat Housing Cap |
| 309 | Thermostat Housing Cap Bolt |
| 310 | Water Transfer Pipe |
| 311 | Water Transfer Pipe O-ring Seals |
| 312 | Water Pump |
| 313 | Water Pump to Engine Block Seal |
| 322 | Thermostat Housing Plug O-ring |
| 323 | Thermostat Housing Plug |
| 324 | Thermostat Housing Plug O-ring |
| 325 | Thermostat Housing Plug |
| 326 | Thermostat Housing Plug Bolt |
| 327 | Thermostat Housing Short Bolt |
| 328 | Thermostat Housing Long Bolt |
| 400 | Engine Oil Pan |
| 401 | Engine Oil Pan Alignment Pins |
| 402 | Engine Oil Pan Drain Plug |
| 403 | Engine Oil Pan Bolt |
| 404 | Engine Oil Pan Long Bolt |
| 405 | Oil Filter |
| 406 | Oil Filter Cap O-ring |
| 407 | Oil Filter Cap |
| 428 | Oil Pressure Sensor Fitting |
| 429 | Oil Pressure Sensor Fitting O-ring |
| 430 | Oil Pressure Sensor Plunger |
| 431 | Oil Bypass Tube O-ring |
| 433 | Oil Pressure Sensor O-ring |
| 434 | Oil Bypass Tube Plug |
| 435 | Oil Bypass Tube Bolt |
| 437 | Oil Bypass Tube Plug |
| 438 | Oil Bypass Tube Plug O-ring |
| 439 | Oil Bypass Tube Plunger |
| 440 | Oil Bypass Tube Spring |
| 441 | Oil Bypass Tube |
| 447 | Piston Oil Squirter |
| 448 | Piston Oil Squirter Bolt |
| 700 | Oil Pressure Switch |
| 701 | Crankshaft Position Sensor Bolt |
| 702 | Crankshaft Position Sensor |
| 703 | Knock Sensor |

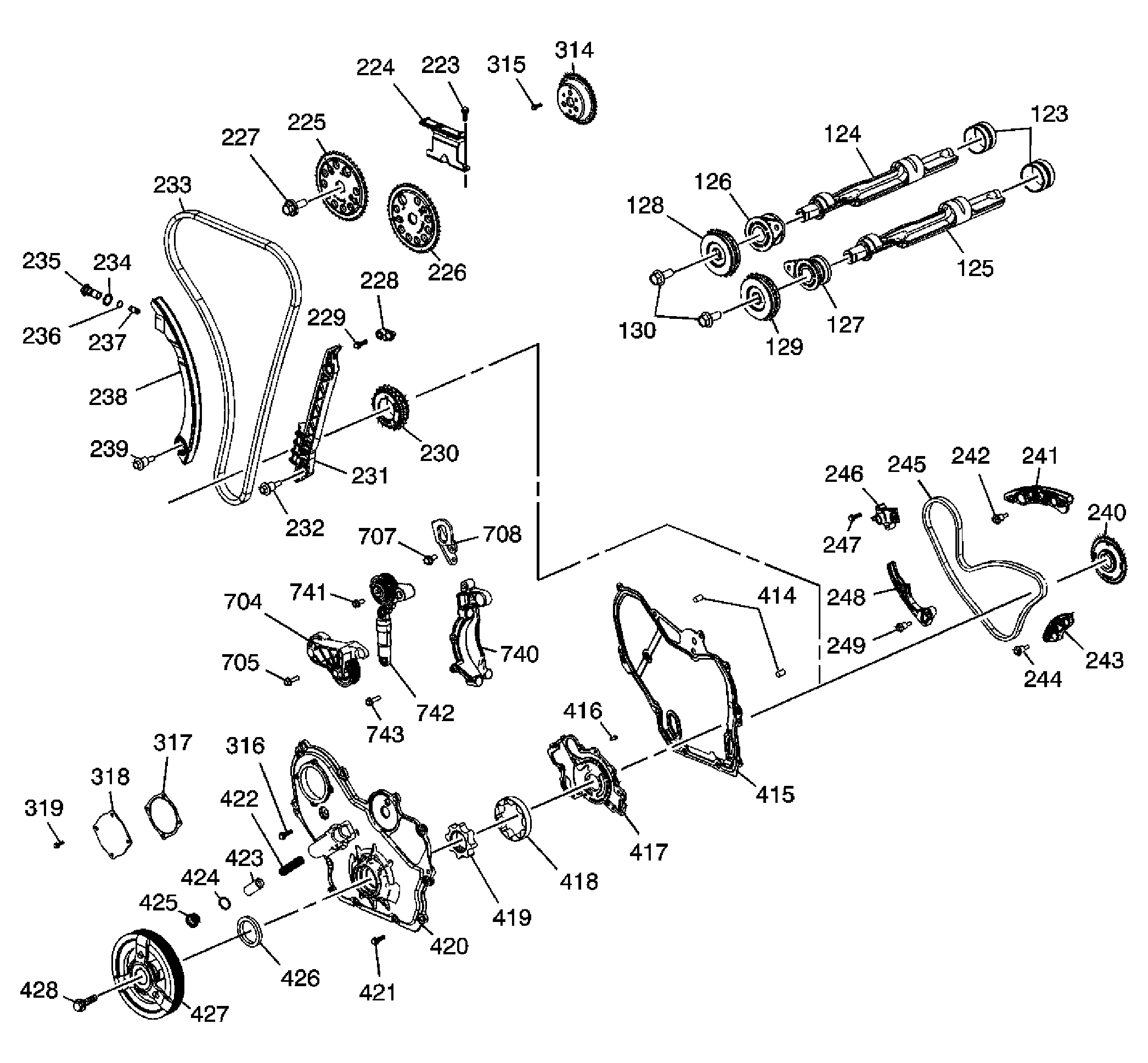

| Callout | Component Name |
|---|---|
| 123 | Balance Shaft Rear Bearing |
| 124 | Exhaust Balance Shaft |
| 125 | Intake Balance Shaft |
| 126 | Exhaust Balance Shaft Bearing Carrier |
| 127 | Intake Balance Shaft Bearing Carrier |
| 128 | Exhaust Balance Shaft Drive Sprocket |
| 129 | Intake Balance Shaft Drive Sprocket |
| 130 | Balance Shaft Drive Sprocket Bolts |
| 223 | Upper Timing Chain Guide Bolt |
| 224 | Upper Timing Chain Guide |
| 225 | Exhaust Camshaft Sprocket |
| 226 | Intake Camshaft Sprocket |
| 227 | Camshaft Sprocket to Camshaft Bolt |
| 228 | Timing Chain Oil Nozzle |
| 229 | Timing Chain Oil Nozzle Bolt |
| 230 | Timing Chain Drive Sprocket |
| 231 | Fixed Timing Chain Guide |
| 232 | Fixed Timing Chain Guide Bolt |
| 233 | Timing Chain |
| 234 | Timing Chain Tensioner Washer |
| 235 | Timing Chain Tensioner Body |
| 236 | Timing Chain Tensioner O-ring Seal |
| 237 | Timing Chain Tensioner Plunger |
| 238 | Adjustable Timing Chain Guide |
| 239 | Adjustable Timing Chain Guide Bolt |
| 240 | Balance Shaft Drive Sprocket |
| 241 | Balance Shaft Drive Chain Guide |
| 242 | Balance Shaft Drive Chain Guide Bolt |
| 243 | Balance Shaft Drive Chain Guide |
| 244 | Balance Shaft Drive Chain Guide Bolt |
| 245 | Balance Shaft Drive Chain |
| 246 | Balance Shaft Drive Chain Tensioner Assembly |
| 247 | Balance Shaft Drive Chain Tensioner Assembly Bolt |
| 248 | Balance Shaft Drive Chain Tensioner Assembly Bolt |
| 249 | Adjustable Balance Shaft Drive Chain Guide |
| 314 | Water Pump Drive Sprocket |
| 315 | Water Pump Drive Sprocket Bolt |
| 316 | Water Pump Bolt |
| 317 | Engine Front Cover Access Plate Gasket |
| 318 | Engine Front Cover Access Plate |
| 319 | Engine Front Cover Access Plate Bolt |
| 414 | Engine Front Cover Alignment Pins |
| 415 | Engine Front Cover Gasket |
| 416 | Oil Pump Cover Bolt |
| 417 | Oil Pump Cover |
| 418 | Oil Pump Outer Gerotor |
| 419 | Oil Pump Inner Gerotor |
| 420 | Engine Front Cover |
| 421 | Engine Front Cover Bolt |
| 422 | Oil Pressure Relief Valve Spring |
| 423 | Oil Pressure Relief Valve Plunger |
| 424 | Oil Pressure Relief Valve O-ring Seal |
| 425 | Oil Pressure Relief Valve Plug |
| 426 | Crankshaft Front Seal |
| 427 | Crankshaft Dampener |
| 428 | Crankshaft Dampener Bolt |
| 704 | Belt Tensioner |
| 705 | Belt Tensioner Bolt |
| 707 | Front Lift Bracket Bolt |
| 708 | Front Lift Bracket |
| 740 | Generator Bracket |
| 741 | Belt Tensioner Bolt |
| 742 | Belt Tensioner |
| 743 | Generator Bracket Bolt |
