Entertainment/Communication Component Views

WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

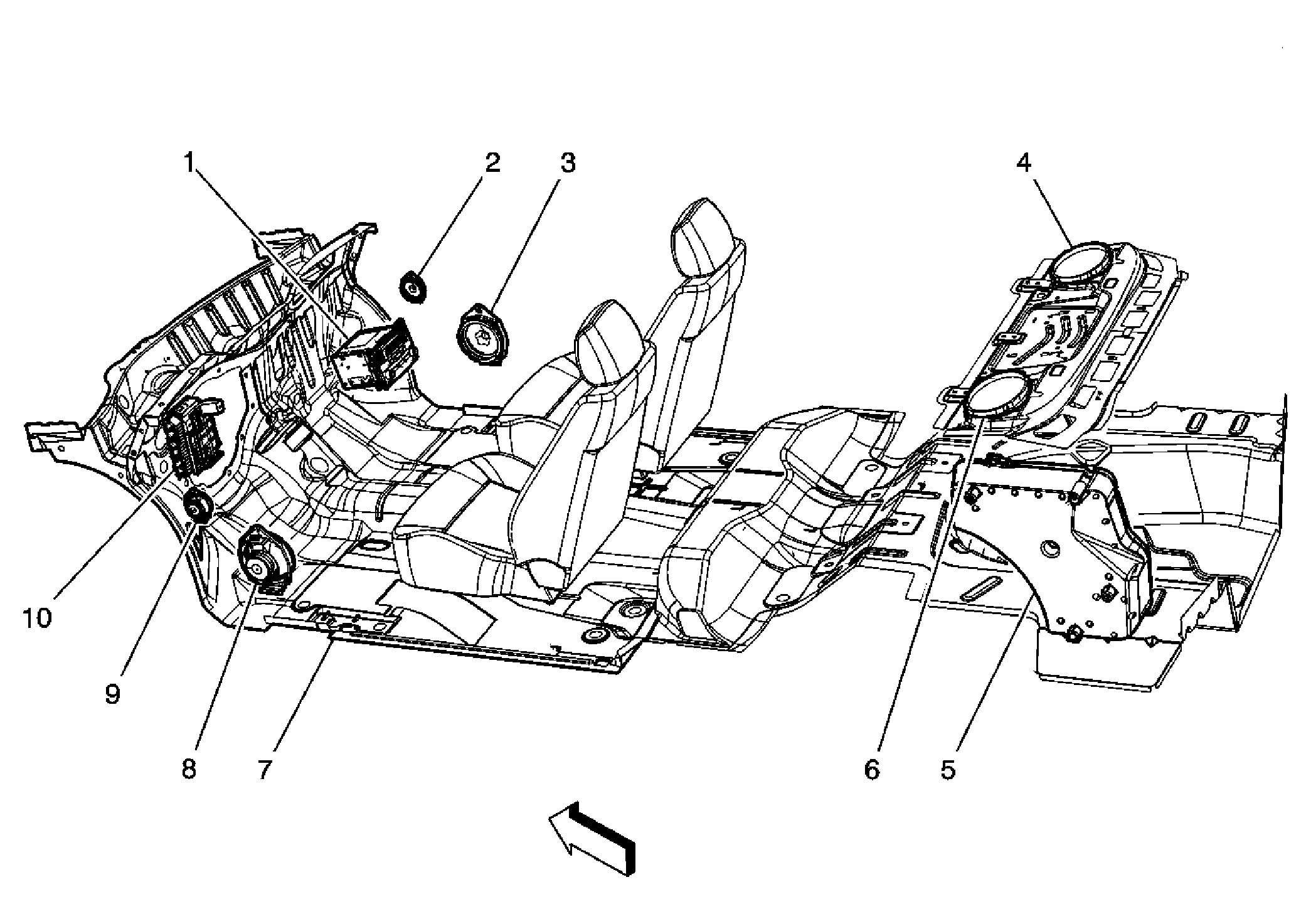

Fig 1: Audio Amplifier, Radio, and Speakers

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio
2	Speaker - RF Door
3	Speaker - RR
4	Speaker - Subwoofer (UQ3)
5	Speaker - LR
6	Floor Pan
7	Speaker - LF Door
8	Audio Amplifier (UQ3)

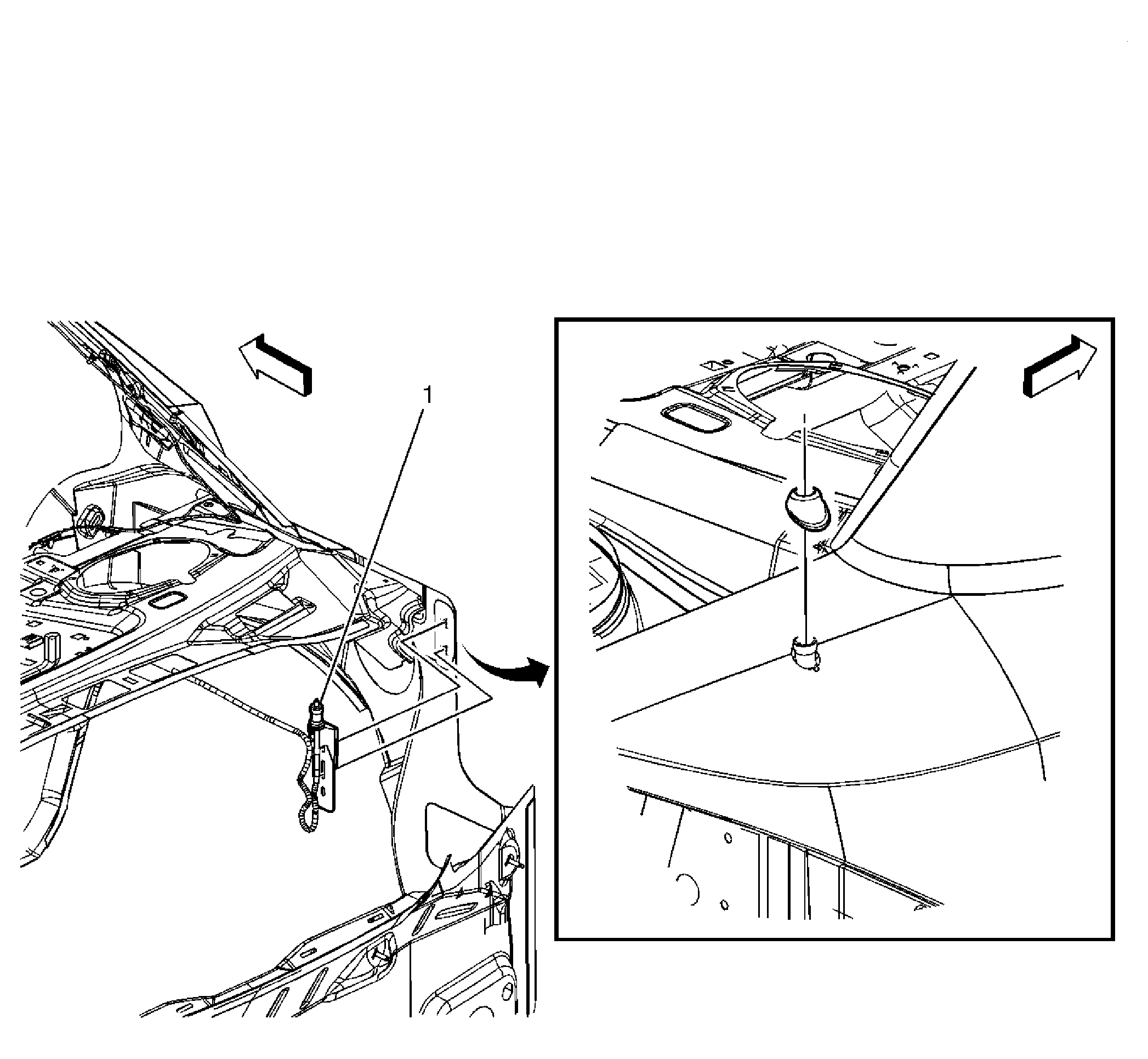

Fig 2: Digital Radio/Cellular Telephone Antenna (UE1/U2K)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio/Cellular Telephone Antenna (UE1/U2K)

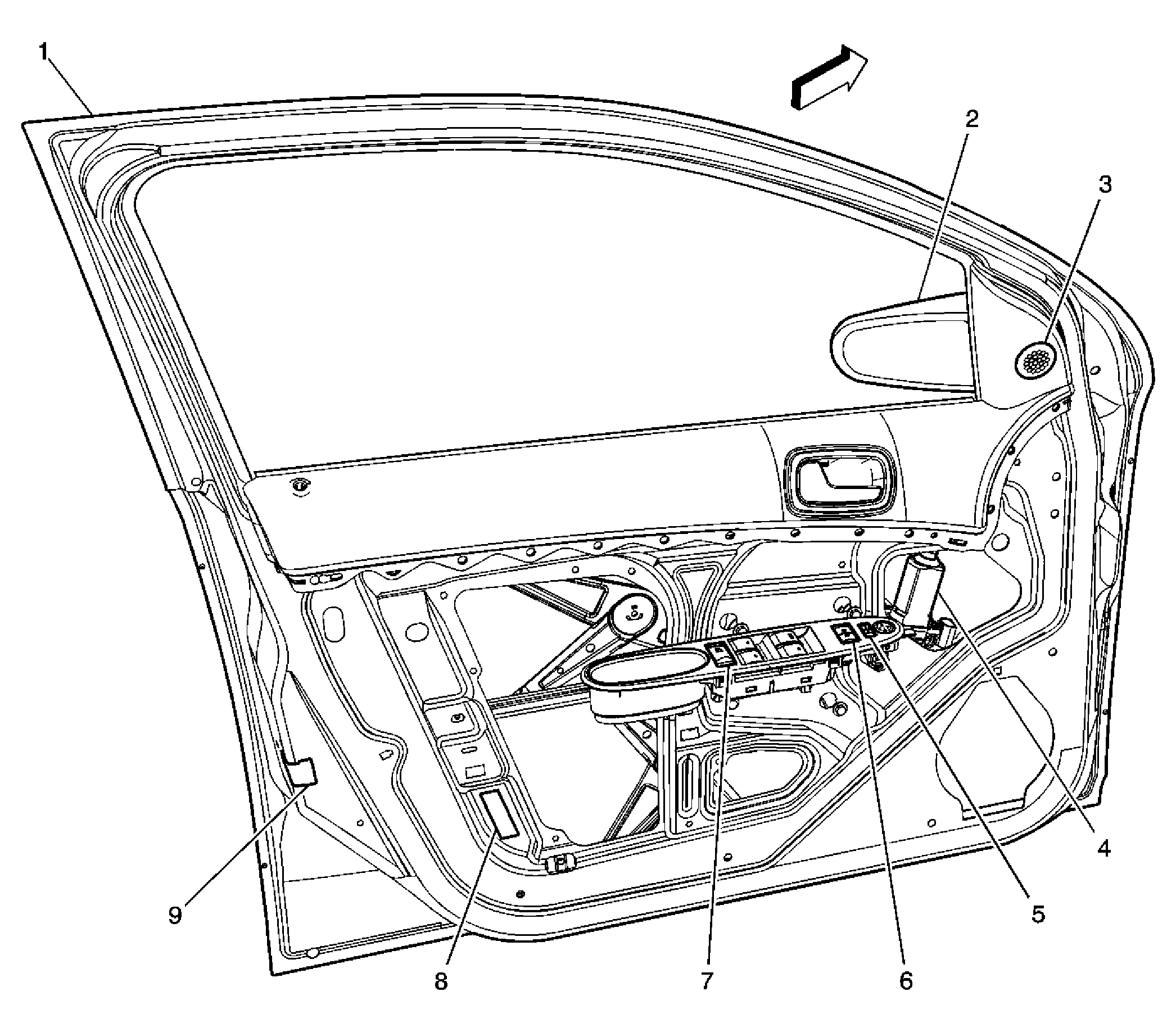

Fig 3: Driver Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Outside Rearview Mirror - Driver (DG7)
3	Speaker - LF Door Tweeter (UQ3)
4	Window Motor (A31) - Driver
5	Outside Rearview Mirror Switch (DG7)
6	Door Lock Switch (AU3) - Driver
7	Window Switch (A31) - Driver
8	Inflatable Restraint Side Impact Module (SIS) - Left (ASF)
9	Door Latch (AU3) - Driver

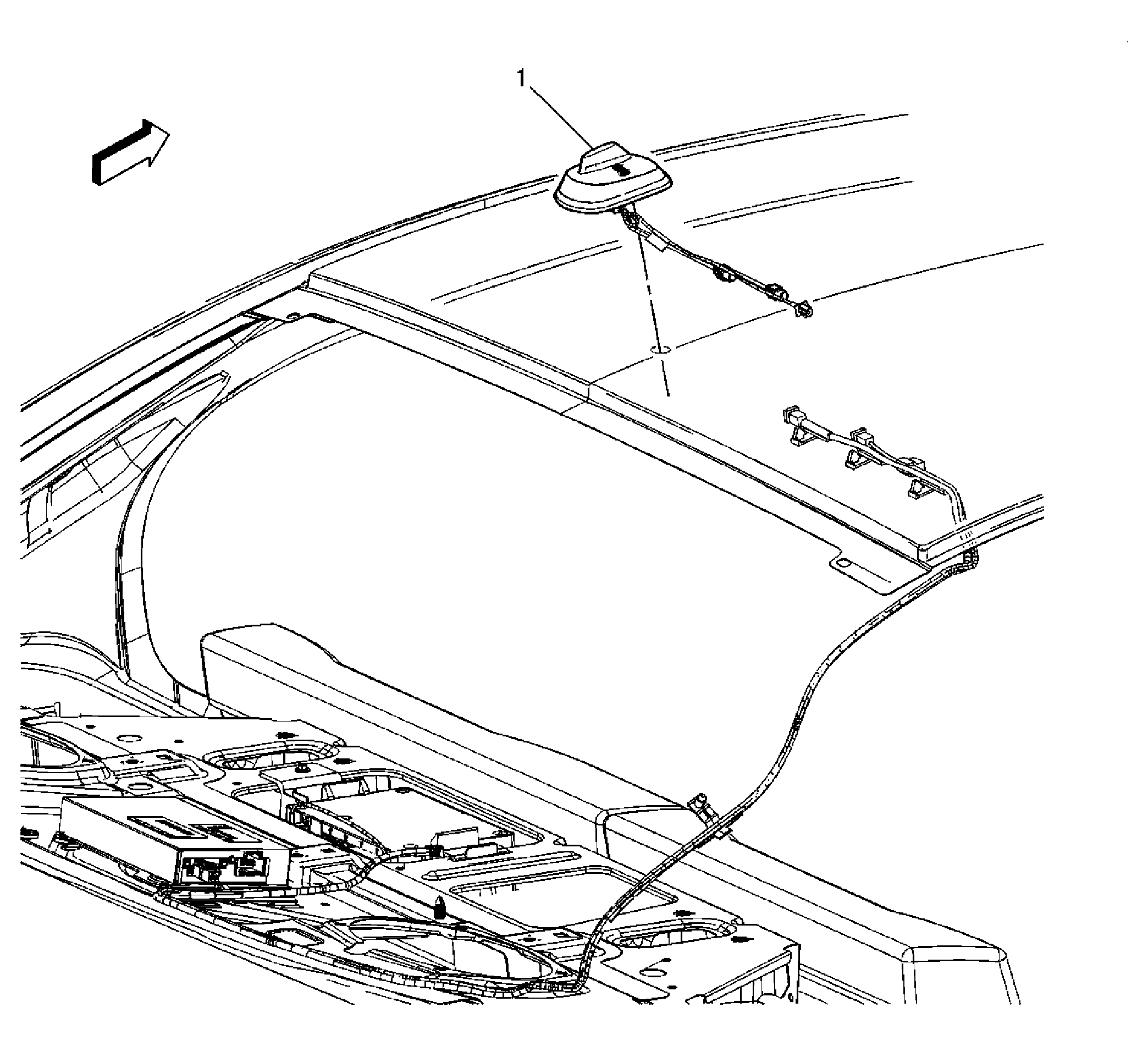

Fig 4: Fixed Radio Antenna

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fixed Radio Antenna

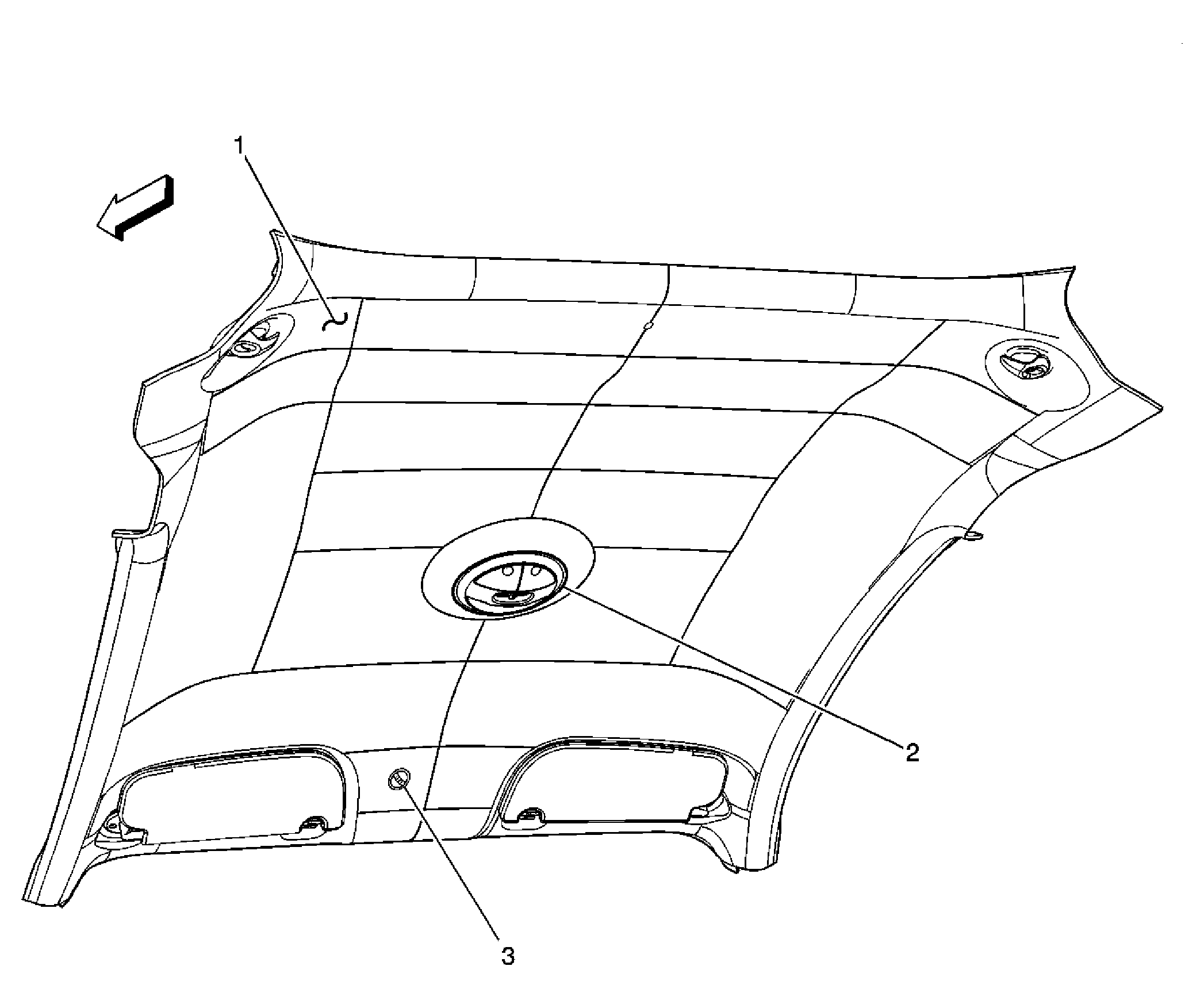

Fig 5: Headliner Components (w/o CF5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headliner
2	Dome Lamp
3	Cellular Telephone Microphone (UE1)

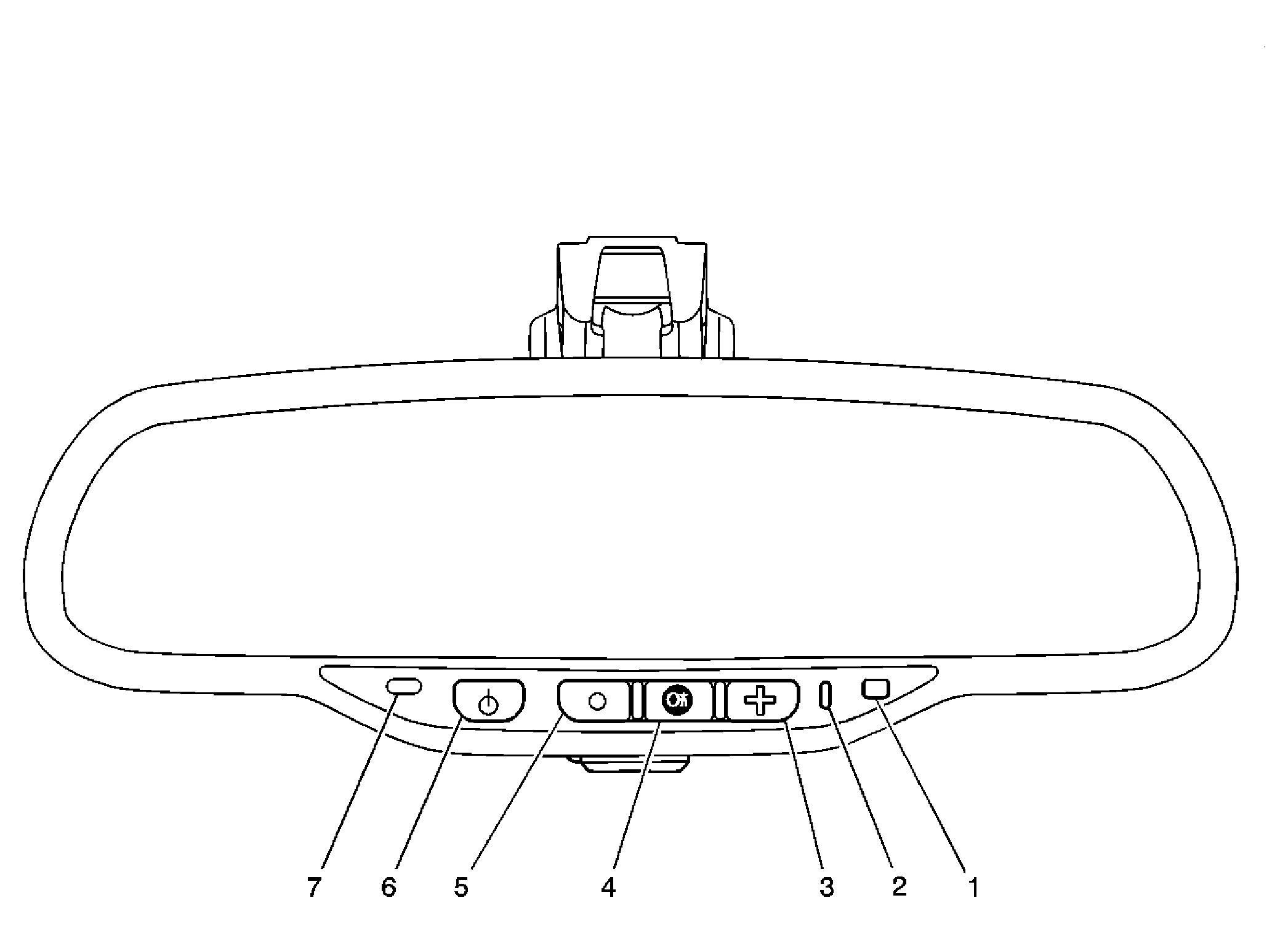

Fig 6: Inside Rearview Mirror

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlight Sensor (DD8)
2	OnStar® Indicator - Red
3	Emergency Button
4	OnStar® Call Center Button
5	Answer/End Call Button
6	Inside Rearview Mirror (ISRVM) On./Off Button (DD8)
7	Onstar Indicator - Green

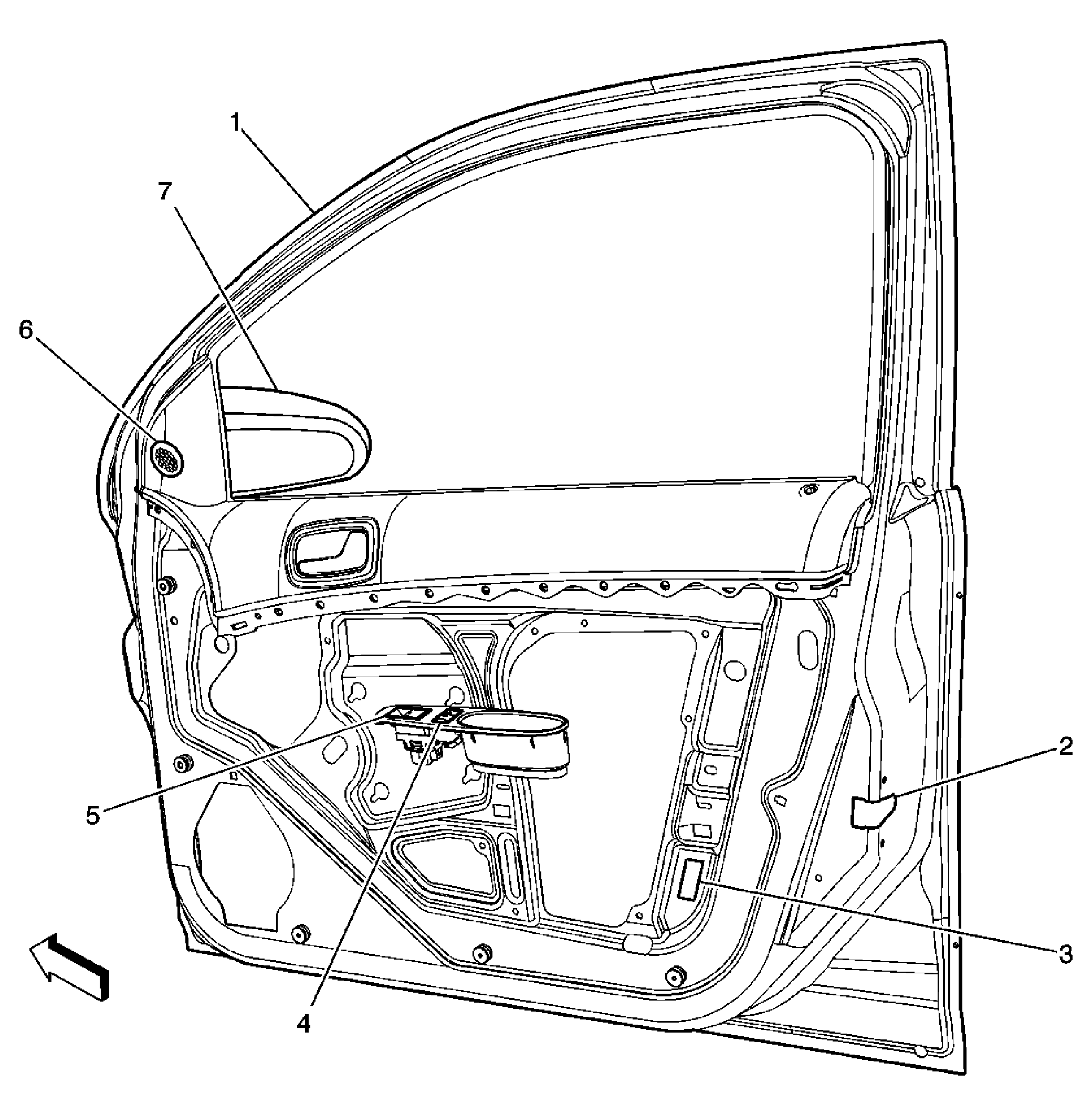

Fig 7: Passenger Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Door Latch (AU3) - Passenger
3	Inflatable Restraint Side Impact Module (SIS) - Right (ASF)
4	Door Lock Switch (AU3) - Passenger
5	Window Switch (A31) - Passenger
6	Speaker - RF Door Tweeter (UQ3)
7	Outside Rearview Mirror - Passenger (DG7)

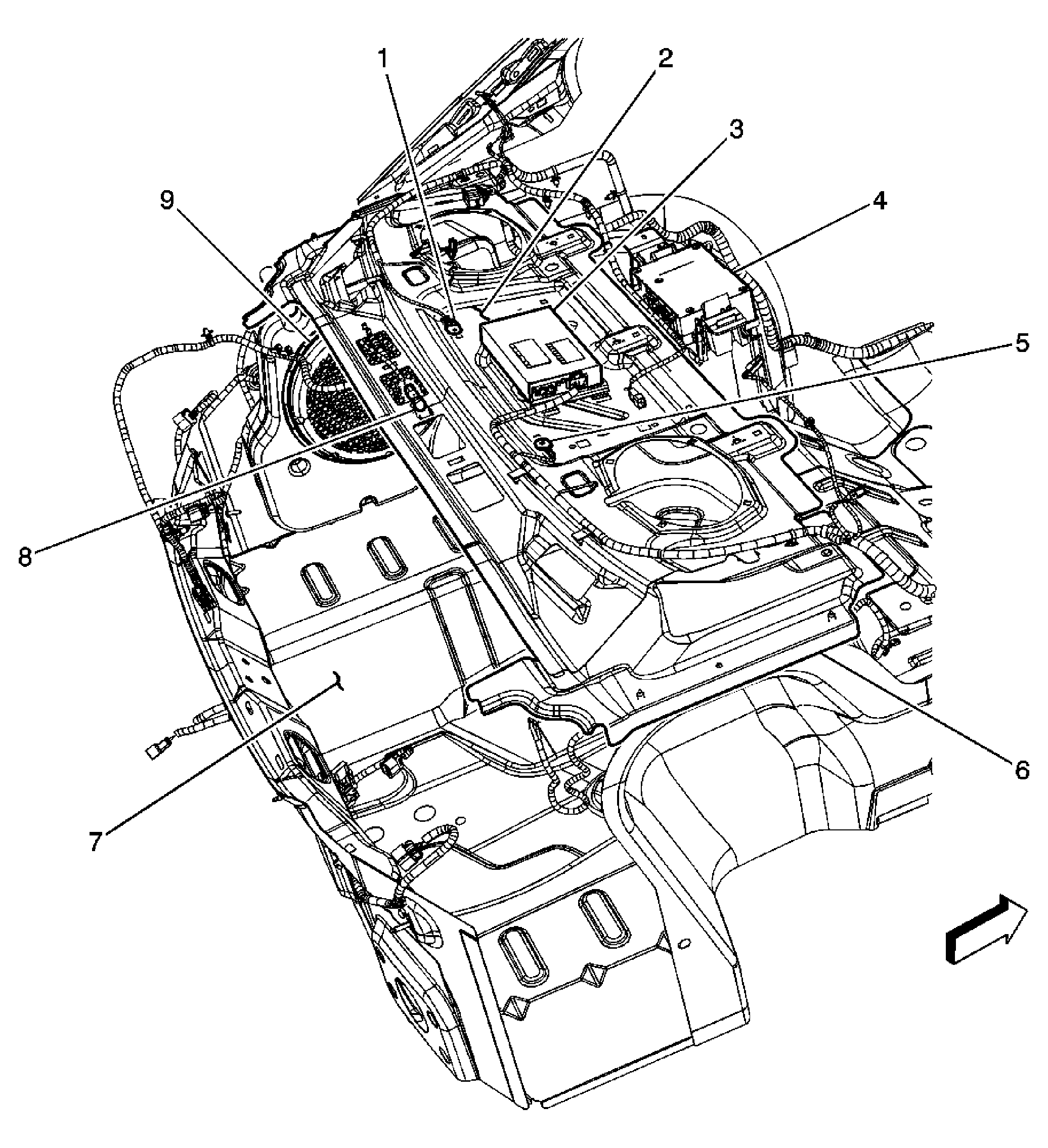

Fig 8: Rear Compartments and Shelf Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G401
2	Digital Radio Receiver (U2K)
3	Vehicle Communication Interface Module (VCIM) (UE1)
4	G402
5	Rear Window Shelf
6	Floor Pan
7	Rear Compartment Coutesty Light
8	Speaker - Subwoofer (UQ3)

Fig 9: Steering Wheel and Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Inflatable Restraint Steering Wheel Module Coil
3	Windshield Wiper/Washer Switch
4	Steering Wheel
5	Steering Wheel Controls - Right (UK3/K34)
6	Horn Switchs
7	Steering Wheel Controls - Left (UK3/K34)
8	Electronic Power Steering Control Module (EPS)
9	Electronic Power Steering (EPS) Control Motor
10	Ignition Switch
11	Ignition Lock Cylinder Control Solenoid (MN5)
