Body Control Module (BCM) C3
WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
Body Control Module (BCM) C3 Connector & Terminal Parts Information
Connector Part Information
|
Terminal Part Information
|

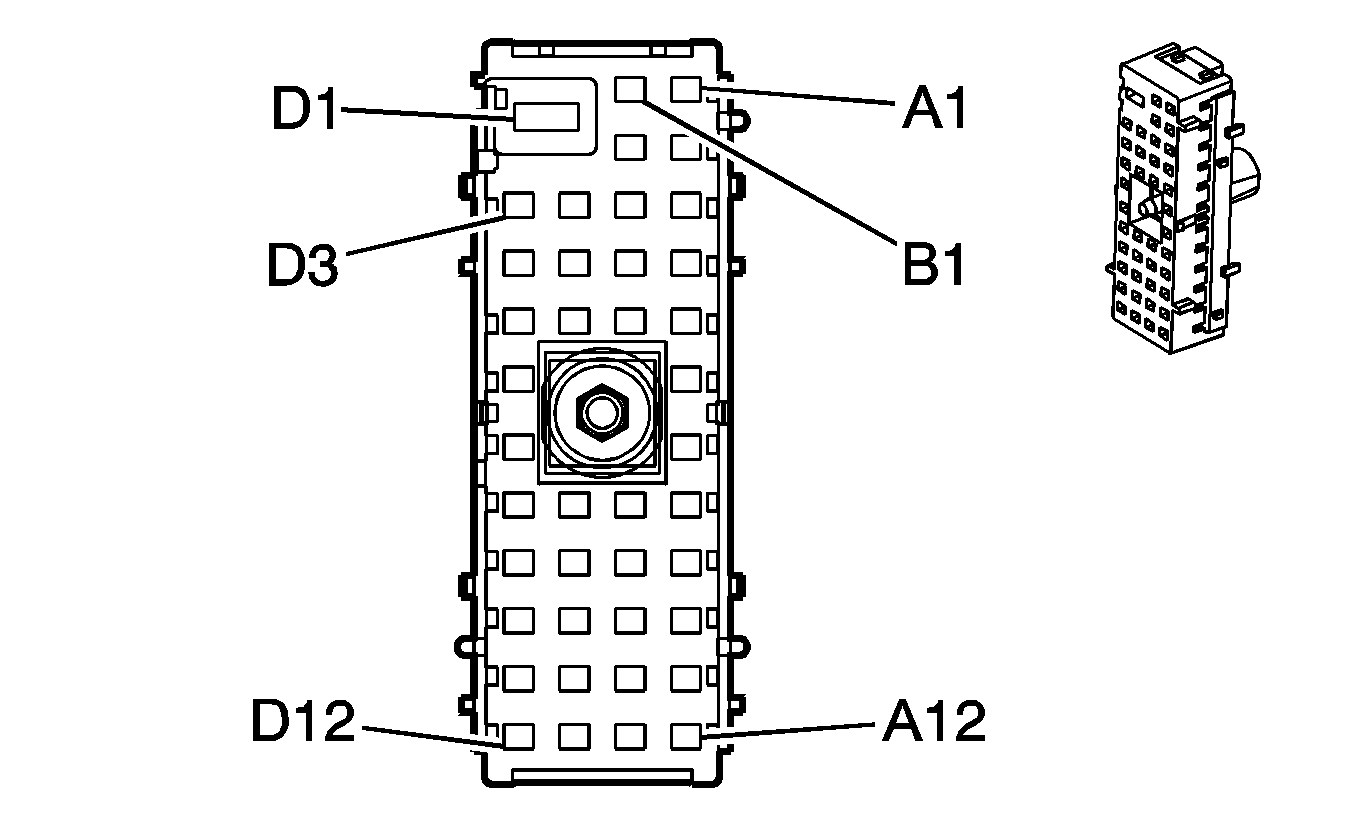

Body Control Module (BCM) C3 Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| A1 | TN | 294 | Door Lock Actuator Unlock Control (AU3) |
| A2 | TN | 294 | Door Lock Actuator Unlock Control (AU3) |
| TN | 294 | Door Lock Actuator Unlock Control (AU3) (Sedan) | |
| A3 | D-BU/WH | 149 | Courtesy Lamp Supply Voltage |
| A4 | GY | 295 | Door Lock Actuator Lock Control (AU3) (Driver) |
| GY | 295 | Door Lock Actuator Lock Control (AU3) (Passenger) | |
| A5 | GY | 295 | Door Lock Actuator Lock Control (AU3) |
| GY | 295 | Door Lock Actuator Lock Control (AU3) (Sedan) | |
| A6 | - | - | Not Used |
| A7 | BN | 9 | Park Lamp Supply Voltage |
| A8 | PK | 339 | Run/Crank Ignition 1 Voltage (UQ3) |
| A9 | YE | 18 | Left Rear Stop/Turn Lamp Supply Voltage |
| A10 | GY | 157 | Courtesy Lamp Control |
| A11 | - | - | Not Used |
| A12 | D-GN | 19 | Right Rear Stop/Turn Lamp Supply Voltage |
| B1 | TN | 694 | Driver Door Lock Actuator Unlock Control |
| B2 | - | - | Not Used |
| B3 | RD/WH | 1240 | Battery Positive Voltage |
| RD/WH | 1240 | Battery Positive Voltage | |
| B4 | - | - | Not Used |
| B5 | BN | 4 | Accessory Voltage |
| BN | 4 | Accessory Voltage (L61/LE5) | |
| B6-B7 | - | - | Not Available |
| B8-B11 | - | - | Not Used |
| B12 | GY | 8 | Instrument Panel Lamp Supply Voltage (LSJ) and (J41) |
| B12 | GY | 8 | Instrument Panel Lamp Supply Voltage (L61/LE5) |
| GY | 8 | Instrument Panel Lamp Supply Voltage (L61/LE5) | |
| C1-C2 | - | - | Not Available |
| C3 | D-GN | 1301 | Retained Accessory Power Fuse Supply Voltage |
| C4 | - | - | Not Used |
| C5 | D-GN | 801 | Retained Accessory Power Fuse Supply Voltage |
| C6-C7 | - | - | Not Available |
| C8-C11 | - | - | Not Used |
| C12 | OG | 228 | Windshield Washer Pump Control |
| D1 | RD/BK | 142 | Battery Positive Voltage |
| D2 | - | - | Not Available |
| D3 | - | - | Not Used |
| D4 | RD/WH | 840 | Battery Positive Voltage |
| D5 | D-GN | 801 | Retained Accessory Power Fuse Supply Voltage |
| D6 | PK | 739 | Run/Crank Ignition 1 Voltage |
| D7 | PK | 1339 | Ignition 1 Voltage |
| D8-D9 | - | - | Not Used |
| D10 | RD/BK | 442 | Battery Positive Voltage |
| D11 | - | - | Not Used |
| D12 | RD/WH | 242 | Battery Positive Voltage |
