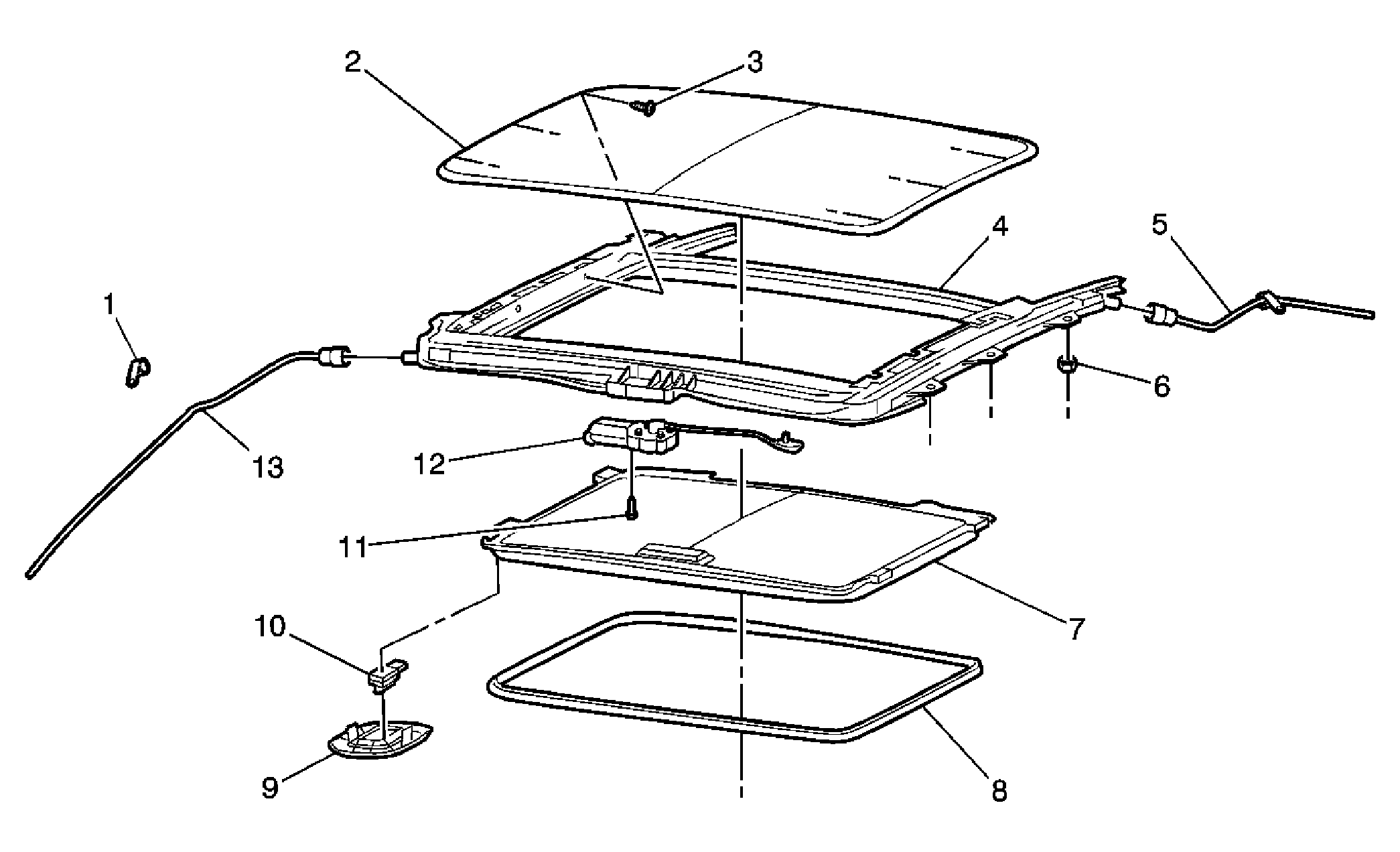

Power Sunroof Disassembled View
WARNING: This page is about a different car, the 2008 Pontiac G5 and 2008 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Sunroof Drain Hose Retainer |
| 2 | Sunroof Window Panel |
| 3 | Sunroof Window Bolt/Screw |
| 4 | Sunroof Module Assembly |
| 5 | Sunroof Rear Drain Hose |
| 6 | Sunroof Module Assembly to Roof Nut |
| 7 | Sunroof Sunshade |
| 8 | Sunroof Opening Bezel/Lace |
| 9 | Sunroof Switch Bezel |
| 10 | Sunroof Switch |
| 11 | Sunroof Motor/Actuator Bolt/Screw |
| 12 | Sunroof Motor/Actuator |
| 13 | Sunroof Front Drain Hose |
