Engine Front Cover Replacement: Notes

WARNING: This page is about a different car, the 2004 Saturn Ion 3, 2004 Saturn Ion 2, and 2004 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankcase balancer. Refer to Crankshaft Balancer Replacement .
  2. Remove the drive belt tensioner.

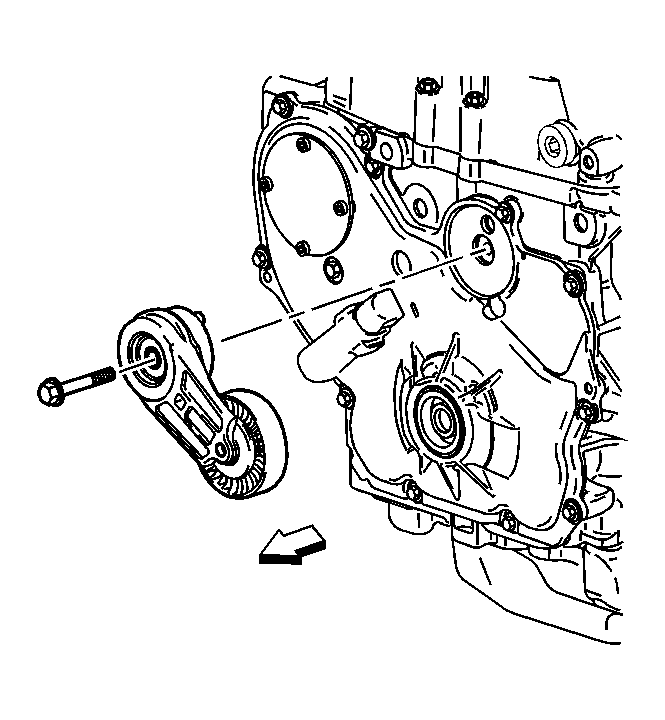

    3. Fig 1: View Of Drive Belt Tensioner
    GM412154Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine front cover to water pump bolt.

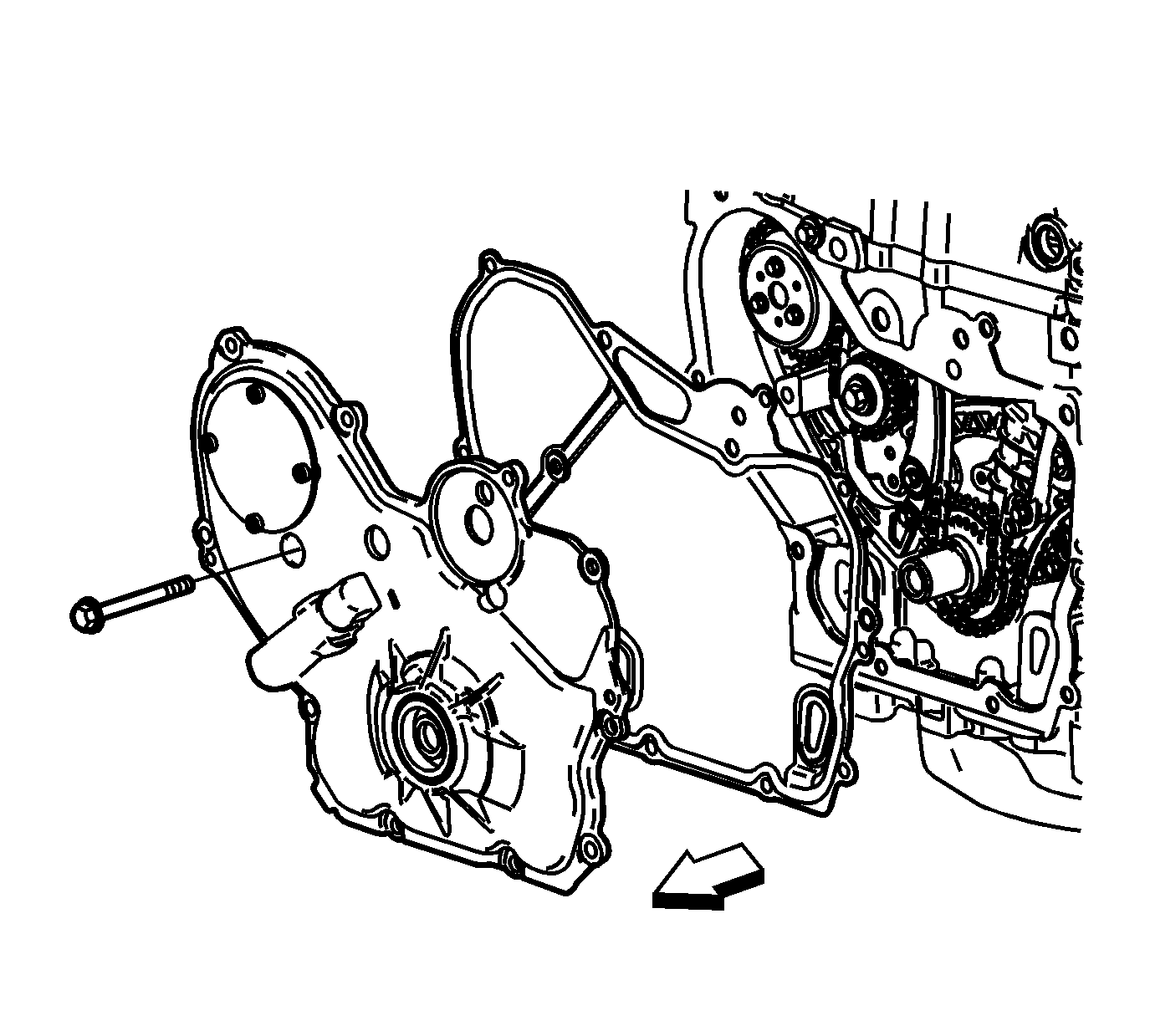

    4. Fig 2: View Of Engine Front Cover
    GM412537Courtesy of GENERAL MOTORS CORP.
  4. Remove the remaining engine front cover bolts.

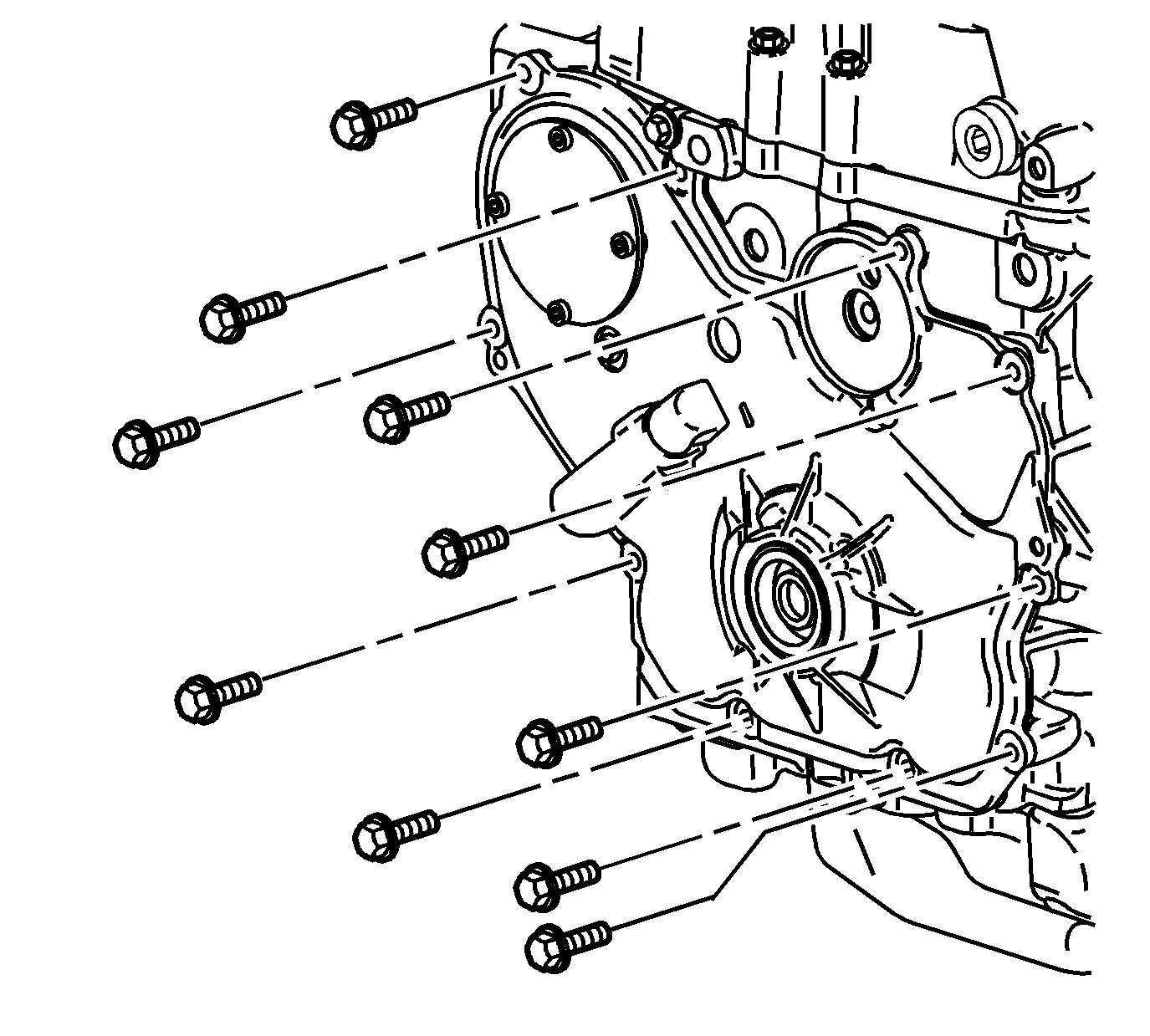

    5. Fig 3: View Of Engine Front Cover Bolts
    GM412538Courtesy of GENERAL MOTORS CORP.
  5. Remove the engine front cover.
    • If the engine front cover gasket is damaged.
    • Remove the front engine mount. Refer to Engine Mount Replacement .
    • Remove the engine front cover gasket if it is damaged.
