SIR Component Views

WARNING: This page is about a different car, the 2007 Saturn Ion Red Line, 2007 Saturn Ion 3, and 2007 Saturn Ion 2. However, it is still accessible from the selected car via links, so may be relevant.

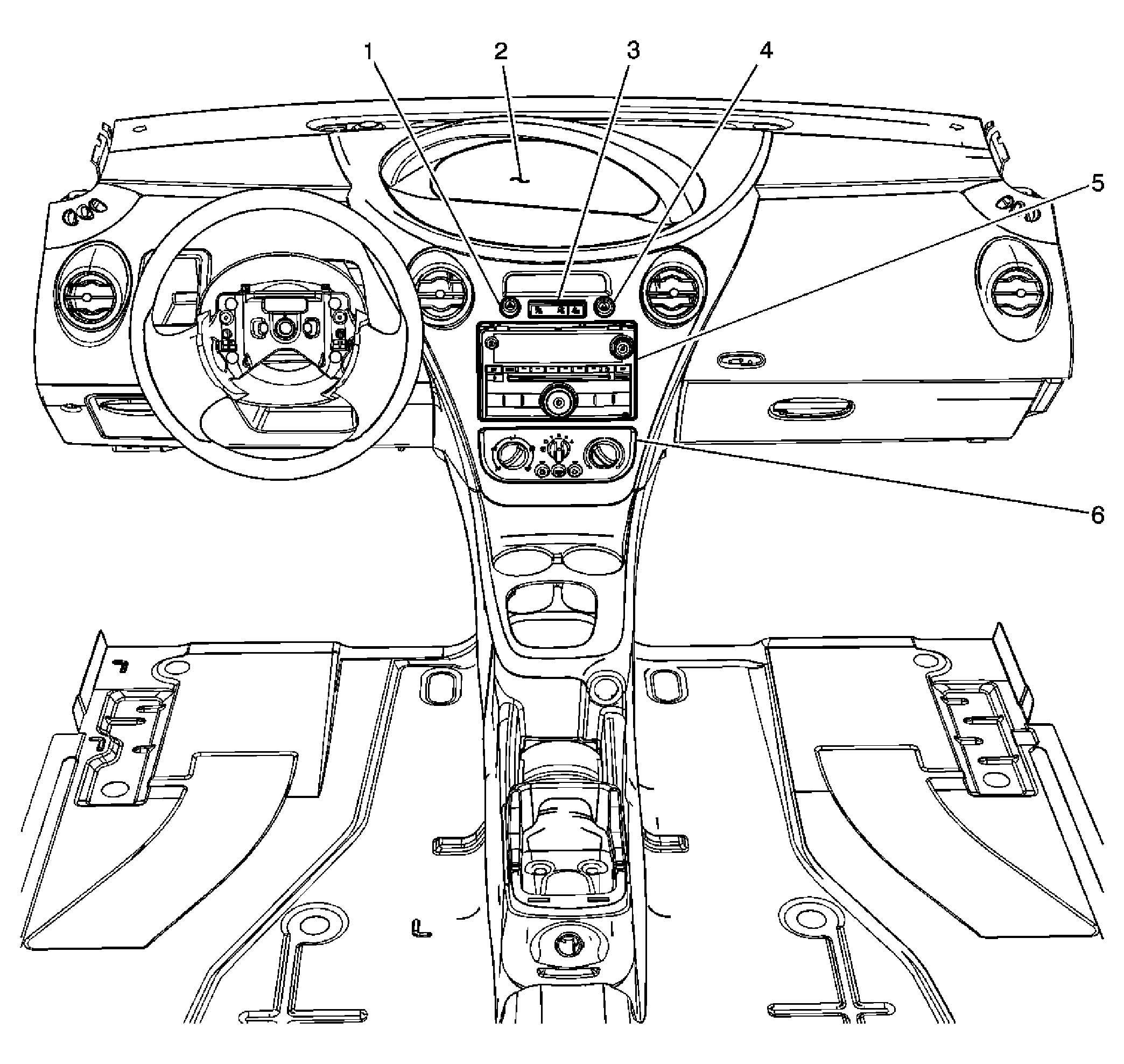

Fig 1: I/P Console
GM1616298Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Hazard Switch
2 Instrument Panel Cluster (IPC)
3 Inflatable Restraint Passenger Air Bag ON/OFF Indicator
4 Traction Control Switch
5 Radio
6 HVAC Control Assembly
Fig 2: Right Side Of I/P Component View
GM897872Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint I/P Module
Fig 3: Steering Wheel Assembly Component View
GM897900Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Horn Switch
2 Steering Wheel Controls - Right (K34)
3 Inflatable Restraint Steering Wheel Module
4 Steering Wheel Controls - Left (K34)
Fig 4: Right Front Of Roof Rail (ASF) Component View
GM897875Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Roof Rail Module - Right (Left Similar)
Fig 5: Right Front Seat of the Vehicle
GM1614987Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C300 Passenger Presence System (PPS) Jumper Harness to I/P Harness
2 Passenger Presence System (PPS) Jumper Harness
3 Inflatable Restraint Front Passenger Presence System (PPS) Module
4 I/P Harness
5 Seat Belt Switch - Passenger
6 Inflatable Restraint Front Passenger Presence System (PPS) Sensor
7 Seat Belt Buckle - Passenger
8 Passenger Seat
Fig 6: Center Console Component View
GM1500443Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Sensing and Diagnostic Module (SDM)
2 Park Brake Switch
Fig 7: Left Front Door Component View
GM897896Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Side Impact Sensor (SIS) - Left (Right Similar)
Fig 8: Under Left Side Of I/P Component View
GM1540725Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Steering Wheel Module Coil
2 Ignition Lock Cylinder Control Actuator (MN5)
3 Power Steering Control Module (PSCM)
4 Ignition Switch
Fig 9: Right Front Side Of Vehicle In B Component View - Pillar (Sedan)
GM898011Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Belt Pretensioner - RF (LF Similar)
Fig 10: Right Center Of Passenger Compartment Component View (Coupe)
GM899254Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Belt Pretensioner - LF (RF Similar)
