Radiator Cooling Fan Control Module: Service and Repair

Cooling Fan Control Module Replacement

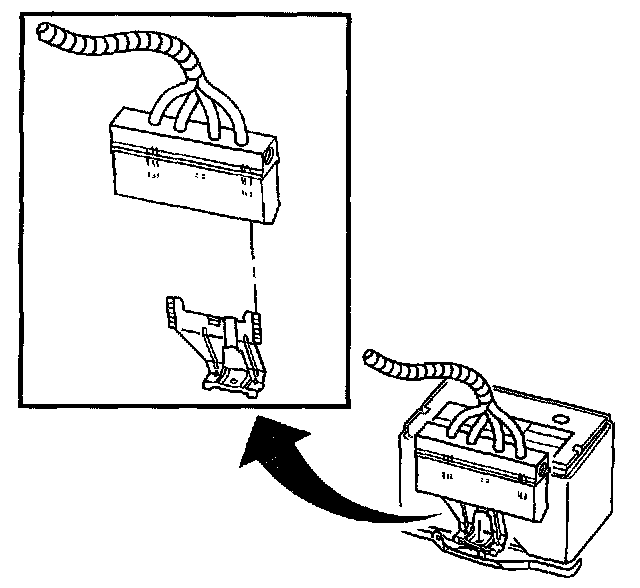

Removal Procedure





1. Remove the fan control module by sliding up and off the mounting bracket.
2. Disconnect the fan control module electrical connector.

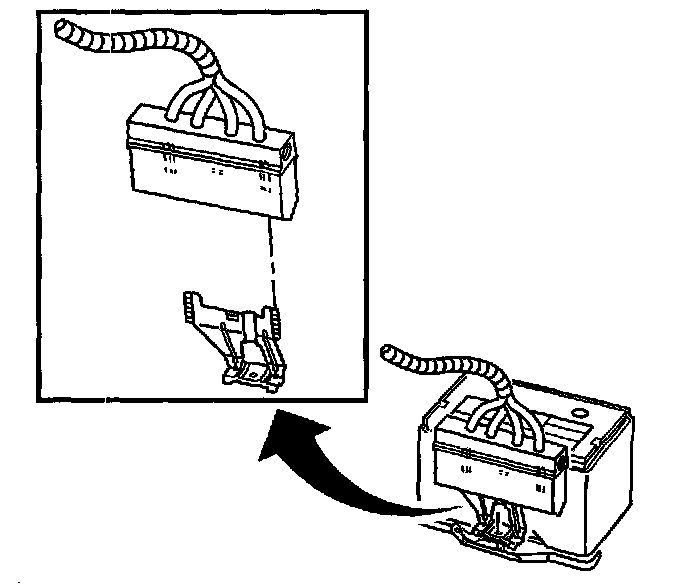

Installation Procedure





1. Connect the fan control module electrical connector.
2. Install the fan control module to the mounting bracket.
