Home >> Saturn >> 2004 >> L Series L4-2.2L VIN F >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Thread Repair Specifications >> Engine Block- Bottom View
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

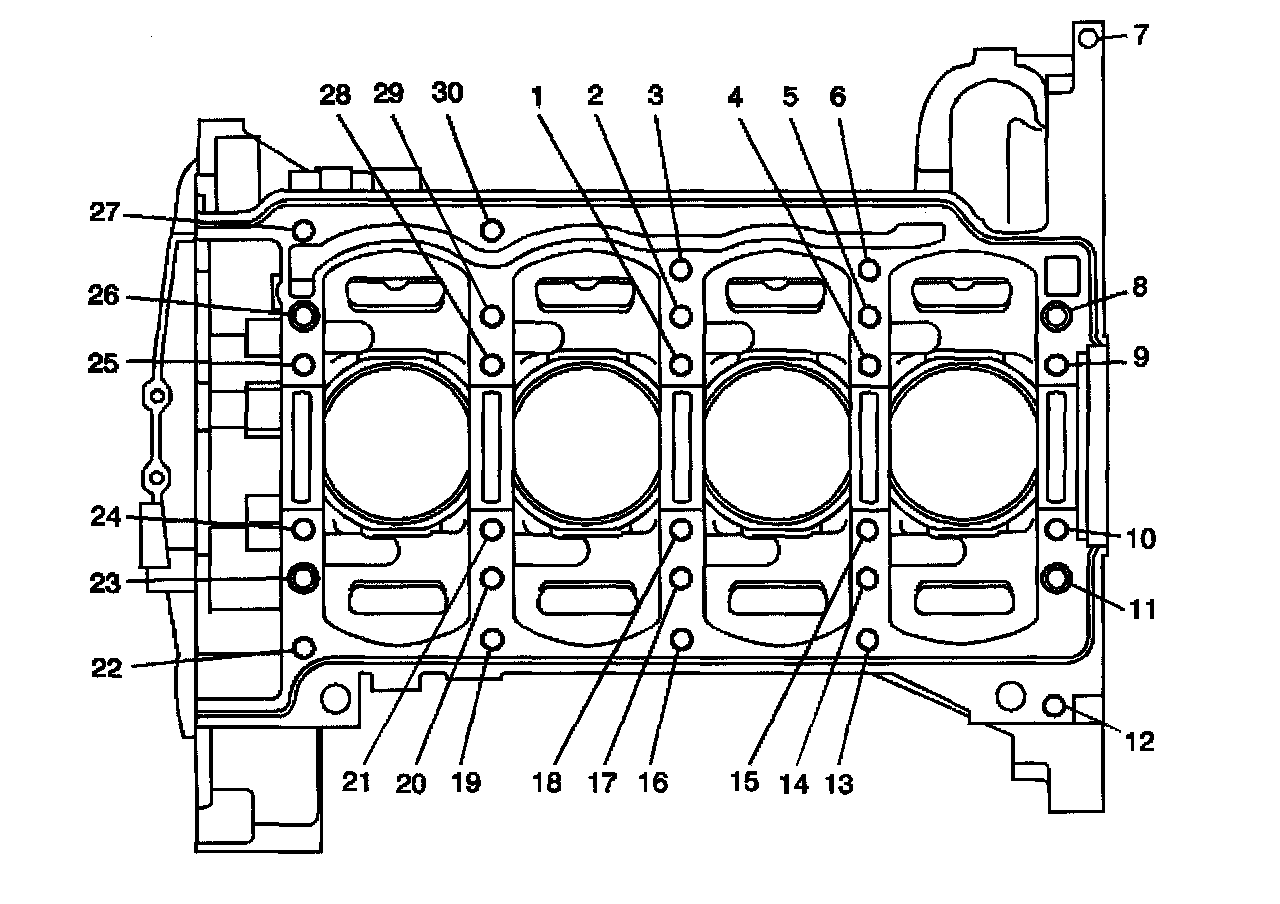

Engine Block- Bottom View

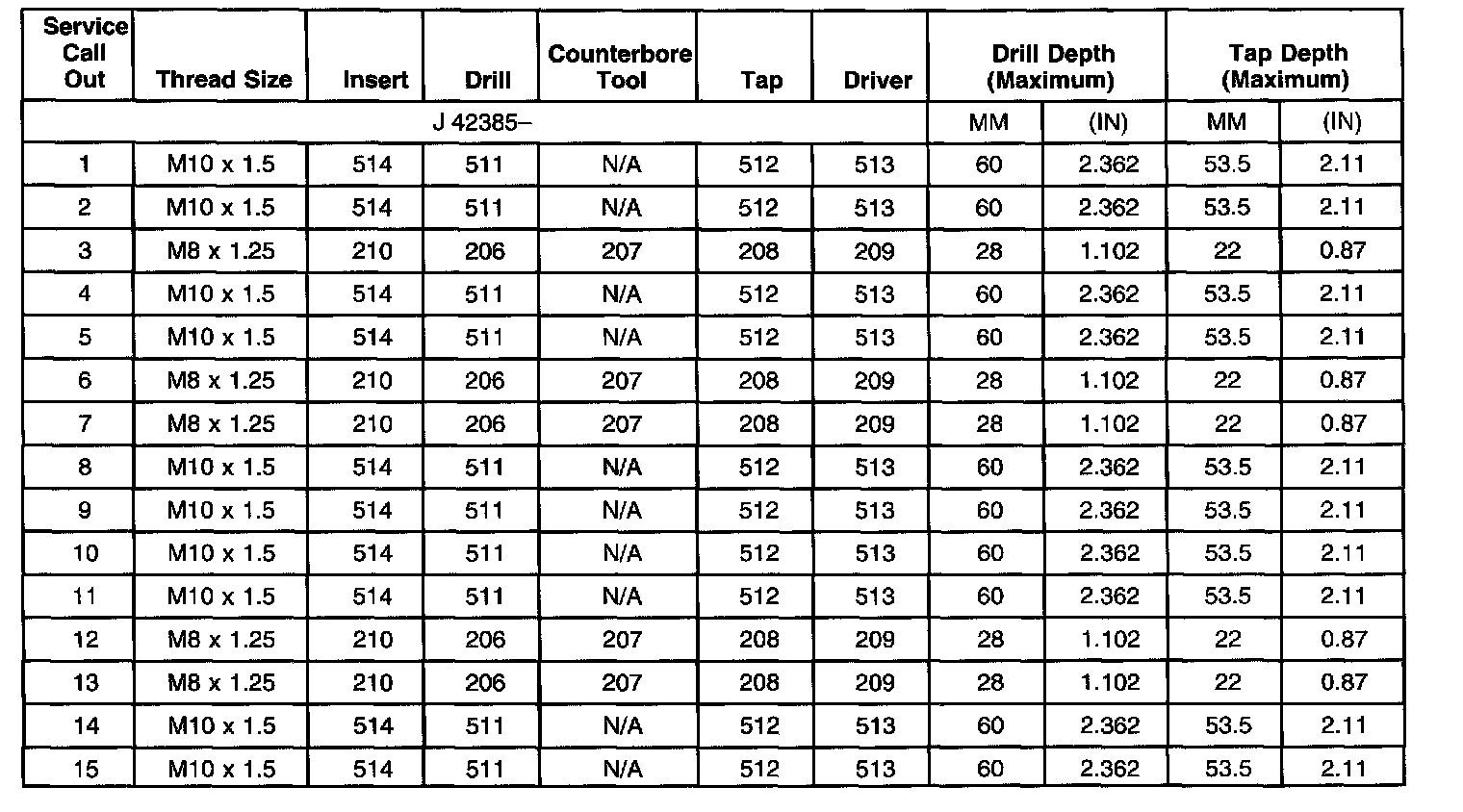

Part 1 Of 3:

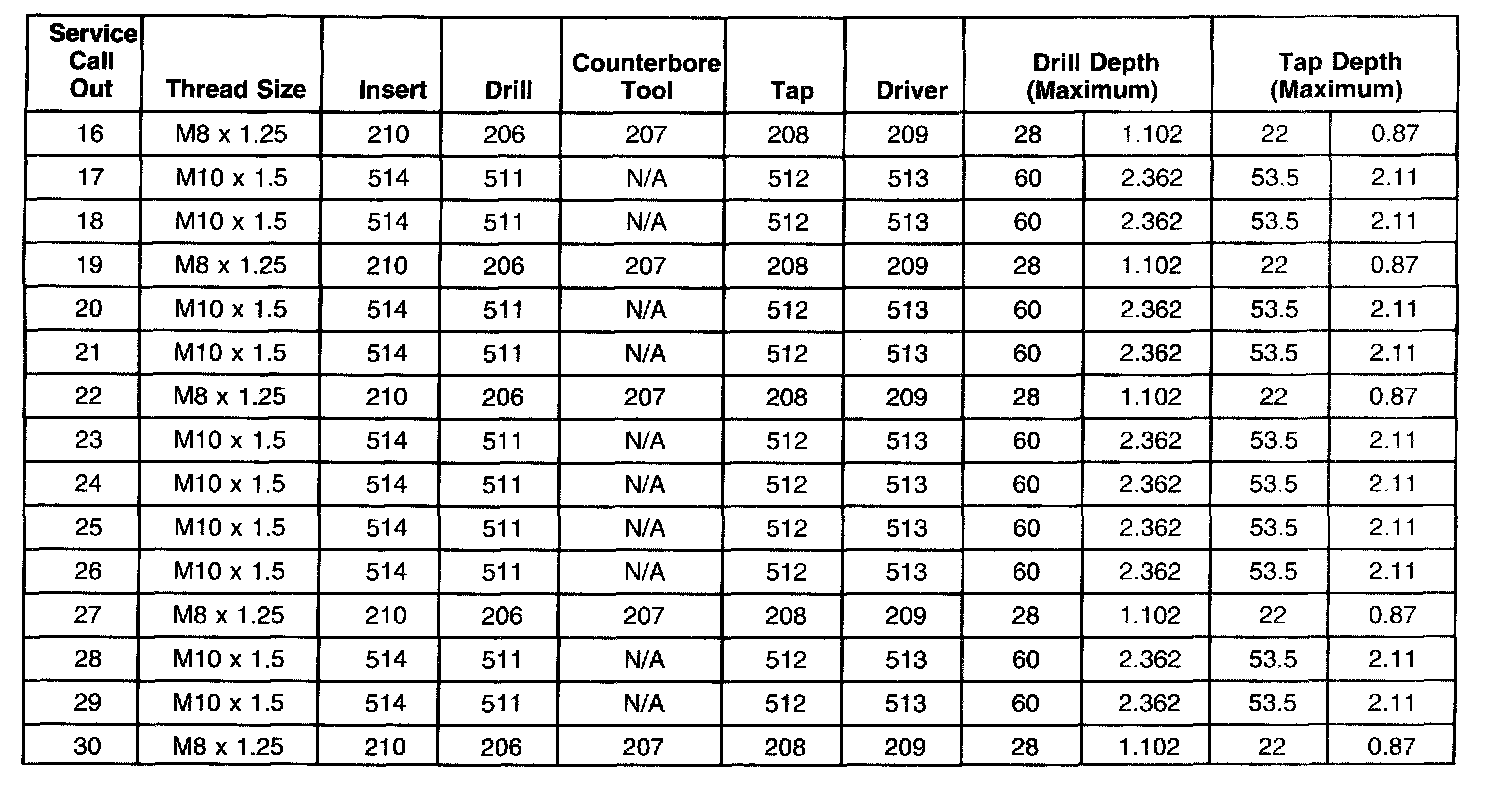

Part 2 Of 3:



Part 3 Of 3:
