Variable Valve Timing Pressure Switch: Service and Repair

ROCKER ARM OIL PRESSURE SWITCH REPLACEMENT

REMOVAL PROCEDURE





1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the right front wheel.
3. Remove the splash shield.

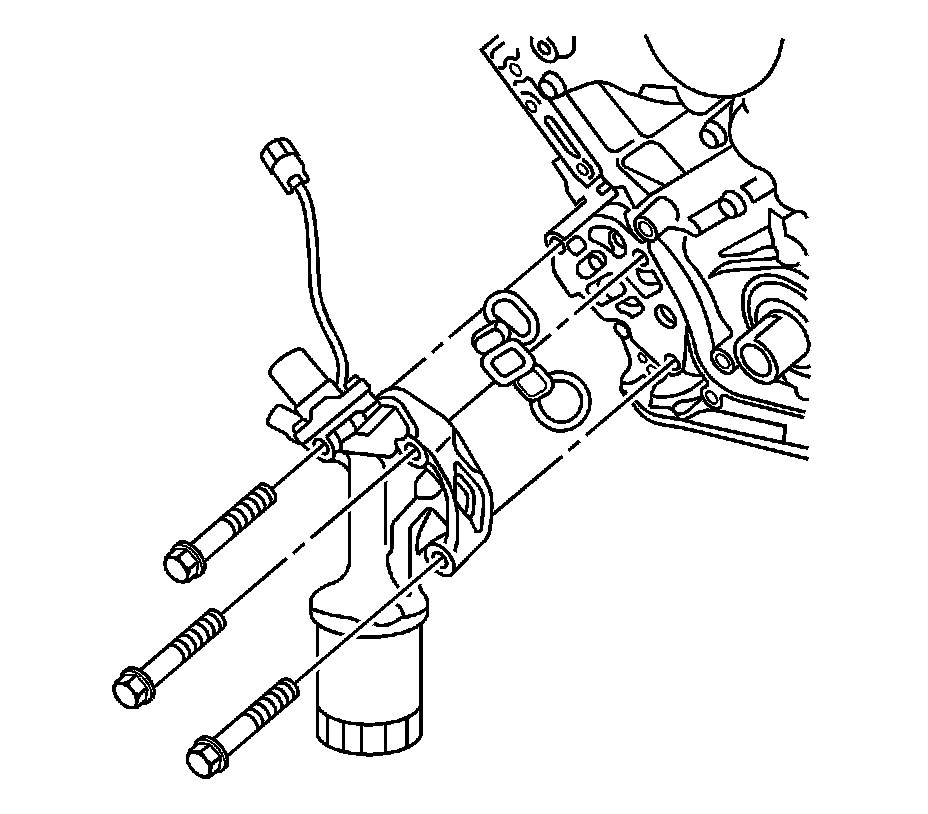

4. Remove the switch and O-ring.
5. Discard the O-ring.

INSTALLATION PROCEDURE





1. Install the NEW O-ring and switch.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the switch to 22 N.m (16 lb ft).

2. Install the splash shield.
3. Install the wheel.
4. Lower the vehicle.
