Engine Controls Schematics

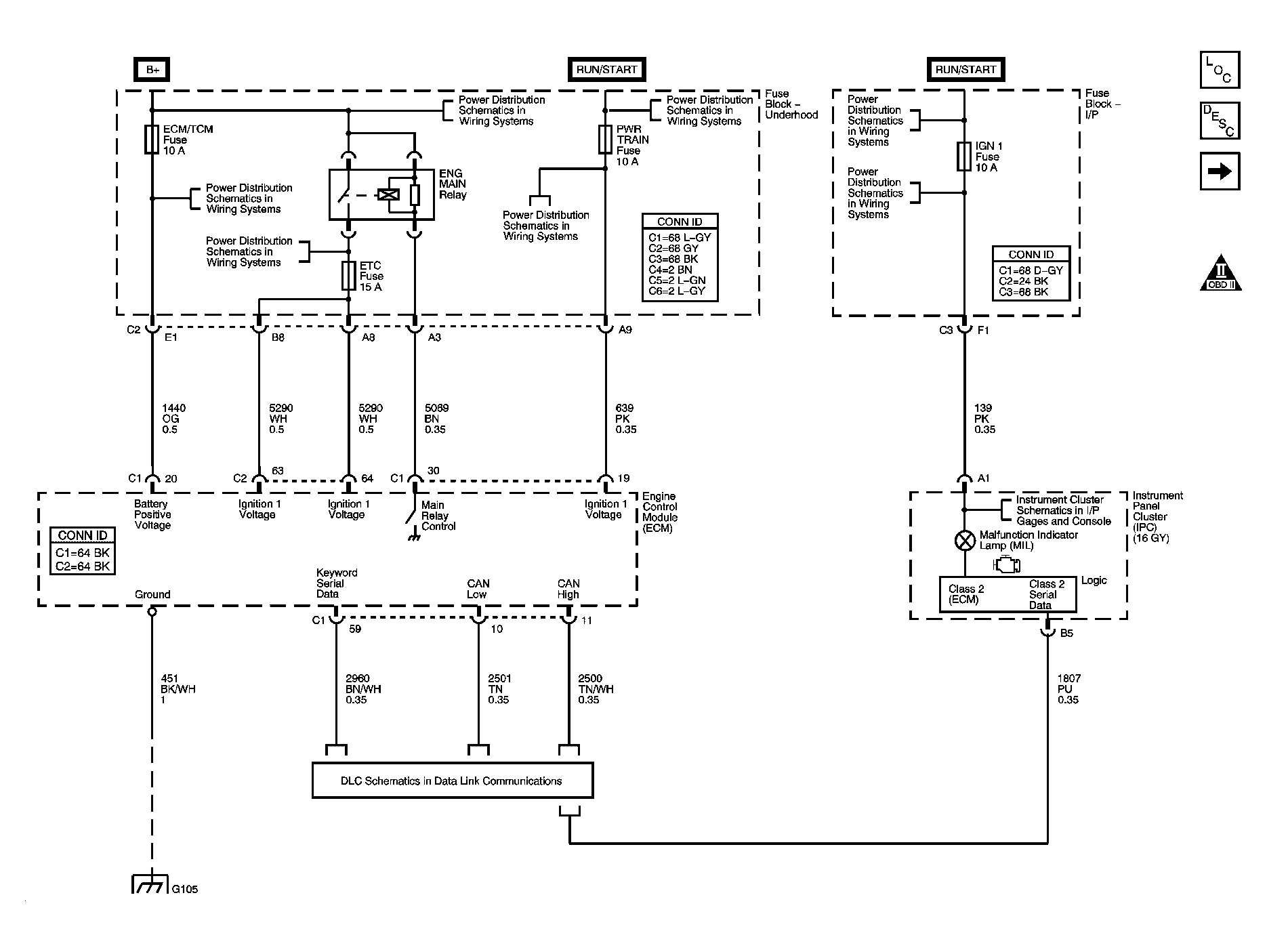

Fig 1: ECM Power, Ground, MIL, and Communication Schematic

Courtesy of GENERAL MOTORS CORP.

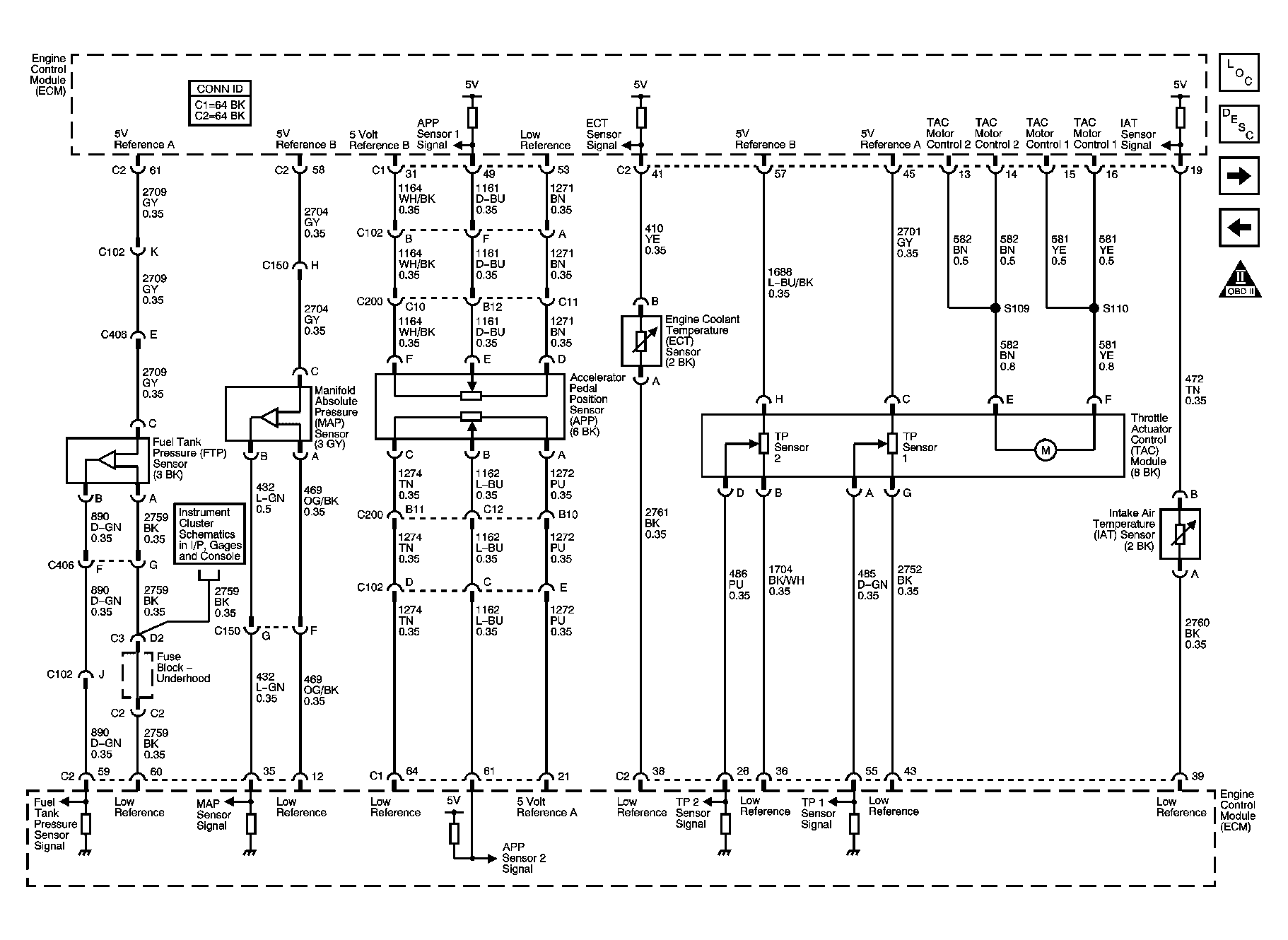

Fig 2: Engine Data Sensors - Low and 5 Volt References Schematic

Courtesy of GENERAL MOTORS CORP.

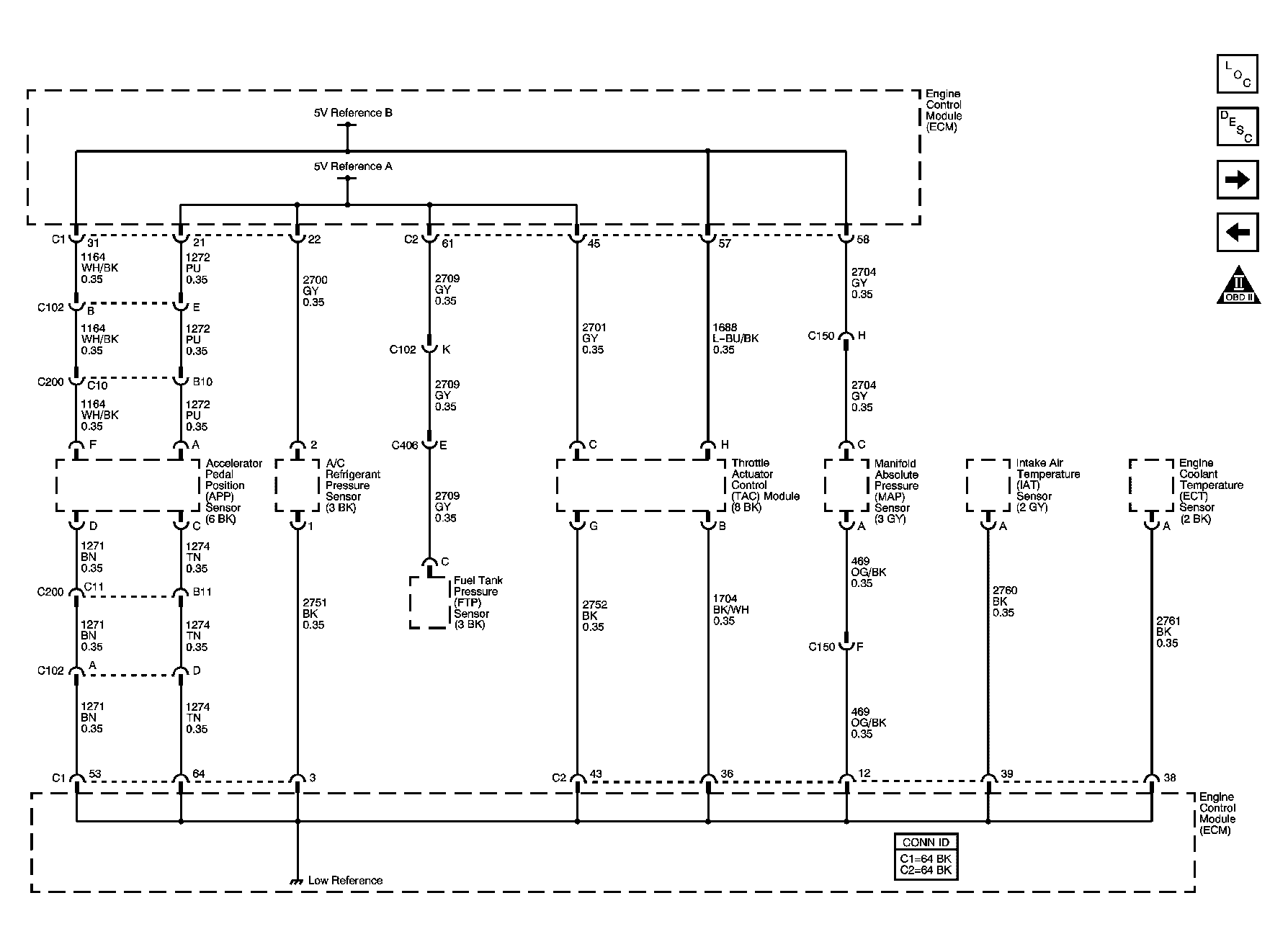

Fig 3: Engine Data Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: Oxygen Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

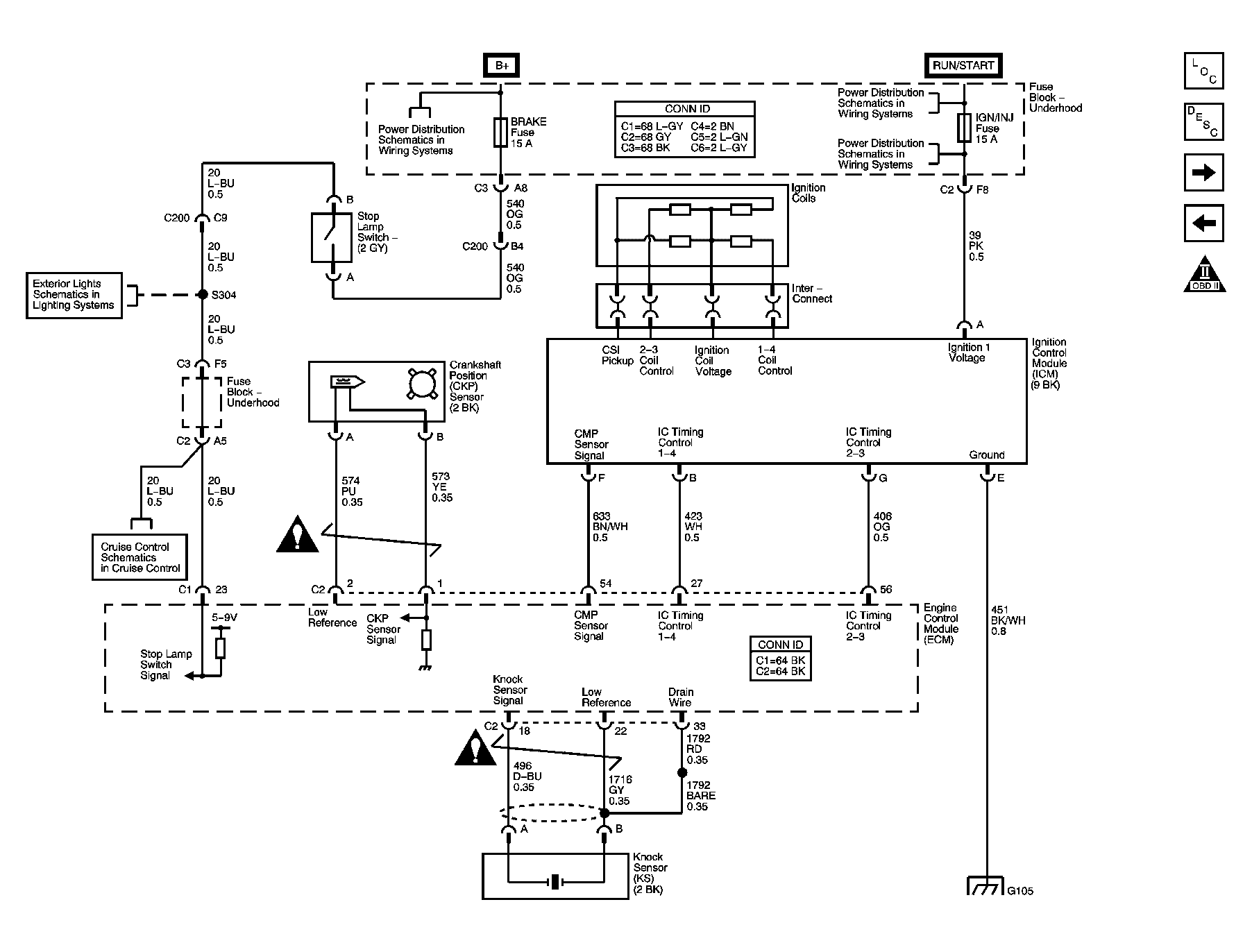

Fig 5: Ignition Controls Schematic

Courtesy of GENERAL MOTORS CORP.

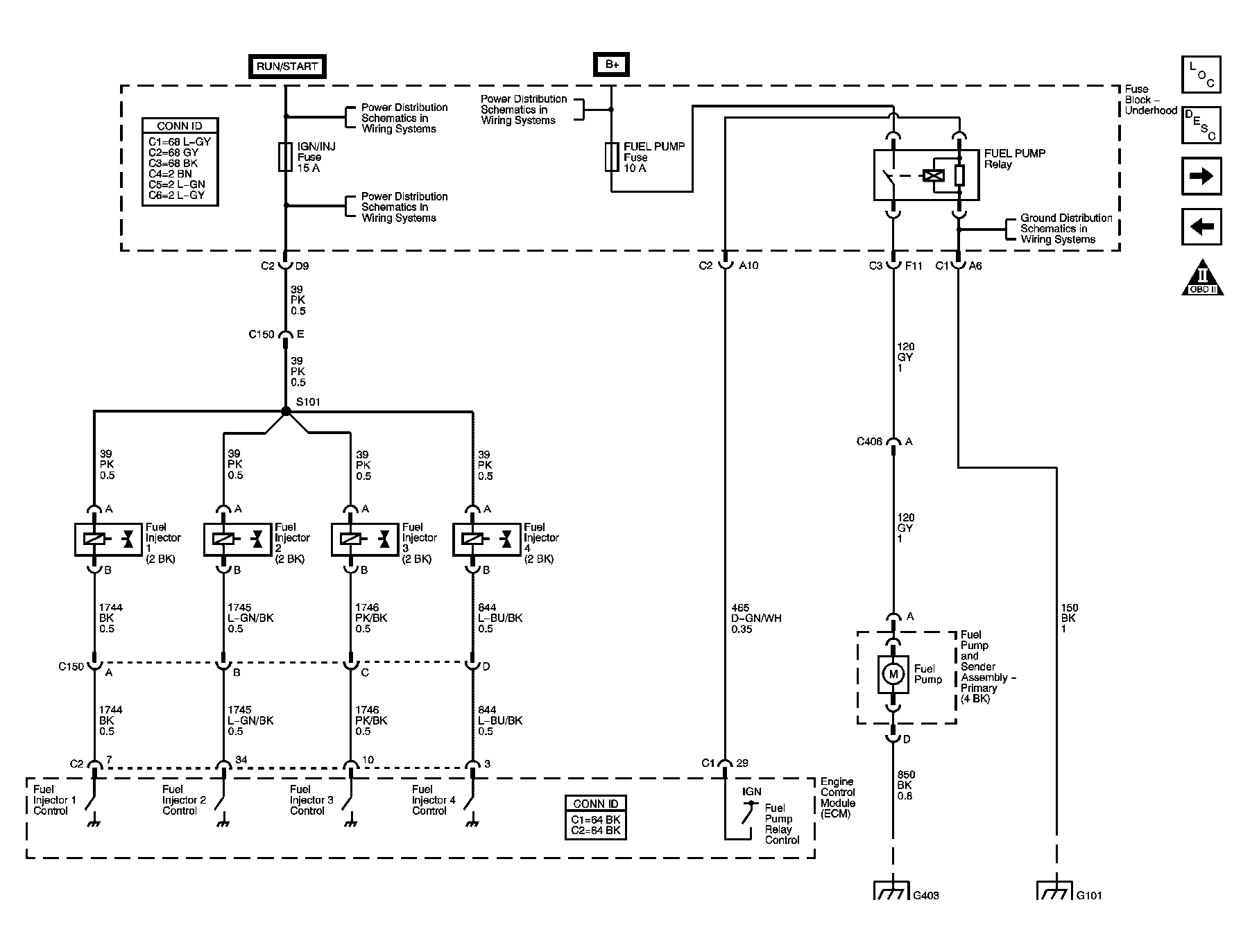

Fig 6: Fuel Controls Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 7: EVAP Controls Schematic

Courtesy of GENERAL MOTORS CORP.

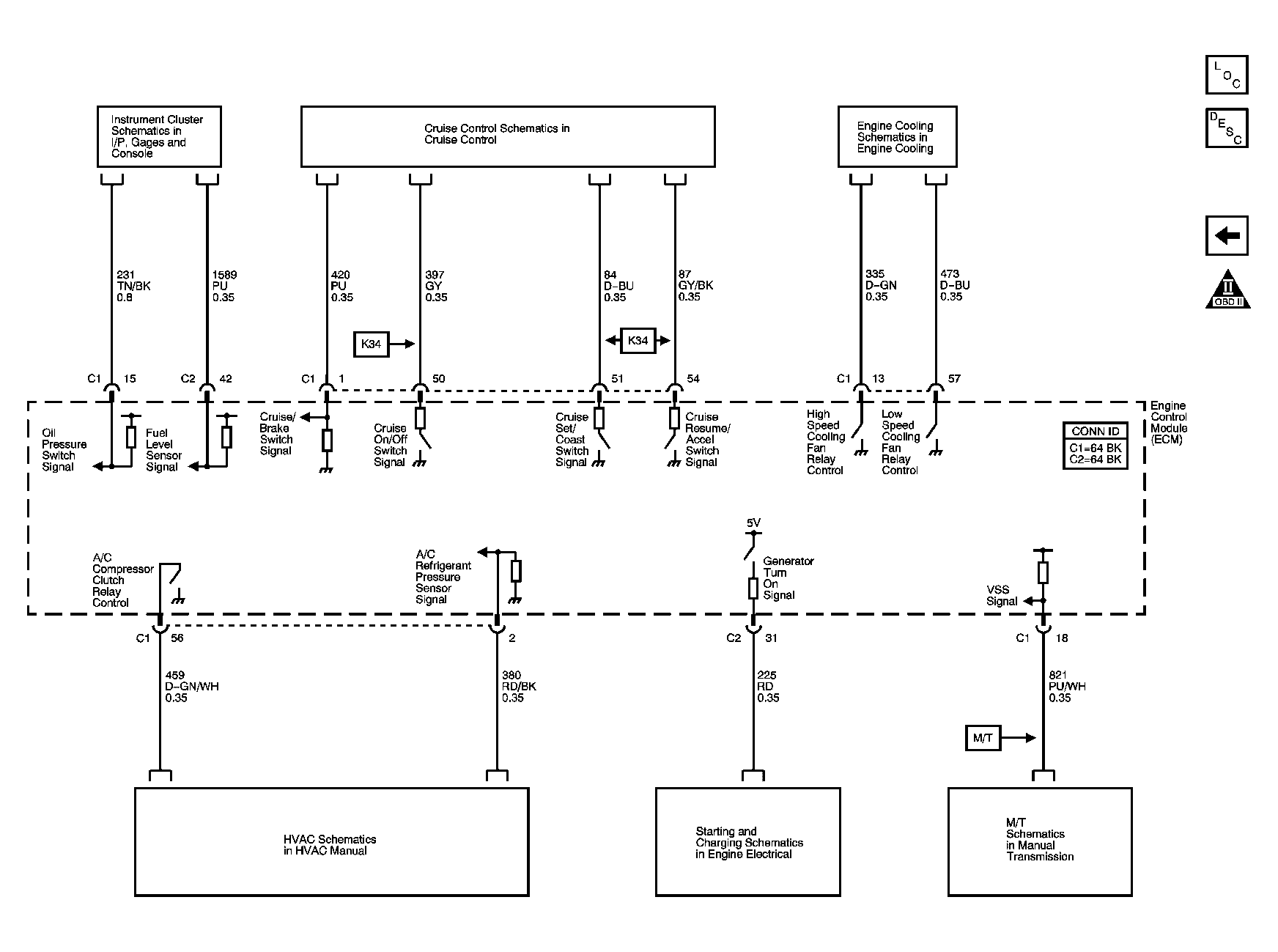

Fig 8: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
