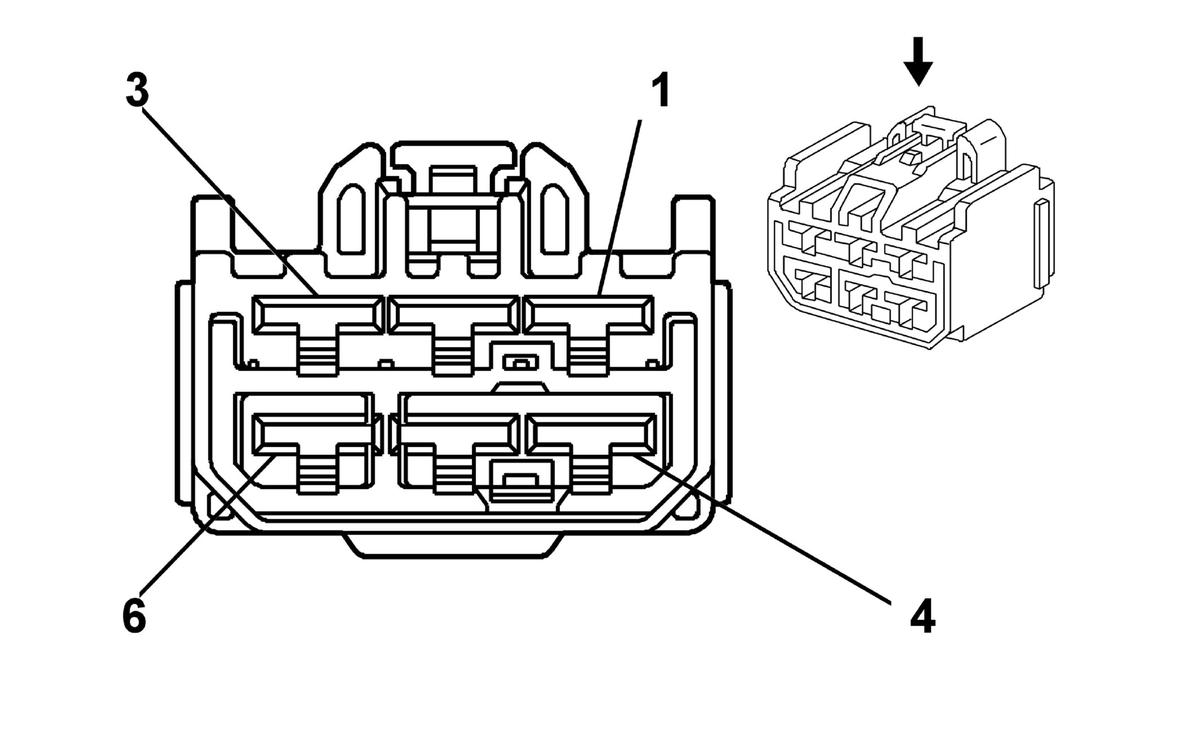

HVAC Control Module Connector End View C2
HVAC Control Module Connector End View C2
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | PU | 73 | Blower Motor High Control |
| 2 | TN | 63 | Blower Motor Medium 1 Control |
| 3 | BN | 7741 | HVAC Blower Relay Control |
| 4 | YE | 60 | Blower Motor Low Control |
| YE | 60 | Blower Motor Low Control | |
| 5 | - | - | Not Used |
| 6 | L-BU | 72 | Blower Motor Medium 2 Control |
