Engine Controls Schematics

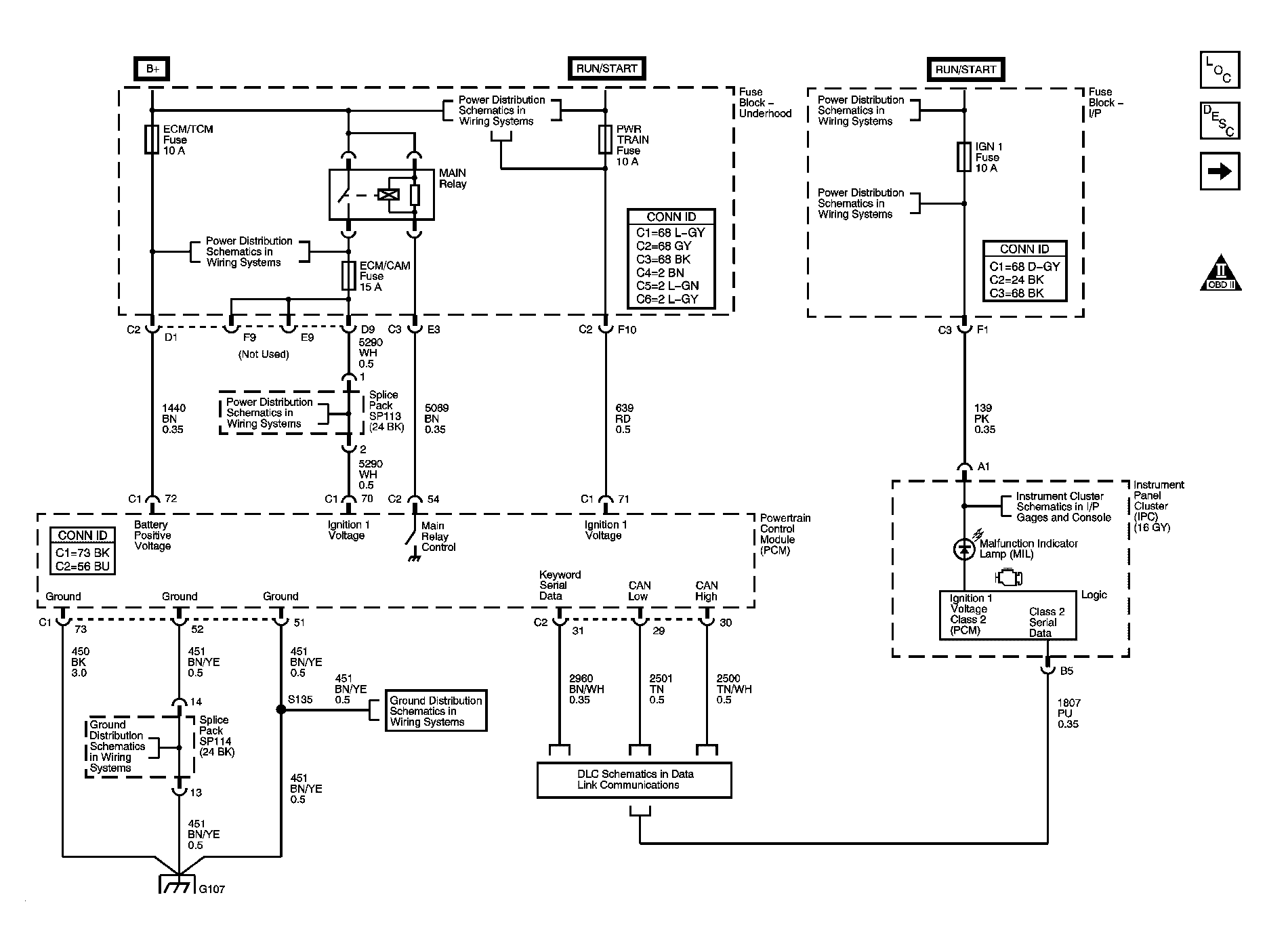

Fig 1: Power, Ground, MIL, and PCM Communication Schematics

Courtesy of GENERAL MOTORS CORP.

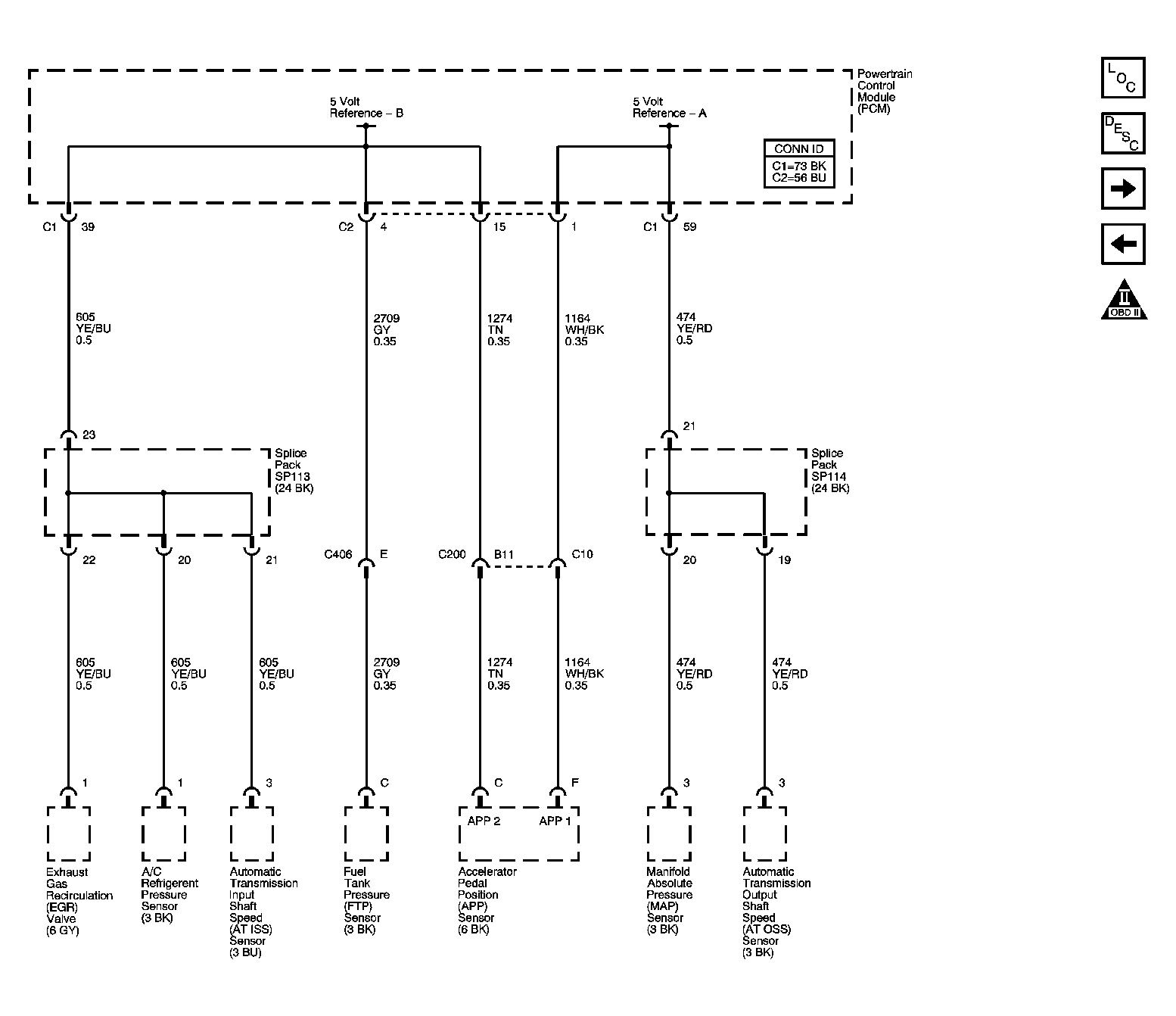

Fig 2: Engine Data Sensors - 5-Volt References Shematics

Courtesy of GENERAL MOTORS CORP.

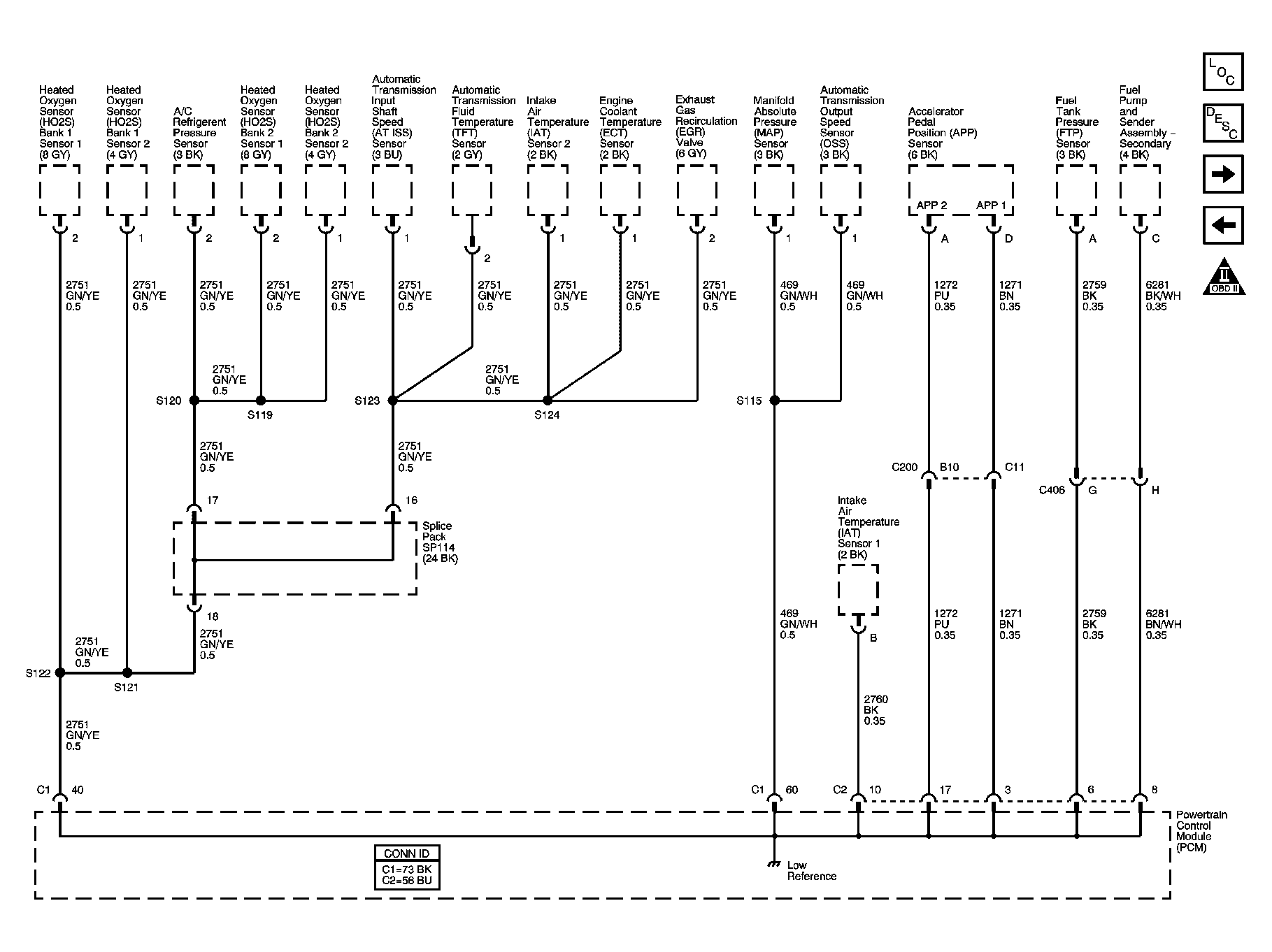

Fig 3: Engine Data Sensors - Low References Schematics

Courtesy of GENERAL MOTORS CORP.

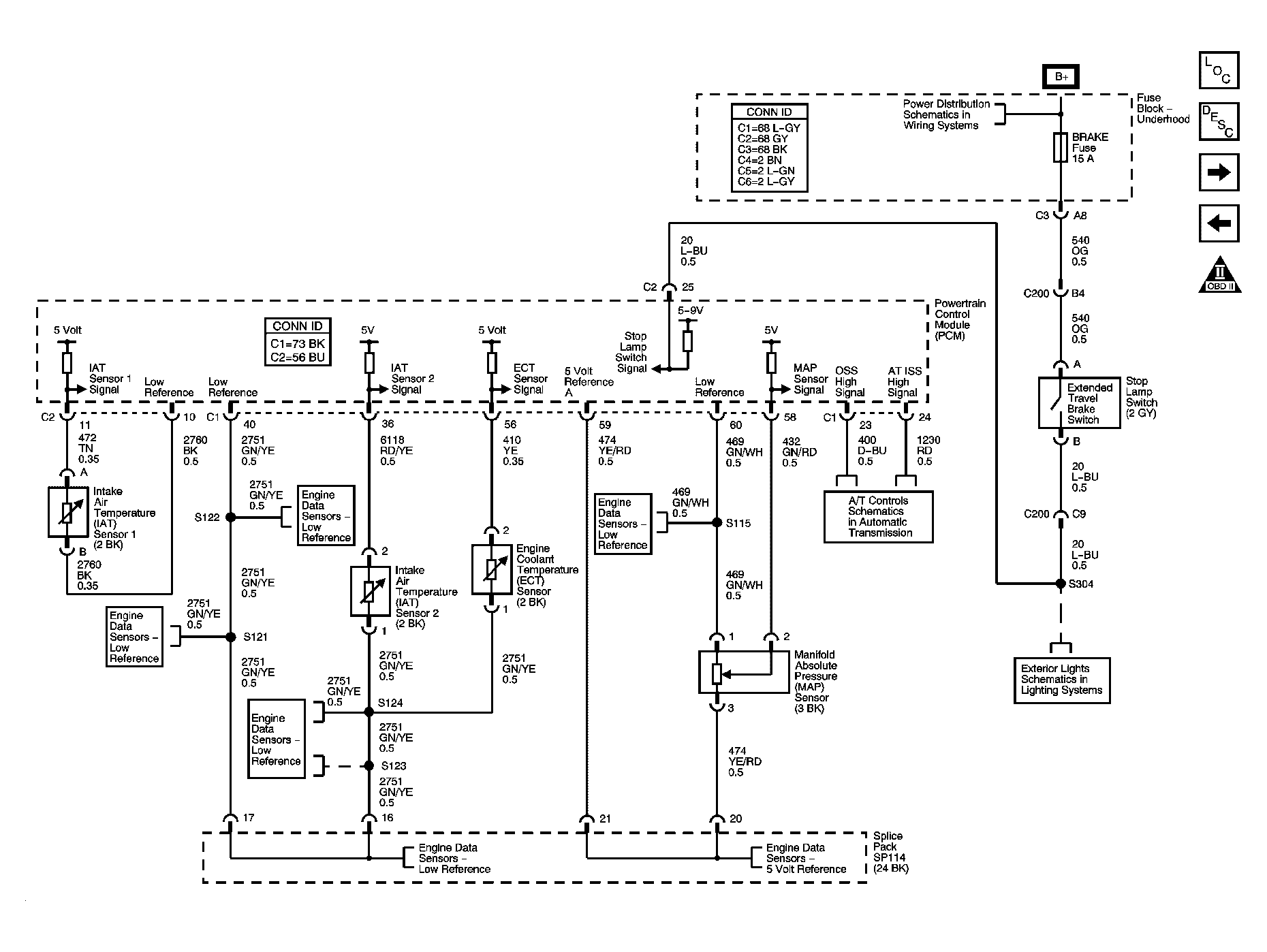

Fig 4: IAT, ECT, and MAP Sensors, and Stop Lamp Switch Signal Schematics

Courtesy of GENERAL MOTORS CORP.

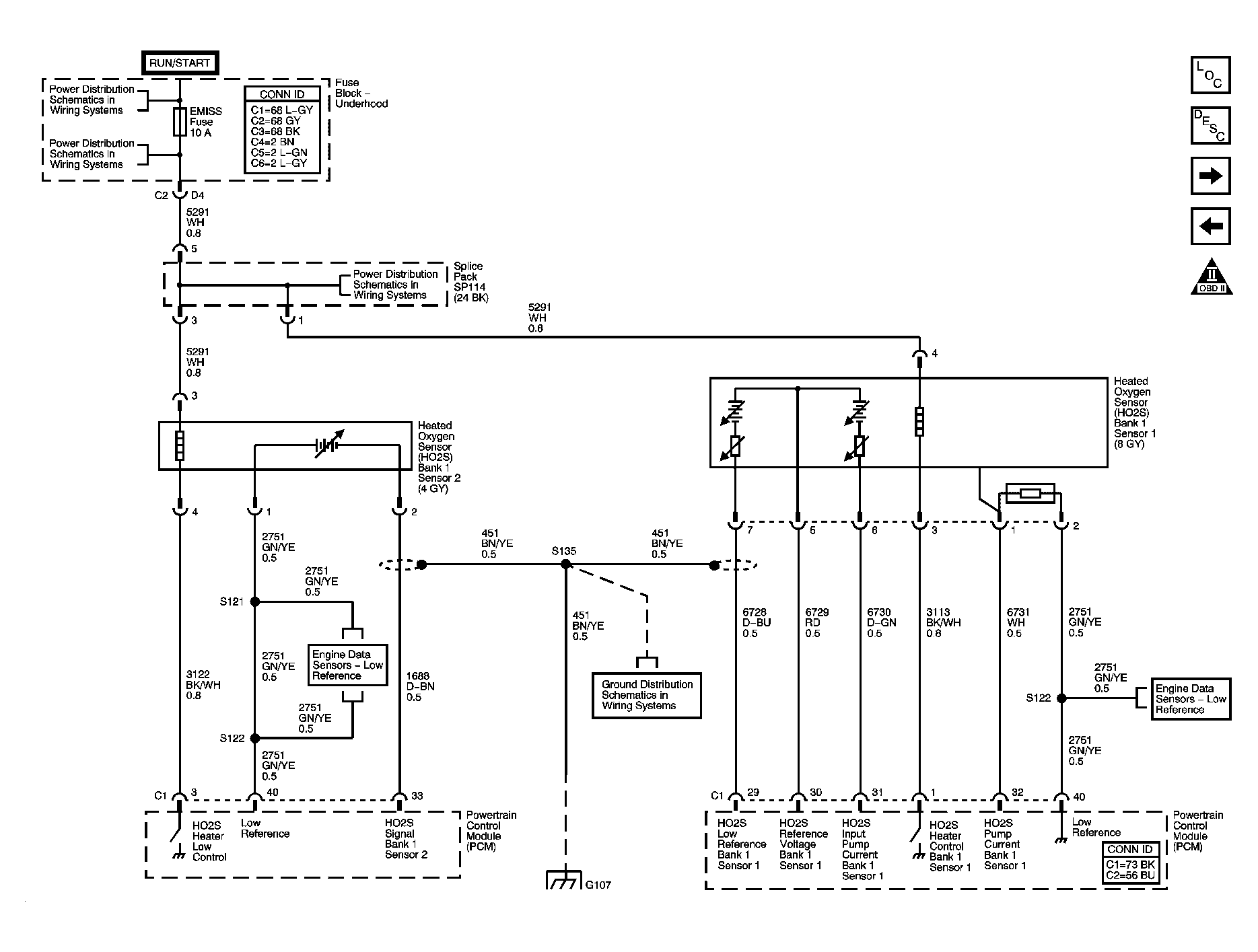

Fig 5: Bank 1 Oxygen Sensors Shematics

Courtesy of GENERAL MOTORS CORP.

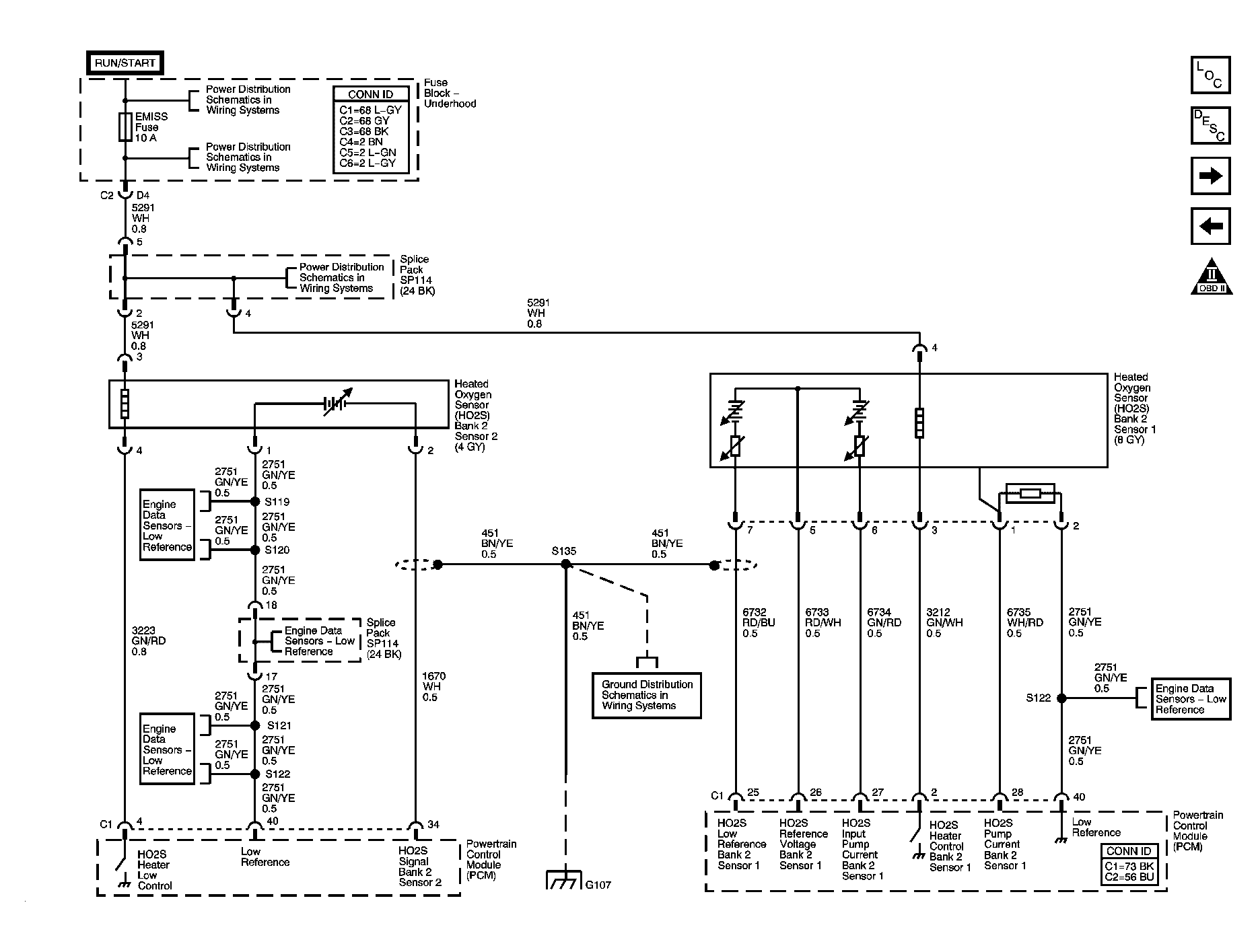

Fig 6: Bank 2 Oxygen Sensors Schematics

Courtesy of GENERAL MOTORS CORP.

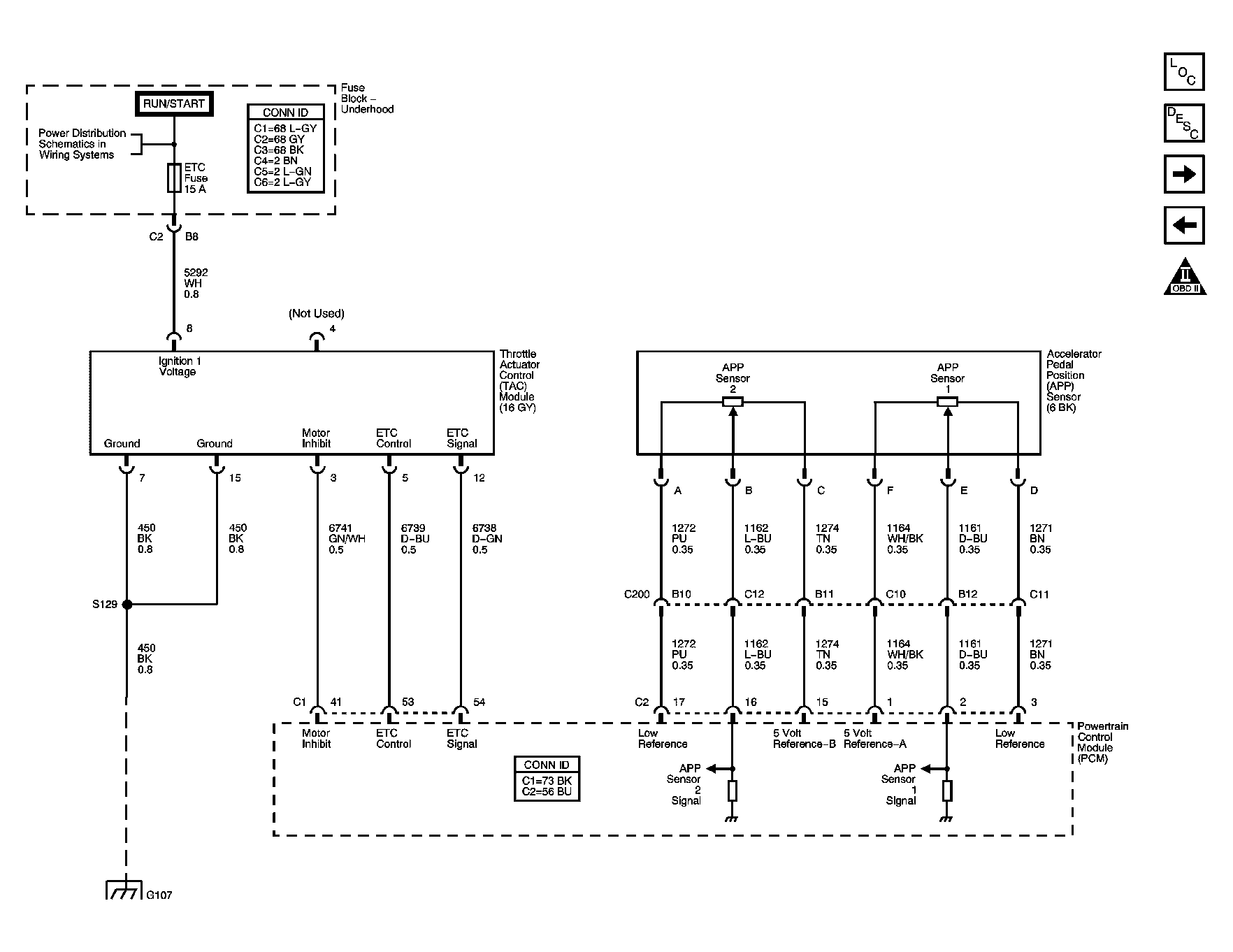

Fig 7: Throttle Controls Schematics

Courtesy of GENERAL MOTORS CORP.

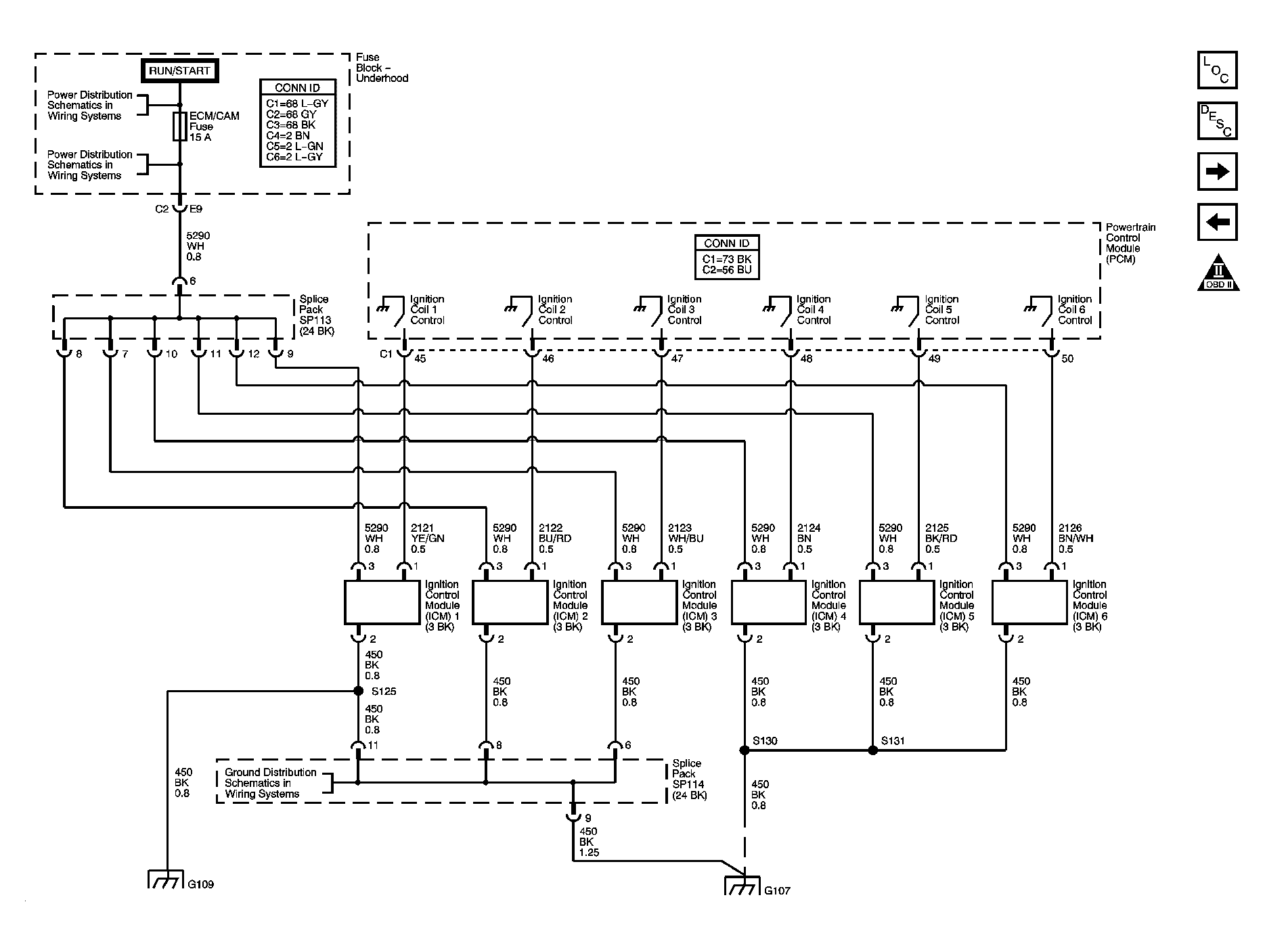

Fig 8: Ignition Controls Schematics

Courtesy of GENERAL MOTORS CORP.

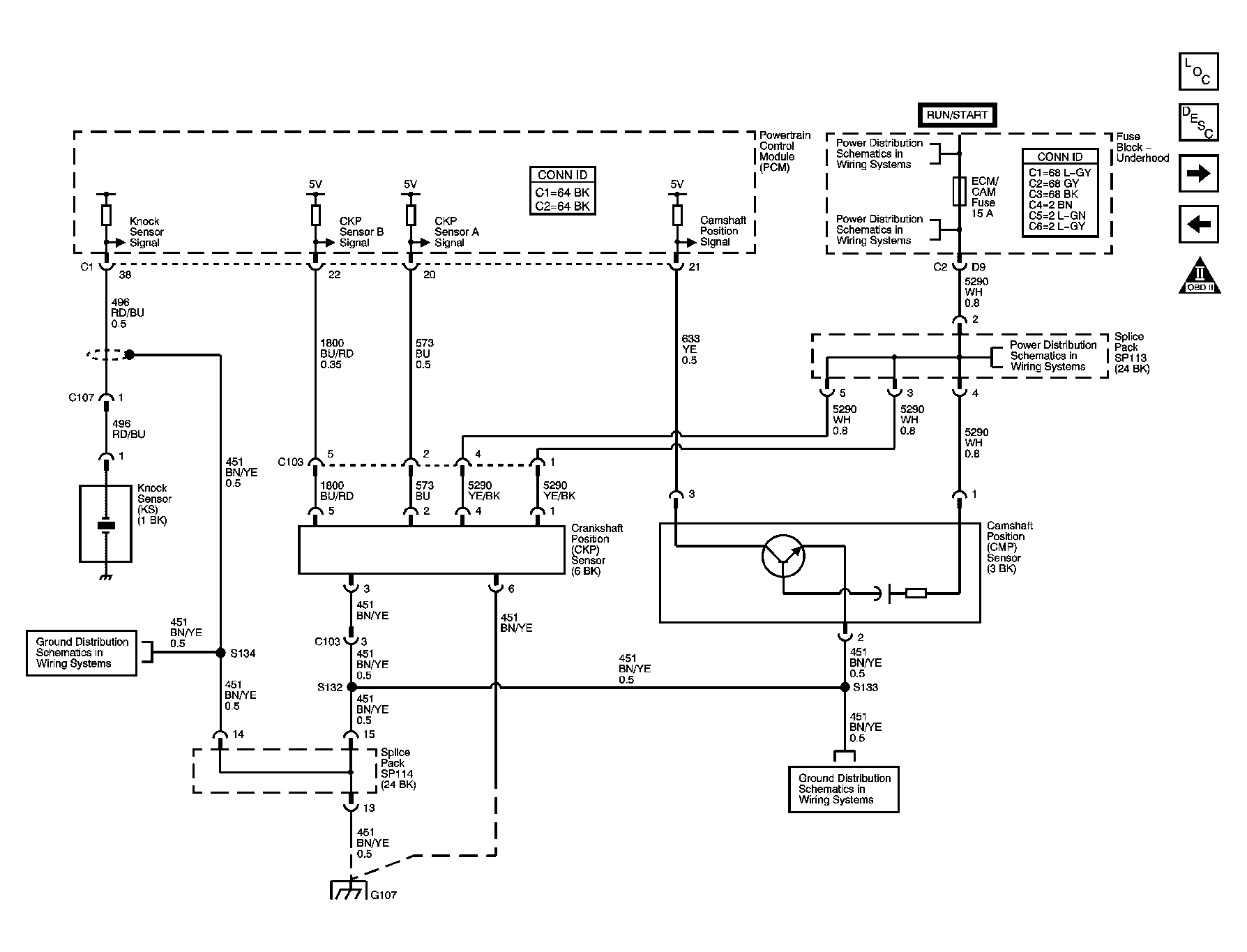

Fig 9: Ignition Controls - Sensors Schematics

Courtesy of GENERAL MOTORS CORP.

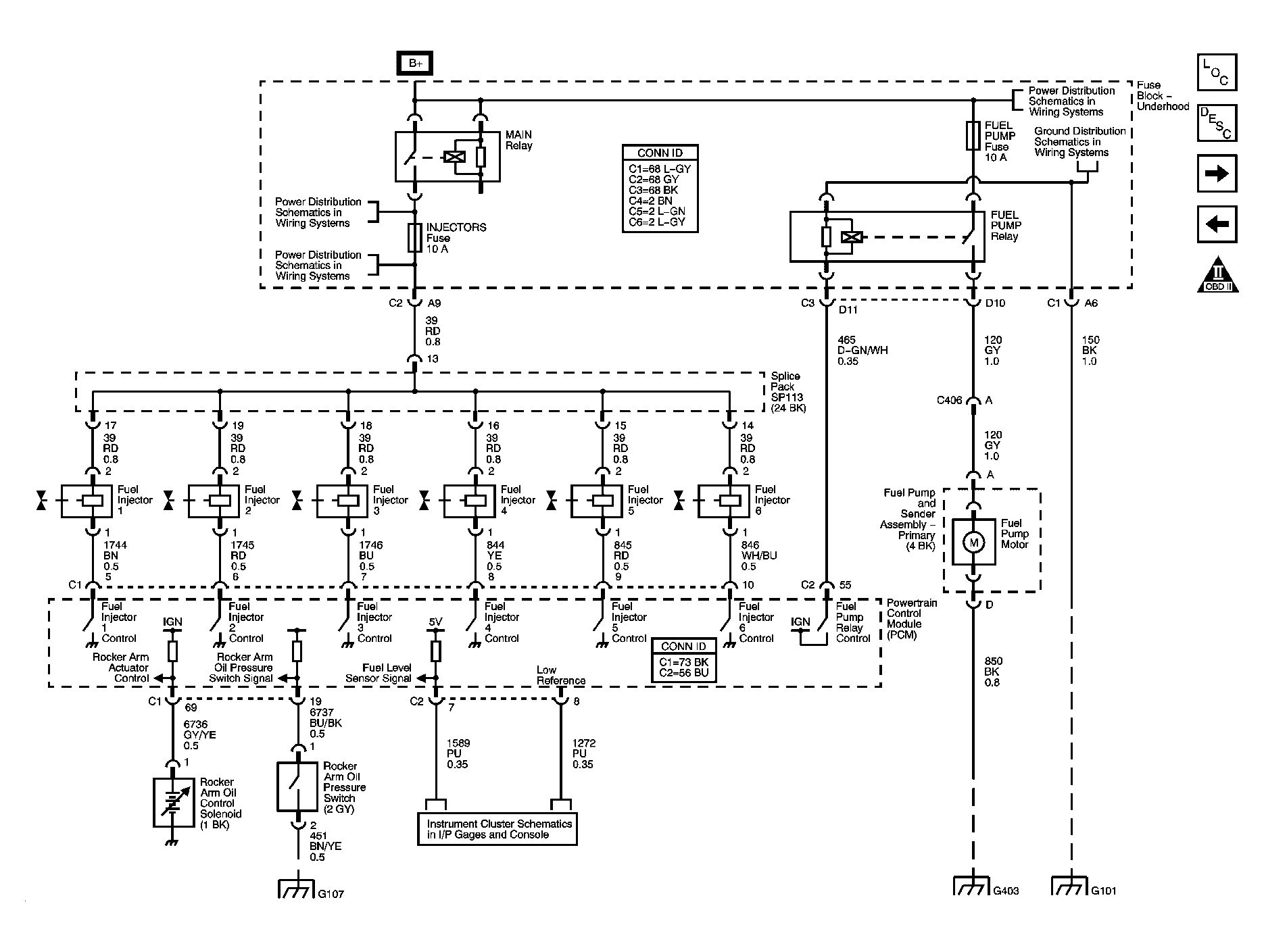

Fig 10: Fuel Controls and Rocker Arm Oil Switch and Solenoid Controls Schematics

Courtesy of GENERAL MOTORS CORP.

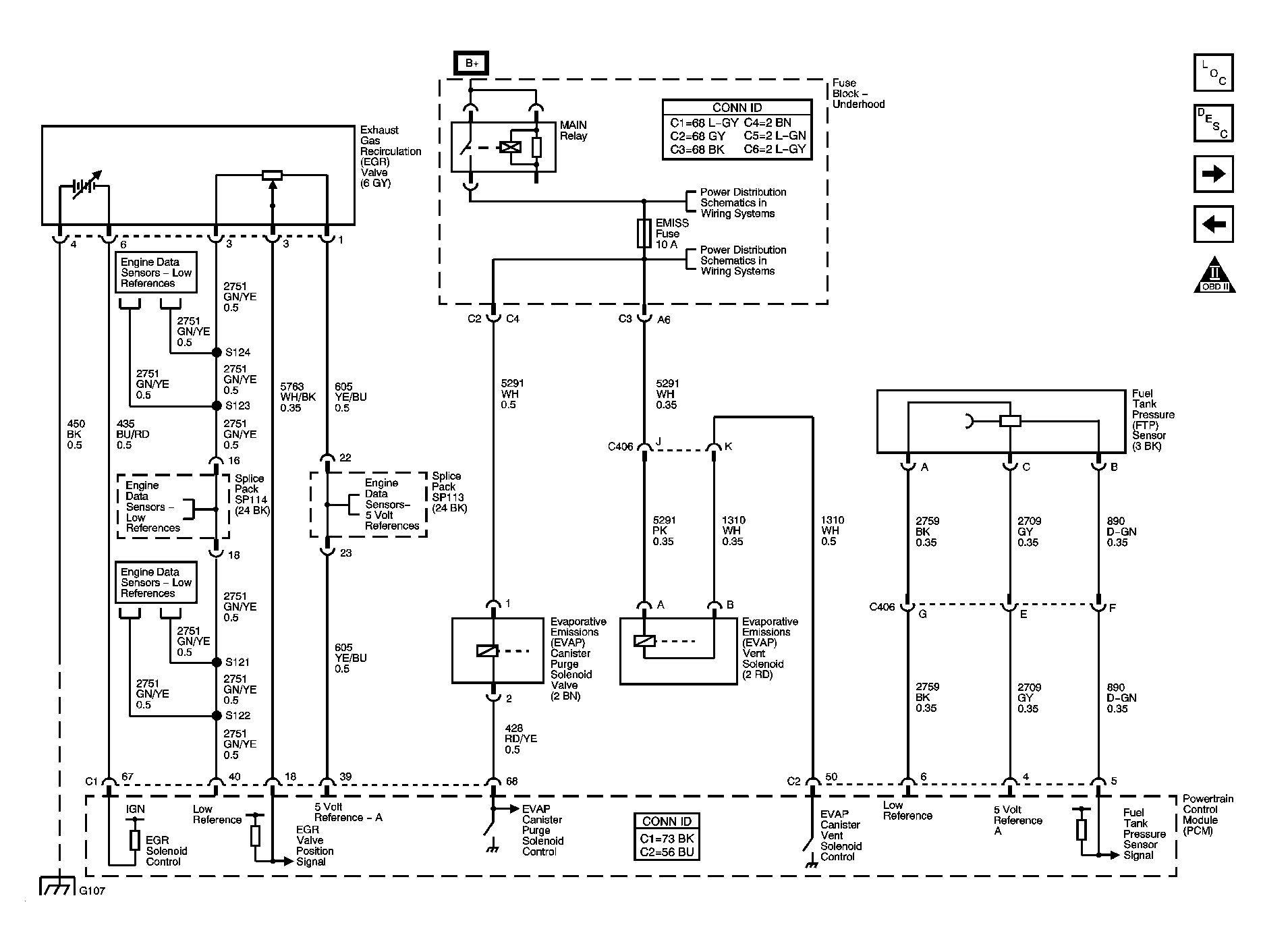

Fig 11: EVAP Controls, EGR Valve, and FTP Sensor Signals Schematics

Courtesy of GENERAL MOTORS CORP.

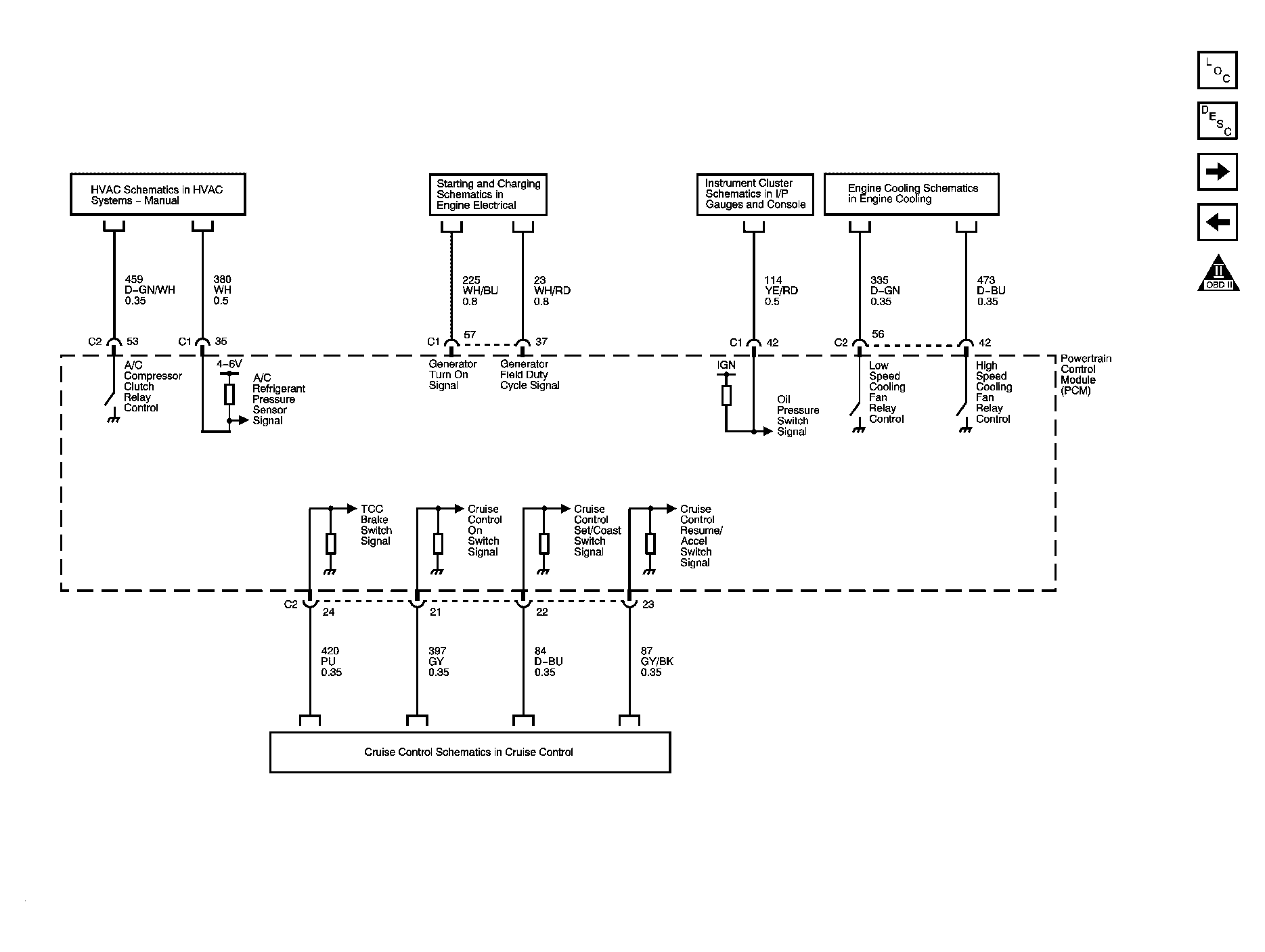

Fig 12: Controlled/Monitored Subsystem References Schematics

Courtesy of GENERAL MOTORS CORP.

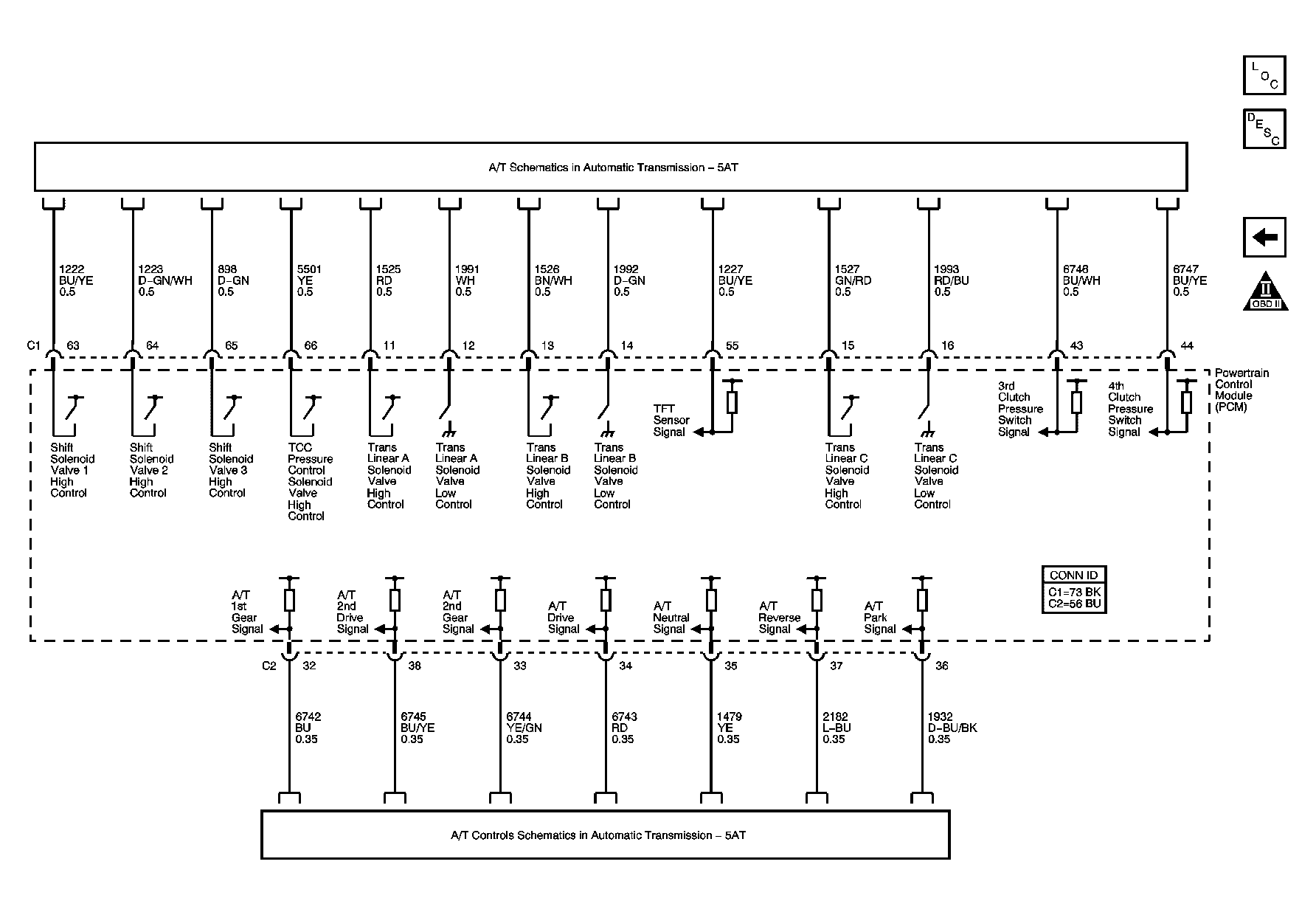

Fig 13: Transmission Controls References Schematics

Courtesy of GENERAL MOTORS CORP.
