Cruise Control Schematics: L61

WARNING: This page is about a different car, the 2005 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

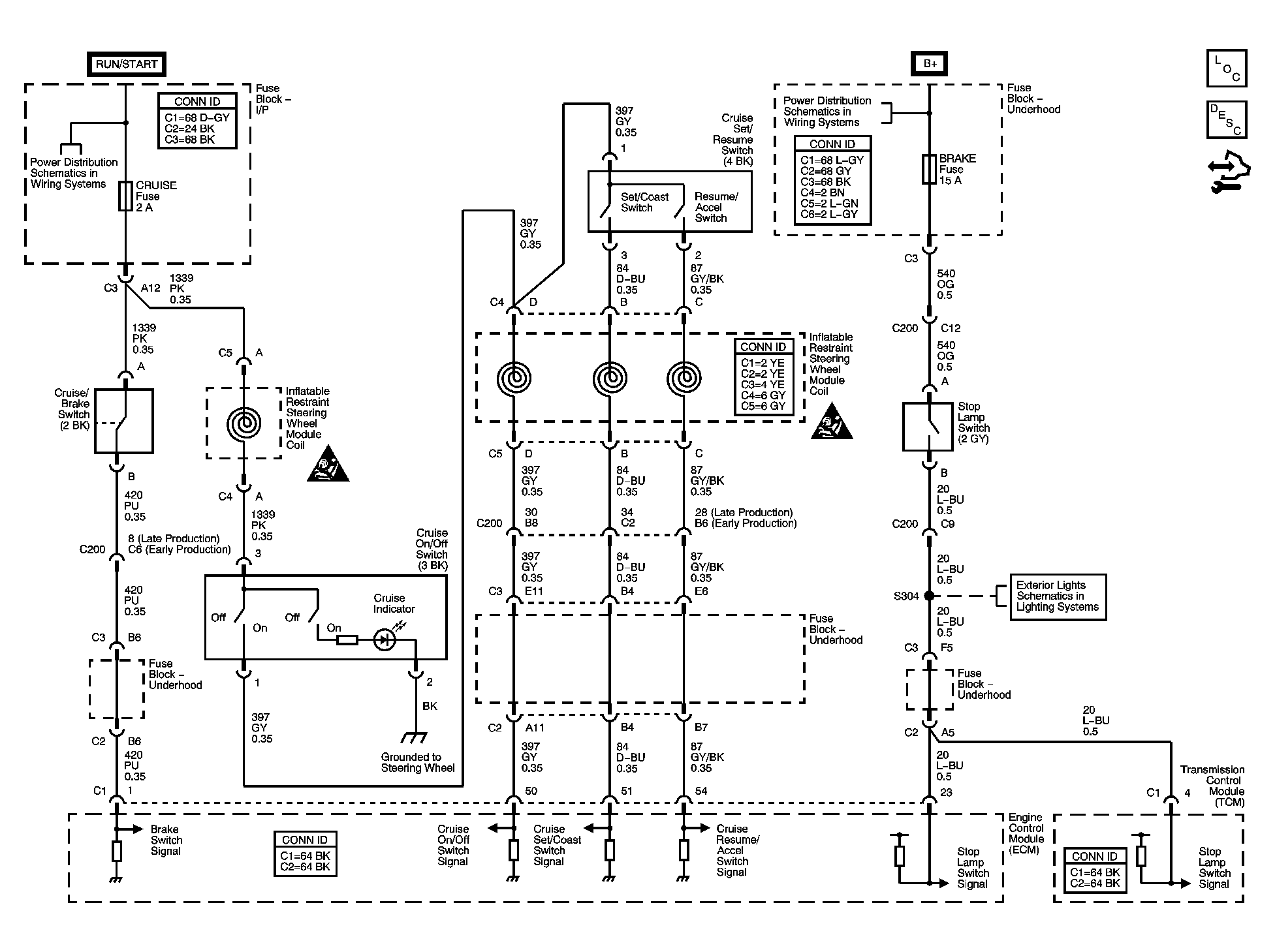

Fig 1: Cruise Control Schematics (L61)
GM1501776Courtesy of GENERAL MOTORS CORP.
