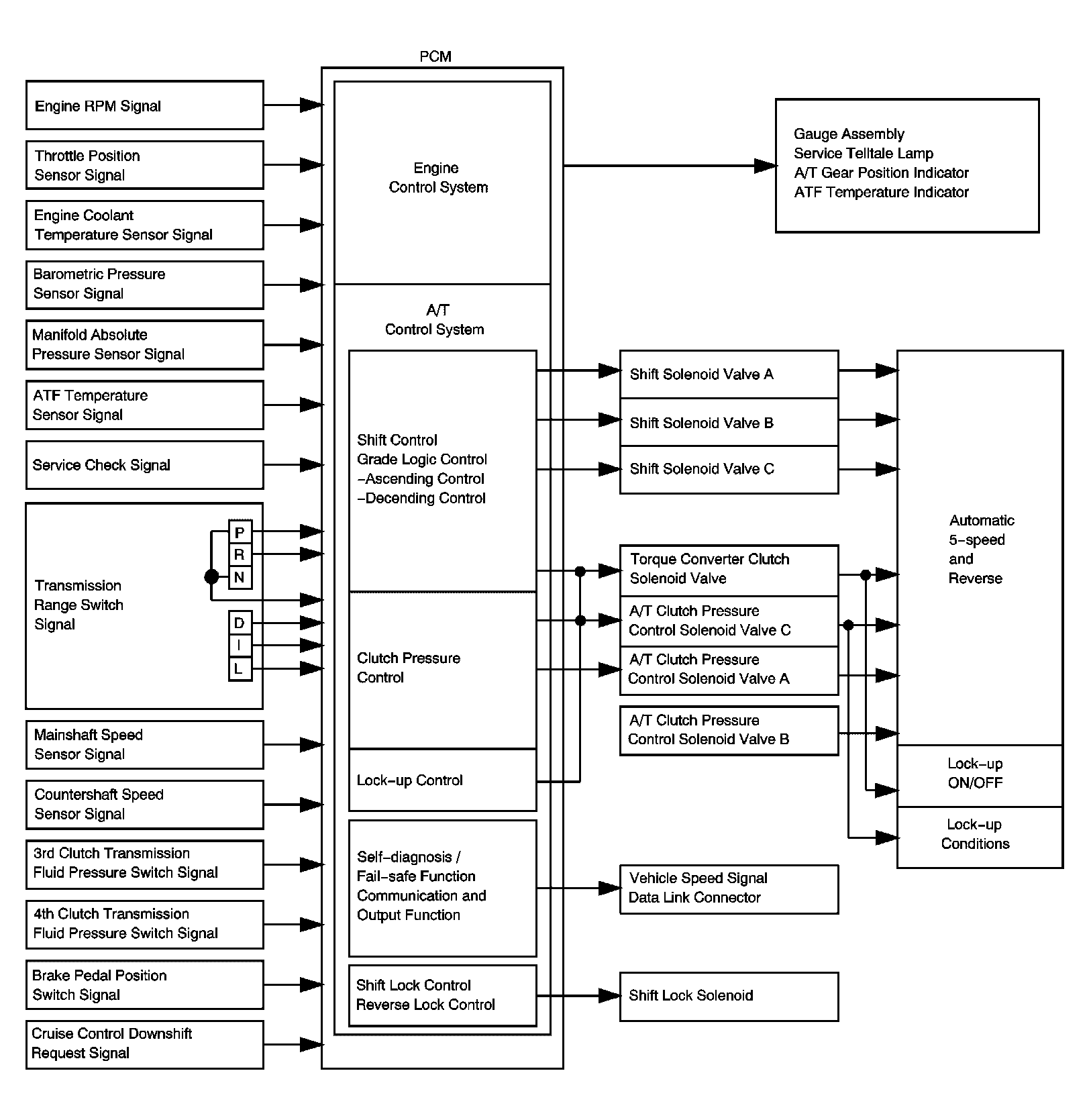

Functional Diagram
The electronic control system consists of the PCM, sensors, and solenoid valves. Shifting and lock-up are electronically controlled for comfortable driving under all conditions. The PCM receives input signals from the sensors, switches, and other control units, performs processing data, and outputs signals for the engine control system and AT control system. The AT control system includes shift control, grade logic control, clutch pressure control, and lock-up control is stored in the PCM. The PCM switches the shift solenoid valves and the AT CPC solenoid valves to control shifting transmission gears and lock-up TCC.
