Electronic Brake Control Module

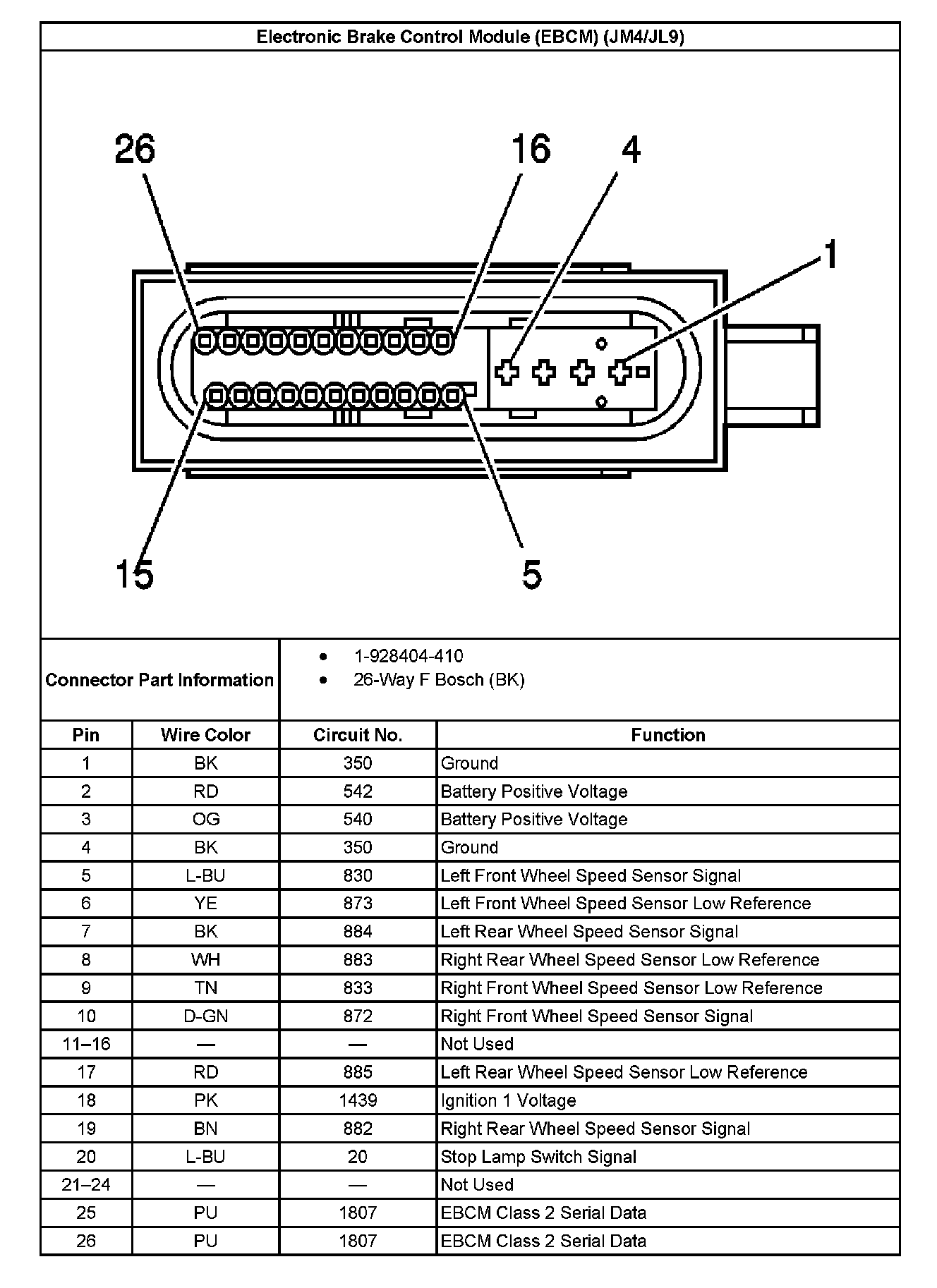

Electronic Brake Control Module (EBCM) With RPO Code JM4/JL9 26-Way Connector End View:
