Cellular Communication Component Views

WARNING: This page is about a different car, the 2005 Pontiac Pursuit and 2005 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Rear Compartments and Shelf Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G401
2	Digital Radio Receiver (U2K)
3	Vehicle Communication Interface Module (VCIM) (UE1)
4	G402
5	Rear Window Shelf
6	Floor Pan
7	Speaker - Subwoofer (UQ3)

Fig 2: Headliner Components (w/o CF5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headliner
2	Dome Lamp
3	Cellular Telephone Microphone (UE1)

Fig 3: Inside Rearview Mirror (UE1)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlight Sensor (DD8)
2	OnStar® Indicator - Red (UE1)
3	Emergency Button (UE1)
4	OnStar® Call Center Button (UE1)
5	Answer/End Call Button (UE1)
6	Inside Rearview Mirror (ISRVM) On./Off Button (DD8)
7	Onstar® Indicator - Green (UE1)

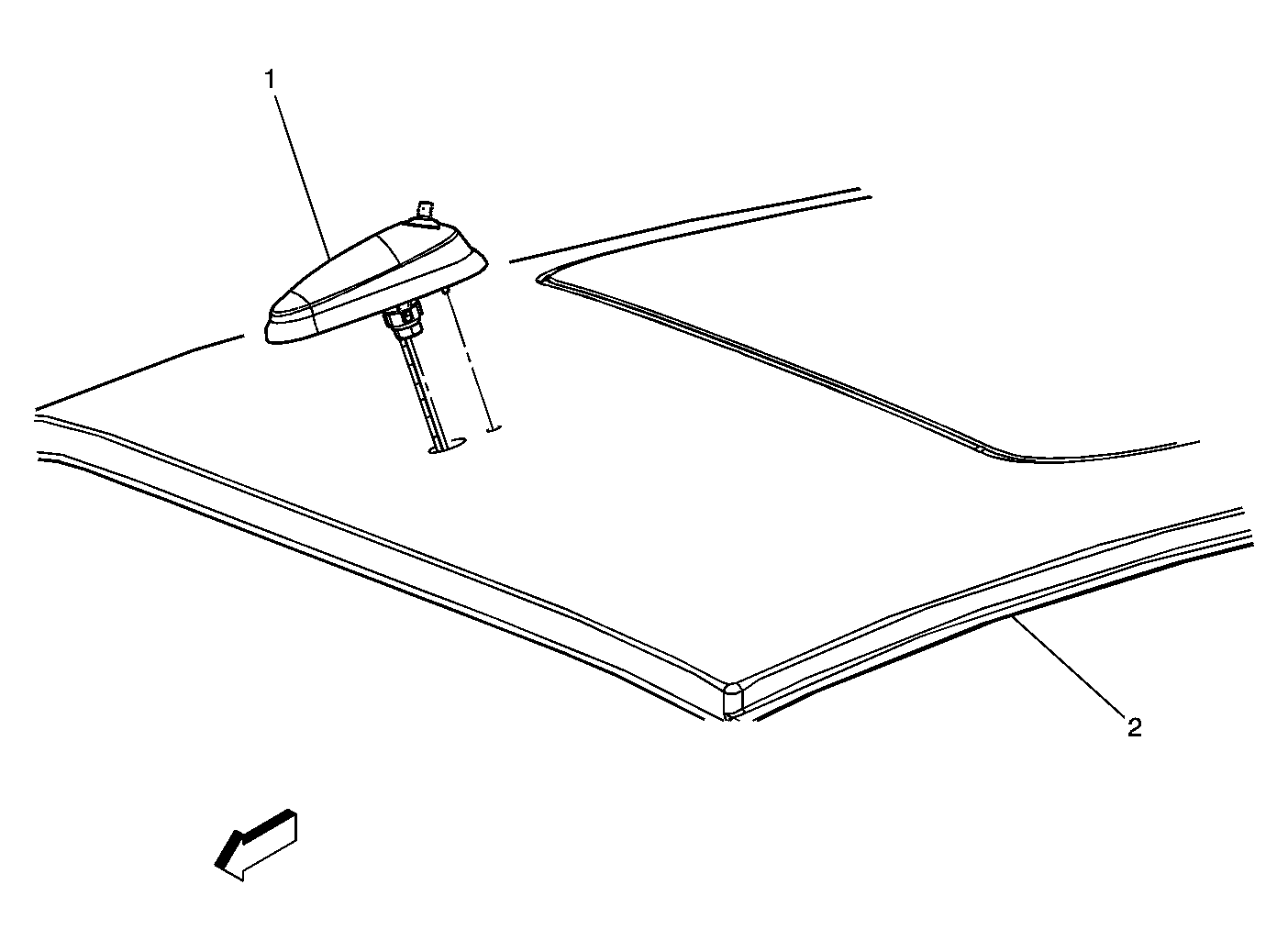

Fig 4: Top of the Roof

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cellular Antenna (UE1)
2	Roof Panel
