Engine Controls - DTC P0341 - DTC P1680
>>
Diagnostic Information & Procedures
>>
DTC P0449
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC P0449: Notes

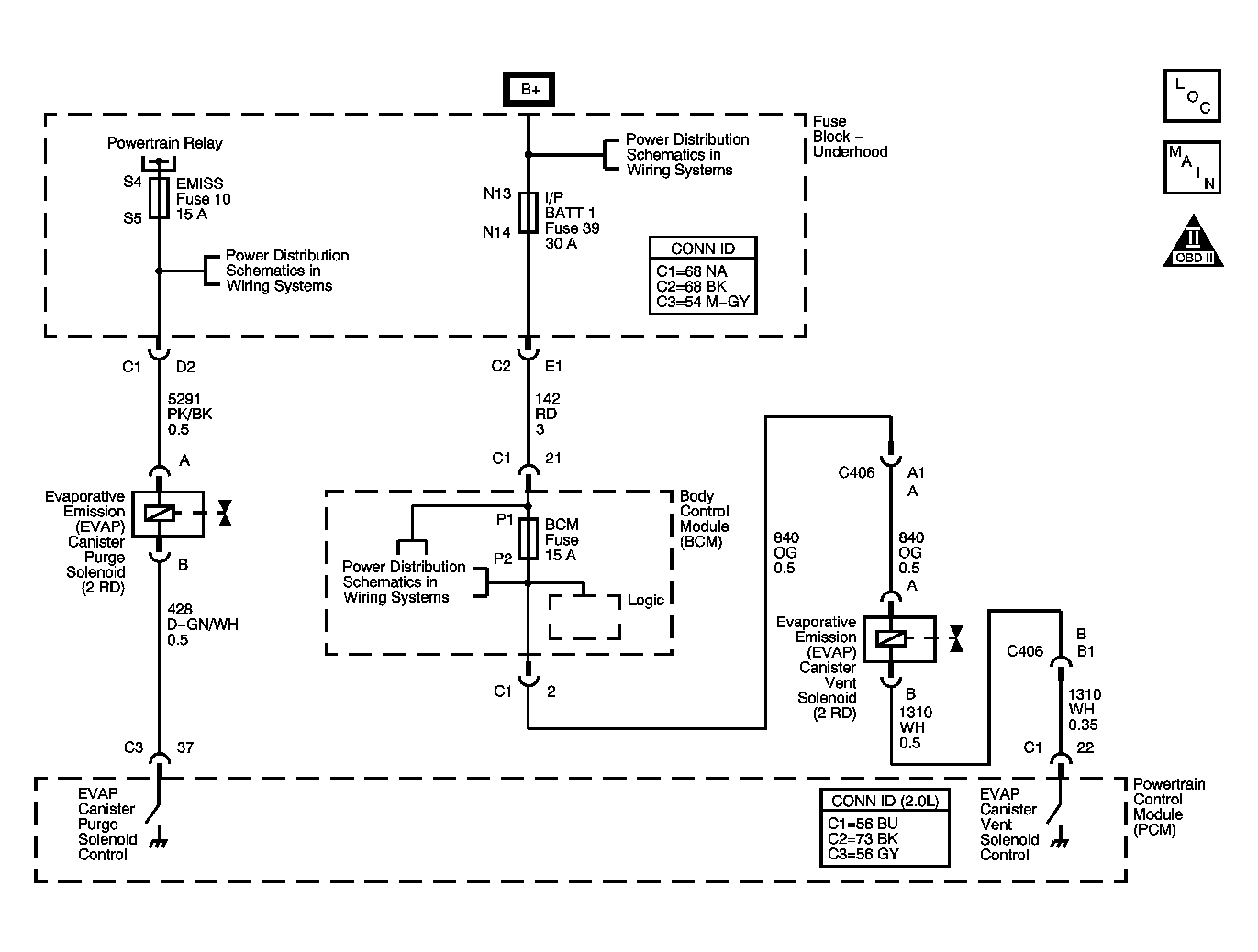

Fig 1: EVAP Canister Purge And Vent Solenoid Valves Circuit
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
