Lighting Systems Component Views

WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

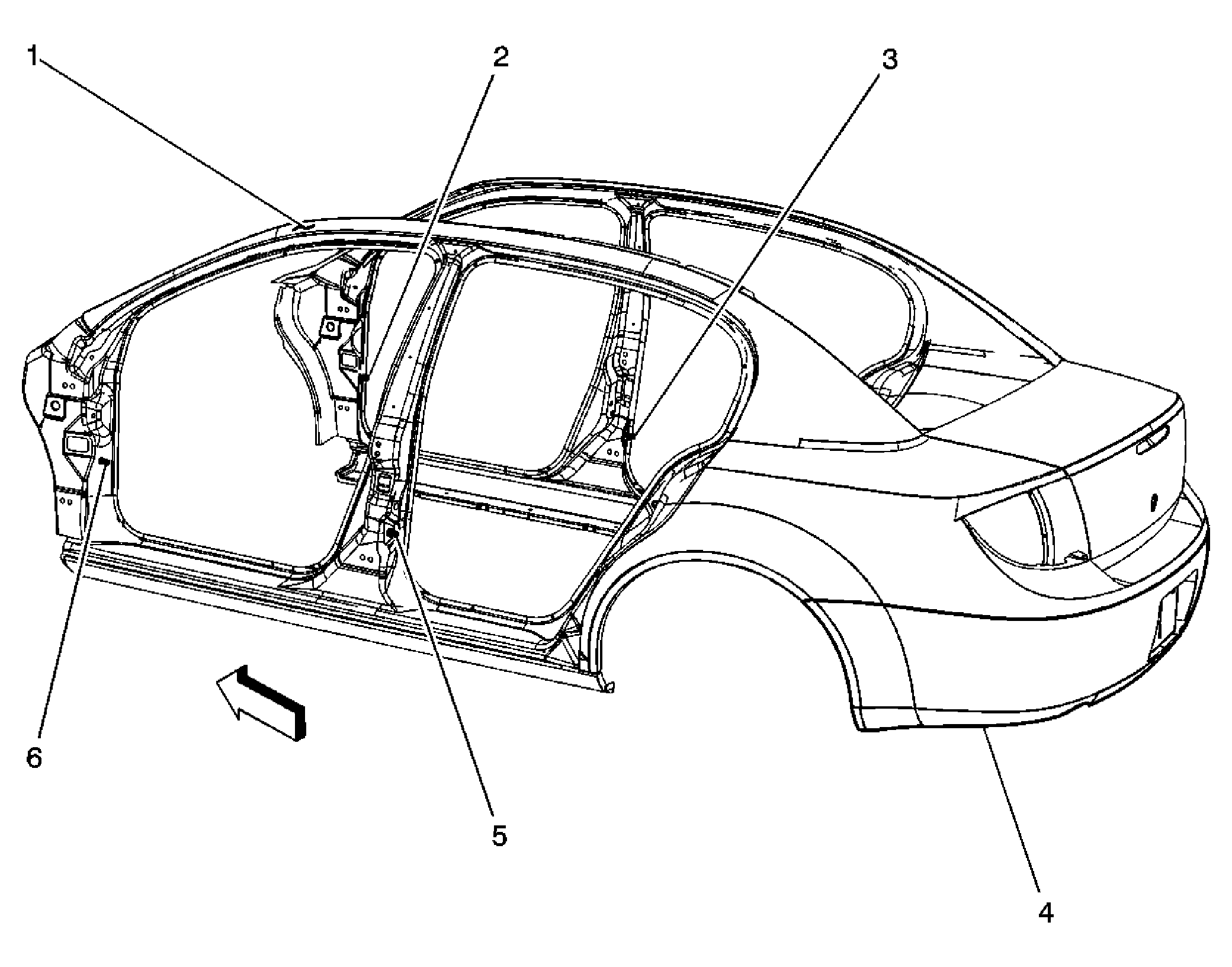

Fig 1: Door Jamb Switches - Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Left Body Panel
2	Door Ajar Switch - Front Passenger
3	Door Ajar Switch - RR
4	Rear Fascia
5	Door Ajar Switch - LR
6	Door Ajar Switch - Driver

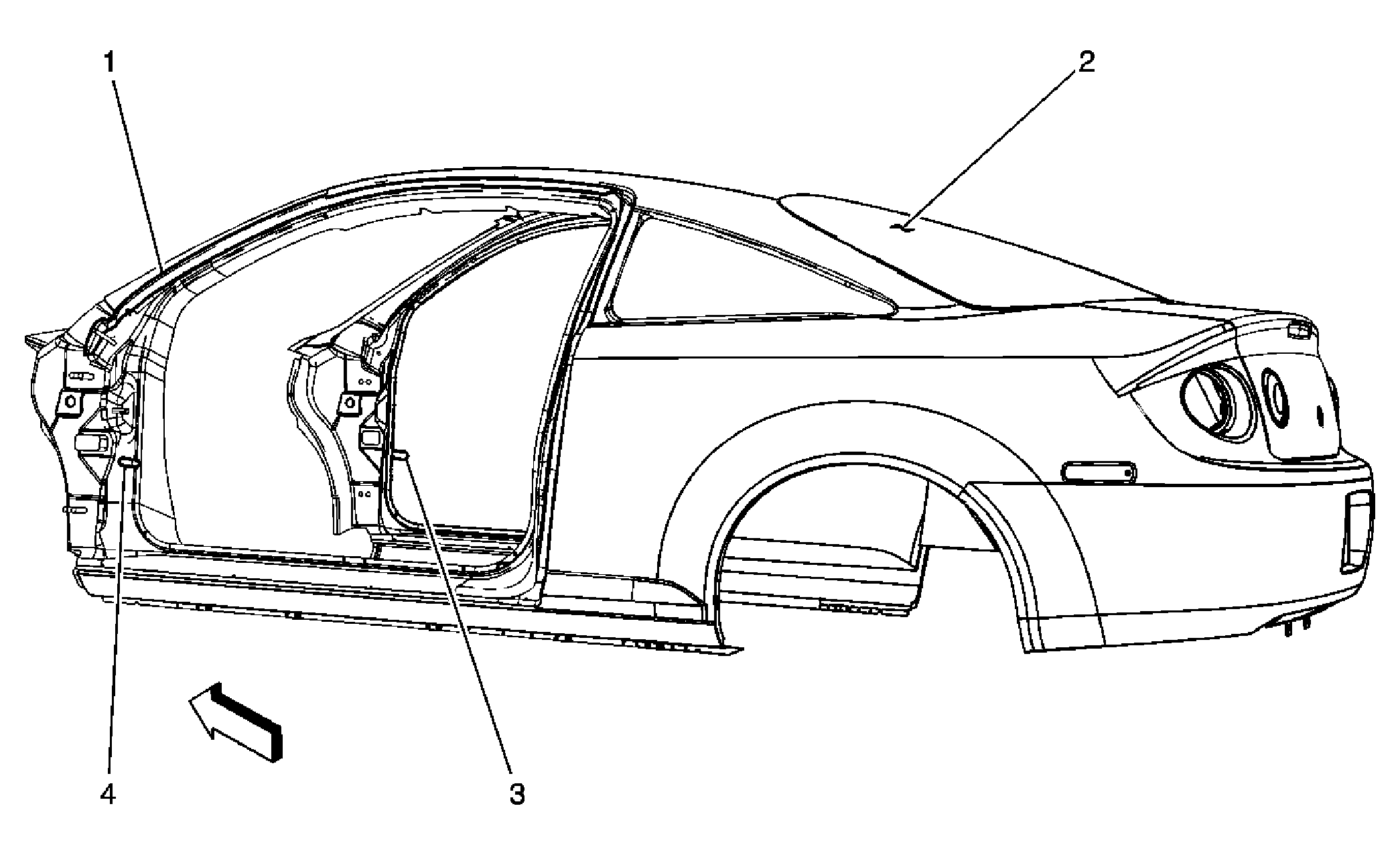

Fig 2: Door Jamb Switches - Coupe

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Left Body Panel
2	Rear Window
3	Door Ajar Switch - Front Passenger
4	Door Ajar Switch - Driver

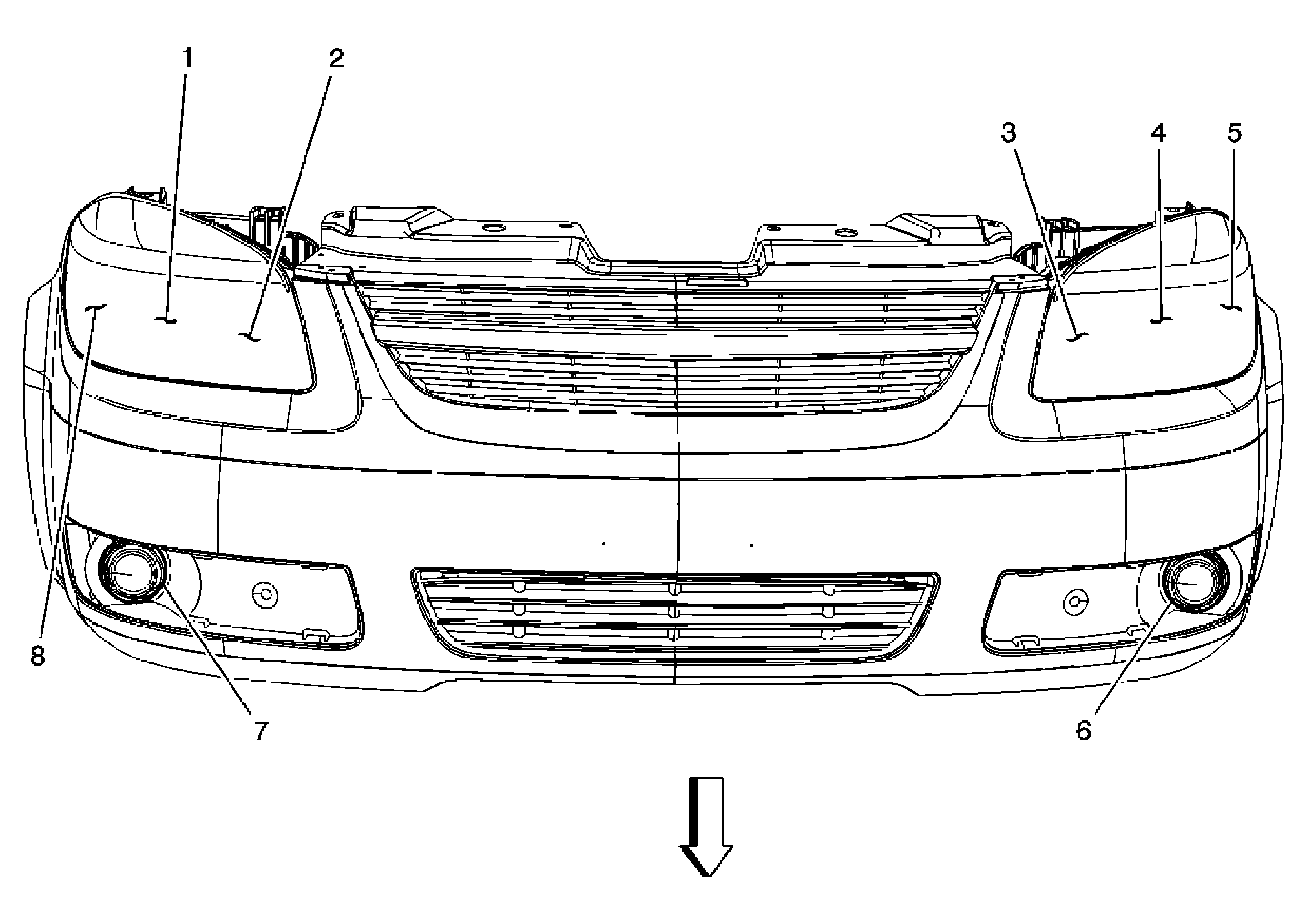

Fig 3: Front Lights

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Side Marker Lamp - Right
2	Headlamp High/Low Beam - Right
3	Headlamp High/Low Beam - Left
4	Side Marker Lamp - Left
5	Park/Turn Signal DRL Lamp - LF
6	Fog Lamp - LF
7	Fog Lamp - RF
8	Park/Turn Signal DRL Lamp - RF

Fig 4: Headliner Components (w/o CF5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headliner
2	Dome Lamp
3	Cellular Telephone Microphone (UE1)

Fig 5: I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Cluster (IPC)
2	Ambient Light Sensor
3	Hazard Switch
4	Radio
5	Remote Control Door Lock Receiver (RCDLR) (AUO)
6	Heated Seat Switch - Passenger (KA1)
7	HVAC Control Module
8	Body Control Module (BCM)
9	Heated Seat Switch - Driver (KA1)
10	I/P Dimmer Switch
11	Fog Lamp Switch (T37)
12	Data Link Connector (DLC)
13	Rear Compartment Lid Release Switch
14	I/P Trim

Fig 6: Pedal Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Clutch Pedal Position (CCP) Switch (M86)
2	Clutch Start Switch (M86)
3	Stop Lamp/TCC Switch
4	Cruise Control Cancel Switch (M86)
5	Accelerator Pedal Position (APP) Sensor
6	Floor Pan

Fig 7: Rear Compartments and Shelf Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G401
2	Digital Radio Receiver (U2K)
3	Vehicle Communication Interface Module (VCIM) (UE1)
4	G402
5	Rear Window Shelf
6	Floor Pan
7	Rear Compartment Coutesty Light
8	Speaker - Subwoofer (UQ3)

Fig 8: Rear Body - Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Marker Lamp - LR
2	Center High Mounted Stop Lamp (CHMSL)
3	Rear Window Defogger Grid
4	Marker Lamp - RR
5	Tail/Stop and Turn Signal Lamp - RR
6	Backup Lamp - Right
7	License Lamp
8	Backup Lamp - Left
9	Tail/Stop and Turn Signal Lamp - LR

Fig 9: Rear of the Vehicle - Coupe

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Backup Lamp - Left
2	Center High Mounted Stop Lamp (CHMSL)
3	Rear Window Defogger Grid
4	Backup Lamp - Right
5	Tail/Stop and Turn Signal Lamp - Right
6	Marker Lamp - RR
7	License Lamp
8	Rear Fascia
9	Marker Lamp - LR
10	Tail/Stop and Turn Signal Lamp - Left
11	LR Fender

Fig 10: Steering Wheel and Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Inflatable Restraint Steering Wheel Module Coil
3	Windshield Wiper/Washer Switch
4	Steering Wheel
5	Steering Wheel Controls - Right (UK3/K34)
6	Horn Switchs
7	Steering Wheel Controls - Left (UK3/K34)
8	Electronic Power Steering Control Module (EPS)
9	Electronic Power Steering (EPS) Control Motor
10	Ignition Switch
11	Ignition Lock Cylinder Control Solenoid (MN5)

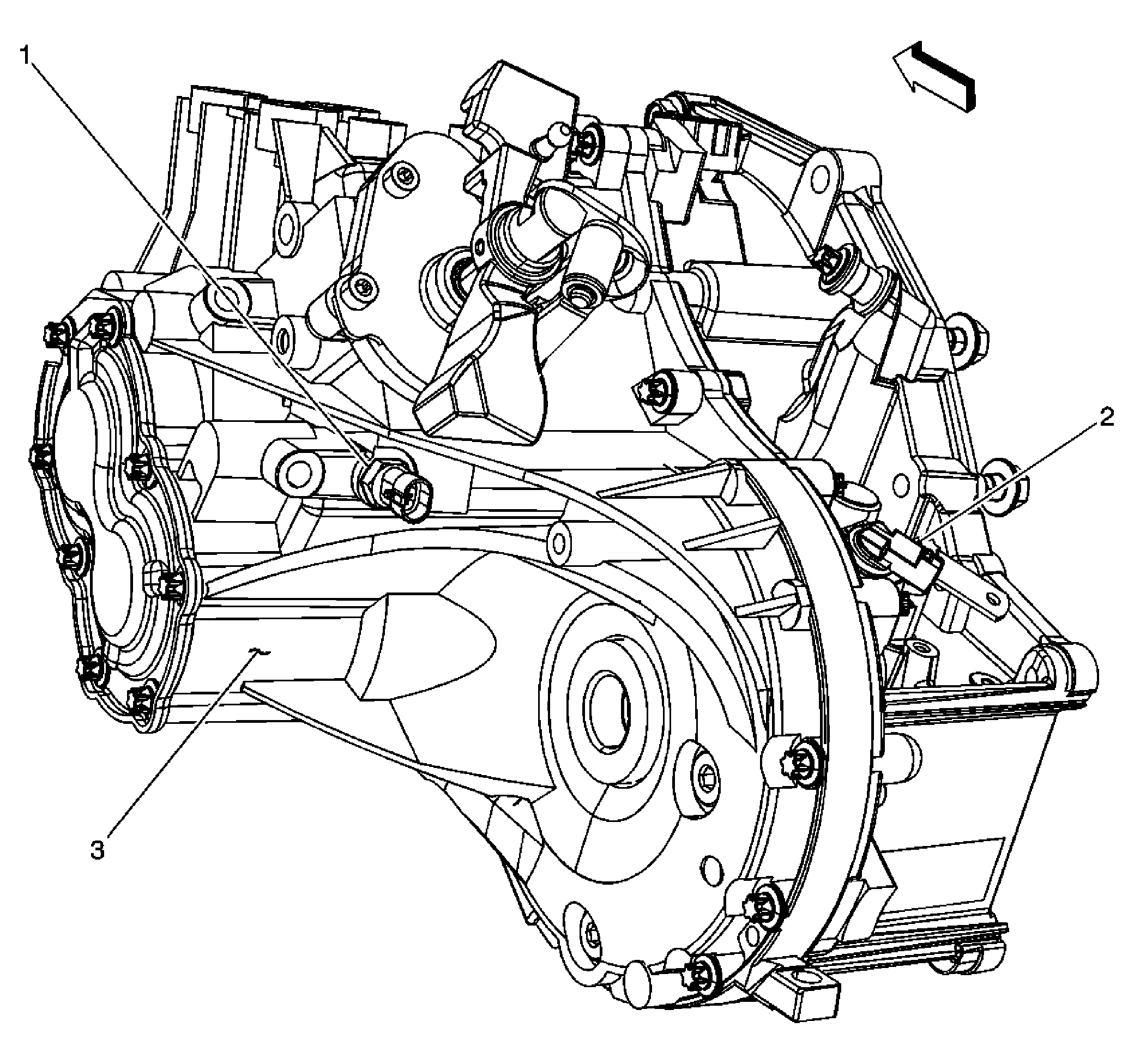

Fig 11: Transmission Components (MPG)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Backup Lamp Switch (w/M86)
2	Vehicle Speed Sensor (VSS)
3	Transmission Case
