Radio/Navigation System Schematics

WARNING: This page is about a different car, the 2008 Pontiac G5 and 2008 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

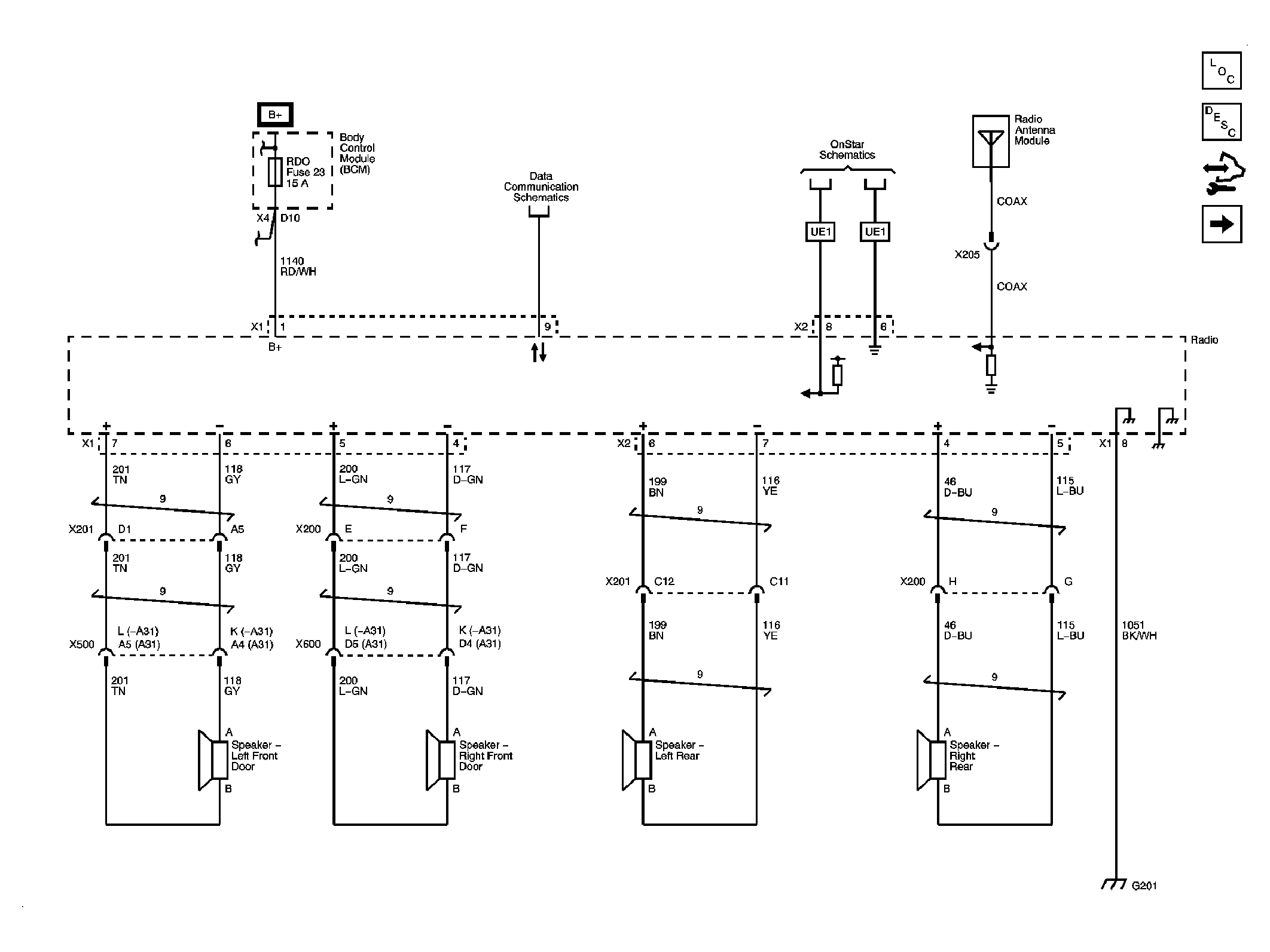

Fig 1: Radio (UQ4) Schematic

Courtesy of GENERAL MOTORS CORP.

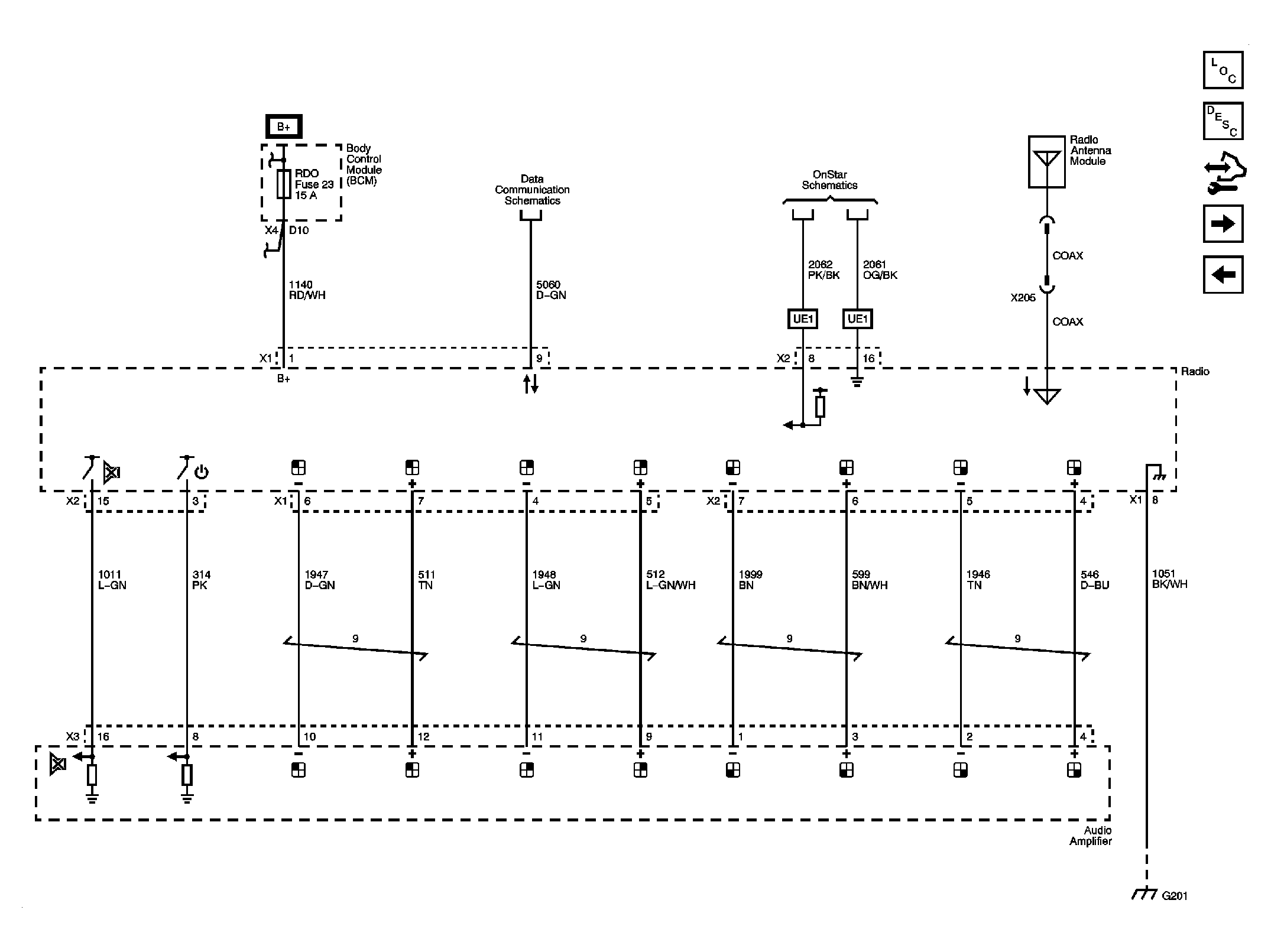

Fig 2: Power, Ground, Communication (UQ3) Schematic

Courtesy of GENERAL MOTORS CORP.

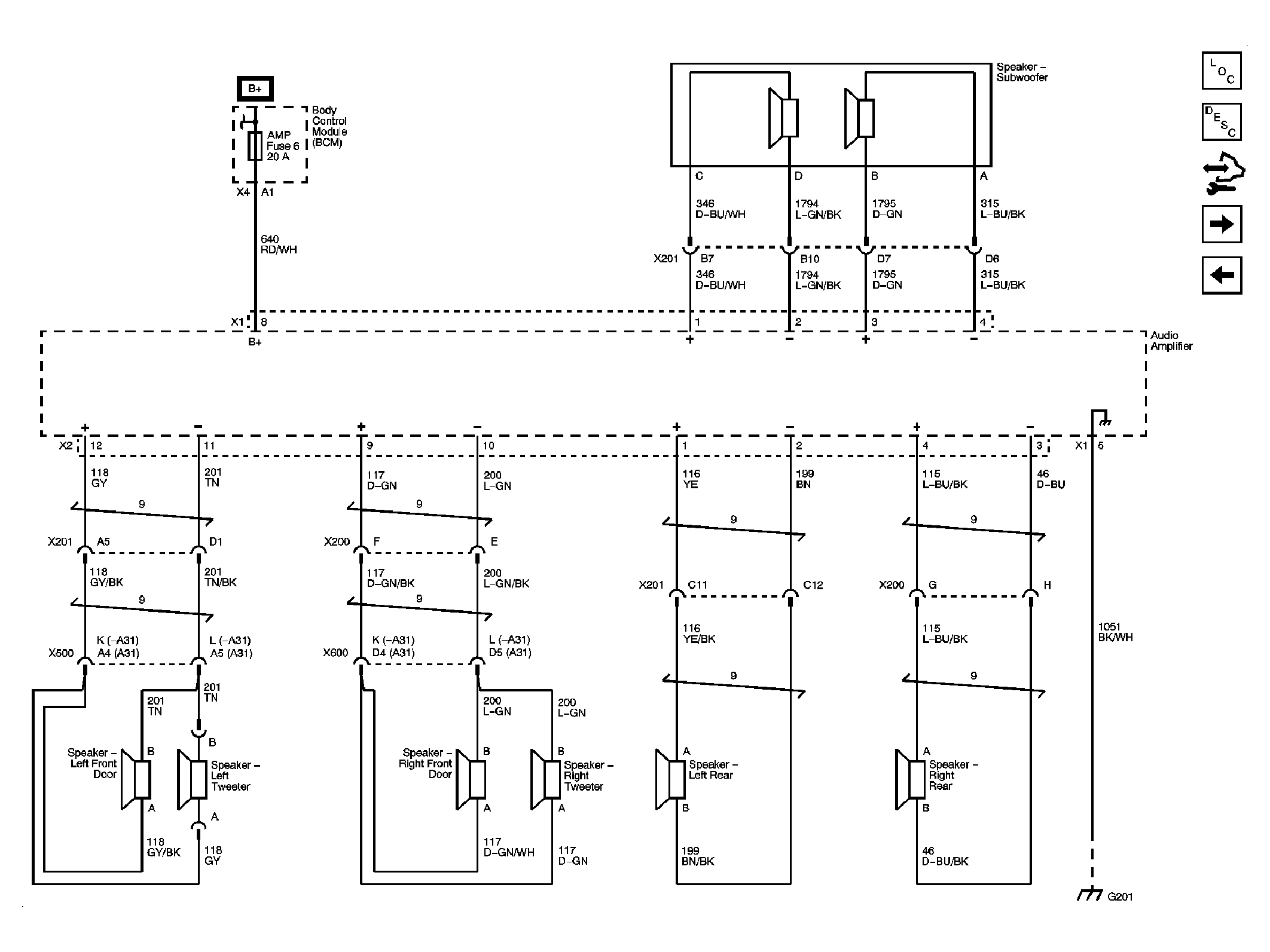

Fig 3: Amplifier, Speakers (UQ3) Schematic

Courtesy of GENERAL MOTORS CORP.

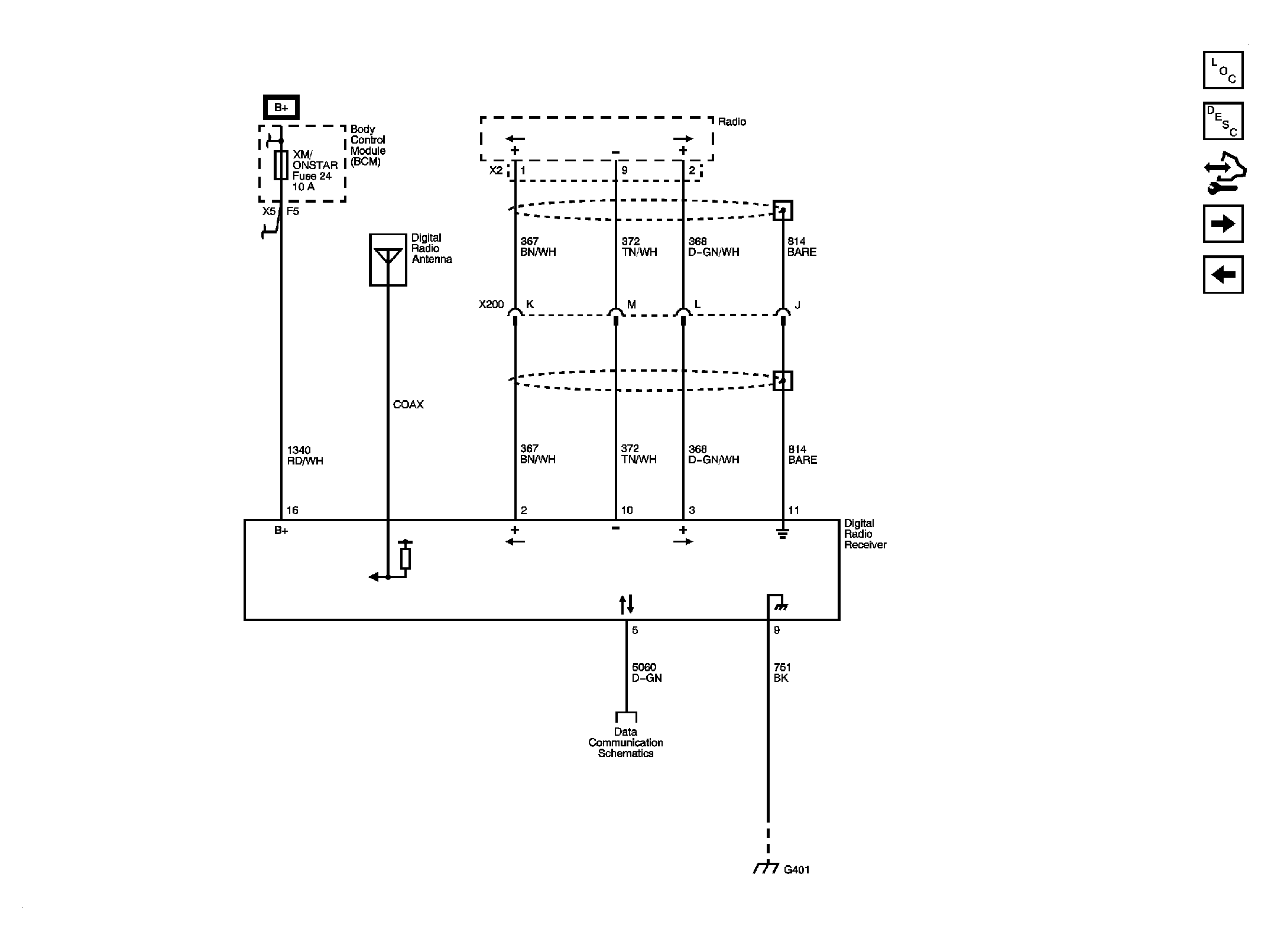

Fig 4: Digital Radio Receiver (U2K) Schematic

Courtesy of GENERAL MOTORS CORP.

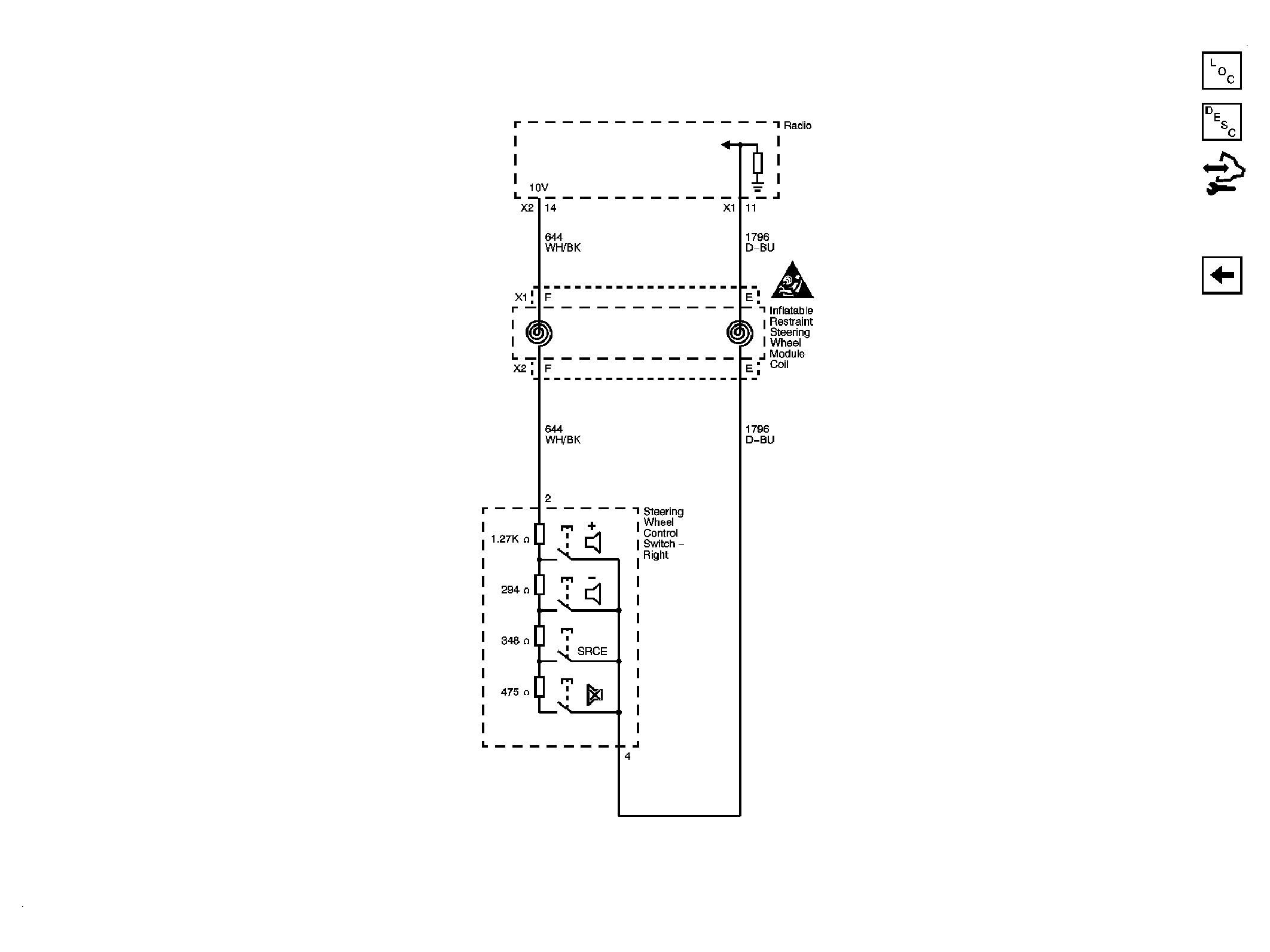

Fig 5: Redundant Radio Controls Schematic

Courtesy of GENERAL MOTORS CORP.
