Transmission Position Sensor/Switch: Locations

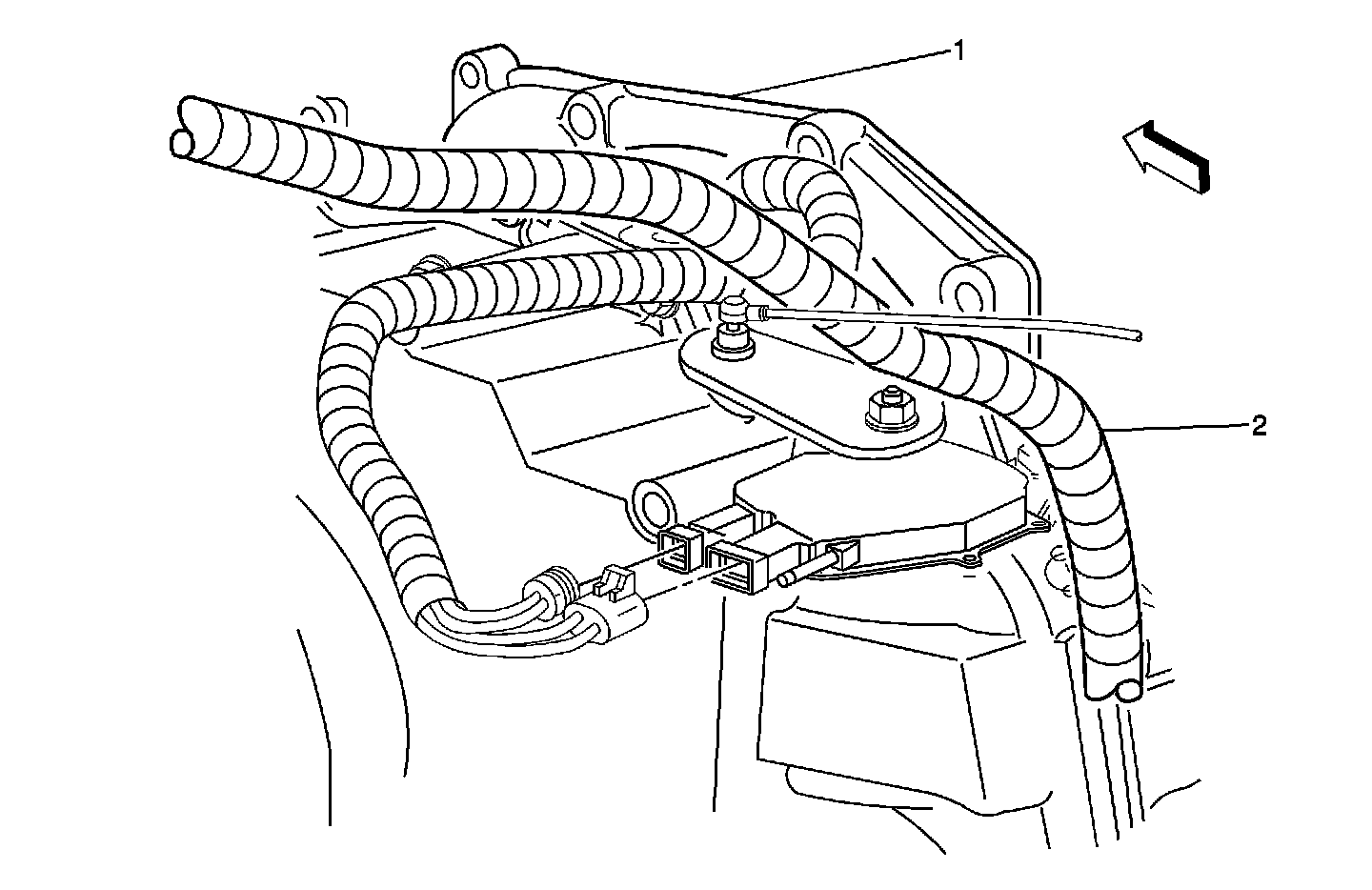

Top of the Transmission Components





1 - Transmission Case
2 - Park Neutral Position (PNP) Switch
