ABS Schematics

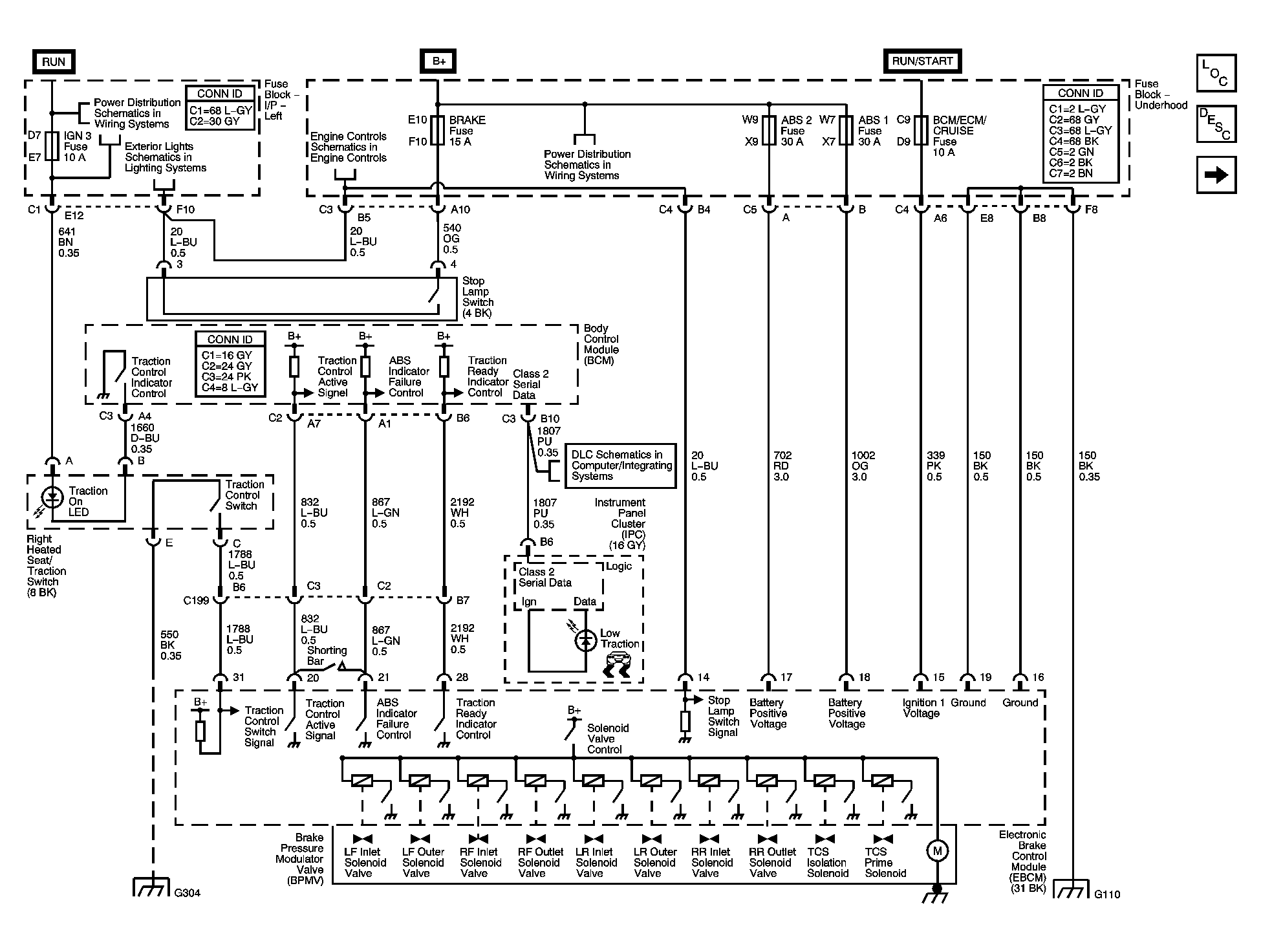

Fig 1: EBCM Power, Ground, Serial Data, and Switches
Courtesy of GENERAL MOTORS CORP.

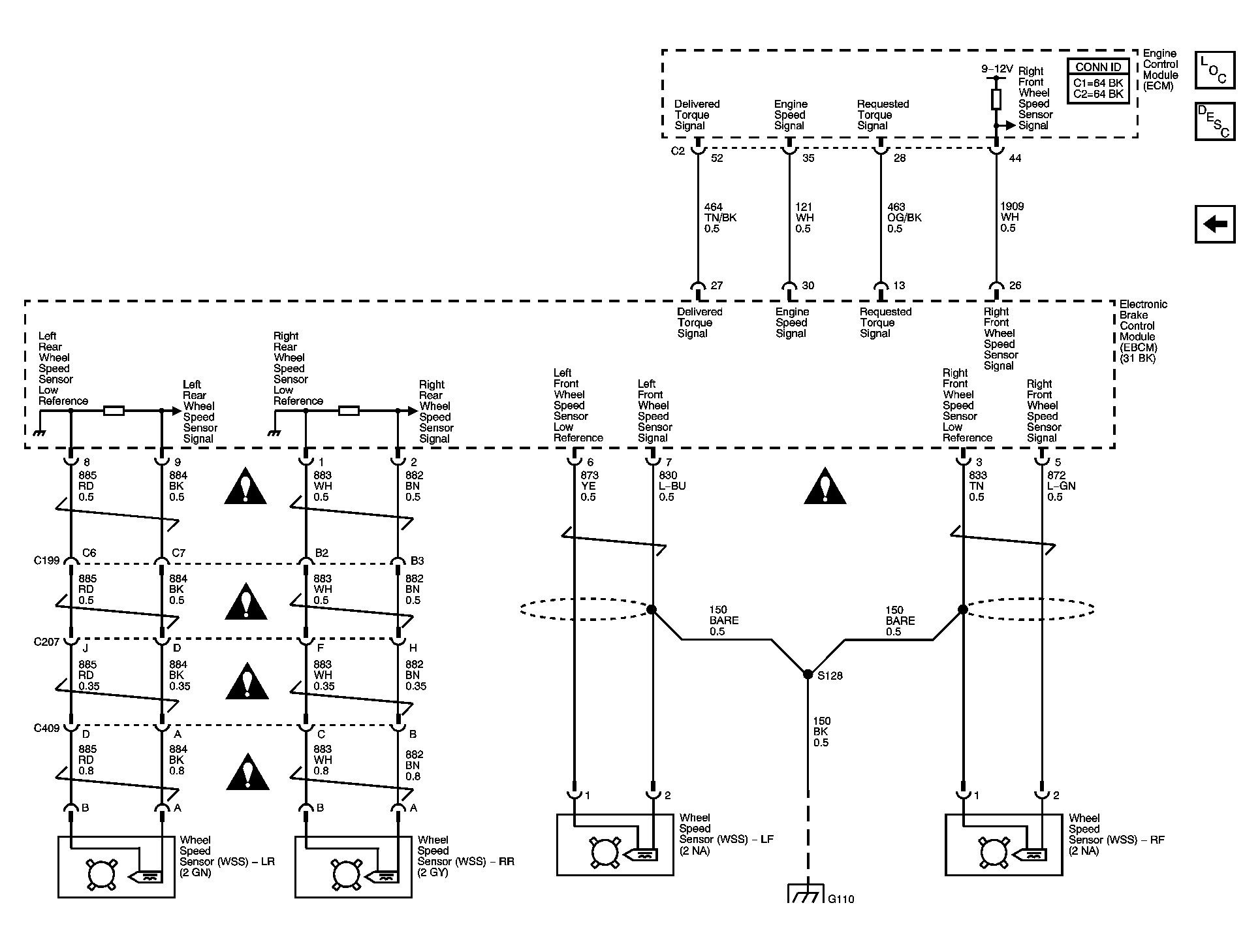

Fig 2: Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.
