Installation Procedure

WARNING: This page is about a different car, the 2004 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Verify that all of the adhesive has been removed from the vehicle mounting surface.

Apply a double-sided tape to the RSAT module (1).
Install the RSAT module to the vehicle.

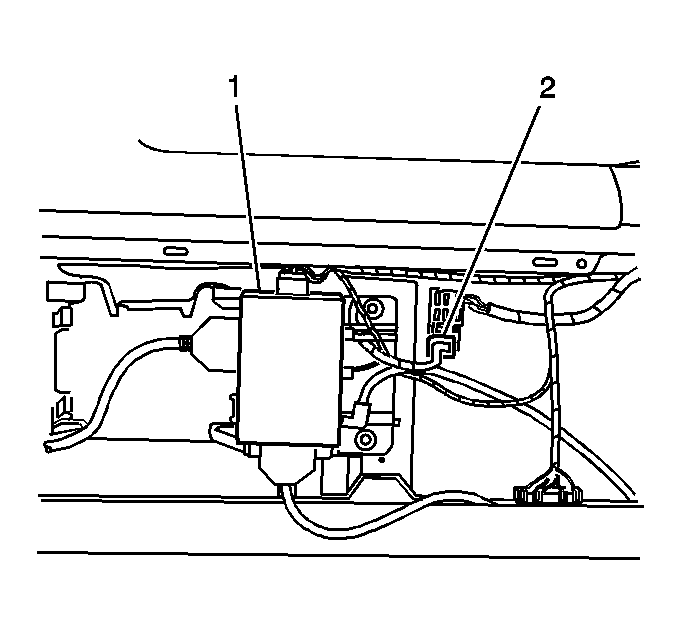

Fig 1: Installing Audio/Video Interface Module
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connectors to the RSAT module.
Install the radio. Refer to Radio Replacement .
