Body Control Module (BCM) C2
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Body Control Module (BCM) C2

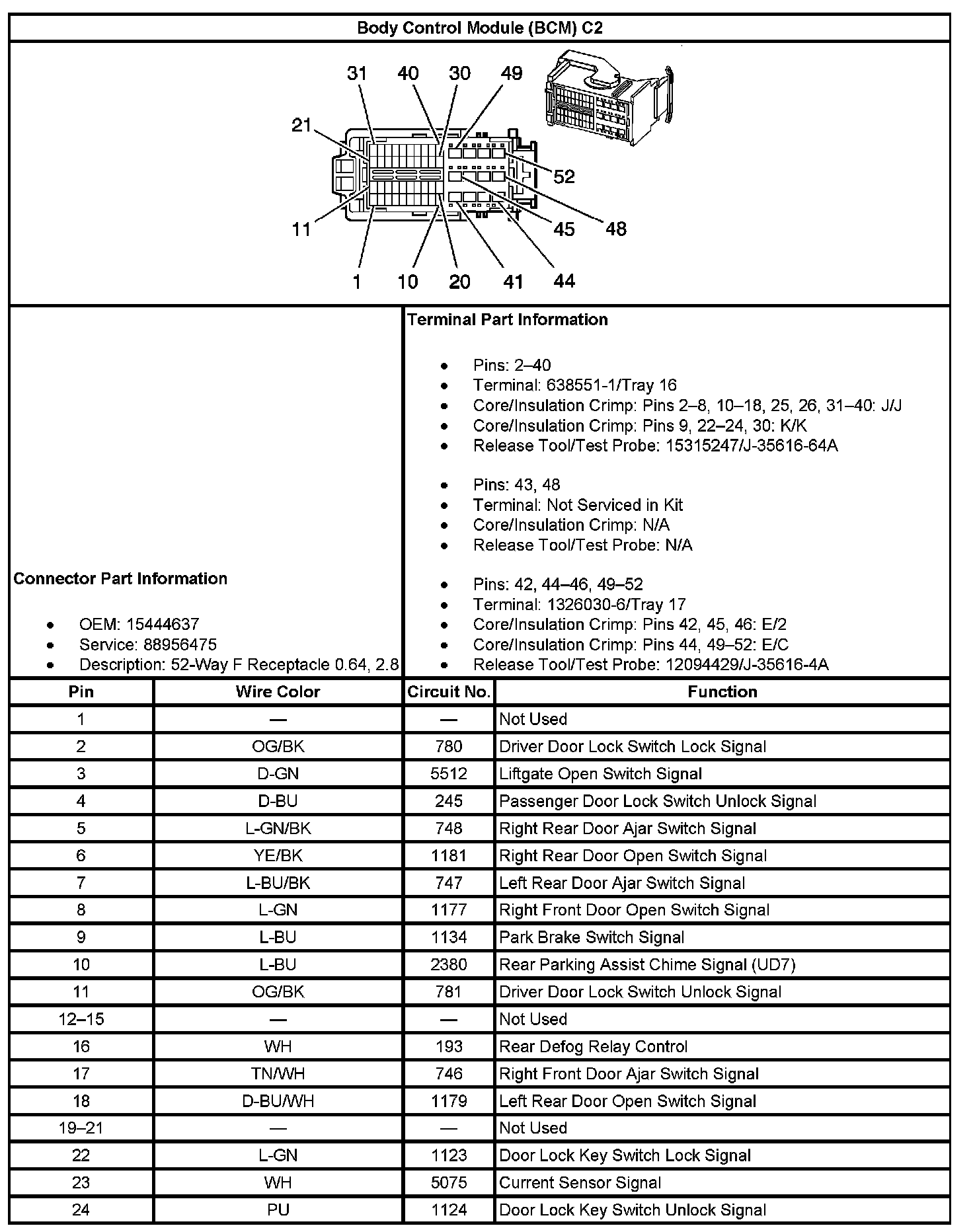

Body Control Module (BCM) C2 (Part 1):

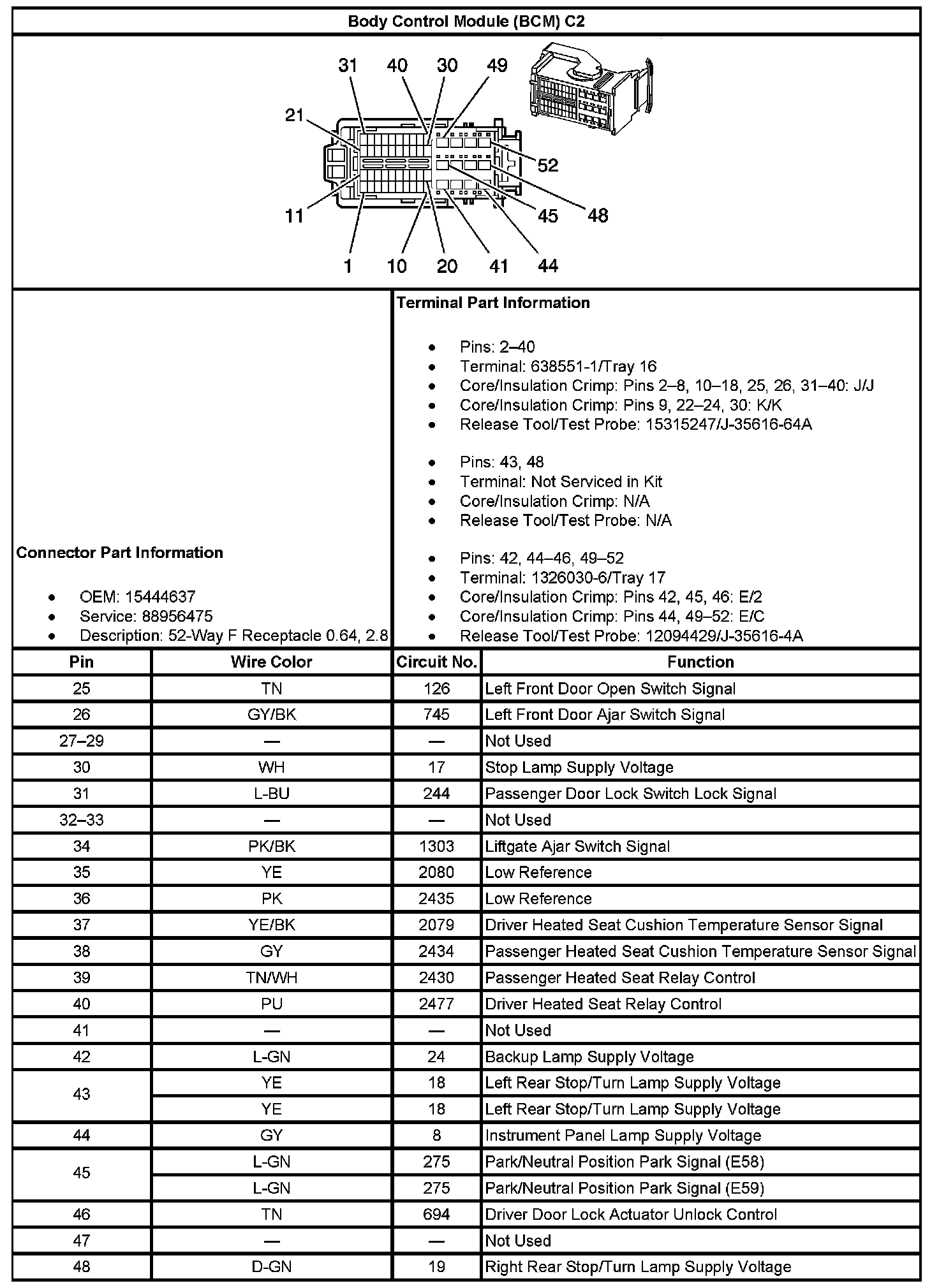

Body Control Module (BCM) C2 (Part 2):

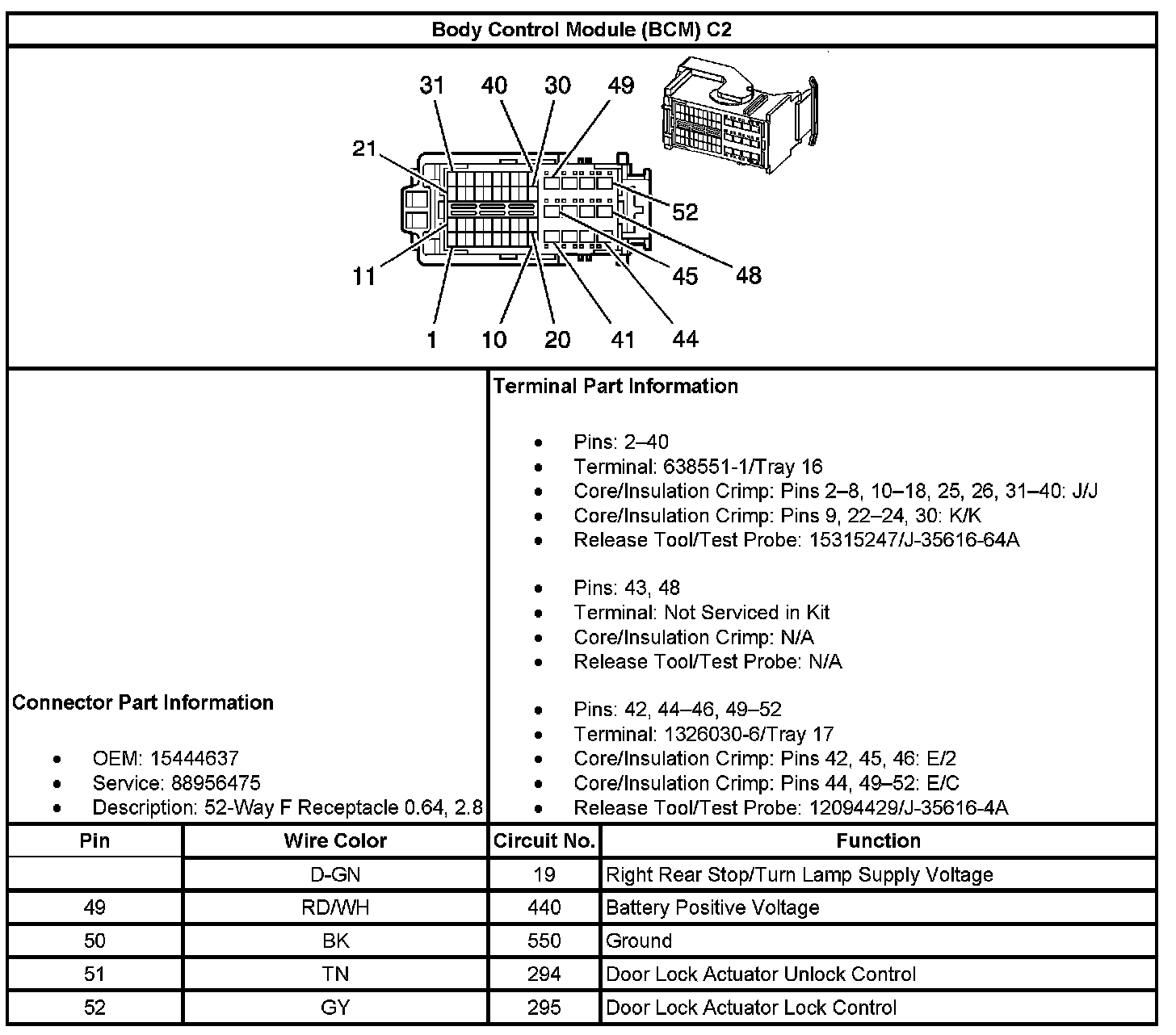

Body Control Module (BCM) C2 (Part 3):
