Mirror Replacement - Power

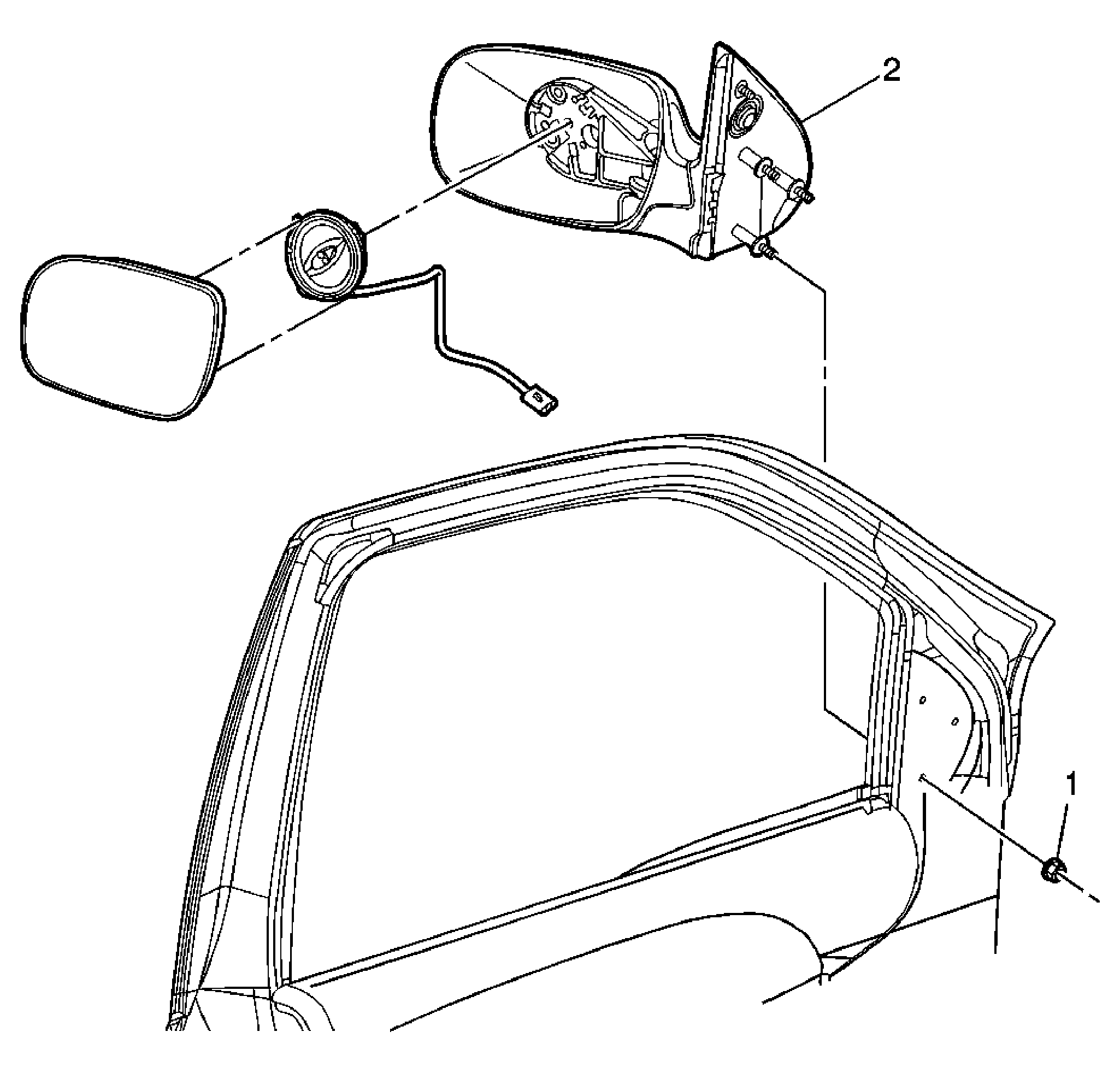

Fig 1: View Of Power Mirror

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the interior trim panel. Refer to Trim Panel Replacement - Side Front Door .
1	Nut, Mirror Outside Rear View (Qty: 3) Tighten: 10 N.m (89 lb in)
2	Mirror Assembly, Outside Rear View Tip: Disconnect the electrical connector if door has power mirror.
