Installation Procedure

Install the battery current sensor if previously removed or negative battery cable was replaced. Refer to Battery Current Sensor Replacement .

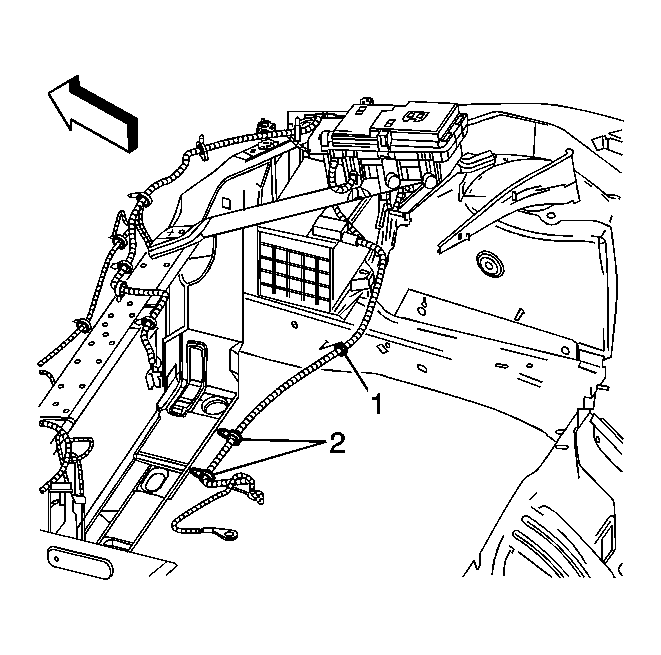

Fig 1: View Of Cable Retainers

Courtesy of GENERAL MOTORS CORP.

Install the battery ground (negative) and the battery positive cables to the vehicle.
Install the battery cable conduit retainers to the inner fender (1) and the lower tie bar (2).

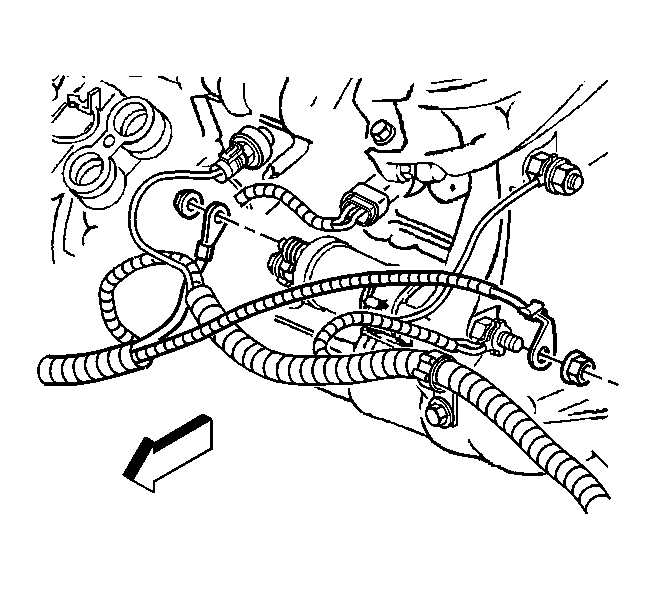

Fig 2: View Of Battery Ground (Negative) Cable Nut & Cable From Transaxle Stud

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the battery positive cable and nut to the starter motor BAT terminal.
Tighten: Tighten the starter motor BAT terminal nut to 10 N.m (89 lb in).
Install the battery ground (negative) cable and nut to the transaxle stud.
Tighten: Tighten the battery ground (negative) cable nut to 25 N.m (18 lb ft).

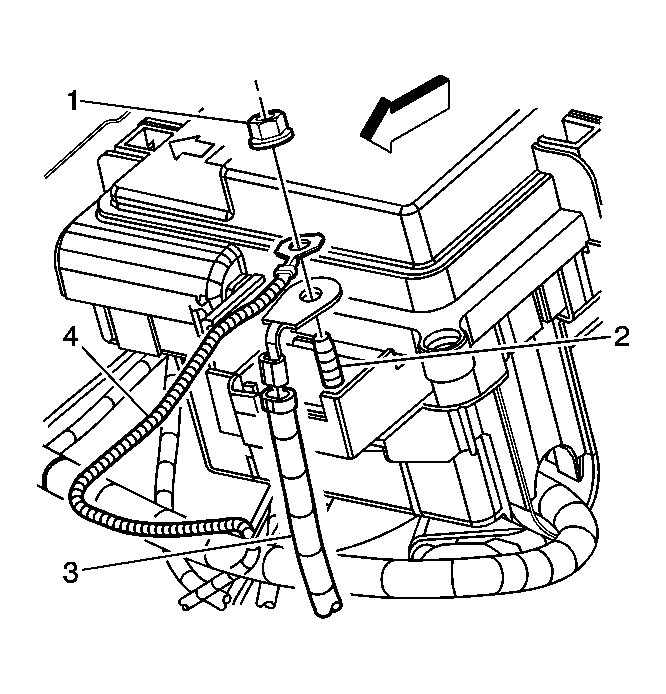

Fig 3: Locating Battery Positive Cable Nut & Cable

Courtesy of GENERAL MOTORS CORP.

Install the battery positive cable (3) and nut (1) to the underhood electrical center.
Tighten: Tighten the nut to 10 N.m (89 lb in).

Fig 4: View Of Battery & Cables

Courtesy of GENERAL MOTORS CORP.

Install the battery ground negative cable nut to the inner fender (4).
Tighten: Tighten the nut to 5 N.m (44 lb in).
Connect the battery positive cable (3) from the battery.
Tighten: Tighten the battery terminal bolt to 16 N.m (12 lb ft).

Fig 5: Disconnecting/Reconnecting Battery Current Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the battery current sensor electrical connector (2).
Install the battery ground (negative) cable to the battery. Refer to Battery Negative Cable Disconnect/Connect Procedure .
