Adjustable Pedals Component Views

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Instrument Panel Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Steering Wheel Controls - Left
3	Instrument Panel Cluster (IPC)
4	Steering Wheel Controls - Right
5	Windshield Wiper/Washer Switch
6	Ignition Switch
7	Hazard Switch
8	Ambient Light Sensor
9	Radio
10	HVAC Control Module
11	Inflatable Restraint I/P Module
12	Traction Control Switch (NW7, NW9), Auxiliary Power Outlet - Front (w/o NW7, NW9)
13	Transmission Shifter
14	Cigar Lighter
15	Horn Buttons/Inflatable Restraint Steering Wheel Module
16	Data Link Connector (DLC)
17	Fog Lamp Switch (T96)
18	Dimmer Switch
19	Adjustable Pedals Position Switch (JF4)

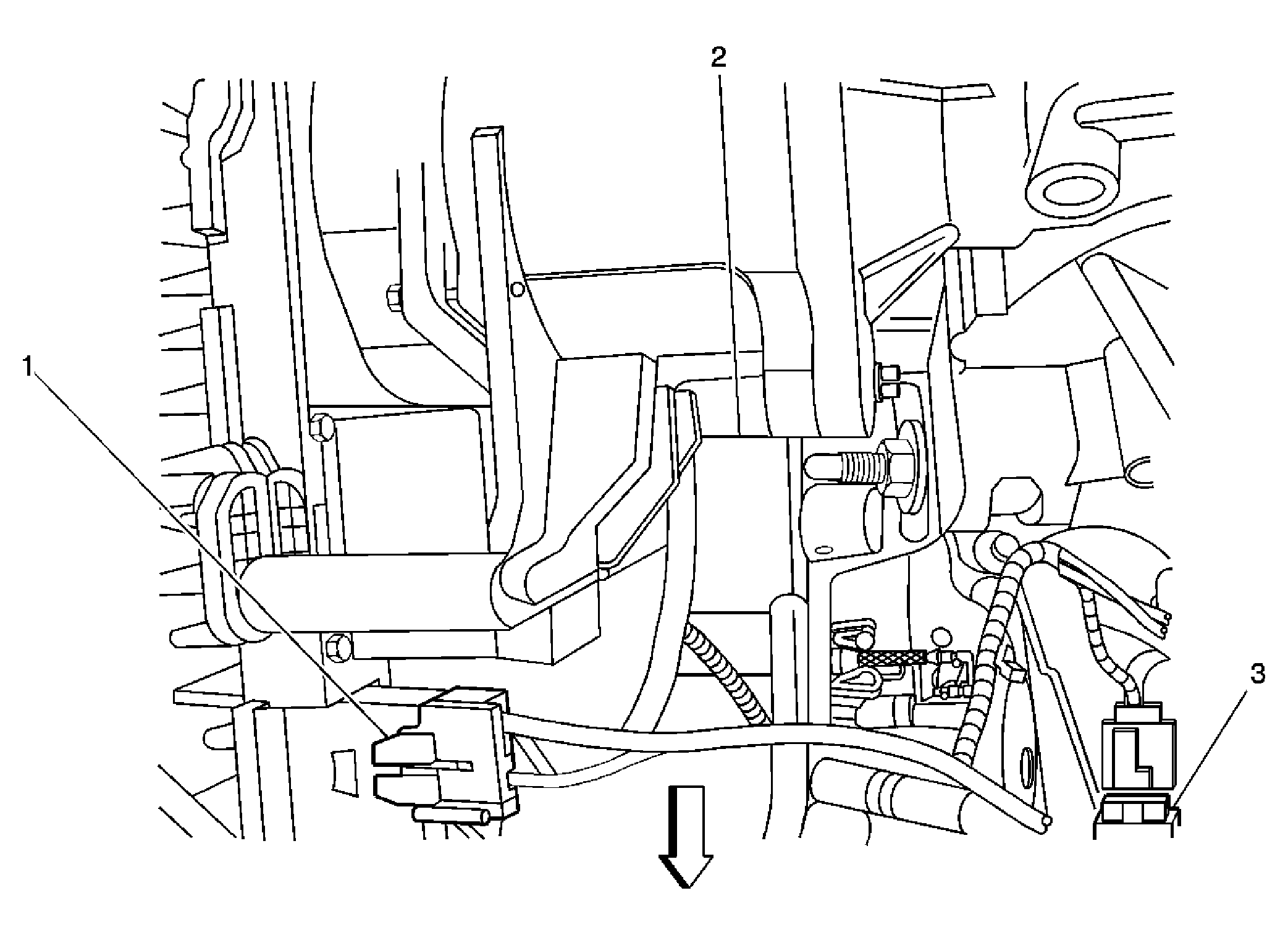

Fig 2: Under I/P Left of Brake Pedal Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Power Steering Control Module
2	Adjustable Pedals Module
3	Brake Pedal Position Sensor

Fig 3: Above Brake Pedal Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Pedal Position Sensor
2	Adjustable Pedals Position Sensor

Fig 4: Left Side of HVAC Case Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Accelerator Pedal Position (APP) Sensor
2	Adjustable Pedals Actuator
3	Air Temp Sensor - Upper (C68)
4	Air Temperature Actuator
