Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

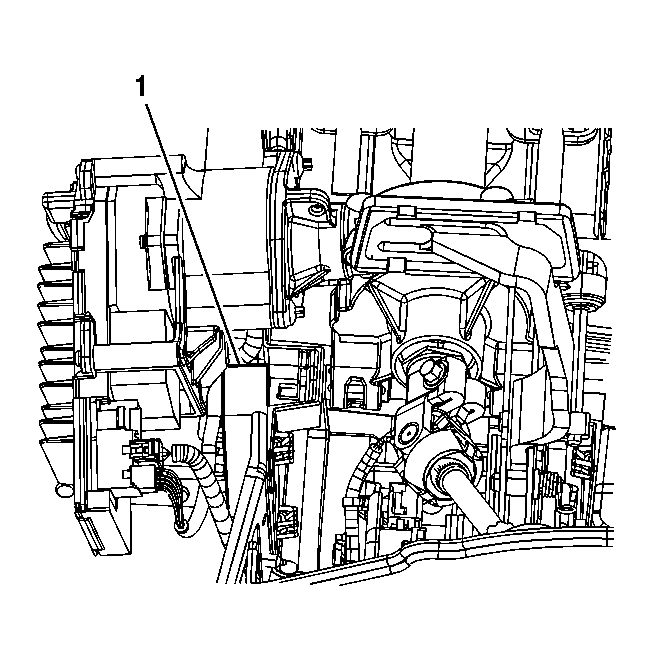

Fig 1: Removing/Installing Adjustable Pedal Module From Side Of I/P Support Beam

Courtesy of GENERAL MOTORS CORP.

Remove the old 2-sided tape from the I/P support beam.
If reinstalling the same adjustable pedal module, install NEW 2-sided tape to the module.
Connect the electrical connector to the adjustable pedal module.
Install the adjustable pedal module (1) to the side of the I/P support beam.
Install a NEW tie strap to secure the adjustable pedal module to the I/P support beam.
Install the closeout panel. Refer to Closeout/Insulator Panel Replacement - Left in Instrument Panel, Gages, and Console.
