Wiper/Washer System Component Views
WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Windshield Washer Fluid Level Switch |
| 2 | Windshield Washer Fluid Pump |
| 3 | Horn Assembly |
| Callout | Component Name |
|---|---|
| 1 | Windshield Wiper Motor Assembly |
| Callout | Component Name |
|---|---|
| 1 | Turn Signal/Multifunction Switch |
| 2 | Steering Wheel Controls - Left (K34/UK3) |
| 3 | Instrument Panel Cluster (IPC) |
| 4 | Steering Wheel Controls - Right (K34/UK3) |
| 5 | Windshield Washer/Wiper Switch |
| 6 | Ignition Switch |
| 7 | Hazard Switch |
| 8 | Ambient Light Sensor |
| 9 | Radio |
| 10 | HVAC Control Module |
| 11 | Inflatable Restraint I/P Module |
| 12 | Rear Wiper/Washer Switch (C25) |
| 13 | Auxiliary Power Outlet - Front (w/o NW7, NW9) |
| 14 | Transmission Shifter |
| 15 | Cigar Lighter |
| 16 | Horn Buttons/Inflatable Restraint Steering Wheel Module |
| 17 | Data Link Connector (DLC) |
| 18 | Fog Lamp Switch |
| 19 | Dimmer Switch |
| 20 | Adjustable Pedals Position Switch (JF4) |

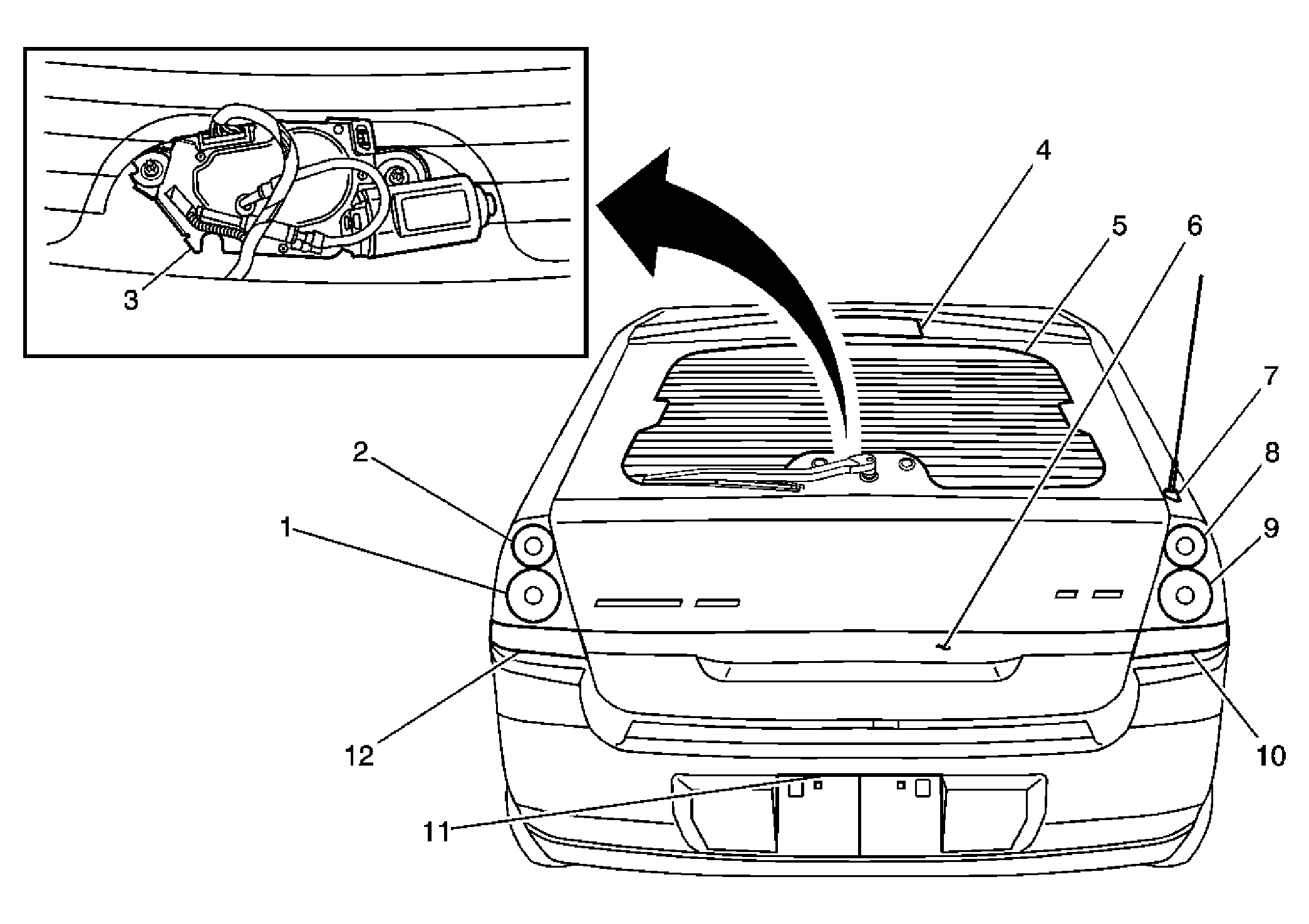

| Callout | Component Name |
|---|---|
| 1 | Tail/Stop and Turn Signal Lamp - Left |
| 2 | Tail Lamp - Left |
| 3 | Rear Window Wiper Module (C25) |
| 4 | Center High Mounted Stop Lamp (CHMSL) |
| 5 | Rear Window Defogger Grid |
| 6 | Liftgate Release Switch |
| 7 | Radio Antenna |
| 8 | Tail Lamp - Right |
| 9 | Tail/Stop and Turn Signal Lamp - Right |
| 10 | Backup Lamp - Right |
| 11 | License Lamp |
| 12 | Backup Lamp - Left |
