Power Roof Systems Component Views
WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Courtesy/Reading Lamps - Front, Left Reading |
| 2 |
Cellular Telephone Microphone (UE1) |
| 3 |
Sunroof Switch (CF5) |
| 4 |
Garage Door Opener Transmitter (UG1) |
| 5 |
Courtesy/Reading Lamps - Front, Right Reading |
| 6 |
Dome/Reading Lamp |
| 7 |
Sunroof (CF5) |
| 8 |
Vanity Mirror Lamp - Right |
| 9 |
Inside Rearview Mirror |
| 10 |
OnStar Keypad (UE1) |
| 11 |
Vanity Mirror Lamp - Left |
Courtesy of GENERAL MOTORS CORP.

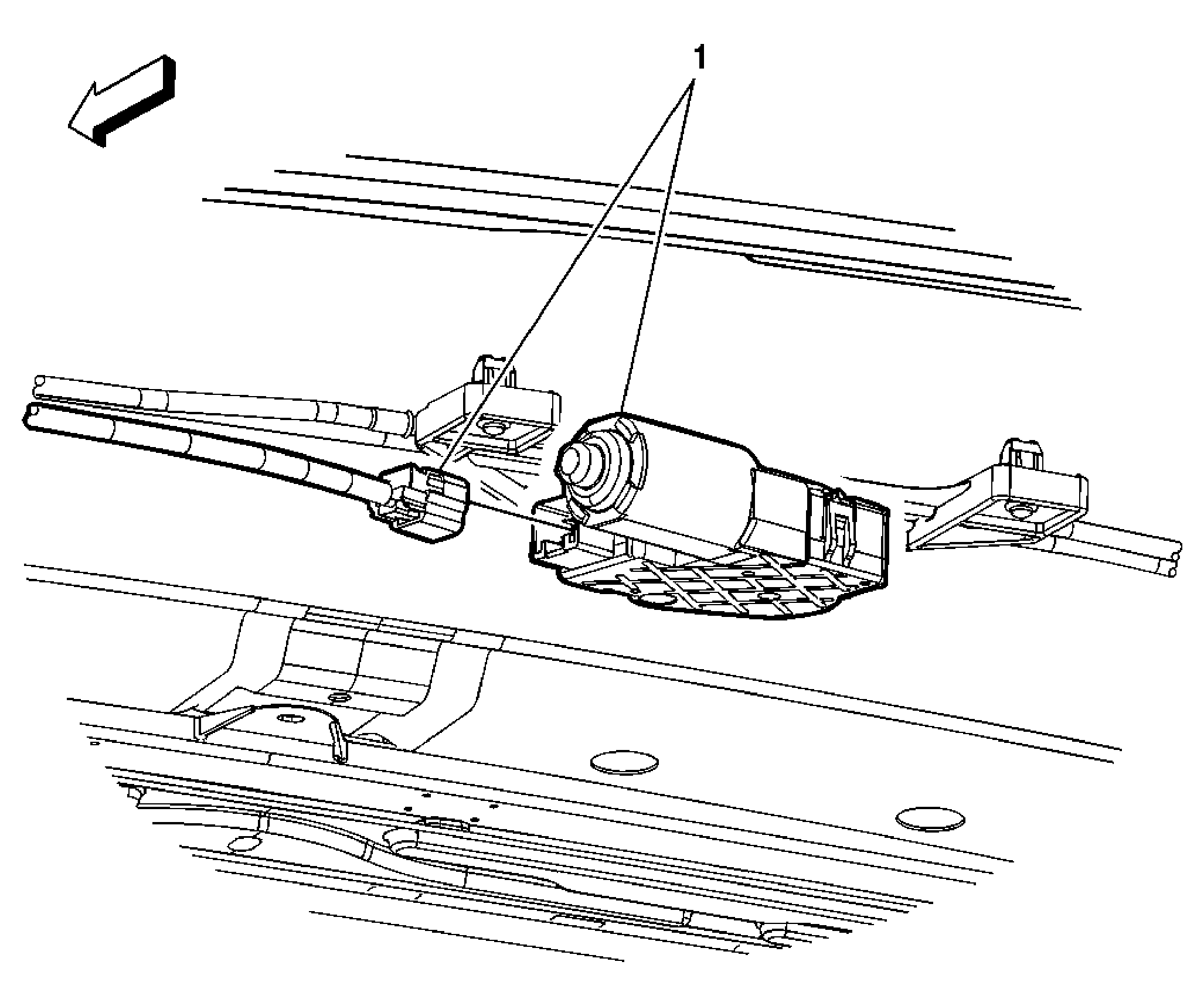

| Callout |
Component Name |
| 1 |
Sunroof Control Module |
