Lighting Systems Component Views

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Front Of Vehicle Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - Low Beam - Right
2	Headlamp - High Beam - Right
3	Digital Radio Antenna (U2K)
4	Cellular and Navigation Antenna (UE1)
5	Headlamp - High Beam - Left
6	Headlamp - Low Beam - Left
7	Park/Turn Signal/DRL Lamp - LF
8	Fog Lamp - LF (T96)
9	Fog Lamp - RF (T96)
10	Park/Turn Signal/DRL Lamp - RF

Fig 2: Forward Overhead View Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Courtesy/Reading Lamps - Front, Left Reading
2	Cellular Telephone Microphone (UE1)
3	Sunroof Switch (CF5)
4	Garage Door Opener Transmitter (UG1)
5	Courtesy/Reading Lamps - Front, Right Reading
6	Dome/Reading Lamp
7	Sunroof (CF5)
8	Vanity Mirror Lamp - Right
9	Inside Rearview Mirror
10	OnStar Keypad (UE1)
11	Vanity Mirror Lamp - Left

Fig 3: Instrument Panel Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Steering Wheel Controls - Left
3	Instrument Panel Cluster (IPC)
4	Steering Wheel Controls - Right
5	Windshield Wiper/Washer Switch
6	Ignition Switch
7	Hazard Switch
8	Ambient Light Sensor
9	Radio
10	HVAC Control Module
11	Inflatable Restraint I/P Module
12	Traction Control Switch (NW7, NW9), Auxiliary Power Outlet - Front (w/o NW7, NW9)
13	Transmission Shifter
14	Cigar Lighter
15	Horn Buttons/Inflatable Restraint Steering Wheel Module
16	Data Link Connector (DLC)
17	Fog Lamp Switch (T96)
18	Dimmer Switch
19	Adjustable Pedals Position Switch (JF4)

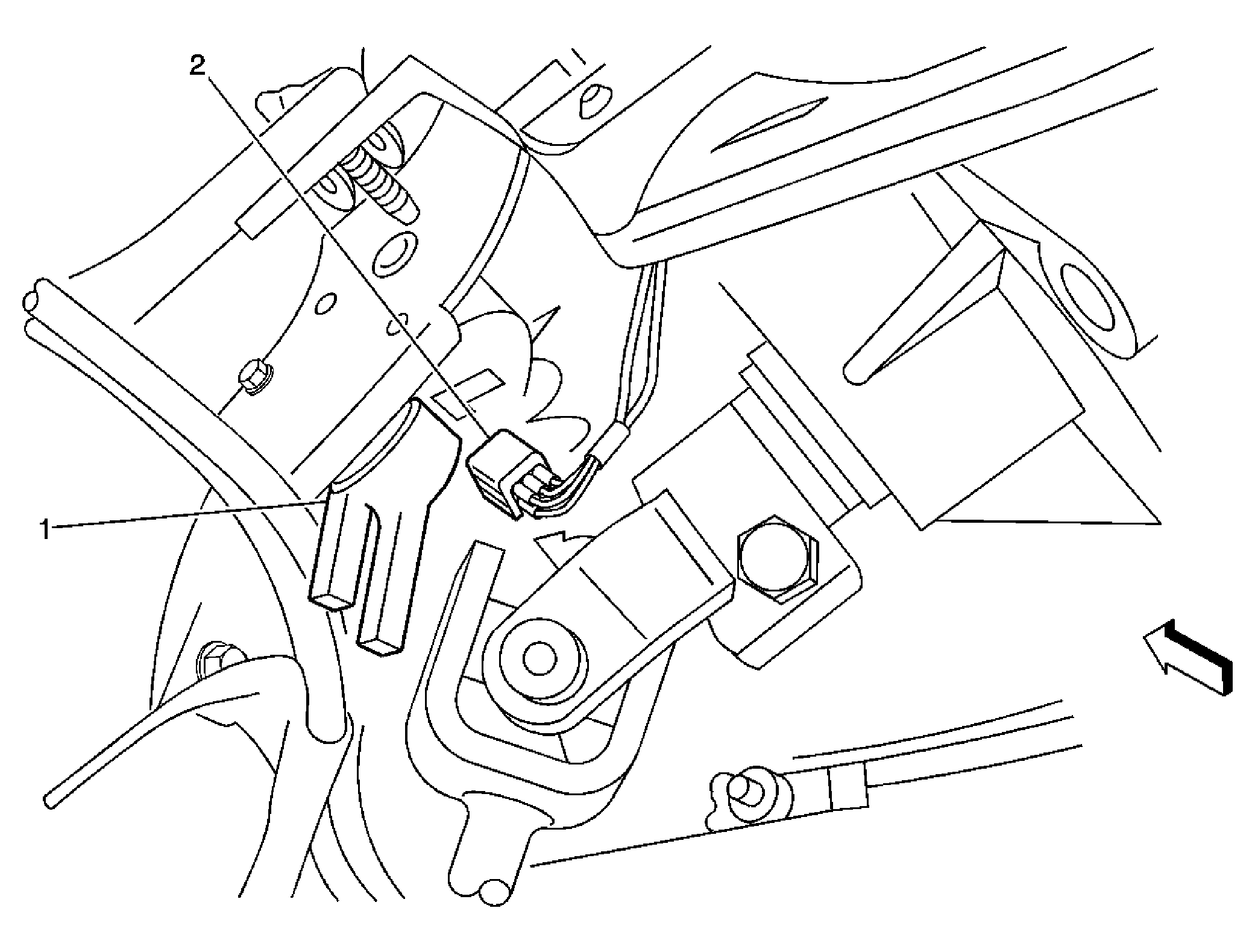

Fig 4: Above Brake Pedal Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Pedal Position Sensor
2	Adjustable Pedals Position Sensor

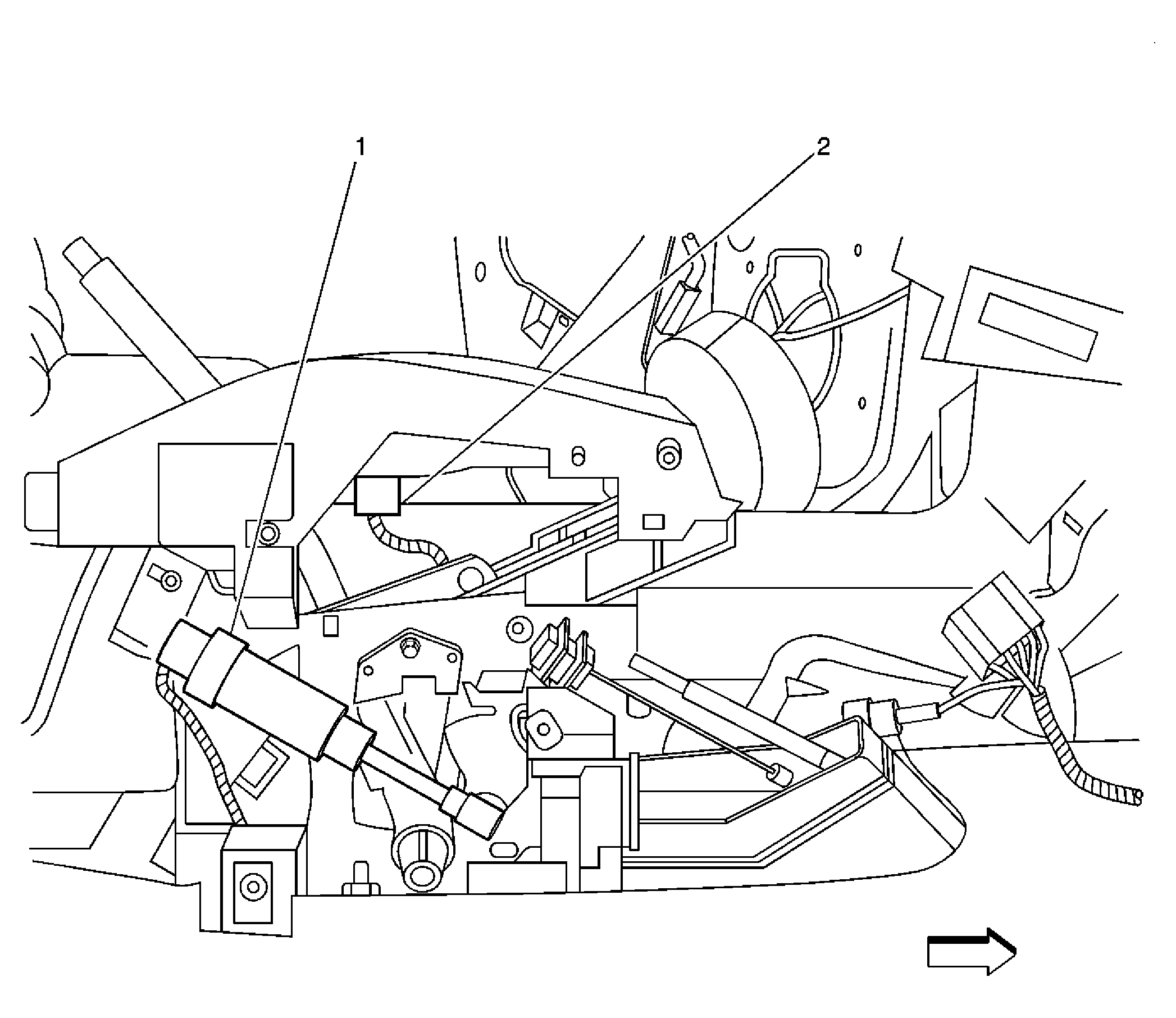

Fig 5: Inside Center Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/T Shift Lock Control Solenoid
2	Transmission Range Indicator Lamp

Fig 6: Inside Center Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/T Shift Lock Control Solenoid
2	Transmission Range Indicator Lamp

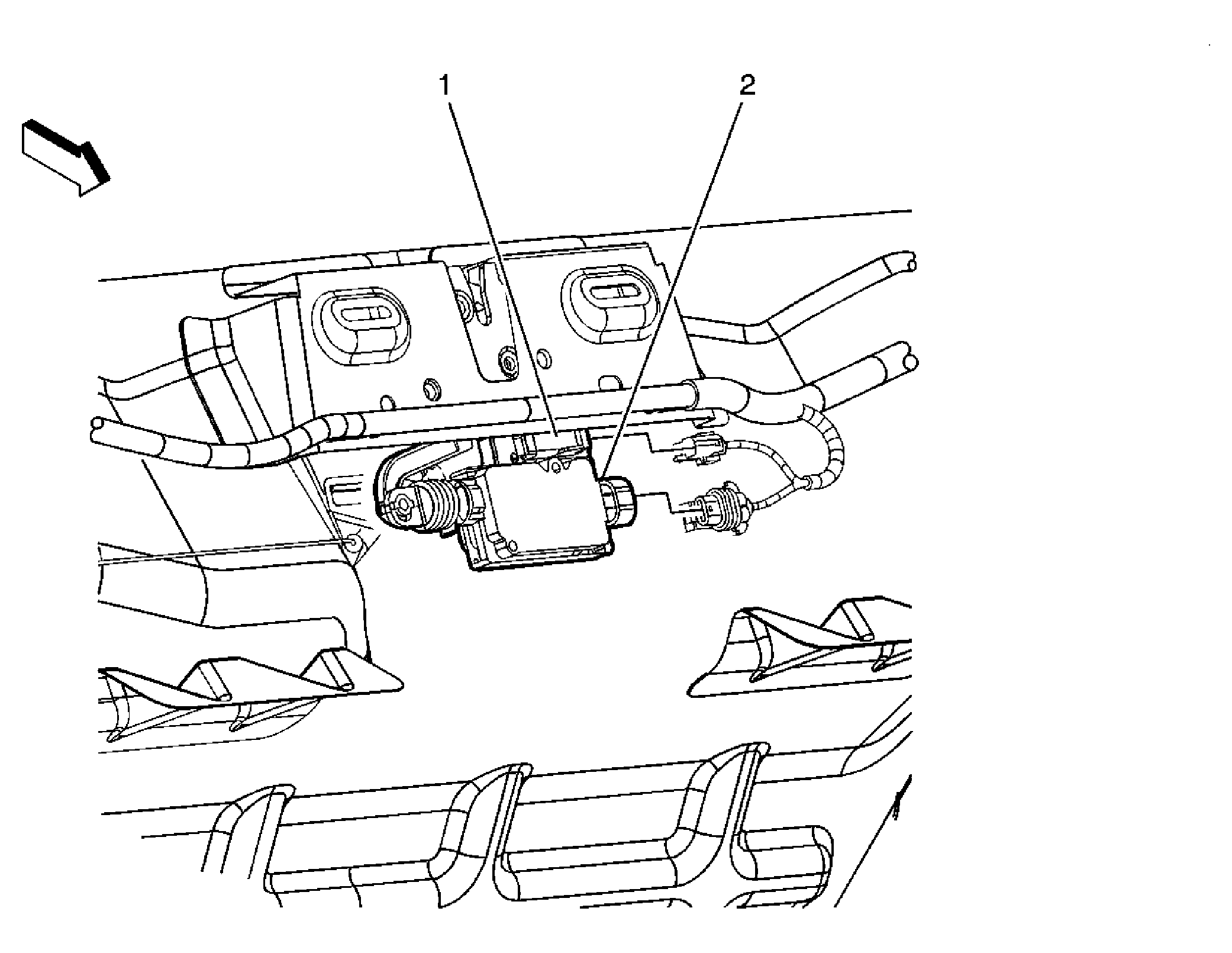

Fig 7: Under the Rear Package Shelf (Sedan)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Courtesy Lamp

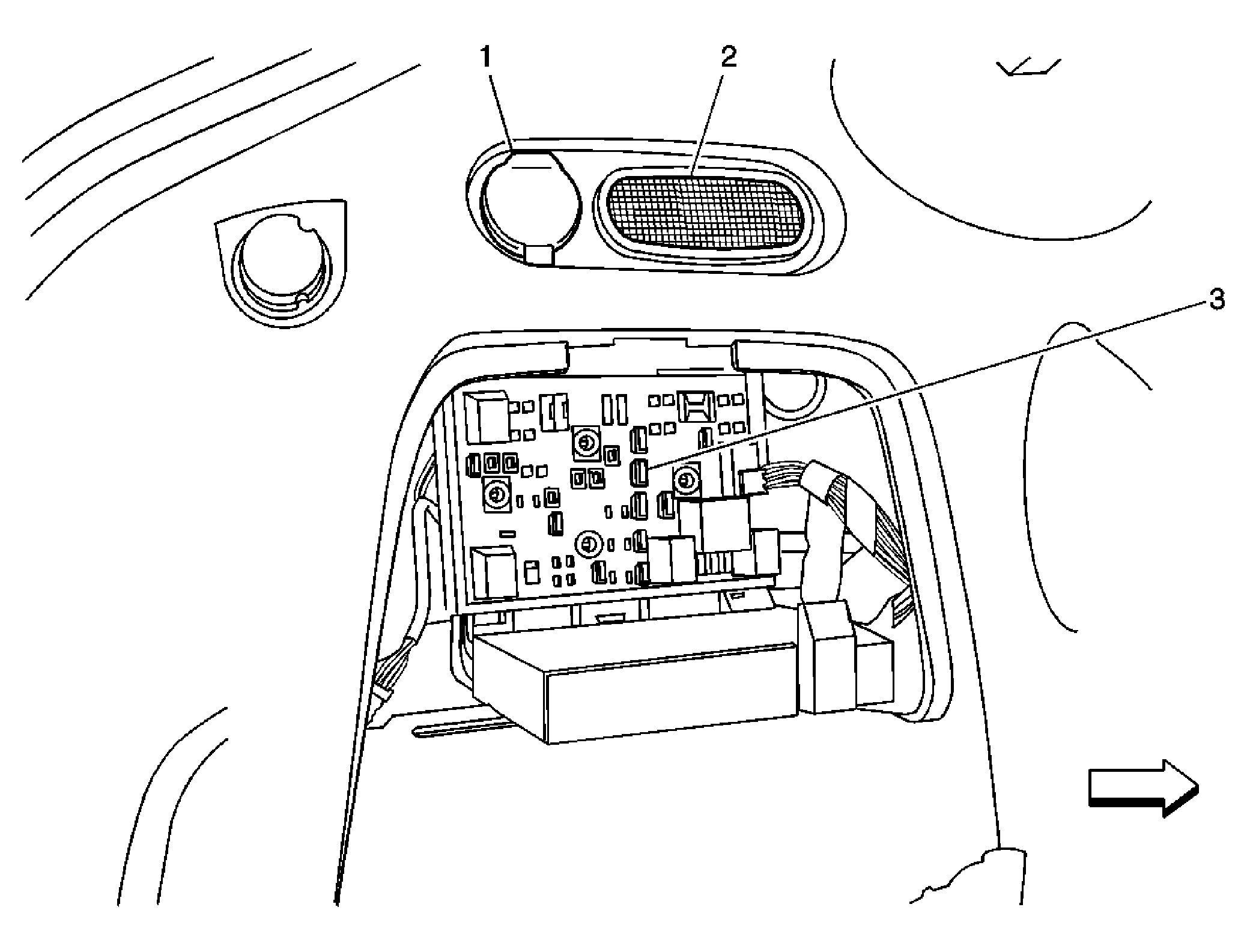

Fig 8: Rear of Left Rear Wheel Well Component View - Extended Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auxiliary Power Outlet - Rear
2	Cargo Lamp
3	Fuse Block - Rear

Fig 9: Body Rear End Component Views - Rear of Rear Hatch - Extended Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cargo Lamp Switch
2	Rear Compartment Lid Latch

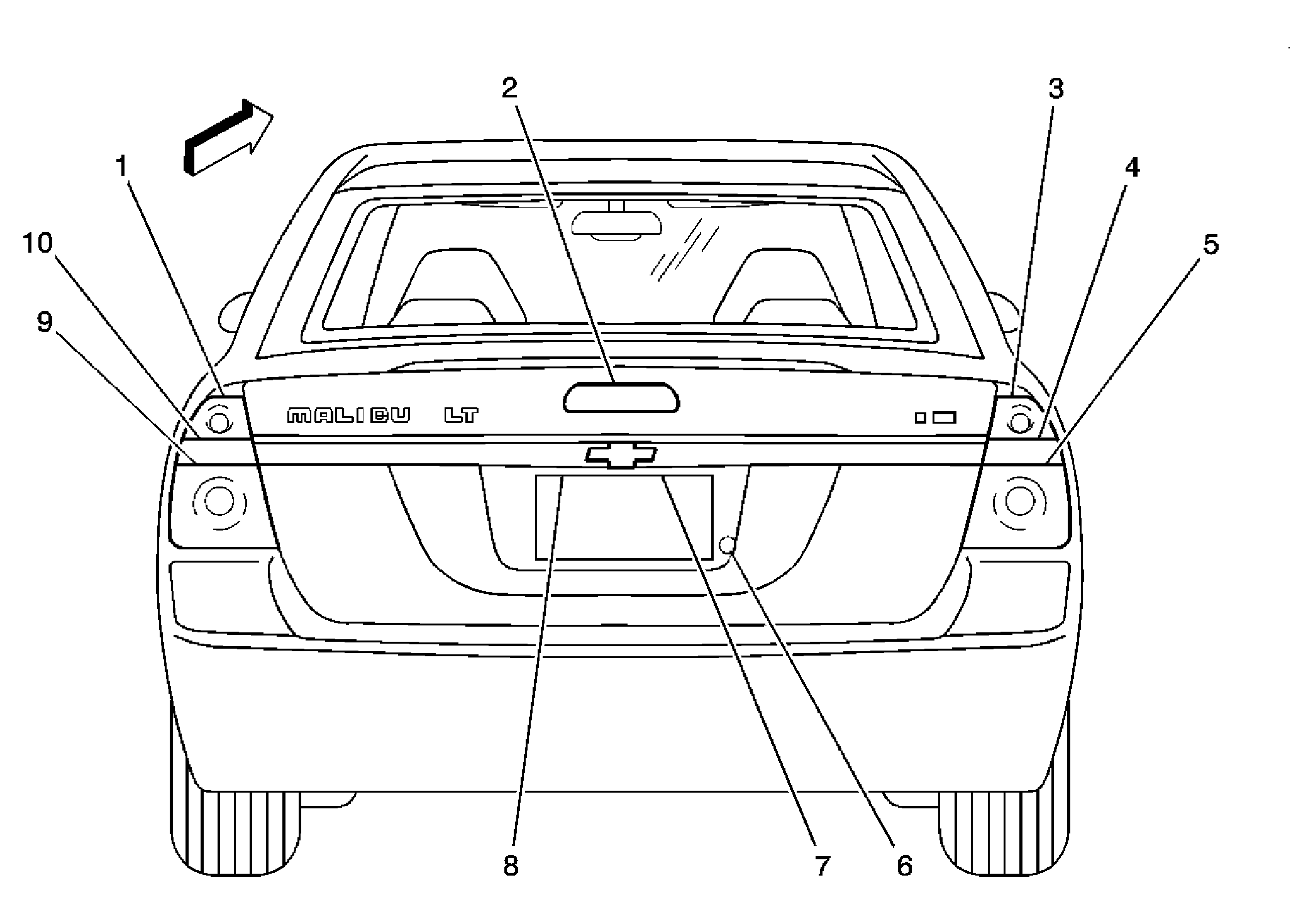

Fig 10: Rear of Vehicle - Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tail Lamp - Left
2	Center High Mounted Stop Lamp (CHMSL)
3	Tail Lamp - Right
4	Backup Lamp - Right
5	Tail/Stop and Turn Signal Lamp - Right
6	Rear Compartment Lid Release Switch - Exterior
7	License Lamp - Right
8	License Lamp - Left
9	Tail/Stop and Turn Signal Lamp - Left
10	Backup Lamp - Left

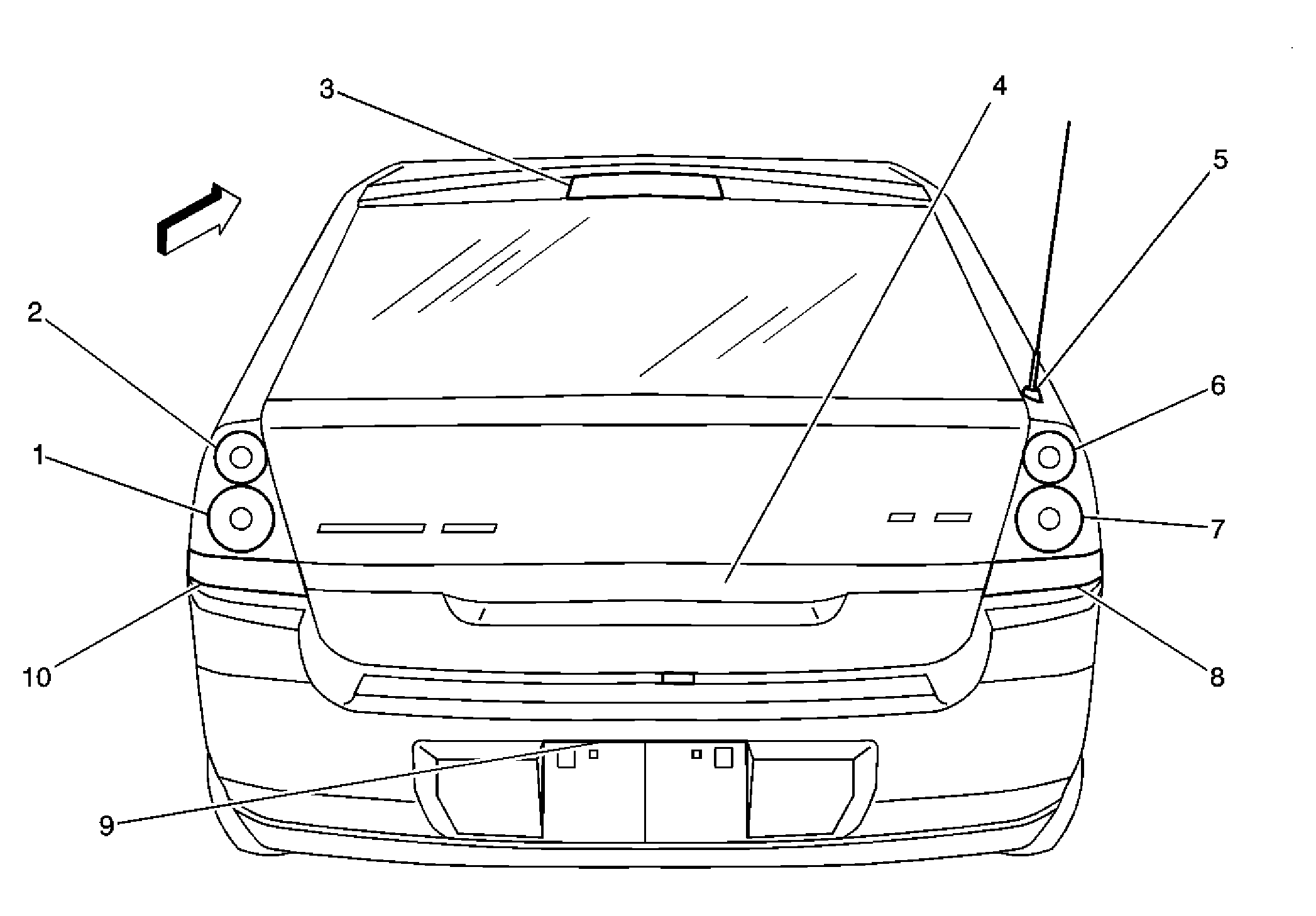

Fig 11: Rear of Vehicle Component Views - Extended Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tail/Stop and Turn Signal Lamp - Left
2	Tail Lamp - Left
3	Center High Mounted Stop Lamp (CHMSL)
4	Liftgate Release Switch
5	Antenna - Radio
6	Tail Lamp - Right
7	Tail/Stop and Turn Signal Lamp - Right
8	Backup Lamp - Right
9	License Lamp
10	Backup Lamp - Left
