Installation Procedure

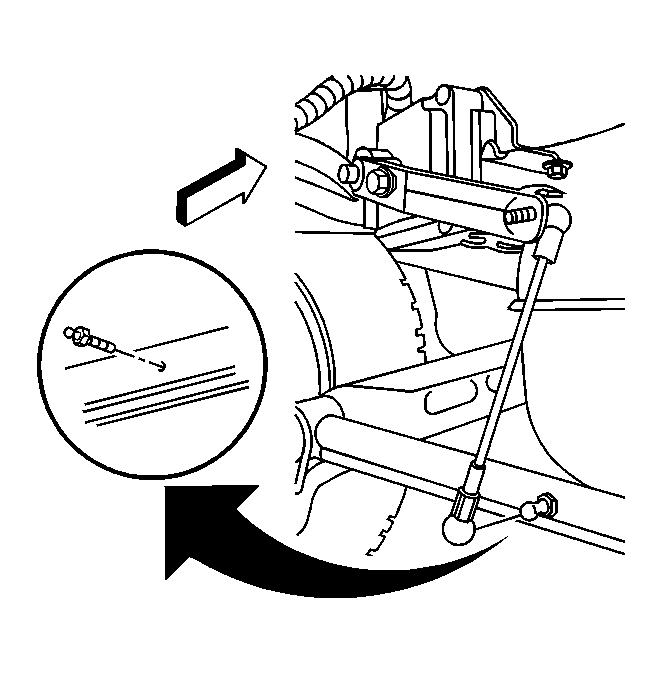

    Fig 1: Locating Automatic Level Control Sensor Link Ball Stud
    GM380438Courtesy of GENERAL MOTORS CORP.
  1. Install the ball stud to the rear suspension.

    Tighten:  Tighten the height sensor ball stud to 4 N.m (35 lb in).

  2. Install the automatic level control sensor link to the rear suspension ball stud.
  3. Lower the vehicle.
  4. Install the ELC/TRAILER fuse.
