Power Window Switch Replacement - Left Front

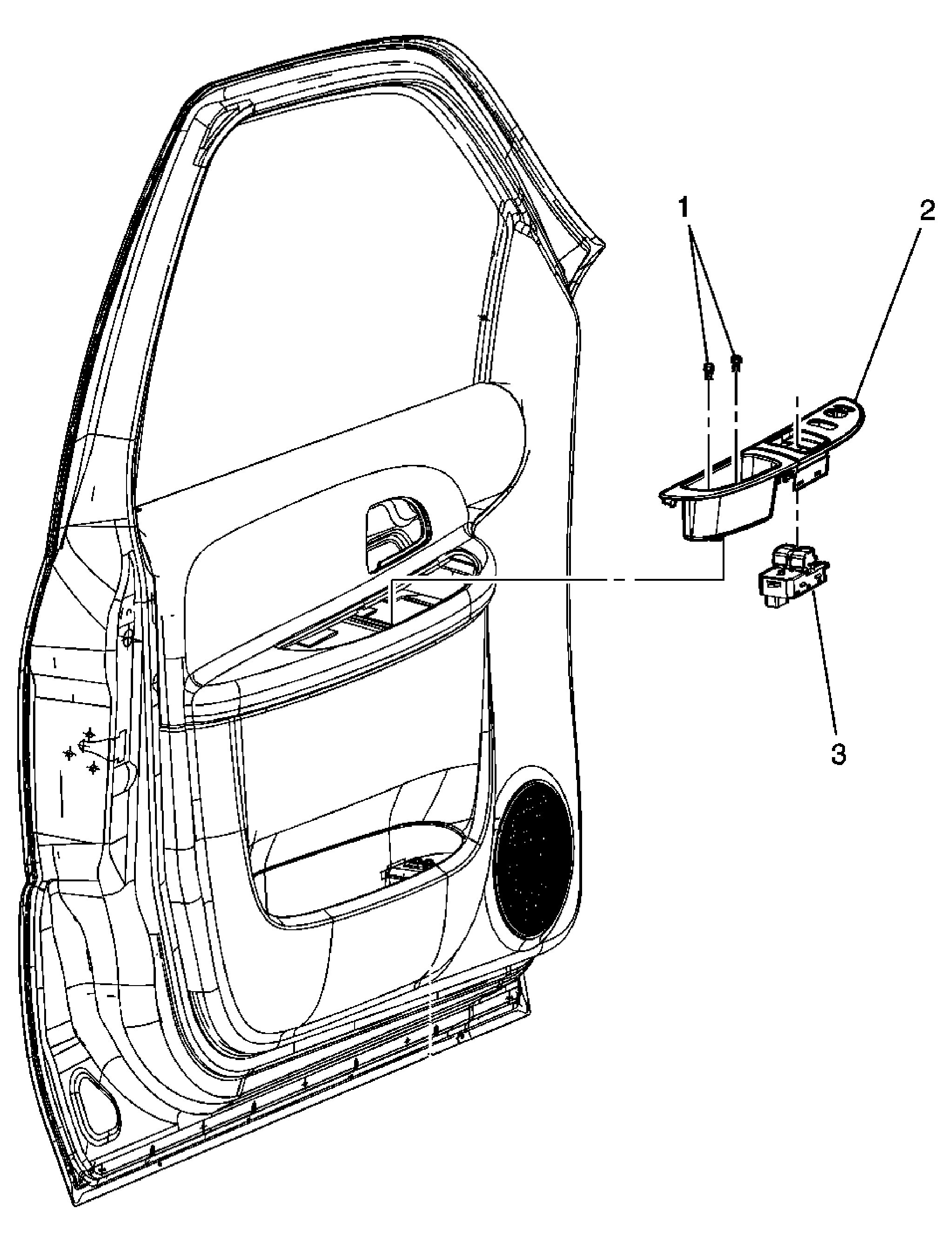

Fig 1: Replacing Power Window Switch - Left Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Screws, Door Pull Handle (Qty: 2) Tighten: 2 N.m (18 lb in)
2	Switch Bezel, Power Window
3	Bezel, Switch Plate
