SIR Identification Views
WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

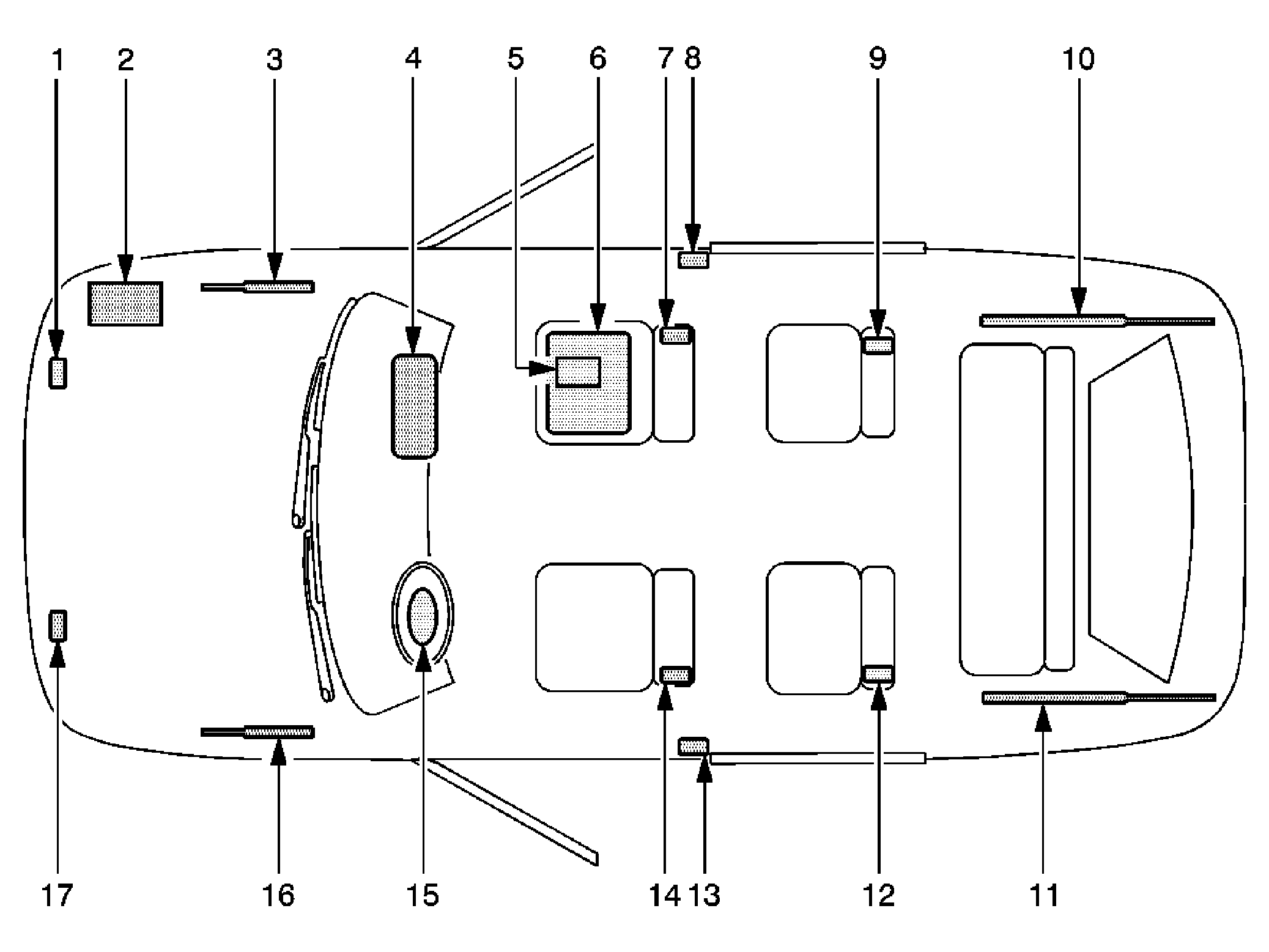

The SIR Identification Views shown below illustrate the approximate location of all SIR components available for the vehicle. This will assist in determining the appropriate SIR Disabling and Enabling for a given service procedure. Refer to SIR Disabling and Enabling .
| Callout | Component Name |
|---|---|
| 1 | Right Front End Sensor - Located on the front of the vehicle in the engine compartment |
| 2 | Vehicle Battery - Located under the hood on the right side |
| 3 | Front Hood Assist Rod - A gas shock located under the front hood on the passenger side |
| 4 | I/P Air Bag - Located at the top right under the instrument panel |
| 5 | Sensing and Diagnostic Module (SDM) - Located underneath the passenger front seat |
| 6 | Passenger Presence System (PPS) - Located on the passenger front seat underneath the seat bottom trim |
| 7 | RF Side Impact Air Bag - Located on the seat back of the passenger front seat |
| 8 | Right Seat Belt Retractor Pretensioner and Right Side Impact Sensor (SIS) - The right SIS is located above the right seat belt retractor pretensioner under the center pillar trim near the bottom on passenger side of vehicle |
| 9 | RR Side Impact Air Bag - Located on the seat back of the right rear bucket seat |
| 10 | Rear Compartment Lid Assist Rod - A gas shock is located under the rear trunk lid on the passenger side |
| 11 | Rear Compartment Lid Assist Rod - A gas shock is located under the rear trunk lid on the driver side |
| 12 | LR Side Impact Air Bag - Located on the seat back of the left rear bucket seat |
| 13 | Left Seat Belt Retractor Pretensioner and Left Side Impact Sensor (SIS) - The left SIS is located above the left seat belt retractor pretensioner under the center pillar trim near the bottom on driver side of vehicle |
| 14 | LF Side Impact Air Bag - Located on the seat back of the driver front seat |
| 15 | Steering Wheel Air Bag - Located on the steering wheel |
| 16 | Front Hood Assist Rod - A gas shock located under the front hood on the driver side |
| 17 | Left Front End Sensor - Located on the front of the vehicle in the engine compartment |
