Inflatable Restraint Instrument Panel Module Replacement

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

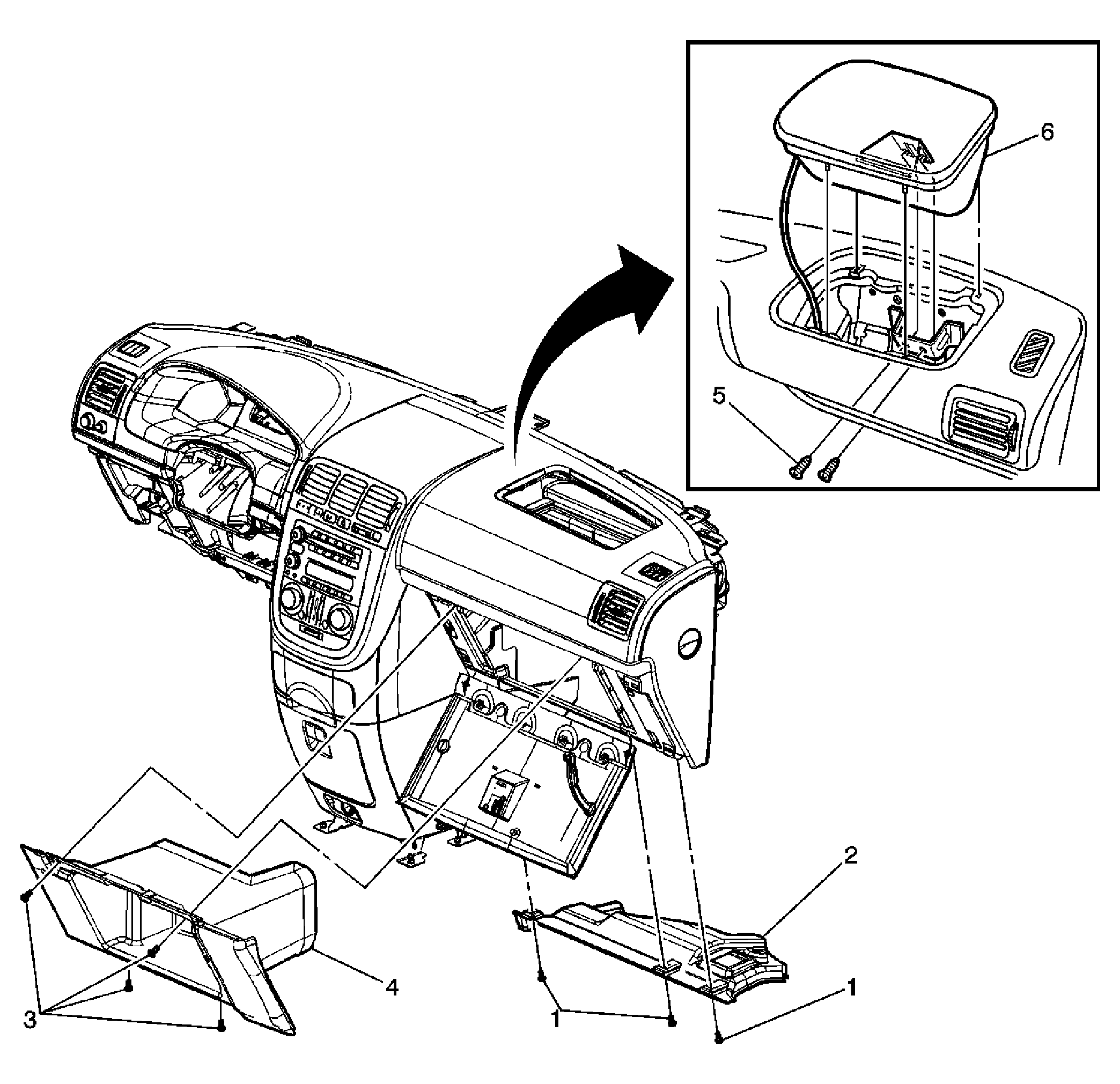

Fig 1: Inflatable Restraint Instrument Panel Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
1	Instrument Panel Insulator Panel Retainers (Qty: 3)
2	Instrument Panel Insulator Panel
3	Instrument Panel Compartment Screw (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
4	Instrument Panel Compartment Assembly
5	Instrument Panel Inflatable Restraint Module Bolt (Qty: 2) Tighten: 10 N.m (89 lb in)
6	Instrument Panel Inflatable Restraint Module Tip: Release tabs while pushing up module. Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module, after the required retention period. Refer to Inflator Module Handling and Scrapping .
