Inflatable Restraint Side Impact Module Replacement - Front

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

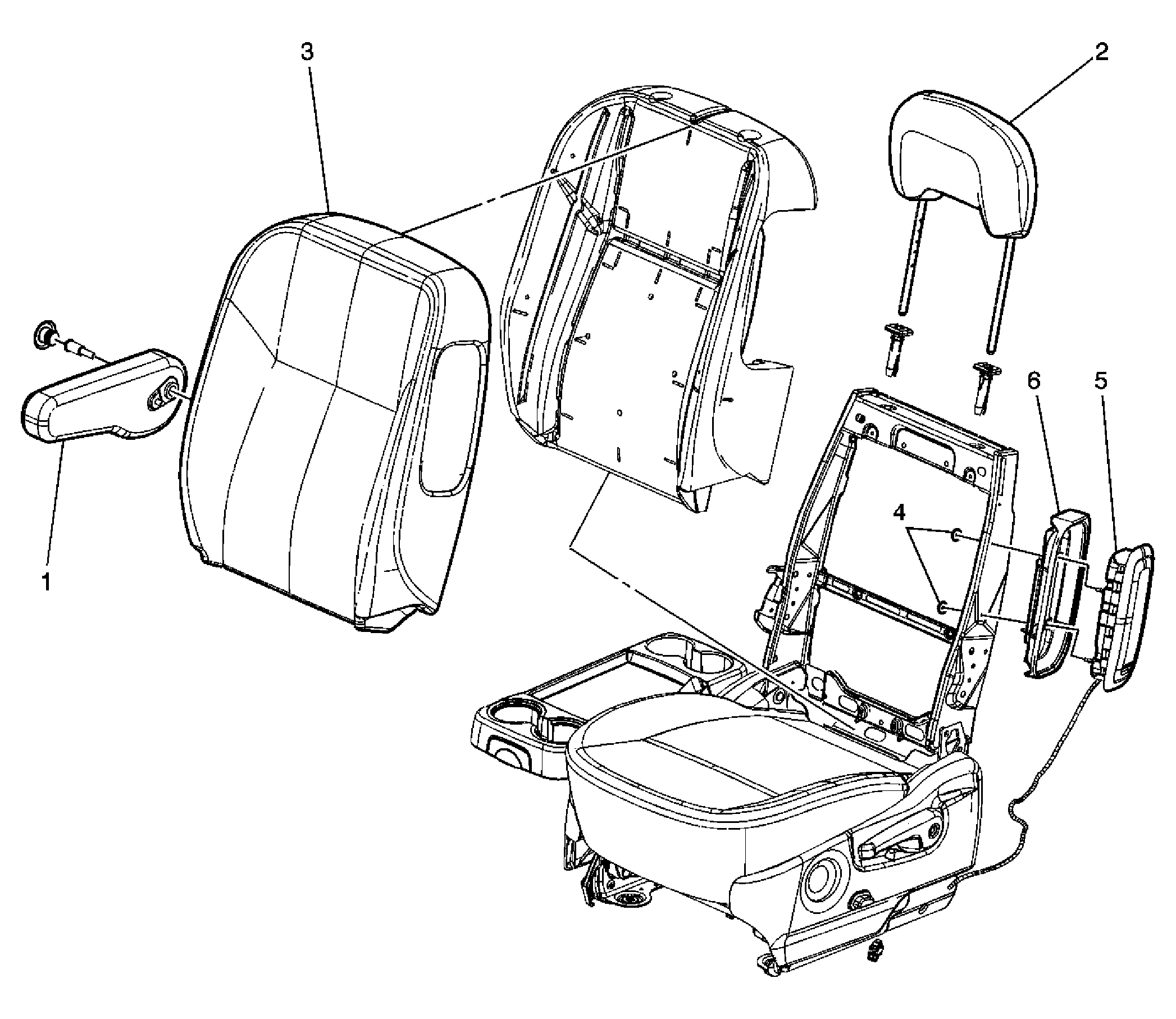

Fig 1: Inflatable Restraint Side Impact Module (Front)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Following the deployment of a side impact air bag, inspect the following parts for damage. Replace these parts if necessary: The seat cushion frame The seat recliner, if equipped The seat adjuster The seat back frame Failure to do so may cause future personal injury. Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the front bucket seat. Refer to Front Seat Replacement - Bucket . Remove the front seat back panel. Refer to Front Seat Back Panel Replacement .
1	Armrest Assembly Refer to Front Seat Armrest Replacement .
2	Head Restraint Assembly Refer to Front Seat Head Restraint Replacement .
3	Seat Back Cushion Cover Refer to Seat Cushion Cover and Pad Replacement - Front .
4	Side Impact Inflatable Restraint Nut (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 5 N.m (44 lb in)
5	Inflatable Restraint Module Assembly Tip: Disconnect the electrical connector. Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module, after the required retention period. Refer to Inflator Module Handling and Scrapping .
6	Side Impact Air Bag Escutcheon Cover
